NR Cell Performance Evaluation with Beam Management

This example models a 5G New Radio (NR) cell with transmit-end beam refinement procedure in the downlink (DL) direction and evaluates the network performance. This example shows how to transmit multiple single-port channel state information reference signal (CSI-RS) resources in different directions for Layer 1 (physical layer) reference signal received power (L1-RSRP) measurements. The gNB scheduler uses the L1-RSRP reports to beamform the physical downlink shared channel (PDSCH) transmissions for better signal-to-noise-ratio (SNR) at the UEs. You can modify the gNB scheduler to select the beam direction for PDSCH transmissions.


Downlink beamforming improves the network performance by utilising the multi-antenna configuration to focus energy of the signals in a direction which results in better SNR at a UE. Additionally, beamforming also limits the interference in other directions. For efficient DL beamforming, gNB relies on the channel state information resource indicator (CRI) and L1-RSRP feedback from the UEs. The UEs measure the L1-RSRP on multiple CSI-RS resources where each resource corresponds to one direction, and reports the gNB with the CRI having the highest L1-RSRP.

The example models multiple sets of CSI-RS beams for L1-RSRP measurements. Each set corresponds to a wider synchronization signal block (SSB) beam and contains finer CSI-RS beams within the SSB beam. The example does not model the SSB beam sweeping process for initial acquisition, and assumes the SSB beam associated with each UE to be the beam with angular range covering the line-of-sight path from the gNB.

This example models:

  • DL channel quality measurement and reporting by UEs based on the multi-port CSI-RS received from the gNB. The report includes rank indicator (RI), precoding matrix indicator (PMI), and channel quality indicator (CQI). The example supports Type-1 single-panel codebook for PMI.

  • DL L1-RSRP measurement and CRI reporting by UEs based on the single-port CSI-RS received from the gNB.

  • Transmit end beam refinement in DL direction using CRI-RSRP feedback.

  • Single-codeword DL spatial multiplexing to perform multi-layer transmission. Single-codeword limits the number of transmission layers to 4.

  • Precoding to map the transmission layers to antenna ports.

  • Digital beamforming of PDSCH based on the CRI feedback from the UEs.

  • Free space path loss (FSPL), additive white Gaussian noise (AWGN), and clustered delay line (CDL) propagation channel model.

Nodes send the control packets (buffer status report (BSR), DL assignment, UL grants, PDSCH feedback, CSI report, and CRI-RSRP reports) out of band, without the need of resources for transmission and assured error-free reception.


The key aspects of multiple-input multiple-output (MIMO) include precoding, beamforming, channel measurement and reporting.

Layer mapping

The layer mapping process maps the modulated symbols of the codeword onto different layers.


Precoding, which follows the layer mapping, maps the transmission layers to antenna ports. Precoding applies a precoding matrix to the transmission layers and outputs data streams to the antenna ports.


Beamforming involves the use of multiple radiating elements transmitting the same signal to produce a longer and narrower beam in a particular direction. The higher the number of antennas, the narrower the beamwidth.

Beam management is a set of physical (PHY) layer and medium access control (MAC) layer procedures to acquire and maintain a set of beam pair links (a beam used at gNB paired with a beam used at UE). There are three procedures defined for beam management. For more detailed information about the beam management procedure, refer to NR Downlink Transmit-End Beam Refinement Using CSI-RS example.

The current example focuses on the Procedure 2 (P-2) beam measurement and beam reporting procedures which involves sending single port CSI-RS resources over highly directional beams to each UE. The RSRP measurements over each of these resources are then reported back to the gNB which is used to perform transmit beam refinement for all subsequent downlink transmissions intended for the UE till the next L1-RSRP measurement.

DL Channel Measurement and Reporting

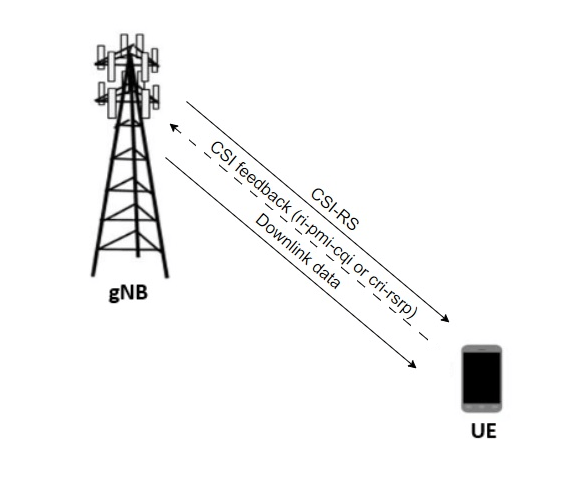

CSI reporting is the process by which a UE, for DL transmissions, advises a suitable number of transmission layers (rank), PMI, and CQI values to the gNB. The UE estimates these values by performing channel measurements on its configured CSI-RS resources. For more details, see the 5G NR Downlink CSI Reporting example. The gNB scheduler uses this advice to decide the number of transmission layers, precoding matrix, and modulation and coding scheme (MCS) for PDSCHs.

The UE also uses the CSI report to indicate the CRI, and the L1-RSRP to aid the gNB in transmit beam refinement.

NR Protocol Stack

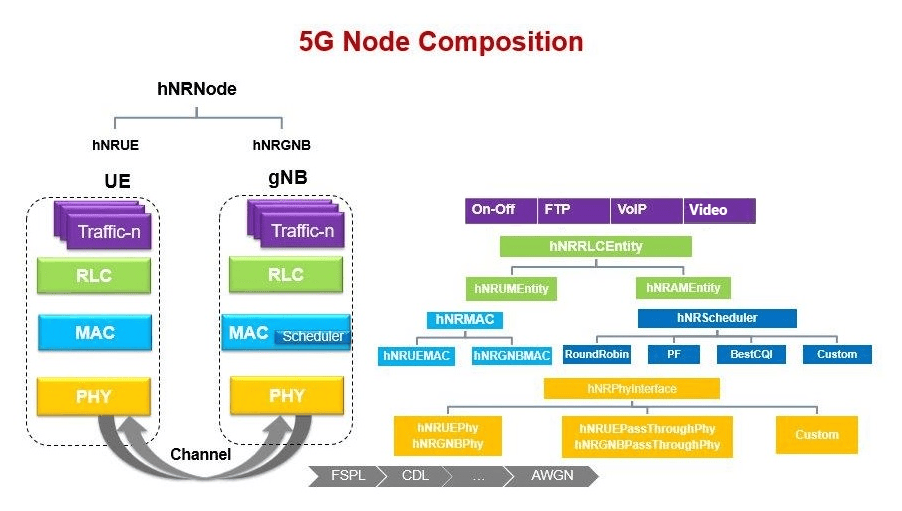

A node (gNB or UE) is a composition of NR stack layers. The helper classes hNRGNB.m and hNRUE.m create gNB and UE nodes, respectively, containing the radio link control (RLC), MAC and PHY layer. For more details, see the NR Cell Performance Evaluation with Physical Layer Integration example.

Scenario Configuration

Configure simulation parameters in the simParameters structure.

rng('default');                  % Reset the random number generator
simParameters = [];              % Clear the simParameters variable
simParameters.NumFramesSim = 10; % Simulation time in terms of number of 10 ms frames

Enable or disable DL beamforming.

enableBeamforming = true;

Specify the azimuth sweep angles and direction of SSBs.

Azimuth angle is the angle measured in the horizontal plane ranging from [-180, 180] and

Elevation angle is the angle measured in the vertical plane ranging from [-90, 90] between horizontal plane and line of sight (LOS) point in the Spherical coordinate system.

if enableBeamforming
    % Number of SSBs
    numSSBs = 4;
    % Total azimuthal range for all SSBs corresponding to a 120 degrees sectorized cell
    sweepRangeAz = [-60, 60];
    % Sweep range for non-overlapping SSB directions
    ssbSweepRange = diff(sweepRangeAz)/numSSBs;
    % Azimuthal angles for SSB beam sweeping in the azimuthal range
    ssbTxAngles = [-60 -20 20 60];
    % Elevation range for all SSBs sweeping in the azimuthal angles
    elSweepRange = [-45, 0];

Specify the number of UEs in the cell, assuming that UEs have sequential radio network temporary identifiers (RNTIs) from 1 to simParameters.NumUEs. If you change the number of UEs, ensure that the number of rows in simParameters.UEPosition is equal to the value of simParameters.NumUEs.

simParameters.NumUEs = 3;
% Position of gNB in (x,y,z) coordinates
simParameters.GNBPosition = [0, 0, 0];
% Specify UE position in spherical coordinates (r,azimuth,elevation)
% relative to gNB. Here 'r' is the distance, 'azimuth' is the angle in the
% horizontal plane and elevation is the angle in the vertical plane. When
% beamforming is enabled, all the UE positions must lie with in the azimuth
% and elevation range limits of SSBs as defined above. It is a matrix of
% size N-by-3 where N is the number of UEs. Row 'i' of the matrix contains
% the coordinates of UE with RNTI 'i'
ueRelPosition = [500, -5, -5;
    500, -60, -30;
    500, -10, -20];
if enableBeamforming
    validateattributes(ueRelPosition(:,2),{'numeric'},{'nonempty','real','vector', ...
        '>=',sweepRangeAz(1),'<=',sweepRangeAz(2),'finite'}, ...
        'ueRelPosition(:,2)','azimuth angles');
    validateattributes(ueRelPosition(:,3),{'numeric'},{'nonempty','real','vector', ...
        '>=',elSweepRange(1),'<=',elSweepRange(2),'finite'}, ...
        'ueRelPosition(:,3)','elevation angles');
% Convert Spherical to Cartesian coordinates considering gNB position as origin
[xPos, yPos, zPos] = sph2cart(deg2rad(ueRelPosition(:, 2)),deg2rad(ueRelPosition(:, 3)), ...
    ueRelPosition(:, 1));
% Global coordinates of UEs
simParameters.UEPosition = [xPos, yPos, zPos] + simParameters.GNBPosition;
% Validate the UE positions
validateattributes(simParameters.UEPosition, {'numeric'},{'nonempty','real', ...
    'nrows',simParameters.NumUEs,'ncols',3,'finite'}, ...

Set the channel bandwidth to 5 MHz and the subcarrier spacing (SCS) to 15 kHz as defined in 3GPP TS 38.104 Section 5.3.2.

simParameters.NumRBs = 25;
simParameters.SCS = 15;                % kHz
simParameters.DLBandwidth = 5e6;       % Hz
simParameters.ULBandwidth = 5e6;       % Hz
simParameters.DLCarrierFreq = 2.646e9; % Hz
simParameters.ULCarrierFreq = 2.535e9; % Hz

Specify the transmit (Tx) and receive (Rx) antenna panel geometry at the gNB and UEs in the format (M,N,P), where M and N are the number of rows and columns in the antenna array, respectively. P is the number of polarizations (1 or 2).

gNBTxArraySize = [2 4 2];
ueRxArraySize = repmat([1 1 2],simParameters.NumUEs,1);

Configure the gNB transmit antenna panel.

lambda = physconst('LightSpeed')/simParameters.DLCarrierFreq;
simParameters.TxAntPanel = phased.NRRectangularPanelArray('ElementSet', ...
    repmat({phased.NRAntennaElement},1,gNBTxArraySize(3)), ...
    'Size',[gNBTxArraySize(1:2) 1 1],'Spacing', ...
    [0.5*lambda 0.5*lambda 1 1]);

Specify the CSI-RS configuration for RI, PMI and CQI measurements.

csirs = cell(1,simParameters.NumUEs);
csirsOffset = [5 6 10 11];
for csirsIdx = 1:simParameters.NumUEs
    csirs{csirsIdx} = nrCSIRSConfig('NID',1,'NumRB',simParameters.NumRBs, ...
        'RowNumber',11,'SubcarrierLocations',[1 3 5 7], ...
        'SymbolLocations',0,'CSIRSPeriod',[20 csirsOffset(csirsIdx)]);
simParameters.CSIRSConfig = csirs;

Specify the CSI-RS resource set configuration associated with each SSB for DL beam refinement. Each resource set contains multiple single-port CSI-RS resources, with each resource corresponding to a particular beam direction within the SSB angular range.

if enableBeamforming
    simParameters.NumCSIRSBeams = 4;
    csirsConfigRSRP = cell(1,numSSBs);
    for ssbIdx = 1:numSSBs
        csirsConfig = nrCSIRSConfig;
        csirsConfig.NID = 1;
        csirsConfig.CSIRSType = repmat({'nzp'},1,simParameters.NumCSIRSBeams);
        csirsConfig.CSIRSPeriod = [40 0];
        csirsConfig.Density = repmat({'one'},1,simParameters.NumCSIRSBeams);
        csirsConfig.RowNumber = repmat(2,1,simParameters.NumCSIRSBeams);
        csirsConfig.SymbolLocations = {1,5,6,7};
        csirsConfig.SubcarrierLocations = repmat({ssbIdx-1},1, ...
        csirsConfig.NumRB = simParameters.NumRBs;
        csirsConfigRSRP{ssbIdx} = csirsConfig;
    simParameters.CSIRSConfigRSRP = csirsConfigRSRP;

Specify the signal-to-interference-plus-noise ratio (SINR) to a CQI index mapping table for a block error rate (BLER) of 0.1. The lookup table corresponds to the CQI table as per 3GPP TS 38.214 Table

simParameters.DownlinkSINR90pc = [-0.4600 4.5400 9.5400 14.0500 16.540 19.0400 ...
    20.5400 23.0400 25.0400 27.4300 29.9300 30.4300 ...
    32.4300 35.4300 38.4300];

Specify the gNB transmit power.

simParameters.GNBTxPower = 34; % In dBm

Configure the channel model.

channelModelDL = cell(1,simParameters.NumUEs);
waveformInfo = nrOFDMInfo(simParameters.NumRBs,simParameters.SCS);
dlchannel = nrCDLChannel('DelayProfile','CDL-D','DelaySpread',300e-9);
for ueIdx = 1:simParameters.NumUEs
    cdl = copyCDL(dlchannel);
    % Configure the channel seed based on the UE number
    % Independent fading for each UE
    cdl.Seed = cdl.Seed + (ueIdx - 1);
    % Compute the LOS angle from gNB to UE
    [~,depAngle] = rangeangle(simParameters.UEPosition(ueIdx, :)', ...
    % Configure the azimuth and zenith angle offsets for this UE
    cdl.AnglesAoD(:) = cdl.AnglesAoD(:) + depAngle(1);
    % Convert elevation angle to zenith angle
    cdl.AnglesZoD(:) = cdl.AnglesZoD(:) - cdl.AnglesZoD(1) + (90 - depAngle(2));
    % Compute the range angle from UE to gNB
    [~,arrAngle] = rangeangle(simParameters.GNBPosition',...
        simParameters.UEPosition(ueIdx, :)');
    % Configure the azimuth and zenith arrival angle offsets for this UE
    cdl.AnglesAoA(:) = cdl.AnglesAoA(:) - cdl.AnglesAoA(1) + arrAngle(1);
    % Convert elevation angle to zenith angle
    cdl.AnglesZoA(:) = cdl.AnglesZoA(:) - cdl.AnglesZoA(1) + (90 - arrAngle(2));
    cdl.CarrierFrequency = simParameters.DLCarrierFreq;
    cdl.TransmitAntennaArray = simParameters.TxAntPanel;
    cdl.ReceiveAntennaArray.Size = [ueRxArraySize(ueIdx, :) 1 1];
    cdl.SampleRate = waveformInfo.SampleRate;
    channelModelDL{ueIdx} = cdl;

Initialize the beamforming weights table for DL beam refinement. It contains the steering vectors corresponding to direction of various CSI-RS beams across all the SSBs. It is of size M x N, where M represents number of transmit antenna elements and N represents number of CSI-RS beams of all SSBs.This table is stored at gNB PHY. For each PDSCH, scheduler selects a column index in this table (corresponding to the beam direction) and conveys the same to PHY.

% Number of transmit antennas
numTxAntennas = prod(gNBTxArraySize);
if enableBeamforming
    enableVerticalBeamSweep = true;
    simParameters.BeamWeightTable = zeros(numTxAntennas, ...
    txArrayStv = phased.SteeringVector('SensorArray',simParameters.TxAntPanel, ...
        'PropagationSpeed',physconst('LightSpeed'), ...
    azBW = beamwidth(simParameters.TxAntPanel,simParameters.DLCarrierFreq, ...
    elBW = beamwidth(simParameters.TxAntPanel,simParameters.DLCarrierFreq, ...
    for beamIdx = 1:numSSBs
        % Get the azimuthal sweep range for every SSB based on the SSB transmit
        % beam direction and its beamwidth in azimuth plane
        azSweepRange = ssbTxAngles(beamIdx) + [-ssbSweepRange/2 ssbSweepRange/2];
        % Get the azimuth and elevation angle pairs for all CSI-RS transmit beams
        csirsBeamAng = hGetBeamSweepAngles(simParameters.NumCSIRSBeams,azSweepRange, ...
        for csirsBeamIdx = 1:simParameters.NumCSIRSBeams
            simParameters.BeamWeightTable(:, simParameters.NumCSIRSBeams*(beamIdx-1) ...
                + csirsBeamIdx) = txArrayStv(simParameters.DLCarrierFreq, ...
    % Initialize the beam index with highest L1-RSRP (for visualization purpose)
    beamIdx = -1*ones(1,simParameters.NumUEs);

Specify the scheduling strategy and the maximum limit on the RBs allotted for PDSCH. The transmission limit applies only to new transmissions and not to the retransmissions.

% Supported scheduling strategies: 'PF', 'RR', and 'BestCQI'
simParameters.SchedulerStrategy = 'PF';
simParameters.RBAllocationLimitDL = 15; % For PDSCH

Logging and visualization configuration

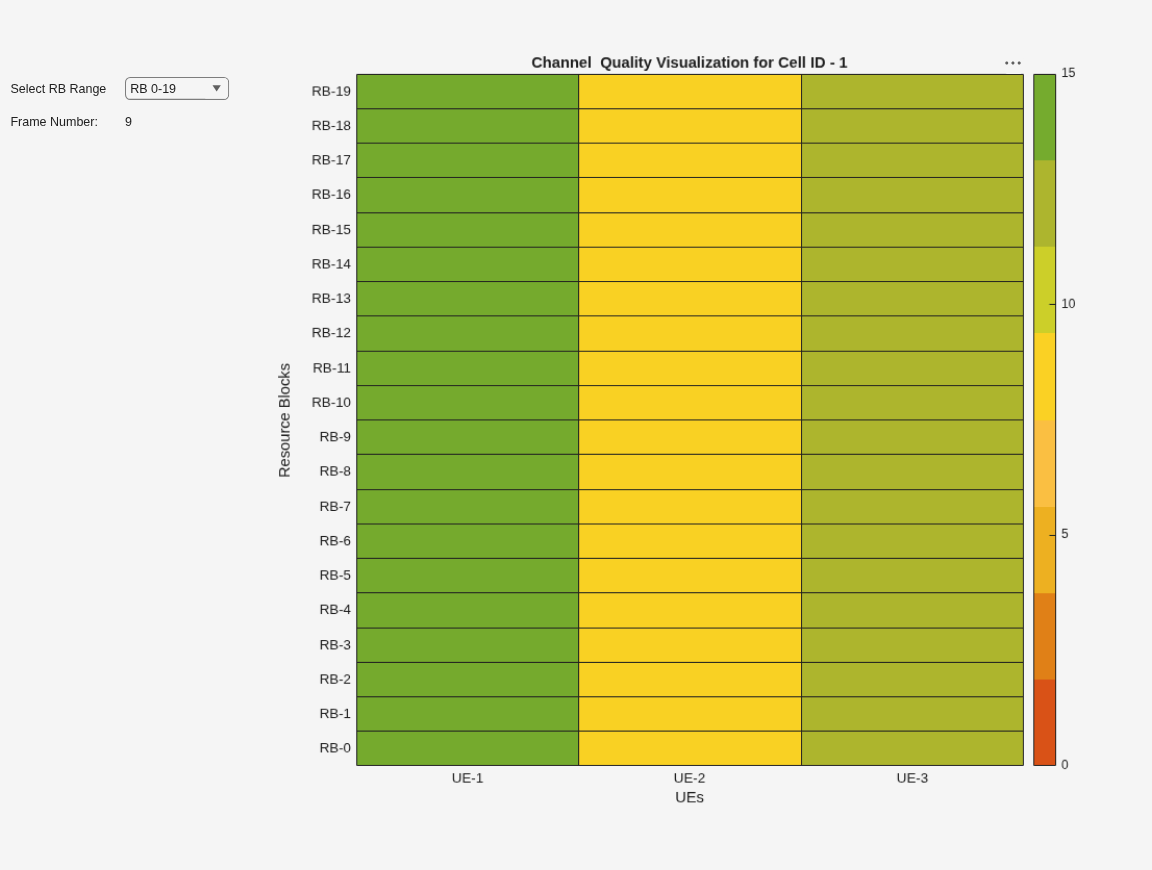

The CQIVisualization and RBVisualization parameters control the display of the CQI visualization and the RB assignment visualization respectively. To enable the RB visualization plot, set the RBVisualization field to true.

simParameters.CQIVisualization = true;
simParameters.RBVisualization = false;

Set the enableTraces to true to log the traces. If the enableTraces is set to false, then CQIVisualization and RBVisualization are disabled automatically and traces are not logged in the simulation. To speed up the simulation, set the enableTraces to false.

enableTraces = true;

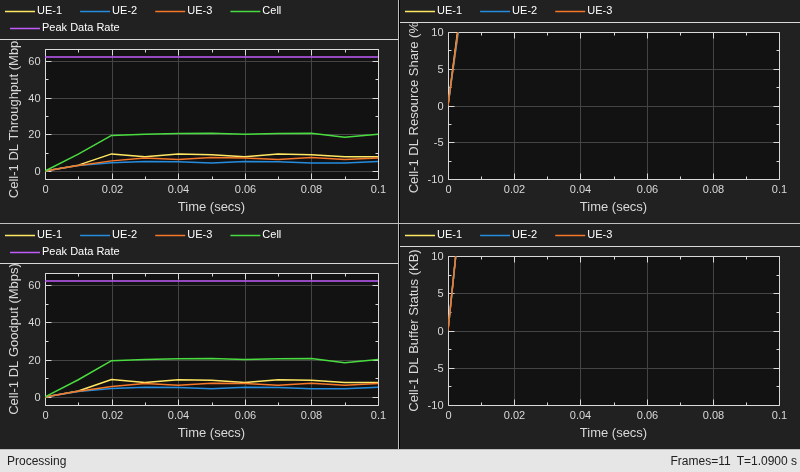

The example updates the metrics plots periodically. Set the number of updates during the simulation.

simParameters.NumMetricsSteps = 10;

Write the logs to MAT-files. You can use these log files for post-simulation analysis and visualization.

parametersLogFile = 'simParameters';         % For logging the simulation parameters
simulationLogFile = 'simulationLogs';        % For logging the simulation traces
simulationMetricsFile = 'simulationMetrics'; % For logging the simulation metrics

Application traffic configuration

Set the periodic DL application traffic pattern for UEs.

% DL application data rate in kilo bits per second (kbps)
dlAppDataRate = 40e3*ones(1,simParameters.NumUEs);
% Validate the DL application data rate
validateattributes(dlAppDataRate,{'numeric'},{'nonempty','vector','numel', ...
    simParameters.NumUEs,'finite','>',0},'dlAppDataRate', ...

Derived Parameters

Compute the derived parameters based on the primary configuration parameters specified in the previous section and set some example-specific constants.

simParameters.DuplexMode = 0;                    % FDD (Value as 0) or TDD (Value as 1)
simParameters.SchedulingType = 0;                % Slot-based scheduling
simParameters.NCellID = 1;                       % Physical cell ID
simParameters.GNBTxAnts = numTxAntennas;
simParameters.UERxAnts = prod(ueRxArraySize,2);

Specify the CSI report configuration.

% [N1 N2] as per 3GPP TS 38.214 Table
csiReportConfig.PanelDimensions = [8 1];
csiReportConfig.CQIMode = 'Wideband';              % 'Wideband' or 'Subband'
% Set codebook mode as 1 or 2. It is applicable only when the number of
% transmission layers is 1 or 2 and number of CSI-RS ports is greater than 2
csiReportConfig.CodebookMode = 1;
simParameters.CSIReportConfig = {csiReportConfig};

Compute the SSB beam corresponding to each UE.

if enableBeamforming
    simParameters.SSBIndex = computeSSBToUE(simParameters,ssbTxAngles,ssbSweepRange);

Compute the number of slots in the simulation.

numSlotsSim = simParameters.NumFramesSim*10/(simParameters.SCS/15);

Set the interval at which the example updates metrics visualization in terms of number of slots. Because this example uses a time granularity of one slot, the MetricsStepSize field must be an integer.

simParameters.MetricsStepSize = ceil(numSlotsSim/simParameters.NumMetricsSteps);
if mod(numSlotsSim, simParameters.NumMetricsSteps) ~= 0
    % Update the NumMetricsSteps parameter if NumSlotsSim is not
    % completely divisible by it
    simParameters.NumMetricsSteps = floor(numSlotsSim/simParameters.MetricsStepSize);

Specify one logical channel for each UE, and set the logical channel configuration for all nodes (UEs and gNBs) in the example.

numLogicalChannels = 1;
simParameters.LCHConfig.LCID = 4;

Specify the RLC entity type in the range [0, 3]. The values 0, 1, 2, and 3 indicate RLC UM unidirectional DL entity, RLC UM unidirectional UL entity, RLC UM bidirectional entity, and RLC AM entity, respectively.

simParameters.RLCConfig.EntityType = 2;

Create RLC channel configuration structure.

% Mapping between logical channel and logical channel group ID
rlcChannelConfigStruct.LCGID = 1;
% Priority of each logical channel
rlcChannelConfigStruct.Priority = 1;
% Prioritized bitrate (PBR), in kilobytes per second, of each logical channel
rlcChannelConfigStruct.PBR = 8;
% Bucket size duration (BSD), in ms, of each logical channel
rlcChannelConfigStruct.BSD = 10;
rlcChannelConfigStruct.EntityType = simParameters.RLCConfig.EntityType;
rlcChannelConfigStruct.LogicalChannelID = simParameters.LCHConfig.LCID;

gNB and UEs Setup

Create the gNB and UE objects, initialize the channel quality information for UEs, and set up the logical channel at the gNB and UE. The helper classes hNRGNB.m and hNRUE.m create the gNB node and the UE node, respectively, each containing the RLC, MAC and PHY.

simParameters.Position = simParameters.GNBPosition;
% Create gNB node
gNB = hNRGNB(simParameters);
% Create scheduler
    % Round robin scheduler
    case 'RR'
        scheduler = hNRSchedulerRoundRobin(simParameters);
    % Proportional fair scheduler
    case 'PF'
        scheduler = hNRSchedulerProportionalFair(simParameters);
    % Best CQI scheduler
    case 'BestCQI'
        scheduler = hNRSchedulerBestCQI(simParameters);

% Add scheduler to gNB
% Create the PHY instance
gNB.PhyEntity = hNRGNBPhy(simParameters);
% Configure the PHY
% Set the interface to PHY

% Create the set of UE nodes
UEs = cell(simParameters.NumUEs,1);
ueParam = simParameters;
for ueIdx=1:simParameters.NumUEs
    % Position of the UE
    ueParam.Position = simParameters.UEPosition(ueIdx,:);
    ueParam.UERxAnts = simParameters.UERxAnts(ueIdx);
    if enableBeamforming
        ueParam.SSBIdx = simParameters.SSBIndex(ueIdx);
    % Assuming same CSI report configuration for all UEs
    ueParam.CSIReportConfig = simParameters.CSIReportConfig{1};
    ueParam.ChannelModel = channelModelDL{ueIdx};
    UEs{ueIdx} = hNRUE(ueParam,ueIdx);
    % Create the PHY instance
    UEs{ueIdx}.PhyEntity = hNRUEPhy(ueParam,ueIdx);
    % Configure the PHY
    configurePhy(UEs{ueIdx}, ueParam);
    % Set up the interface to PHY

    % Set up logical channel at gNB for the UE

    % Set up logical channel at UE

    % Set up application traffic
    % Create an object for on-off network traffic pattern for the specified
    % UE and add it to the gNB. This object generates the downlink data
    % traffic on the gNB for the UE
    dlApp = networkTrafficOnOff('GeneratePacket',true, ...
        'OnTime',simParameters.NumFramesSim*10e-3,'OffTime',0, ...

Set up the packet distribution mechanism.

simParameters.MaxReceivers = simParameters.NumUEs + 1;                  % Number of nodes
% Create packet distribution object
packetDistributionObj = hNRPacketDistribution(simParameters);

Processing Loop

Run the simulation symbol by symbol to execute these operations.

  • Run the gNB.

  • Run the UEs.

  • Log and visualize metrics for each layer.

  • Advance the timer for the nodes and send a trigger to application and RLC layers every millisecond. The application and RLC layers execute their scheduled operations based on a 1 ms timer trigger.

Create objects to log and visualize MAC traces and PHY traces.

% Indicate DL
linkDir = 0;
if enableTraces
    % Create an object for MAC traces logging
    simSchedulingLogger = hNRSchedulingLogger(simParameters,linkDir);
    % Create an object for PHY traces logging
    simPhyLogger = hNRPhyLogger(simParameters);
    % Create an object for CQI and RB grid visualization
    if simParameters.CQIVisualization || simParameters.RBVisualization
        gridVisualizer = hNRGridVisualizer(simParameters,'MACLogger', ...

Create an object for MAC and PHY metrics visualization.

nodes = struct('UEs',{UEs},'GNB',gNB);
metricsVisualizer = hNRMetricsVisualizer(simParameters,'Nodes',nodes, ...
    'EnableSchedulerMetricsPlots',true,'EnablePhyMetricsPlots', ...

Run the processing loop.

slotNum = 0;
% Simulation time in units of symbol duration (assuming normal cyclic prefix)
numSymbolsSim = numSlotsSim*14;
tickGranularity = 1;

% Execute all the symbols in the simulation
for symbolNum = 1:tickGranularity:numSymbolsSim
    if mod(symbolNum - 1,14) == 0
        slotNum = slotNum + 1;
    % Run the gNB

    % Run the UEs
    for ueIdx = 1:simParameters.NumUEs

    if enableTraces
        % MAC logging
        % PHY logging

    % Visualization
    % Check slot boundary
    if symbolNum > 1 && ((simParameters.SchedulingType == 1 && mod(symbolNum,14) == 0) ...
            || (simParameters.SchedulingType == 0 && mod(symbolNum-1,14) == 0))
        % If the update periodicity is reached, plot scheduler metrics and
        % PHY metrics at slot boundary
        if mod(slotNum,simParameters.MetricsStepSize) == 0

    if enableBeamforming
        % Update and plot Tx beamforming pattern
        beamIdx = hPlotBeamformingPattern(simParameters,gNB,beamIdx);

    % Advance timer ticks for gNB and UEs
    for ueIdx = 1:simParameters.NumUEs

Figure contains an axes object. The axes object contains 11 objects of type line, patch, text, surface. These objects represent Transmit antenna elements, Transmit antenna panel, UE(s), LOS path(s), Transmit beam 1, Transmit beam 2.

Figure Channel Quality Visualization contains objects of type heatmap, uigridlayout. The chart of type heatmap has title Channel Quality Visualization for Cell ID - 1.

Get the simulation metrics and save it in a MAT-file. The simulation metrics are saved in a MAT-file with the file name as simulationMetricsFile.

metrics = getMetrics(metricsVisualizer);

At the end of the simulation, the achieved value for system performance indicator is compared to their theoretical peak values (considering zero overheads). Performance indicators displayed are achieved data rate (DL), achieved spectral efficiency (DL), and BLER observed for UEs (DL). The peak values are calculated as per 3GPP TR 37.910. The number of layers used for the peak DL data rate calculation is taken as the average value of the maximum layers possible for each UE in the respective direction. The maximum number of DL layers possible for a UE is minimum of its Rx antennas and gNB's Tx antennas.

Peak DL Throughput: 62.21 Mbps. Achieved Cell DL Throughput: 19.18 Mbps
Achieved DL Throughput for each UE: [8.09        4.68        6.41]
Achieved Cell DL Goodput: 19.18 Mbps
Achieved DL Goodput for each UE: [8.09        4.68        6.41]
Peak DL spectral efficiency: 12.44 bits/s/Hz. Achieved DL spectral efficiency for cell: 3.84 bits/s/Hz

Block error rate for each UE in the downlink direction: [0  0  0]

The simulation results show the performance metrics with DL beamforming.

Simulation Visualization

The five types of run-time visualization shown are:

  • Display of CQI values for UEs over the PDSCH bandwidth: For details, see the 'Channel Quality Visualization' figure description in NR PUSCH FDD Scheduling example.

  • Display of resource grid assignment to UEs: The 2D time-frequency grid shows the resource allocation to the UEs. You can enable this visualization in the 'Scenario Configuration' section. For details, see the 'Resource Grid Allocation' figure description in NR PUSCH FDD Scheduling example.

  • Display of DL scheduling metrics plots: For details, see 'Downlink Scheduler Performance Metrics ' figure description in NR FDD Scheduling Performance Evaluation example.

  • Display of DL Block Error Rates: The two sub-plots displayed in 'Block Error Rate (BLER) Visualization' shows the block error rate (for each UE) observed in the uplink and downlink directions, as the simulation progresses. The plot is updated every metricsStepSize slots.

  • Display of DL beamforming pattern: The figure shows the beam with highest L1-RSRP for each UE. gNB uses this beam directions for beamforming PDSCH and CSI-RS (for RI, CQI, PMI measurements) to the UEs. Two or more UEs can report same beam as its highest L1-RSRP beam.

Results With Beamforming Disabled

These are the simulation results when DL beamforming is disabled. You can observe the network performance and CQI index for each UE.

Simulation Logs

For details of simulation logs, see the 'Simulation Logs' section in the NR Cell Performance Evaluation with MIMO example.

if enableTraces
    simulationLogs = cell(1,1);
    if simParameters.DuplexMode == 0 % FDD
        logInfo = struct('DLTimeStepLogs',[],'ULTimeStepLogs',[], ...
        [logInfo.DLTimeStepLogs,logInfo.ULTimeStepLogs] = getSchedulingLogs(...
    else % TDD
        logInfo = struct('TimeStepLogs',[],'SchedulingAssignmentLogs',[], ...
        logInfo.TimeStepLogs = getSchedulingLogs(simSchedulingLogger);
    % BLER logs
    [logInfo.BLERLogs,logInfo.AvgBLERLogs] = getBLERLogs(simPhyLogger);
    % Scheduling assignments log
    logInfo.SchedulingAssignmentLogs = getGrantLogs(simSchedulingLogger);
    simulationLogs{1} = logInfo;
    % Save simulation parameters in a MAT-file
    % Save simulation logs in a MAT-file

You can run the script NRPostSimVisualization to get a post-simulation visualization of logs. For more details about the options to run this script, refer to the NR FDD Scheduling Performance Evaluation example.

Further Exploration

You can use this example to further explore custom scheduling.

Custom scheduling

You can modify the existing scheduling strategy to implement a custom one. Plug In Custom Scheduler in System-Level Simulation example explains how to create a custom scheduling strategy and plug it into system-level simulation. MIMO configuration appends more fields to the scheduling assignment structure. Populate the fields of scheduling assignments with values for precoding matrix, number of layers, beamforming table index as per your custom scheduling strategy. The beamforming table index corresponds to the columns in the table 'simParameters.BeamWeightTable'. For more information about the information fields of a scheduling assignment, see the description of the scheduleDLResourcesSlot and scheduleULResourcesSlot functions in the hNRScheduler.m helper file.

Local functions

function out = copyCDL(cdl)
% Clone the input channel and reconfigure it for custom delay profile
out = clone(cdl);
out.DelayProfile = 'Custom';

% Get info from input channel
cdlinfo = info(cdl);

% Populate the delay profile from the info
fields = ["PathDelays" "AveragePathGains" "AnglesAoD" "AnglesAoA" ...
    "AnglesZoD" "AnglesZoA"];

for f = fields
    out.(f) = cdlinfo.(f);

% Configure LOS cluster if required
out.HasLOSCluster = ~isinf(cdlinfo.KFactorFirstCluster);

if (out.HasLOSCluster)
    % Configure K factor
    out.KFactorFirstCluster = cdlinfo.KFactorFirstCluster;

    % For LOS channels, the first cluster is split into LOS and NLOS
    % parts in the info, so combine these parts into a single cluster
    p = out.AveragePathGains(1:2);
    out.AveragePathGains(2) = 10*log10(sum(10.^(p/10)));
    for f = fields
        out.(f)(1) = [];

function ssbIndex = computeSSBToUE(simParameters,ssbTxAngles,ssbSweepRange)
% Initialize SSB index
ssbIndex = zeros(1,simParameters.NumUEs);
for i=1:simParameters.NumUEs
    [~,angle] = rangeangle(simParameters.UEPosition(i, :)', ...
    if (angle(1) > (ssbTxAngles(1) - ssbSweepRange/2)) && ...
            (angle(1) <= (ssbTxAngles(1) + ssbSweepRange/2))
        ssbIndex(i) = 1;
    elseif (angle(1) > (ssbTxAngles(2) - ssbSweepRange/2)) && ...
            (angle(1) <= (ssbTxAngles(2) + ssbSweepRange/2))
        ssbIndex(i) = 2;
    elseif (angle(1) > (ssbTxAngles(3) - ssbSweepRange/2)) && ...
            (angle(1) <= (ssbTxAngles(3) + ssbSweepRange/2))
        ssbIndex(i) = 3;
    elseif (angle(1) > (ssbTxAngles(4) - ssbSweepRange/2)) && ...
            (angle(1) <= (ssbTxAngles(4) + ssbSweepRange/2))
        ssbIndex(i) = 4;
    else % Approximate UE to the nearest SSB
        % Initialize an array to store the difference between the UE azimuth and
        % SSB azimuth beam sweep angles
        angleDiff = zeros(1,length(ssbTxAngles));
        for angleIdx = 1: length(ssbTxAngles)
            angleDiff(angleIdx) = abs(ssbTxAngles(angleIdx) - angle(1));
        % Minimum azimuth angle difference
        [~,idx] = min(angleDiff);
        ssbIndex(i) = idx;


[1] 3GPP TS 38.214. “NR; Physical layer procedures for data.” 3rd Generation Partnership Project; Technical Specification Group Radio Access Network.

[2] 3GPP TS 38.321. “NR; Medium Access Control (MAC) protocol specification.” 3rd Generation Partnership Project; Technical Specification Group Radio Access Network.

[3] 3GPP TS 38.322. “NR; Radio Link Control (RLC) protocol specification.” 3rd Generation Partnership Project; Technical Specification Group Radio Access Network.

[4] 3GPP TR 38.901. “Study on channel model for frequencies from 0.5 to 100 GHz.” 3rd Generation Partnership Project; Technical Specification Group Radio Access Network.

Related Topics
