plotsomplanes

Plot self-organizing map weight planes

Syntax

plotsomplanes(net)

Description

plotsomplanes(net) generates a set of subplots. Each ith subplot shows the weights from the ith input to the layer’s neurons, with the most negative connections shown as black, zero connections as red, and the strongest positive connections as yellow.

The plot is only shown for layers organized in one or two dimensions.

This plot supports SOM networks with hextop and gridtop topologies, but not tritop or randtop.

This function can also be called with standardized plotting function arguments used by the function train.

Examples

Plot SOM Weight Planes

x = iris_dataset;
net = selforgmap([5 5]);

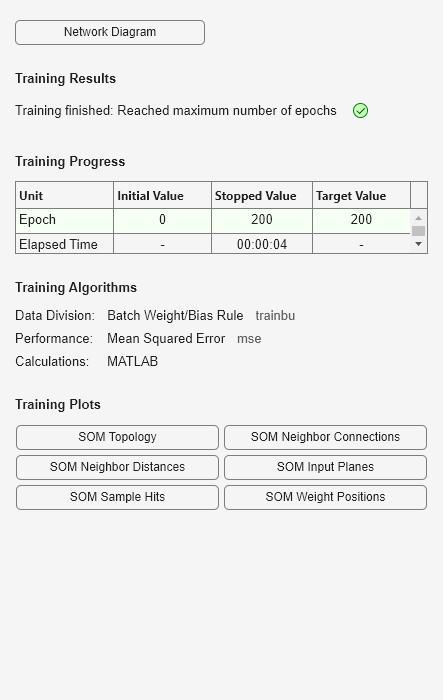

net = train(net,x);

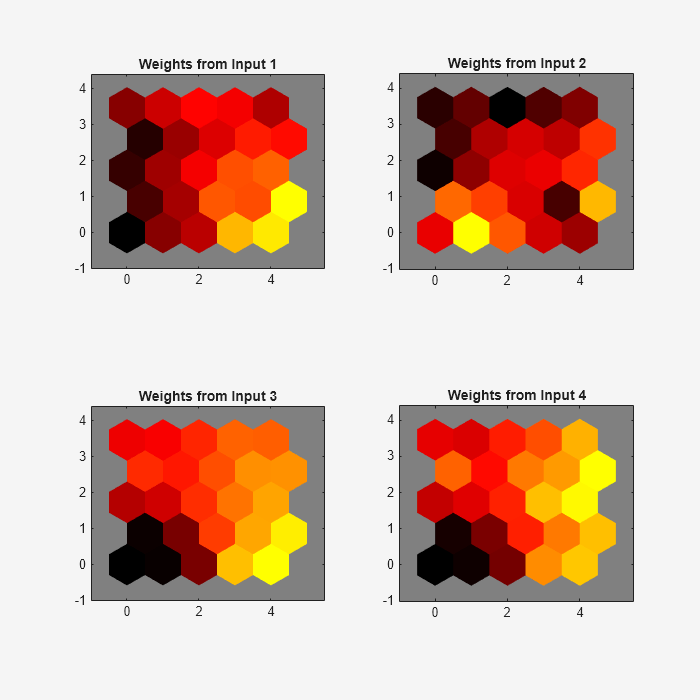

plotsomplanes(net)

Introduced in R2008a
