MCAN Receive Peripheral Configuration

Map MCAN Receive peripherals in the model to the peripheral registers in MCU

Since R2025a

Description

Use the Hardware Mapping tool to view and edit the module and node settings of MCAN peripherals in the Infineon^® AURIX™ model.

Using the Hardware Mapping tool, you can:

• View and edit the configuration parameters of the MCAN Receive block.

• Check for any conflicts between the peripherals.

Open the MCAN Receive Peripheral Configuration

• In the Hardware tab of the Simulink^® model, click Model Settings to open the Configuration Parameters dialog box. Click on Hardware Implementation in the left pane and set Hardware board parameter to Infineon AURIX TC3x.

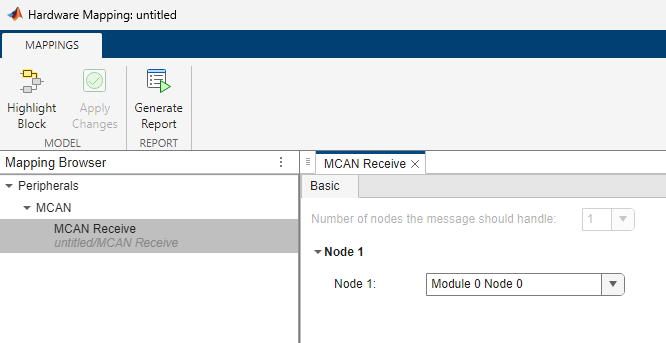

• In the Hardware tab of the Simulink model, click Hardware Mapping. In the Mapping Browser pane, navigate to Peripherals > MCAN > MCAN Transmit to configure MCAN transmission nodes.



Parameters

Version History

Introduced in R2025a
