Eigenvalues and Eigenmodes of Square
This example shows how to compute the eigenvalues and eigenmodes of a square domain.
The eigenvalue PDE problem is . This example finds the eigenvalues smaller than 10 and the corresponding eigenmodes.

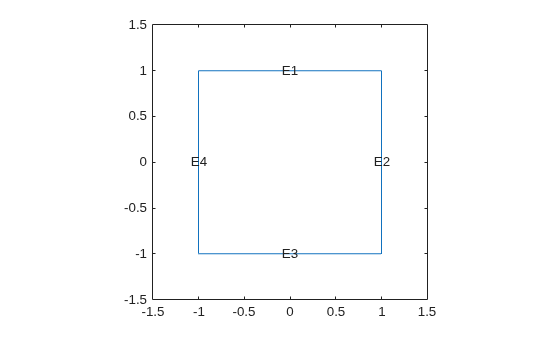

Create a model. Import and plot the geometry. The geometry description file for this problem is called
model = createpde(); geometryFromEdges(model,@squareg); pdegplot(model,"EdgeLabels","on") ylim([-1.5,1.5]) axis equal
Specify the Dirichlet boundary condition for the left boundary.
Specify the zero Neumann boundary condition for the upper and lower boundary.
Specify the generalized Neumann condition for the right boundary.
The eigenvalue PDE coefficients for this problem are c = 1, a = 0, and d = 1. You can enter the eigenvalue range
r as the vector
specifyCoefficients(model,"m",0,"d",1,"c",1,"a",0,"f",0); r = [-Inf,10];
Create a mesh and solve the problem.
generateMesh(model,"Hmax",0.05); results = solvepdeeig(model,r);
There are six eigenvalues smaller than 10 for this problem.
l = results.Eigenvalues
l = 5×1 -0.4146 2.0528 4.8019 7.2693 9.4550

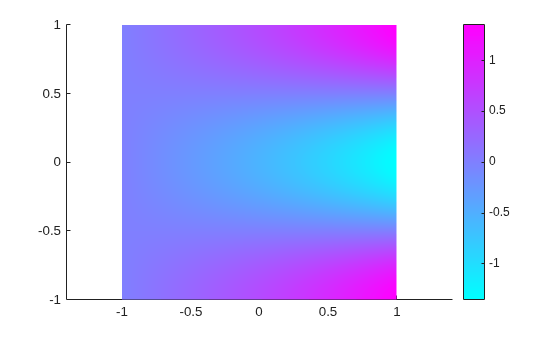

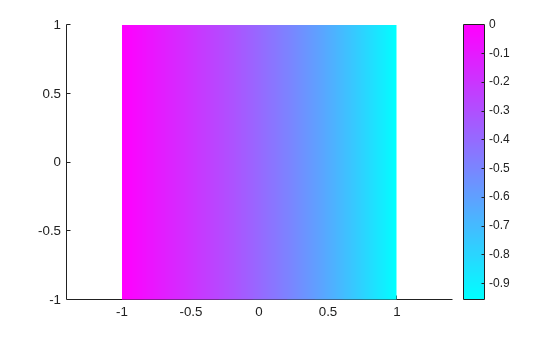

Plot the first and last eigenfunctions in the specified range.
u = results.Eigenvectors; pdeplot(model,"XYData",u(:,1));
This problem is separable, meaning
The functions f and g are eigenfunctions in the x and y directions, respectively. In the x direction, the first eigenmode is a slowly increasing exponential function. The higher modes include sinusoids. In the y direction, the first eigenmode is a straight line (constant), the second is half a cosine, the third is a full cosine, the fourth is one and a half full cosines, etc. These eigenmodes in the y direction are associated with the eigenvalues
It is possible to trace the preceding eigenvalues in the eigenvalues of the solution. Looking at a plot of the first eigenmode, you can see that it is made up of the first eigenmodes in the x and y directions. The second eigenmode is made up of the first eigenmode in the x direction and the second eigenmode in the y direction.
Look at the difference between the first and the second eigenvalue compared to :
l(2) - l(1) - pi^2/4
ans = 1.6384e-07
Likewise, the fifth eigenmode is made up of the first eigenmode in the x direction and the third eigenmode in the y direction. As expected,
l(5)-l(1) is approximately equal to :
l(5) - l(1) - pi^2
ans = 6.0397e-06
You can explore higher modes by increasing the search range to include eigenvalues greater than 10.
