Run-Time Data Collection

Collect run-time data by using external mode logging

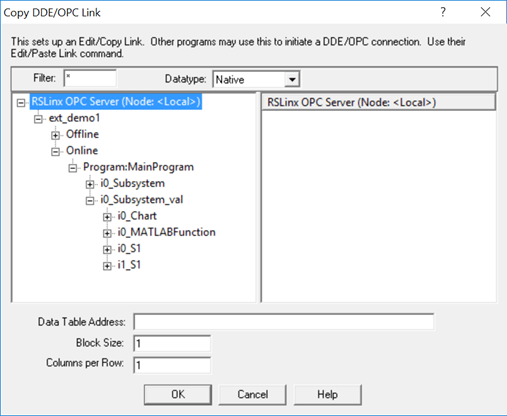

External mode logging uses specific code that Simulink® PLC Coder™ generates. External mode logging can save system states, outputs, and simulation time at each model execution time step. The data is written to a MAT-file, named (by default) model.mat, where model is the name of your model. You can collect run-time data for the variables in the MAT-file by running the generated code, which contains the logging function in your target IDE.

Functions

plcdispextmodedataDisplay the external mode logging data
plcrunextmodeRun external mode visualization

Topics

External Mode Logging

Collect and visualize the output of the generated code as executed in the target PLC IDE by using external mode logging.
