Structured Text Code Generation for Subsystem Reference Blocks

This example shows how to autogenerate structured text code for subsystem reference blocks.

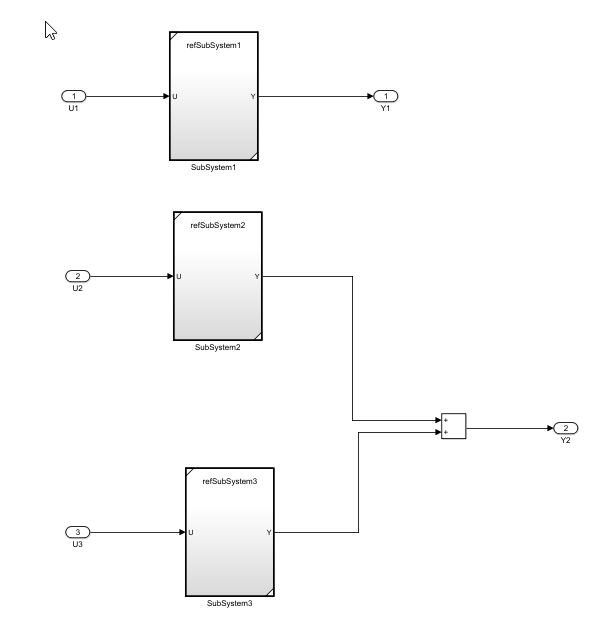

Open Simulink Model

To open the Simulink® test bench model, use the following command.

open_system('mSubSysRefSystemIntegration');

Generate Code for the Subsystem

To generate code for the subsystem use plcgeneratecode.

generatedfiles = plcgeneratecode('mSubSysRefSystemIntegration/TopSystem');

### Generating PLC code for 'mSubSysRefSystemIntegration/TopSystem'.
### Using model settings from 'mSubSysRefSystemIntegration' for PLC code generation parameters.
### Begin code generation for IDE CODESYS 2.3 (codesys23).
### Emit PLC code to file.
### Creating PLC code generation report index.html.
### PLC code generation successful for 'mSubSysRefSystemIntegration/TopSystem'.
### Generated files:
plcsrc/mSubSysRefSystemIntegration.exp
