# Robustness of Servo Controller for DC Motor

This example shows how to use uncertain objects in Robust Control Toolbox™ to model uncertain systems and assess robust stability and robust performance using the robustness analysis tools.

### Data Structures for Uncertainty Modeling

Robust Control Toolbox lets you create uncertain elements, such as physical parameters whose values are not known exactly, and combine these elements into uncertain models. You can then easily analyze the impact of uncertainty on the control system performance.

For example, consider a plant model

$$P(s)=\frac{\gamma}{\tau s+1}$$

where `gamma`

can range in the interval [3,5] and `tau`

has average value 0.5 with 30% variability. You can create an uncertain model of P(s) as in this example:

gamma = ureal('gamma',4,'range',[3 5]); tau = ureal('tau',.5,'Percentage',30); P = tf(gamma,[tau 1])

Uncertain continuous-time state-space model with 1 outputs, 1 inputs, 1 states. The model uncertainty consists of the following blocks: gamma: Uncertain real, nominal = 4, range = [3,5], 1 occurrences tau: Uncertain real, nominal = 0.5, variability = [-30,30]%, 1 occurrences Type "P.NominalValue" to see the nominal value and "P.Uncertainty" to interact with the uncertain elements.

Suppose you have designed an integral controller `C`

for the nominal plant (`gamma`

=4 and `tau`

=0.5). To find out how variations of `gamma`

and `tau`

affect the plant and the closed-loop performance, form the closed-loop system `CLP`

from `C`

and `P`

.

KI = 1/(2*tau.Nominal*gamma.Nominal); C = tf(KI,[1 0]); CLP = feedback(P*C,1)

Uncertain continuous-time state-space model with 1 outputs, 1 inputs, 2 states. The model uncertainty consists of the following blocks: gamma: Uncertain real, nominal = 4, range = [3,5], 1 occurrences tau: Uncertain real, nominal = 0.5, variability = [-30,30]%, 1 occurrences Type "CLP.NominalValue" to see the nominal value and "CLP.Uncertainty" to interact with the uncertain elements.

Plot the step response of the plant and closed-loop system. The `step`

command automatically generates 20 random samples of the uncertain parameters `gamma`

and `tau`

and plots the corresponding step responses.

subplot(2,1,1); step(P), title('Plant response (20 samples)') subplot(2,1,2); step(CLP), title('Closed-loop response (20 samples)')

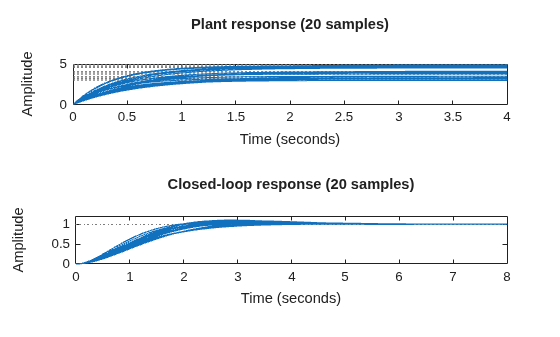

**Figure 1:** Step responses of the plant and closed-loop models

The bottom plot shows that the closed-loop system is reasonably robust despite significant fluctuations in the plant DC gain. This is a desirable and common characteristic of a properly designed feedback system.

### DC Motor Example with Parameter Uncertainty and Unmodeled Dynamics

This example builds on the example Reference Tracking of DC Motor with Parameter Variations by adding parameter uncertainty and unmodeled dynamics, to investigate the robustness of the servo controller to such uncertainty.

The nominal model of the DC motor is defined by the resistance `R`

, the inductance `L`

, the emf constant `Kb`

, armature constant `Km`

, the linear approximation of viscous friction `Kf`

and the inertial load `J`

. Each of these components varies within a specific range of values. The resistance and inductance constants range within ±40% of their nominal values. Use `ureal`

to construct these uncertain parameters.

R = ureal('R',2,'Percentage',40); L = ureal('L',0.5,'Percentage',40);

For physical reasons, the values of `Kf`

and `Kb`

are the same, even if they are uncertain. In this example, the nominal value is 0.015 with a range between 0.012 and 0.019.

K = ureal('K',0.015,'Range',[0.012 0.019]); Km = K; Kb = K;

Viscous friction, `Kf`

, has a nominal value of 0.2 with a 50% variation in its value.

Kf = ureal('Kf',0.2,'Percentage',50);

### Electrical and Mechanical Equations

The current in the electrical circuit, and the torque applied to the rotor can be expressed in terms of the applied voltage and the angular speed. Create the transfer function `H`

relating these variables, and make `AngularSpeed`

an output of `H`

for later use.

H = [1;0;Km] * tf(1,[L R]) * [1 -Kb] + [0 0;0 1;0 -Kf]; H.InputName = {'AppliedVoltage';'AngularSpeed'}; H.OutputName = {'Current';'AngularSpeed';'RotorTorque'};

The motor typically drives an inertia, whose dynamic characteristics relate the applied torque to the rate-of-change of the angular speed. For a rigid body, this value is a constant. A more realistic, but uncertain, model might contain unknown damped resonances. Use the `ultidyn`

object to model uncertain linear time-invariant dynamics. Set the nominal value of the rigid body inertia to 0.02 and we include 15% dynamic uncertainty in multiplicative form.

J = 0.02*(1 + ultidyn('Jlti',[1 1],'Type','GainBounded','Bound',0.15,... 'SampleStateDim',4));

### Uncertain Model of DC Motor

It is a simple matter to relate the `AngularSpeed`

input to the `RotorTorque`

output through the uncertain inertia, `J`

, using the `lft`

command. The `AngularSpeed`

input equals `RotorTorque/(J*s)`

. Therefore, use "positive" feedback from the third output to the second input of `H`

to make the connection. This connection results in a system with one input (`AppliedVoltage`

) and two outputs (`Current`

and `AngularSpeed`

).

Pall = lft(H,tf(1,[1 0])/J);

Select only the `AngularSpeed`

output for the remainder of the control analysis.

P = Pall(2,:)

Uncertain continuous-time state-space model with 1 outputs, 1 inputs, 2 states. The model uncertainty consists of the following blocks: Jlti: Uncertain 1x1 LTI, peak gain = 0.15, 1 occurrences K: Uncertain real, nominal = 0.015, range = [0.012,0.019], 2 occurrences Kf: Uncertain real, nominal = 0.2, variability = [-50,50]%, 1 occurrences L: Uncertain real, nominal = 0.5, variability = [-40,40]%, 1 occurrences R: Uncertain real, nominal = 2, variability = [-40,40]%, 1 occurrences Type "P.NominalValue" to see the nominal value and "P.Uncertainty" to interact with the uncertain elements.

`P`

is a single-input, single-output uncertain model of the DC motor. For analysis purposes, use the following controller.

Cont = tf(84*[.233 1],[.0357 1 0]);

### Open-Loop Analysis

First, compare the step response of the nominal DC motor with 15 samples of the uncertain model of the DC motor. Use `usample`

to explicitly specify the number of random samples.

clf step(usample(P,15),P.NominalValue,3) legend('Samples','Nominal')

ans = Legend (Samples, Nominal) with properties: String: {'Samples' 'Nominal'} Location: 'northeast' Orientation: 'vertical' FontSize: 9 Position: [0.7030 0.7695 0.1830 0.0789] Units: 'normalized' Use GET to show all properties

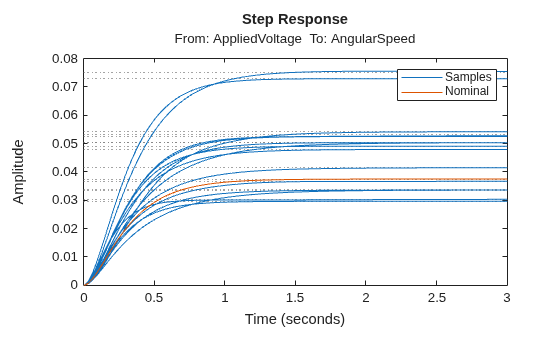

**Figure 2:** Plant step response

Similarly, compare the Bode response of the nominal (red) and sampled (blue) uncertain models of the DC motor.

bode(usample(P,15),P.NominalValue); legend('Samples','Nominal')

ans = Legend (Samples, Nominal) with properties: String: {'Samples' 'Nominal'} Location: 'northeast' Orientation: 'vertical' FontSize: 8.1000 Position: [0.7625 0.8257 0.1920 0.0884] Units: 'normalized' Use GET to show all properties

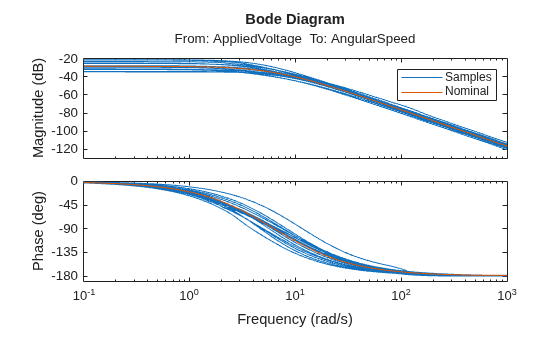

**Figure 3:** Plant Bode response

### Robustness Analysis

In this section, analyze the robustness of the DC motor controller. A nominal analysis of the closed-loop system indicates the feedback loop is very robust with 22 dB gain margin and 66 deg of phase margin.

margin(P.NominalValue*Cont)

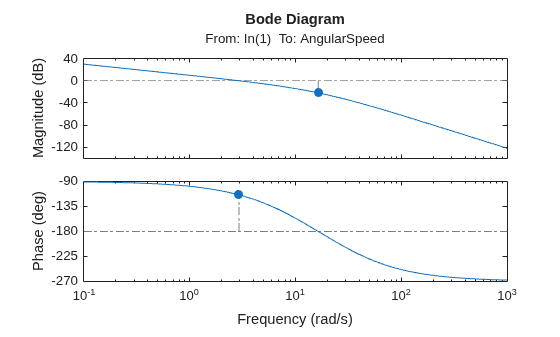

**Figure 4:** Closed-loop robustness analysis

The `diskmargin`

function computes the disk-based gain and phase margins. By modeling gain and phase variations at all frequencies and in all feedback loops, disk margins tend to be more accurate estimates of robustness, especially in multi-loop control systems. Compute the disk-based margins for the DC motor loop.

DM = diskmargin(P.NominalValue*Cont)

`DM = `*struct with fields:*
GainMargin: [0.2792 3.5822]
PhaseMargin: [-58.8054 58.8054]
DiskMargin: 1.1271
LowerBound: 1.1271
UpperBound: 1.1271
Frequency: 5.0062
WorstPerturbation: [1x1 ss]

While smaller than the classical gain and phase margins, the disk-based margins essentially confirm that the nominal feedback loop is very robust. Now, recall that the DC motor plant is uncertain. How does the modeled uncertainty affect these stability margins? For quick insight, plot the disk-based gain and phase margins for 20 samples of the uncertain open-loop response.

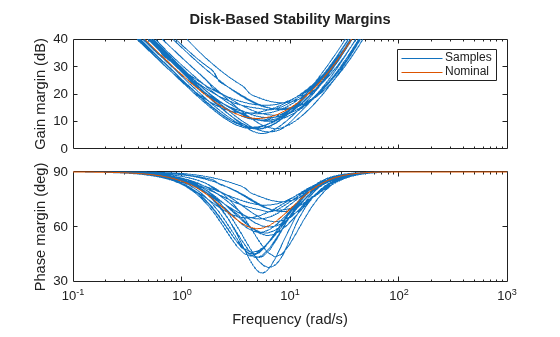

diskmarginplot(P*Cont,P.NominalValue*Cont) legend('Samples','Nominal')

ans = Legend (Samples, Nominal) with properties: String: {'Samples' 'Nominal'} Location: 'northeast' Orientation: 'vertical' FontSize: 8.1000 Position: [0.7518 0.8583 0.2006 0.0884] Units: 'normalized' Use GET to show all properties

Some combinations of plant uncertainty lead to smaller margins. The plot shows only a small sample. Use worst-case analysis to find out how bad the margins can really get. The `wcdiskmargin`

function directly computes the worst-case gain and phase margins for the modeled uncertainty.

`wcDM = wcdiskmargin(P*Cont,'siso')`

`wcDM = `*struct with fields:*
GainMargin: [0.8728 1.1457]
PhaseMargin: [-7.7680 7.7680]
DiskMargin: 0.1358
LowerBound: 0.1358
UpperBound: 0.1361
CriticalFrequency: 4.9846
WorstPerturbation: [1x1 ss]

mag2db(wcDM.GainMargin)

`ans = `*1×2*
-1.1812 1.1812

Here the worst-case margins are only 1.2 dB and 7.8 degrees, signaling that the closed loop is nearly unstable for some combinations of the uncertain elements.

### Robustness of Disturbance Rejection Characteristics

The sensitivity function is a standard measure of closed-loop performance for the feedback system. Compute the uncertain sensitivity function `S`

and compare the Bode magnitude plots for the nominal and sampled uncertain sensitivity functions.

S = feedback(1,P*Cont); bodemag(S,S.Nominal) legend('Samples','Nominal')

ans = Legend (Samples, Nominal) with properties: String: {'Samples' 'Nominal'} Location: 'northeast' Orientation: 'vertical' FontSize: 9 Position: [0.7530 0.8528 0.2014 0.0938] Units: 'normalized' Use GET to show all properties

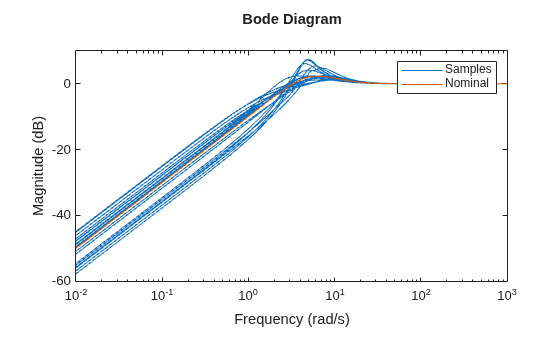

**Figure 5:** Magnitude of sensitivity function S.

In the time domain, the sensitivity function indicates how well a step disturbance can be rejected. Plot its step response to see the variability in disturbance rejection characteristics (nominal appears in red).

step(S,S.Nominal) title('Disturbance Rejection') legend('Samples','Nominal')

ans = Legend (Samples, Nominal) with properties: String: {'Samples' 'Nominal'} Location: 'northeast' Orientation: 'vertical' FontSize: 9 Position: [0.7030 0.7968 0.1830 0.0789] Units: 'normalized' Use GET to show all properties

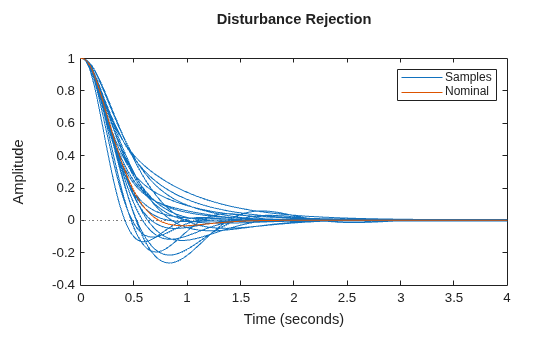

**Figure 6:** Rejection of a step disturbance.

Use the `wcgain`

function to compute the worst-case value of the peak gain of the sensitivity function.

[maxgain,worstuncertainty] = wcgain(S); maxgain

`maxgain = `*struct with fields:*
LowerBound: 7.5199
UpperBound: 7.5357
CriticalFrequency: 4.9979

With the `usubs`

function you can substitute the worst-case values of the uncertain elements into the uncertain sensitivity function `S`

. This gives the worst-case sensitivity function `Sworst`

over the entire uncertainty range. Note that the peak gain of `Sworst`

matches the lower-bound computed by `wcgain`

.

Sworst = usubs(S,worstuncertainty); norm(Sworst,inf)

ans = 7.5199

maxgain.LowerBound

ans = 7.5199

Now compare the step responses of the nominal and worst-case sensitivity.

step(Sworst,S.NominalValue,6); title('Disturbance Rejection') legend('Worst-case','Nominal')

ans = Legend (Worst-case, Nominal) with properties: String: {'Worst-case' 'Nominal'} Location: 'northeast' Orientation: 'vertical' FontSize: 9 Position: [0.6755 0.7968 0.2104 0.0789] Units: 'normalized' Use GET to show all properties

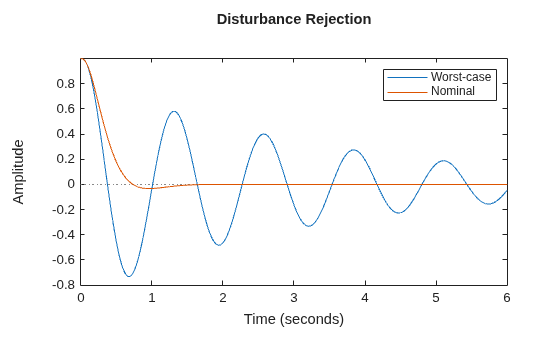

**Figure 7:** Nominal and worst-case rejection of a step disturbance

Clearly some combinations of uncertain elements significantly degrade the ability of the controller to quickly reject disturbances. Finally, plot the magnitude of the nominal and worst-case values of the sensitivity function. Observe that the peak value of `Sworst`

occurs at the frequency `maxgain.CriticalFrequency`

:

bodemag(Sworst,S.NominalValue) legend('Worst-case','Nominal')

ans = Legend (Worst-case, Nominal) with properties: String: {'Worst-case' 'Nominal'} Location: 'northeast' Orientation: 'vertical' FontSize: 9 Position: [0.7228 0.8528 0.2317 0.0938] Units: 'normalized' Use GET to show all properties

hold on semilogx(maxgain.CriticalFrequency,20*log10(maxgain.LowerBound),'g*')

**Figure 8:** Magnitude of nominal and worst-case sensitivity
