# Level Separation Mismatch Ratio (RLM) using IBIS-AMI

This example shows how to add Transmitter Level Mismatch (RLM) to a transmitter (Tx) and how to calculate the resulting level separation mismatch ratio at the receiver (Rx) with IBIS-AMI models.

### Background

Level Separation Mismatch Ratio, commonly known as $${R}_{LM}$$, is a measure of the irregularity of the various eye openings in a PAMn signal. It is calculated by dividing the minimum eye opening by the average eye opening of all the PAMn eyes, where the eye openings are determined by the mean value of each symbol voltage. An $${R}_{LM}$$ of 1 means that the system is perfectly linear. This example uses SerDes Toolbox™ to show how to inject $${R}_{LM}$$ into the stimulus pattern at the input to a Tx IBIS-AMI model, and how to measure the final $${R}_{LM}$$ at the output of a Rx IBIS-AMI model.

Since RLM models non-LTI behavior in the Transmitter, $${R}_{LM}$$ is a GetWave only feature.

### Model Setup in SerDes Designer App

The first part of this example sets up some typical Tx and Rx equalization blocks using the SerDes Designer app. Launch the app with the following command:

serdesDesigner

**Configuration Setup**

Begin by setting the following values in the Configuration tab in the app toolstrip:

Set the

**Symbol Time**to`200ps`

(5.0GHz).Set the

**Modulation**to`PAM3`

.Set the

**Signaling**to`Single-ended`

.

**Tx Model Setup**

Add a Pass-Through block and a `FFE`

block to the Tx, keeping the default settings. Keep the default settings for the AnalogOut model as well. The Pass-Through block is used to inject the $${R}_{LM}$$ at the input to the Tx, while the FFE is simply a standard Tx equalization block.

**Analog Channel Setup**

Verify the

**Channel loss**is set to 8 dB and the**Single-ended impedance**is set to 5`0`

ohms.Set the

**Target Frequency**to`2.5`

GHz, which is the Nyquist frequency for 5.0 GHz.

**Rx Model Setup**

Keep the default settings for the AnalogIn model, then add a `CTLE`

and a `DFECDR`

block to the Rx. Keep the default settings for these blocks.

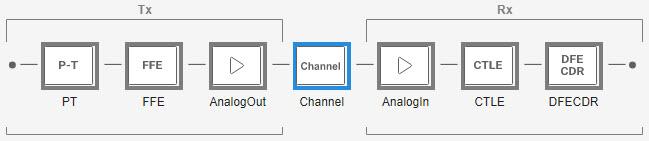

The final SerDes system should look like this:

#### Plot Statistical Results

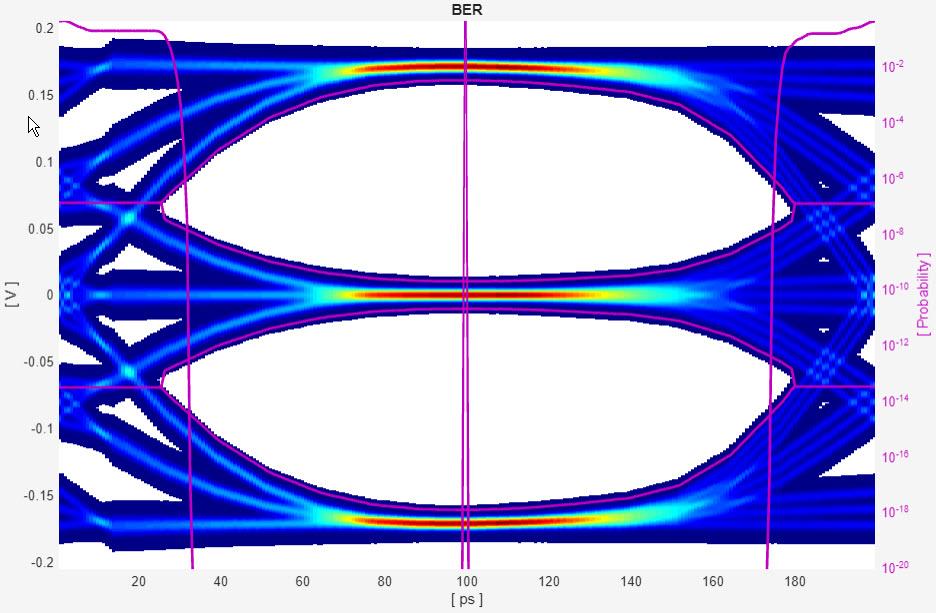

Use the SerDes Designer **Add Plots** button to visualize the results of the setup. Add the BER plot from **Add Plots** and observe the result:

**Export SerDes System to Simulink**

Click **Save** and then click on the **Export** button to export the configuration to Simulink®, where you will add support for $${R}_{LM}$$ to the Tx and Rx blocks.

### Model Setup in Simulink

The second part of this example takes the SerDes system exported by the SerDes Designer app and customizes it in Simulink.

#### Review Simulink Model Setup

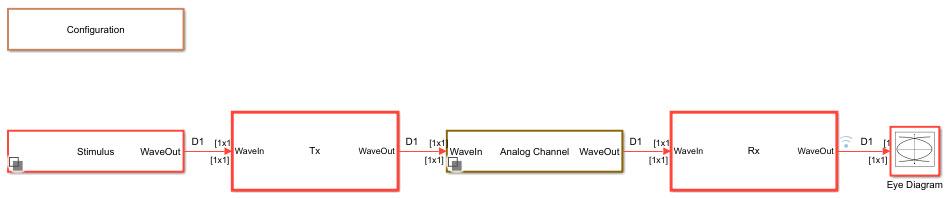

This Simulink SerDes system contains the standard configuration: Stimulus, Configuration, Analog Channel, Tx and Rx blocks, with all values carried over from the SerDes Designer app. Review each of these blocks to verify the setup is as expected.

#### Add RLM Generation to the Tx Model

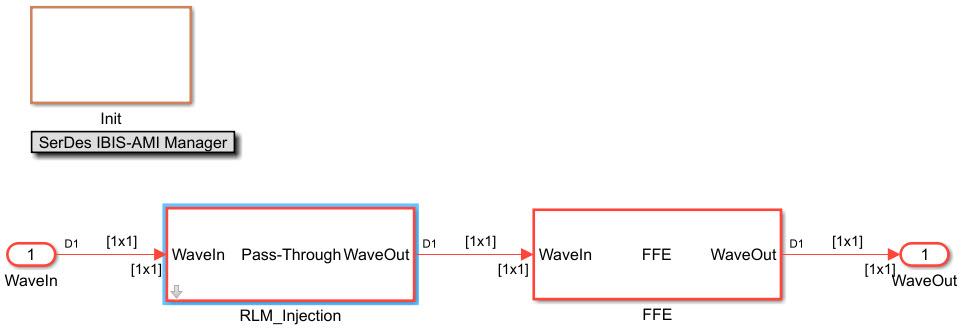

Look under the **Tx** subsystem, then rename the Pass-Through block from `PT`

to `RLM_Injection`

to better describe its operation.

#### Edit the Pass-Through Block

Next, look under the mask of the RLM_Injection block:

Delete the Pass-Through block and add a MATLAB Function block to the canvas. Edit the MATLAB Function block and replace the entire contents with the following code:

function stimOut = RLM_Injection(stimIn, sign, RLM, Modulation) % stimOut Add Transmitter Level MisMatch to incoming stimulus signal. % Uses a saturating non-linearity to shift a single symbol % voltage on the incoming stimulus waveform. % Supports PAMn for N > 2 % Not valid for NRZ % % stimIn Stimulus input % sign Sign of RLM to be added: 1 (positive) or -1 (negative) % RLM Ratio of Level MisMatch (RLM) should be between 0.5 and 1.0 % Only the upper eye is modified by varying the N-1 symbol voltage. % Modulation Current modulation being used. Passed in via Data Scope = Parameter. % stimOut Stimulus output with RLM added. % Copyright 2023 The MathWorks, Inc. % Skip entire function if NRZ if Modulation == 2 stimOut = stimIn; return end persistent vinvout if isempty(vinvout) % Do not allow RLM smaller than 0.5 if RLM < 0.5 RLM = 0.5; end % Determine amount to shift incoming stimulus waveform bias = sign*(1-abs(RLM))/(Modulation - 1); Vswing = 0.5; %% +/- Input signal swing Vstep = 0.005; %% Minimum voltage step in Vin/Vout array % Voltage range to apply bias to limit = 0.5/(Modulation - 1); % Center of Symbol voltage to be shifted Vcent = abs((Vswing * 2)/(Modulation - 1) - Vswing); % Define incoming voltage points vin1 = -Vswing * 2; vin2 = -Vswing; vin3 = Vcent - limit/2 - Vstep; vin4 = Vcent - limit/2; vin5 = Vcent; vin6 = Vcent + limit/2; vin7 = Vcent + limit/2 + Vstep + bias; vin8 = Vswing; vin9 = Vswing * 2; % Define outgoing voltage points vout1 = vin1; vout2 = vin2; vout3 = vin3; vout4 = vin4 + bias; vout5 = vin5 + bias; vout6 = vin6 + bias; vout7 = vin7; vout8 = vin8; vout9 = vin9; vinvout = [vin1 vout1; vin2 vout2; vin3 vout3; vin4 vout4; vin5 vout5; vin6 vout6; vin7 vout7; vin8 vout8; vin9 vout9]; end %% Apply memory-less non-linearity from serdes.SaturatingAmplifier vin = vinvout(:,1); vout = vinvout(:,2); % Perform lookup operation. Inspired by Bentley's binary search in "Programming Pearls". % Initialize Search Index lo = 1; hi = length(vin); if stimIn <= vin(lo) stimOut = vout(lo); elseif stimIn > vin(hi) stimOut = vout(hi); else while hi > lo+1 mid = round((hi+lo)/2); if stimIn <= vin(mid) hi = mid; else lo = mid; end end % Linear interpolation: No need to protect against % divide by zero since it is guaranteed that hi~=lo stimOut = (vout(hi)*(stimIn-vin(lo)) + ... vout(lo)*(vin(hi)-stimIn) )/... (vin(hi) - vin(lo) ); end

** Note**: In the function signature for the

`RLM_Injection`

MATLAB function, you must change the **Data Scope**for the parameter "

`Modulation`

" from `Input`

to `Parameter`

. Rename the MATLAB function block to `RLM_Injection`

so that the resulting waveform names in the Simulation Data Inspector becomes more intuitive.

#### Add Tx AMI Parameters

Open the **SerDes IBIS-AMI Manager** and select the** AMI-Tx** tab. Highlight the `RLM_Injection`

block and add two new AMI Parameters:

**Parameter name**: `RLM_sign`

**Usage**:`In`

**Type**:`Integer`

**Format**:`List`

**Default**:`1`

**List values**:`[1 -1]`

**List-Tip values**:`["Positive" "Negative"]`

**Description**:`RLM bias sign. +1 adds a positive bias. -1 adds a negative bias.`

Verify the

**Current value**is:`Positive`

**Parameter name**:` RLM_input`

**Usage**:`In`

**Type**:`Float`

**Format**:`Range`

**Typ**: 1**Min**:`0.5`

**Max**:`1`

**Description**:`Target Transmitter Level Mis-match (RLM) value. RLM = 1 means no distorion in transmitted symbol voltages.`

**Current value**:`1`

#### Connect Everything Up

Wire up the input and output ports, along with the two new AMI parameters to the `RLM_Injection`

MATLAB function block. You can also turn logging on for the `stimIn`

and `stimOut`

nodes to visually verify the operation of the $${R}_{LM}$$ Injection.

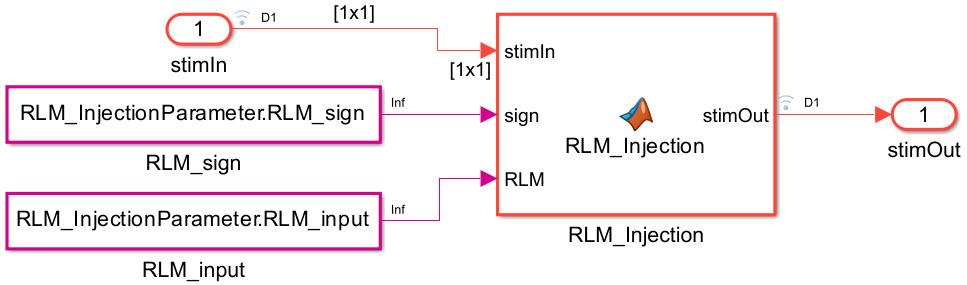

The final pass-through block should look like this:

#### Add RLM Calculation to the Rx Model

Push into the **Rx** subsystem, then look under the mask of the DFECDR block.

#### Edit the DFECDR Block

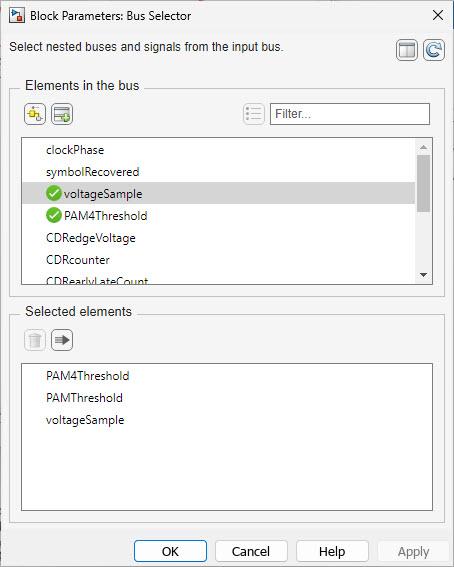

Edit the **Bus Selector** and add the element `voltageSample`

to the output:

Add a MATLAB Function block to the canvas. Edit the MATLAB Function block and replace the entire contents with the following code:

function RLM_Out = RLM_Calculation(PAMThreshold, voltageSample, ignoreBits, rlmWindowSize, Modulation, SymbolTime, SampleInterval) % RLM_Calculation Calculates the Ratio of Level MisMatch (RLM) value, also known as % Level Separation MisMatch Ratio. % Supports PAMn for N > 2 % Not valid for NRZ % % PAMThreshold Vector of PAM Thresholds for each eye in the PAMn modulation. Generated by CDR. % voltageSample Voltage observed from the dtaa signal at the Clock Time. Generated by the CDR. % ignoreBits Integer number of bits to ignore before starting the RLM Calculation. Value % passed in via AMI Parameter. % rlmWindowSize Integer number of bits to include in each RLM calculation. Value passed in % via AMI Parameter. % Modulation Current Modulation being used. Passed in via Data Scope = Parameter. % SymbolTime Current simulation Symbol Time. Passed in via Data Scope = Parameter. % SampleInterval Current simulation Sample Interval. Passed in via Data Scope = Parameter. % RLM_Out Calculated RLM value. % % Copyright 2023 The MathWorks, Inc. % Skip entire function if NRZ if Modulation == 2 RLM_Out = 1; return end % Set up persistent variables to be available between time steps persistent vsArray sampCount rlmWinCount tempRLM_Out uiCount sampBit delta if isempty(sampBit) sampBit = round(SymbolTime/SampleInterval); sampCount = int32(0); %% Total elapsed samples rlmWinCount = int32(0); %% Window size counter uiCount = int32(0); %% Total UI counter delta = zeros(1, Modulation-1); vsArray = 0; tempRLM_Out = 1; end % Initialize output to previous value RLM_Out = tempRLM_Out; % Track number of elapsed samples sampCount = sampCount + 1; % Accumulate voltage samples every UI if mod(sampCount,sampBit) == 0 vsArray = [vsArray voltageSample]; rlmWinCount = rlmWinCount + 1; uiCount = uiCount + 1; end % Calculate new RLM value every rlmWindowSize if (rlmWinCount >= rlmWindowSize && uiCount > ignoreBits) minV = min(vsArray); maxV = max(vsArray); Vmean = zeros(1, Modulation); % Calculate lowest mean value (V0) Vzero = vsArray((vsArray >= minV) & (vsArray < PAMThreshold(1))); Vmean(1) = mean(Vzero); % Calculate middle mean value(s) for jj = 1:Modulation-2 Vnext = vsArray((vsArray > PAMThreshold(jj)) & (vsArray < PAMThreshold(jj+1))); Vmean(jj+1) = mean(Vnext); end % Calculate highest mean value Vlast = vsArray((vsArray >= PAMThreshold(Modulation-1)) & (vsArray <= maxV)); Vmean(Modulation) = mean(Vlast); % Calculate final RLM value for kk = Modulation:-1:2 delta(kk-1) = Vmean(kk) - Vmean(kk-1); end num = min(delta); den = (Vmean(Modulation)-Vmean(1)) / (Modulation-1); RLM_Out = num/den; % Reset for next rlm Window vsArray = 0; rlmWinCount = int32(0); end % Save result for next iteration tempRLM_Out = RLM_Out;

** Note**: In the function signature for the

`RLM_Calculation`

MATLAB function, you must change the **Data Scope**for the parameters "

`Modulation`

", "`SymbolTime`

" and "`SampleInterval`

" from `Input`

to `Parameter`

. Rename the MATLAB function block to `RLM_Calculation`

so that the resulting waveform names in the Simulation Data Inspector become more intuitive.

#### Add Rx AMI Parameters

Open the **SerDes IBIS-AMI Manager** and select the** AMI-Rx** tab. Highlight the DFECDR block and add three new AMI Parameters:

**Parameter name**: `RLM_ignoreBits`

**Usage**:`In`

**Type**:`Integer`

**Format**:`Range`

**Typ**: 1000**Min**: 10**Max**:`1000000`

**Description**:`Number of bits to ignore at the beginning of the simulation when calculating the RLM value (Time Domain only).`

**Current value**:`1000`

**Parameter name**:` RLM_windowSize`

**Usage**:`In`

**Type**:`Integer`

**Format**:`Range`

**Typ**:`1000`

**Min**:`50`

**Max**:`100000`

**Description**:`Number of bits to use in RLM calculation.`

**Current value**:`1000`

**Parameter name**:` RLM_Value`

**Usage**:`Out`

**Type**: Float**Format**:`Value`

**Description**:`Value of the Level Separation Mis-Match Ratio.`

**Current value**:`1`

#### Connect Everything Up

Wire up the two new AMI Input parameters, the new AMI Output parameter, and the two Bus Selector signals `PAMThreshold`

and `voltageSample`

to the MATLAB Function block `RLM_Calculation`

. You can also turn logging on for the `RLM_Out`

node to visually verify the operation of the RLM Calculation.

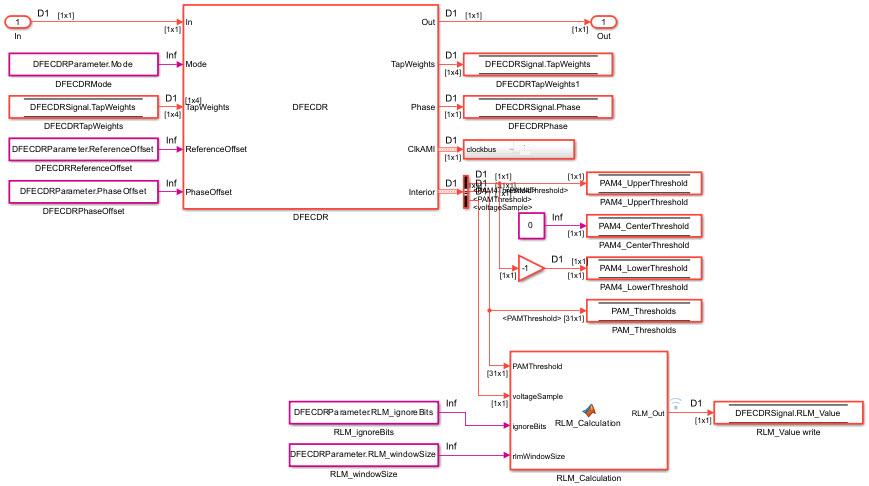

The final DFECDR block should look like this:

### Test the Simulink Model Operation

The full Simulink model is ready to run. It is recommended to set the Rx **Bits to ignore** to at least `15000`

in the IBIS-AMI Manager to allow time for the DFE and CTLE to settle. Run the simulation.

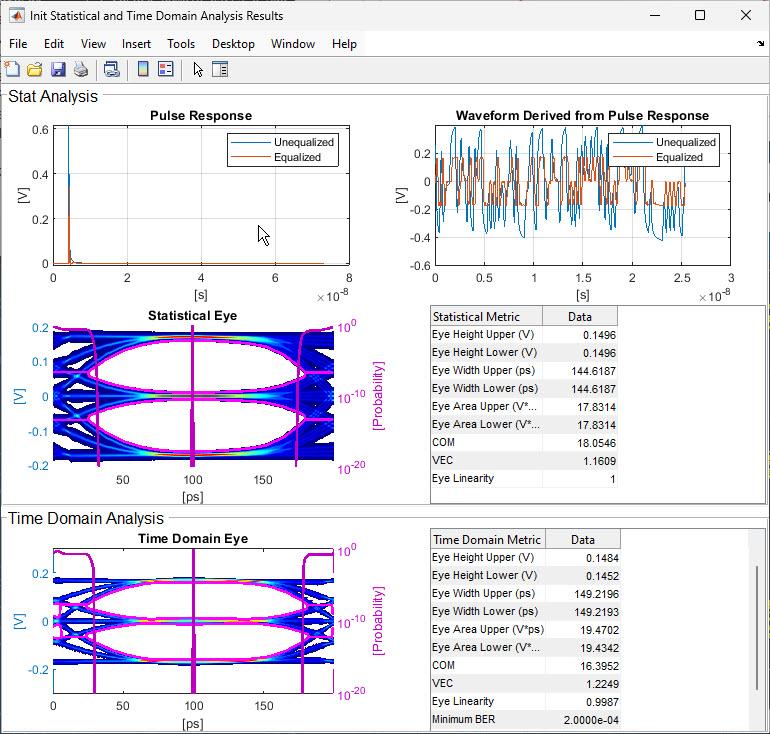

With the **Tx** `RLM_input`

set to `1`

, the Init Statistical and Time Domain Analysis Results dialog should look similar to this:

#### Tx Model Testing

Set the Tx **RLM_input** to `0.8`

and the **RLM_sign** to `Positive`

in the IBIS-AMI Manager, then re-run the model:

Note how the Time Domain upper eye height has closed down while the lower eye height has opened up. Also notice that since RLM is only applied to the GetWave portion of the model, the Statistical results remain unchanged.

Now leave the Tx **RLM_input** at `0.8`

but change the **RLM_sign** to `Negative`

in the IBIS-AMI Manager, then re-run the model:

This time, the upper eye height has opened up and the lower eye height has closed down.

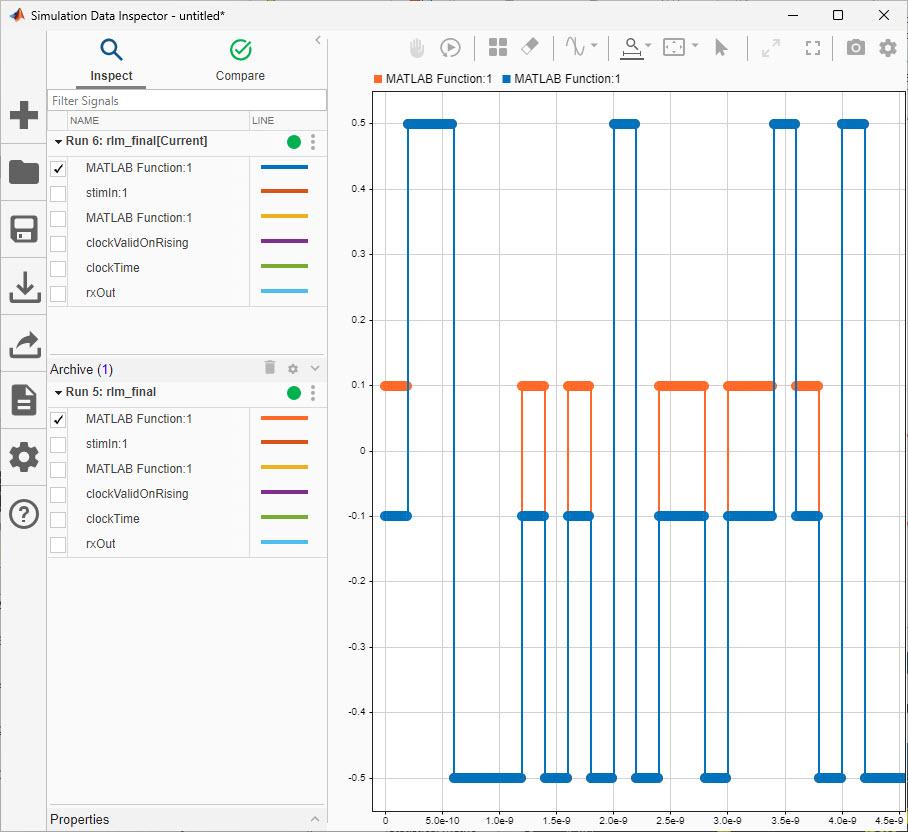

To verify that the RLM_Injection block is operating correctly, use the **Simulation Data Inspector** to plot the output of the RLM_Injection pass-through block for the last two simulations:

The red waveform is the output when RLM_sign was Positive, and the blue waveform is the output when RLM_sign was Negative. In both cases the RLM_input was set to 0.8. Note that the high (+0.5V) and low (-0.5V) symbol voltages are unchanged.

Repeat the last two simulations using PAM4 modulation and see how the eyes change. Note that only the upper PAMn eye is modified by RLM.

#### How Does the RLM Injection Work

PAM3 has symbol voltages of -0.5, 0 and +0.5V, while PAM4 has symbol voltages of -0.5, -0.1667, +0.1667 and +0.5. The $${R}_{LM}$$ injection algorithm works by using a saturating nonlinearity to shift the N-1 symbol voltage while leaving the remaining symbol voltages alone. In order to account for any jitter or noise added to the incoming stimulus, a range of voltages around the N-1 symbol voltage (0.0V for PAM3 or 0.1667V for PAM4) are shifted.

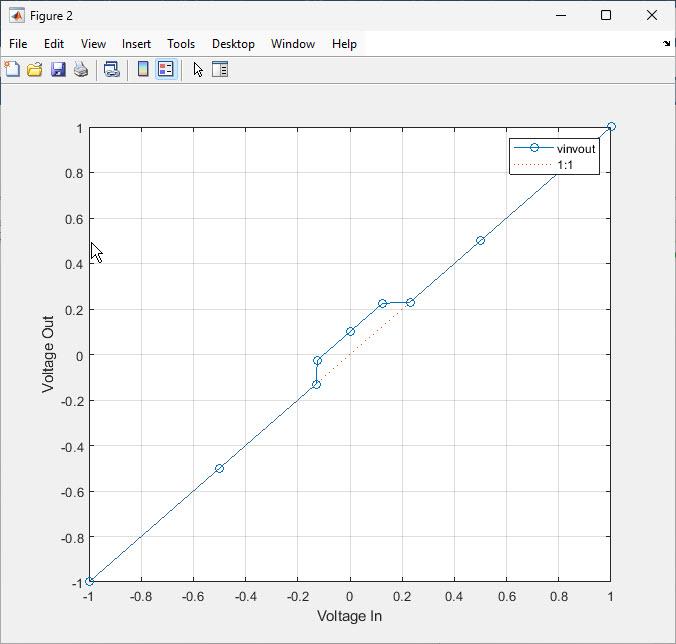

The Vin/Vout saturation curve for PAM3 with **RLM_input** set to `0.8`

and **RLM_sign** `Positive`

looks like the following:

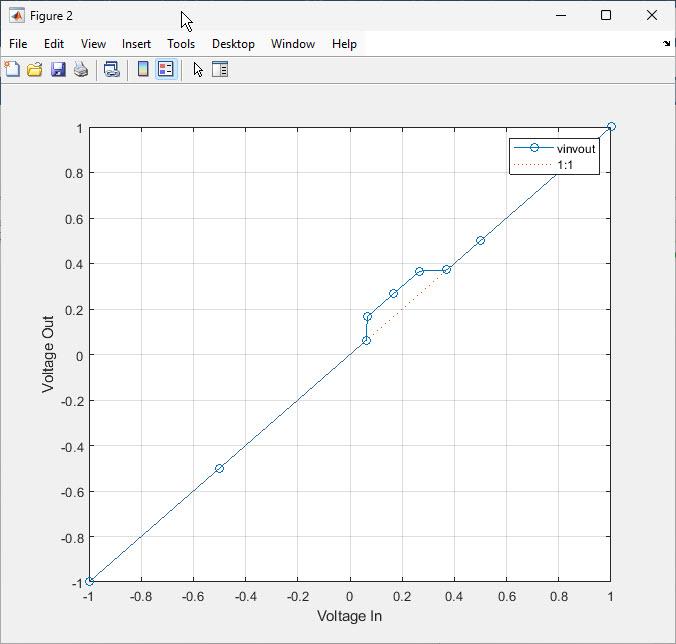

The Vin/Vout saturation curve for PAM4 with **RLM_input** set to `0.8`

and **RLM_sign** `Positive`

looks like the following:

#### Limitations to Tx RLM Injection

While $${R}_{LM}$$ Injection will work for any PAMn modulation, it only operates on the N-1 symbol threshold so only the top-most eye can be made larger or smaller.

#### Rx Model Testing

Use the Configuration block to set the **Modulation** to `PAM3`

, then verify that the Tx **RLM_input** is set to `0.8`

and the **RLM_sign** is `Positive`

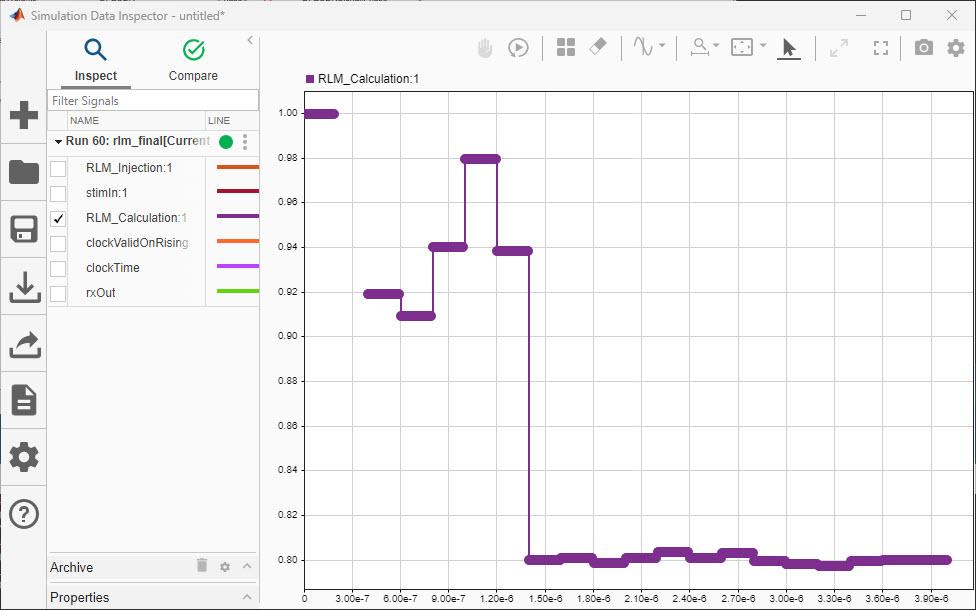

in the IBIS-AMI Manager. Run the simulation, then plot the signal **RLM_Calculation:1** in the Simulation Data Inspector. If this signal is not available, make sure that you have enabled logging on the output of the MATLAB Function block in the DFECDR and that the MATLAB Function block has been named RLM_Calculation. The plot should look similar to this:

Note that the RLM calculation bounces around quite a bit as the CTLE and DFE taps adapt before finally settling at ~0.8 as expected.

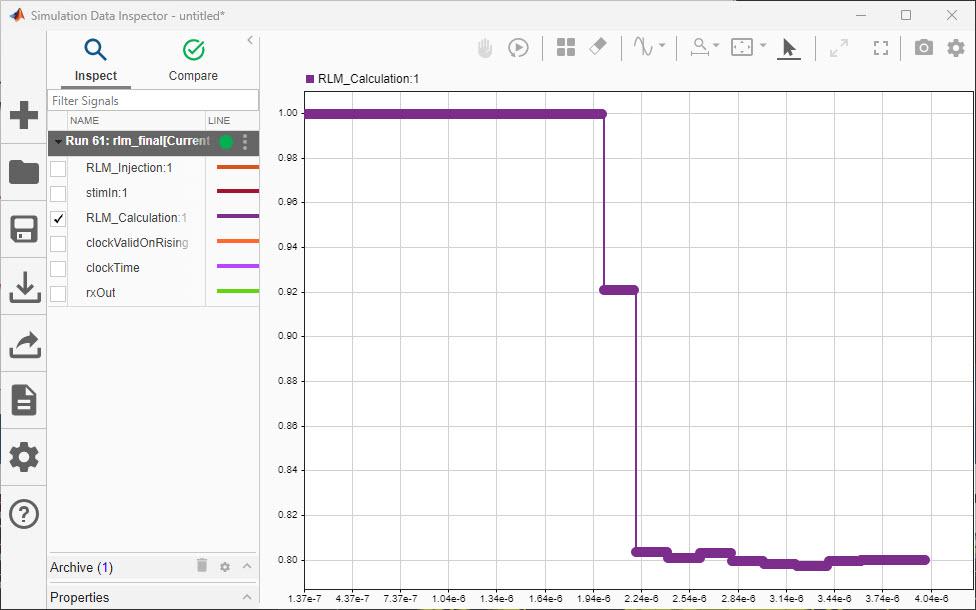

Now, change the AMI Parameter **RLM_ignoreBits** from `1000`

to `10000`

and re-run the simulation:

Note that the RLM calculation stays at the default value of 1.0 until after 10,000 bits (half the simulation time) before quickly settling to ~0.8.

Finally, set the AMI Parameter **RLM_ignoreBits** back to `1000`

, and set **AMI_windowSize** to `5000`

and re-run the simulation:

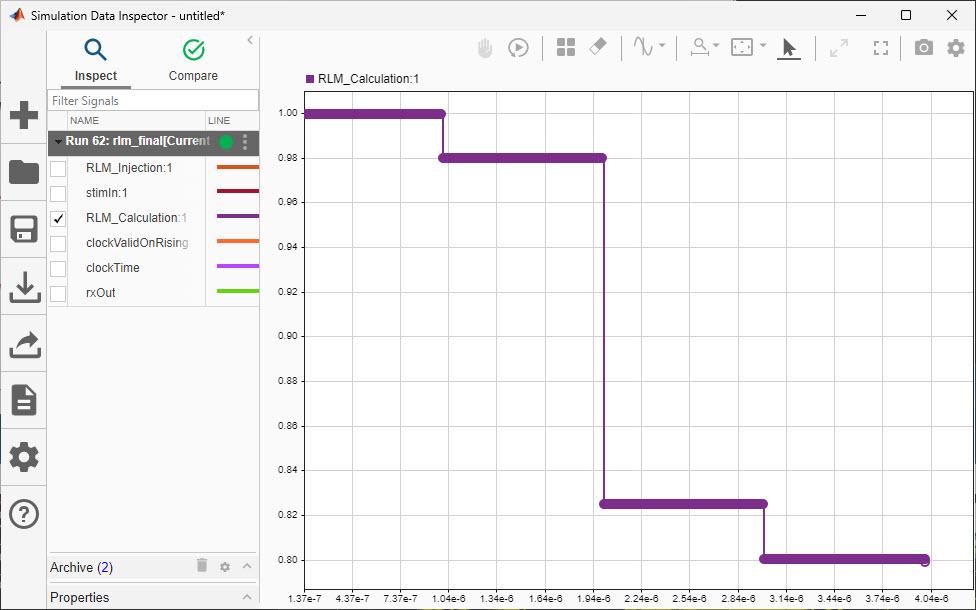

Note that while the $${R}_{LM}$$ calculation is adapting much more slowly, it does not jump around nearly as much when using the larger window size to make each calculation.

#### How does the RLM Calculation work

The RLM calculation works by starting with each PAM threshold value, them moving up and down to find the limits of each symbol voltage. The average value V of each symbol voltage is used to calculate the final RLM value using the equation:

$$\mathit{R}\mathrm{LM}=\frac{\mathrm{min}\left({\mathit{V}}_{\mathit{N}}-{\mathit{V}}_{\mathit{N}-1},{\mathit{V}}_{\mathit{N}-1}-{\mathit{V}}_{\mathit{N}-2},...{\mathit{V}}_{2}-{\mathit{V}}_{\mathit{1}}\right)}{\left({\mathit{V}}_{\mathit{N}}-{\mathit{V}}_{1}\right)\text{\hspace{0.17em}}/\text{\hspace{0.17em}}\mathit{N}-1}$$

No calculations are performed until after **RLM_ignoreBits** has elapsed, and the number of UI contained in each RLM calculation is determined by the value of **RLM_windowSize**.

### Generate IBIS-AMI Models

The final part of this example takes the customized Simulink model and generates IBIS-AMI compliant model executables, IBIS and AMI files for the RLM-enabled transmitter and receiver.

**Export Models**

Open the **SerDes IBIS-AMI Manager** and select the **Export** tab. On the **Export** tab:

Update the

**Tx model name**to rlm_txUpdate the

**Rx model name**to rlm`_rx`

.Note that the

**Tx and Rx corner percentage**is set to`10`

. This will scale the min/max analog model corner values by +/-10%.Verify that

**Dual model**is selected for both the**Tx**and**Rx AMI Model Settings**. This will create a model executable that supports both statistical (Init) and time domain (GetWave) analysis.Set the

**Rx model Bits to ignore value**to`1000`

to allow enough time for the external clock waveform to settle during time domain simulations.Set

**Models to export**to`Both Tx and Rx.`

Set the

**IBIS file name**to be rlm_models`.ibs`

Press the

**Export**button to generate models in the**Target directory**.

### Test Generated IBIS-AMI Model Executables

The $${R}_{LM}$$ capable IBIS-AMI models are now complete and ready to be tested in any industry standard AMI model simulator such as Signal Integrity Toolbox.
