Fuentes
R2026aModele fuentes de tensión y corriente idealizadas o realistas.
Bloques de Simscape
 | Battery | Behavioral battery model |
 | Battery (Table-Based) | Tabulated battery model |
 | Controlled Current Source (Three-Phase) | Ideal three-phase controlled current source |
 | Controlled Voltage Source (Three-Phase) | Ideal three-phase controlled voltage source |
 | Current Source | Current source with optional DC, AC, and noise components |
 | Current Source (Three-Phase) | Ideal three-phase current source |
 | Electrolyzer | Electric load for electrolyzer (Desde R2022a) |
 | Fuel Cell | Fuel cell electrical system |
 | Negative Supply Rail | Ideal negative supply rail |
 | Load Flow Source | Three-phase voltage source for performing load flow analysis |
 | Piecewise Linear Current Source | Time-dependent current source using lookup table |
 | Piecewise Linear Voltage Source | Time-dependent voltage source using lookup table |
 | Positive Supply Rail | Ideal positive supply rail |
 | Programmable Voltage Source | Single-phase AC voltage source with optional programmable magnitude, frequency, phase shift and DC offset |
 | Programmable Voltage Source (Three-Phase) | Three-phase voltage source with optional programmable AC magnitude, frequency, and phase shift |
 | Pulse Current Source | Periodic square wave current source |
 | Pulse Voltage Source | Periodic square wave voltage source |
 | Solar Cell | Photovoltaic solar cell |
 | Voltage Source | Voltage source with optional DC, AC and noise components |
 | Voltage Source (Three-Phase) | Ideal three-phase voltage source with optional harmonics |
Temas
- Plot Basic Voltage-Charge Characteristics of Battery Blocks
Plot basic voltage-charge characteristics of battery blocks based on block parameter values.
Ejemplos destacados

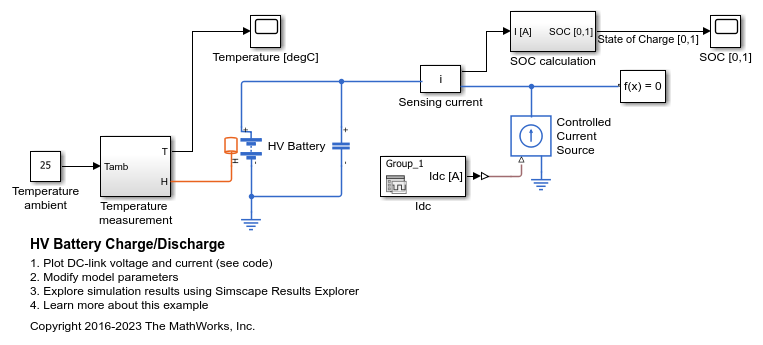

Carga/descarga de batería de alta tensión
Este ejemplo muestra una batería de alta tensión como las que se utilizan en vehículos eléctricos híbridos. El modelo utiliza un perfil de corriente enlace de CC realista que se genera a partir de un ciclo de conducción dinámica. El tiempo total de la simulación es 3.600 s.
IPMSM Outer Loop Controller Evaluation
Control the rotor angular velocity in an interior permanent magnet synchronous machine (IPMSM) based electrical-traction drive. For evaluation of the outer loop velocity controller, the inner loop current controller is replaced by a three-phase controlled current source. An ideal torque source provides the load. The Scopes subsystem contains scopes that allow you to see the simulation results. The Control subsystem includes a PI-based outer loop controller. During the three-seconds simulation, the angular velocity demand is -1000, 2000, 3000, 4000, and then 5000 rpm.

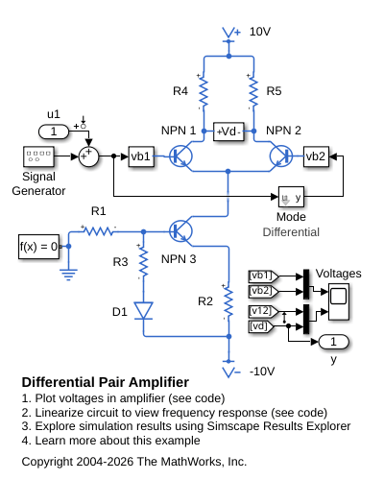

Differential Pair Amplifier
A differential pair amplifier circuit. The circuit can be used to explore the properties of a differential pair amplifier. The model can be tested using differential and common-mode inputs. The balanced output has zero gain in common-mode provided that the two transistors have identical properties.
Solar Cell Power Curve
Generate the power-voltage curve for a solar array. Understanding the power-voltage curve is important for inverter design. Ideally the solar array would always be operating at peak power given the irradiance level and panel temperature.
Linear Voltage Regulator with Feedback
A simple voltage regulator circuit constructed from discrete components. A fluctuating supply is modeled as 20V DC plus a 1V sinusoidal variation. The zener diode D1 sets the non-inverting input of the op-amp to 3.2V, and hence as the op-amp has a large gain, the op-amp inverting input and output are also at 3.2V. Hence the regulator voltage output is regulated to be 3.2*(1000+470)/470=10V. The NPN bipolar transistor is required to provide higher currents than is possible from a typical op-amp. The model can be used to check circuit operation, and to support selection of components to achieve the desired voltage regulation.

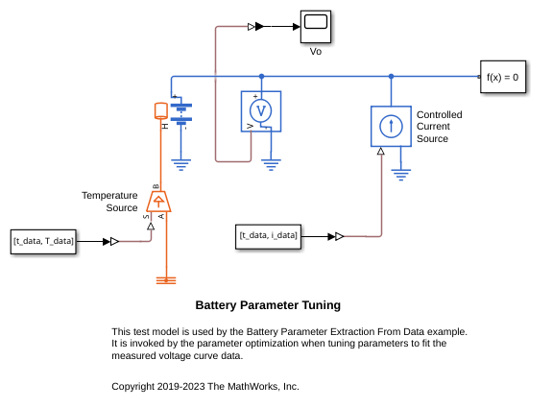

Battery Parameter Extraction from Data
Optimization of the Battery block's parameters to fit data defined over different temperatures. It uses the MATLAB® optimization function fminsearch. Other products available for performing this type of parameter fitting with Simscape™ Electrical™ models are the Optimization Toolbox™ and Simulink® Design Optimization™. These products provide predefined functions to manipulate and analyze blocks using GUIs or a command line approach.
Photovoltaic Thermal (PV/T) Hybrid Solar Panel
Model a multi-domain power cogeneration system using Simscape™, Simscape Electrical™, and Simscape Fluids™.
