Insert Text into Image
This example shows you how to insert colored text into an input image.
Example Model
Open the Simulink® model.
modelname = 'ex_blkInsertText.slx';
open_system(modelname)

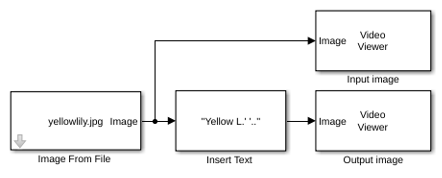

This model reads an input image using an Image From File block with the File name parameter set to yellowlily.jpg
.
The model inserts text into the input image by using an Insert Text block with these parameters:
Text —
'Yellow Lilly'
Color value source —
Specify via dialog
Color value —
[255,255,0]
Location source —
Specify via dialog
Location [x y] —
[600,50]
Opacity —
1
Font face —
LucidaSansDemiBold
Font size (points) —
100
Simulate the Model
Run the model. The model displays both the original input image and the output image with the inserted bold, yellow text by using Video Viewer blocks.
sim(modelname);
