Detect Clear WLAN Channels and Transmit

This example shows how to use a software-defined radio (SDR) energy detector to detect clear WLAN channels and transmit a waveform. The example uses WLAN signal descriptor objects to configure an SDR energy detector to scan a specified WLAN band. The example then tabulates and plots the activity detected in occupied channels, then transmits a waveform in a clear channel.

Introduction

In this example, you use hWLANOFDMDescriptor helper objects to detect the occupancy of 20 MHz WLAN channels in the specified band. Using the configureDetector helper function, you configure an SDR energy detector to scan each band by setting the following parameters:

  • Center frequency

  • Sample rate

  • Window Length

  • Trigger offset

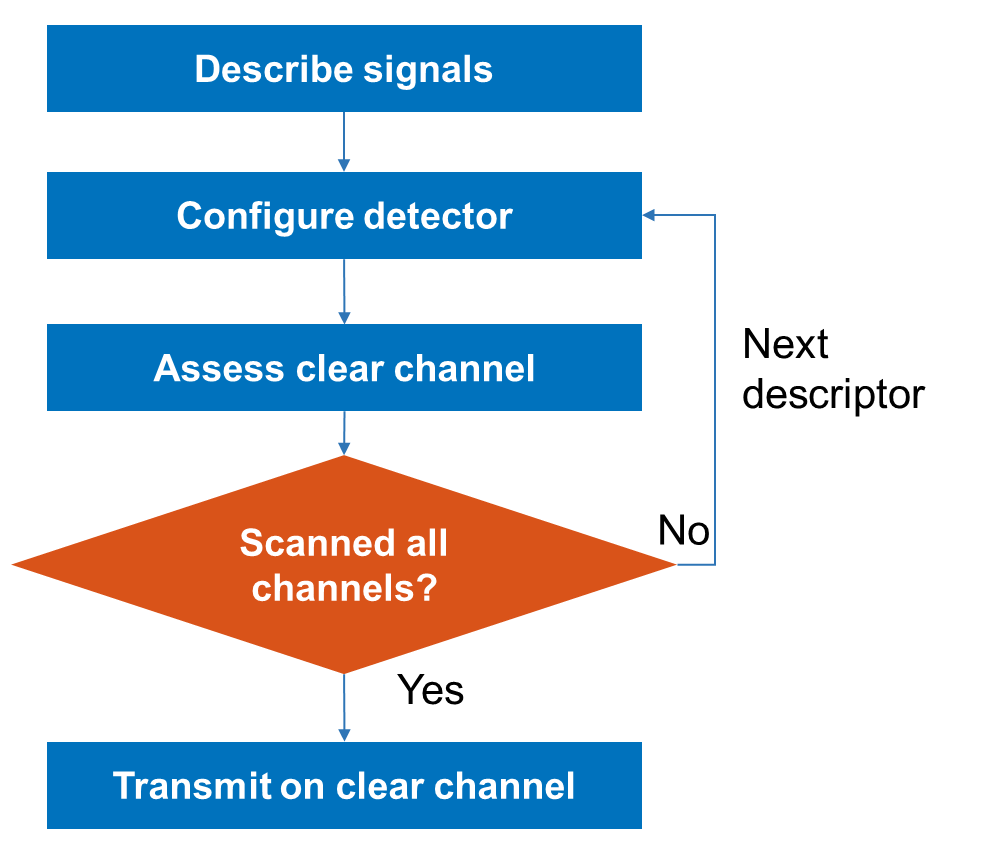

After you establish the detection status of each channel, you calculate the power of the signals in the occupied channels for visualisation and analysis. You then transmit a 20 MHz bandwidth WLAN beacon signal on a clear channel. This diagram shows the workflow.

Detect Clear WLAN Channels and Transmit example workflow

Describe Wireless Signals

Use the hWLANOFDMDescriptor helper object to describe the WLAN signals to look for. Use the 20MHz bandwidth in the 5GHz band to scan. The hWLANOFDMDescriptor generates an object for each appropriate WLAN channel defined by the 802.11 standard.

WLANBand = 5;
channelBandWidth = "CBW20";
wsds = hWLANOFDMDescriptor(Band=WLANBand,ChannelBandwidth=channelBandWidth);

Create and Configure Radio as Energy Detector

Set Up Radio

Call the radioConfigurations function. The function returns all available radio setup configurations that you saved using the Radio Setup wizard. For more information, see Connect and Set Up NI USRP Radios.

savedRadioConfigurations = radioConfigurations;

To add the names of your radio setup configurations to the menu options, click Update. Then select the radio to use with this example.

savedRadioConfigurationNames = [string({savedRadioConfigurations.Name})];
radio = savedRadioConfigurationNames(1) ;

Configure Energy Detector

Create an energy detector object with the specified radio. Because the object requires exclusive access to radio hardware resources, before running this example for the first time, clear any other object associated with the specified radio. In subsequent runs, to speed up the execution time of the example, reuse your new workspace object.

if ~exist("ed","var")
    ed = energyDetector(radio);
end

To update the dropdown menu with the antennas available for capture on your radio, call the hCaptureAntennas helper function. Then select the antenna to use with this example.

captureAntennaSelection = hCaptureAntennas(radio);
ed.Antennas = captureAntennaSelection(1);
ed.CaptureDataType = 'single';

Tune Energy Detector

Configure the energy delta threshold, minimum energy, and radio gain values of the energy detector for the local environment. For more information, see Triggered Capture Using Energy Detection. Configuring these values requires manual tuning by exploring the trigger points provided by the plotDetectionSignals function.

ed.ThresholdMethod = "adaptive";
ed.EnergyDeltaThreshold = 5;
ed.MinimumEnergy = 0.08;
ed.RadioGain = 30;

Scan Clear Channels for WLAN Signals

Use the configureDetector function to configure the energy detector with an appropriate sliding window length, trigger offset, sample rate and center frequency. Set the detection timeout to 100 milliseconds, which is the expected periodicity of a WLAN beacon packet. Then use the capture function to detect and capture the described WLAN signal. To estimate the signal power in the channel, capture 10 ms of data.

wb = hCaptureWaitBar(length(wsds));
occupiedChannels = [];
clearChannels = [];
for wsd = wsds
    hUpdateCaptureWaitBar(wb,wsd)
    ed = configureDetector(wsd,ed);
    [data,timestamp,~,detectionSuccessful] = capture(ed,milliseconds(10), milliseconds(100));
    if detectionSuccessful
        occupiedChannels = [occupiedChannels,struct(Data=data, Timestamp=timestamp, SampleRate=ed.SampleRate, Descriptor=wsd)]; %#ok<*AGROW>
    else
        clearChannels = [clearChannels;wsd];
    end
end
close(wb)
if isempty(occupiedChannels)
    disp("All channels are clear.")
    return
elseif isempty(clearChannels)
    disp("All channels are occupied.")
    return
end

Tabulate and Plot Detections

Calculate Power

Calculate the power of the signals in the occupied channels.

fullscale = single(intmax('int16'));
for ii = 1:length(occupiedChannels)
    pTime = 20e-6;
    % Calculate preamble length in Samples
    pLen = 1:ceil(pTime*occupiedChannels(ii).SampleRate);
    % Calculate the power of the IQ samples in the detected PSS
    power = mean(abs(single(occupiedChannels(ii).Data)).^2);
    % Calculate the dBFS value for the power
    powerDBFS = 10*log10(power/fullscale^2);
    occupiedChannels(ii).Power = powerDBFS; %#ok<*SAGROW>
end

Tabulate Detected Signals

Display the occupied channels in a table.

detectedWirelessSignals = [occupiedChannels.Descriptor]';
occupiedChannelTableTable = table;
for ii = 1:length(occupiedChannels)
    occupiedChannelTableTable(ii,:) = table(...
        string(class(detectedWirelessSignals(ii))),...
        detectedWirelessSignals(ii).CenterFrequency/1e6,...
        detectedWirelessSignals(ii).Band,...
        detectedWirelessSignals(ii).Channel,...
        double(extractAfter(detectedWirelessSignals(ii).ChannelBandwidth,"CBW")),...
        occupiedChannels(ii).Power,...
        VariableNames=["Detected Wireless Signal","Center Frequency (MHz)","Band","Channel", "CBW","Signal Power Estimate (dBFS)"]);
end
disp(occupiedChannelTableTable)
    Detected Wireless Signal    Center Frequency (MHz)    Band    Channel    CBW    Signal Power Estimate (dBFS)
    ________________________    ______________________    ____    _______    ___    ____________________________

     "hWLANOFDMDescriptor"               5220              5         44      20               -126.97
     "hWLANOFDMDescriptor"               5240              5         48      20                -138.3
     "hWLANOFDMDescriptor"               5500              5        100      20               -128.03
     "hWLANOFDMDescriptor"               5520              5        104      20               -141.99
     "hWLANOFDMDescriptor"               5540              5        108      20               -140.22
     "hWLANOFDMDescriptor"               5580              5        116      20               -134.83
     "hWLANOFDMDescriptor"               5600              5        120      20               -142.93
     "hWLANOFDMDescriptor"               5765              5        153      20               -120.68
     "hWLANOFDMDescriptor"               5785              5        157      20               -144.56
     "hWLANOFDMDescriptor"               5805              5        161      20                -142.4
     "hWLANOFDMDescriptor"               5825              5        165      20               -139.74

Plot Detected Signals

Plot the power of the occupied channels using the hPlotWLANDetections helper function.

hPlotWLANDetections(occupiedChannelTableTable);

Select Clear Channel and Transmit Waveform

Select a clear channel to transmit on and configure the energy detector for that channel to visually confirm that the channel is empty.

vacantChannelNumbers = string([clearChannels.Channel]);
vacantChannelNumber = vacantChannelNumbers(5);
wsdTransmit = clearChannels(vacantChannelNumbers == vacantChannelNumber);

Since the hWLANOFDMDescriptor helper function sets the energy detector window length to an appropriate value for detecting WLAN signals, signals with smaller bandwidths can be present but not detected. To verify that no other energy signatures are present in your selected band, you may need to use a smaller window length, use a longer timeout, or call plotDetectionSignals to visualize energy signals.

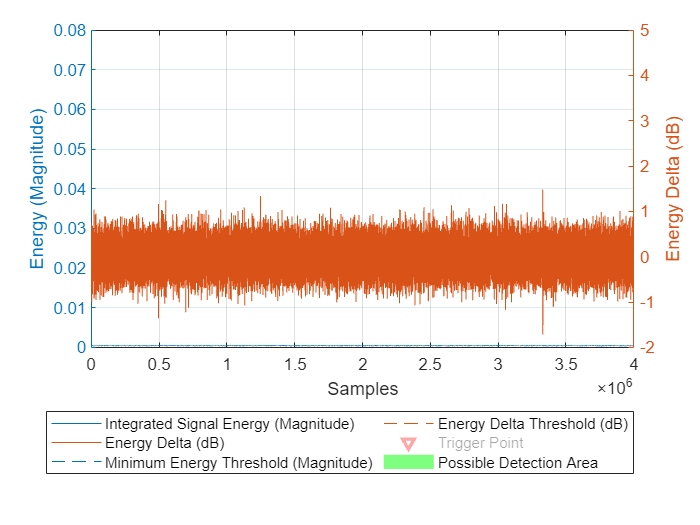

plotDetectionSignals(ed,milliseconds(200))

Once satisfied, transmit on the clear channel.

txGain = 30; % Increase if signal levels are low.
transmitAntennaSelection = hTransmitAntennas(radio);
txAntenna = transmitAntennaSelection(4);

Continuously transmit a WLAN beacon signal on the selected clear channel.

load WLANBeaconWaveform.mat;
transmit(ed, WLANBeaconWaveform,"continuous",TransmitGain=txGain, ...
    TransmitCenterFrequency=ed.CenterFrequency,TransmitAntennas=txAntenna);

Stop Transmission

When ready, stop the transmission.

stopTransmission(ed);
