Automatic 2d Rigid Body Image Registration

Automatic 2d rigid registration using improved MI kernel
11,1K descargas
Actualizado 19 mar 2008

Sin licencia

Rigid body 2-D image co-registration (translation and rotation) is performed using maximization of mutual information.

Function is implemented in c-code and compiled using the Matlab compiler to minimize computation time. Current compilation will only run on a 32-Bit windows machine running 2007b. Matlab compiler is necessary to re-compile for other versions/platforms.

Mutual information joint entropy matrix is computed using the Hanning windowed sinc function as the kernel of interpolation, which is the HPV estimation method [1].

Maximization of the joint entropy matrix is carried out using Powel's Direction set method [2] with original c-code very slightly modified from J.P. Moreau's code[3].

[1] Lu X, et al., Mutual information-based multimodal image registration using a novel joint histogram estimation, Comput Med Imaging Graph (2008), doi:10.1016/j.compmedimag.2007.12.001

[2] Numerical Recipes, The Art of Scientific Computing By W.H. Press, B.P. Flannery, S.A. Teukolsky and W.T. Vetterling, Cambridge University Press, 1986


Citar como

Matthew Sochor (2024). Automatic 2d Rigid Body Image Registration (, MATLAB Central File Exchange. Recuperado .

Compatibilidad con la versión de MATLAB
Se creó con R2007b
Compatible con cualquier versión
Compatibilidad con las plataformas
Windows macOS Linux
Más información sobre Geometric Transformation and Image Registration en Help Center y MATLAB Answers.

Community Treasure Hunt

Find the treasures in MATLAB Central and discover how the community can help you!

Start Hunting!
Versión Publicado Notas de la versión

Added some flexibility in the code for older c compilers. Should be a little easier to re-compile for those users now.

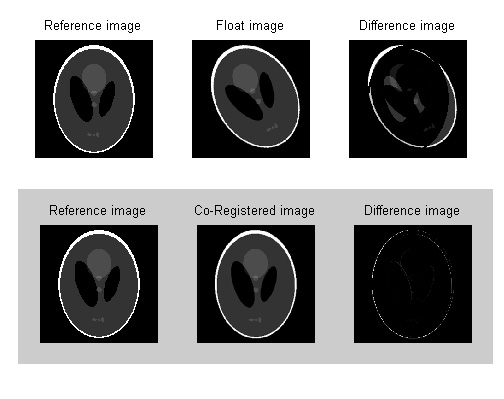

Added screenshot.
