histograms for ND data

Versión (2.44 KB) por Diederick
Create histograms for ND data using ND bins

549 descargas

Actualizado 21 Jun 2011

Ver licencia

histnd Histogram count of ND data with ND bins

histmat = histnd(x, y, ..., xedges, yedges, ...)
Extract ND histogram data containing the number of events
of [x, y, ...] tuples that fall in each bin of the ND-grid defined by
xedges, yedges, .... The edges are passed to histc internally and should
therefore conform to histc's input restrictions: the edge-vectors should
be monotonically non-decreasing.

[histmat, nOOF, OOFidx] = histnd(x, y, ..., xedges, yedges, ...)
If any values are outside of the range of the edges, they are not
counted. The number of those cases and their linear index in the input
data is however returned in the second and third output arguments.


events = 1000000;
x1 = sqrt(0.05)*randn(events,1)-0.5; x2 = sqrt(0.05)*randn(events,1)+0.5;
y1 = sqrt(0.05)*randn(events,1)+0.5; y2 = sqrt(0.05)*randn(events,1)-0.5;
x= [x1;x2]; y = [y1;y2];

For linearly spaced edges:
xedges = linspace(-1,1,64); yedges = linspace(-1,1,64);
histmat = histnd(x, y, xedges, yedges);
figure; pcolor(xedges,yedges,histmat'); colorbar ; axis square tight ;

For nonlinearly spaced edges:
xedges_ = logspace(0,log10(3),64)-2; yedges_ = linspace(-1,1,64);
histmat_ = histnd(x, y, xedges_, yedges_);
figure; pcolor(xedges_,yedges_,histmat_'); colorbar ; axis square tight ;

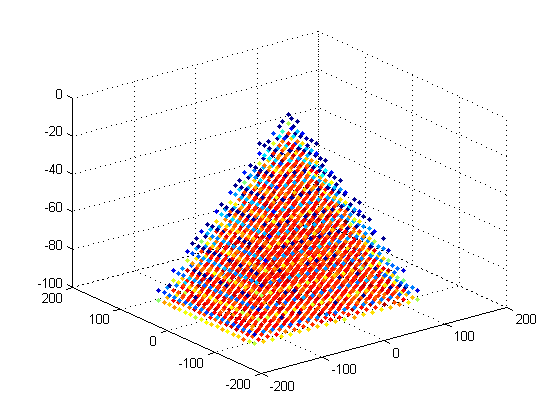

3D data
x = 3.*randn(640000,1);
y = 1.*randn(640000,1);
z = 1.*randn(640000,1);
histmat = histnd(x,y,z,linspace(min(x),max(x),20),linspace(min(y),max(y),20),linspace(min(z),max(z),20));
% make 3D hist, color of points indicates count
[xp,yp,zp] = meshgrid(linspace(min(x),max(x),20),linspace(min(y),max(y),20),linspace(min(z),max(z),20));
% cut away histogram positions where count is 0
qzero = histmat==0;
histmat(qzero) = [];
xp(qzero) = [];
yp(qzero) = [];
zp(qzero) = [];
% draw points
figure;%('Renderer','OpenGL') % might need the openGL renderer to handle so many points
ax = scatter3(xp(:),yp(:),zp(:),'.');
% color them according to count
cdata = histmat(:)./max(histmat);
xlabel('X'), ylabel('Y'), zlabel('Z')
