Resolve Error: Incorrect Size for Expression

Issue

If you generate MEX code and the size of an expression at run time is incompatible with the size that the code generator determined at code generation time, the MEX function produces one of these errors:

Incorrect size for expression '<output of extrinsicFunction>': expected specifiedSize but found outputSize.

Incorrect size for expression 'inputArgument': expected specifiedSize but found runtimeSize.

Possible Solutions

Depending on the error message, try one of these solutions:

• If the error message refers to the output of an extrinsic function and you know the maximum size of the output array, specify a fixed-size output by preallocating the output variable or specify a bounded variable-size output by using coder.varsize.

• If the error message refers to the output of an extrinsic function and you do not know the maximum size of the output array, specify an unbounded variable size output by using coder.varsize and initialize the output variable as an empty array.

• If the error message refers to an input argument, change either the size specification at code generation time or the size of the input value at run time.

Specify Maximum Size for Output of Extrinsic Function

If the output of an extrinsic function is fixed size or bounded variable size and the size that you specified at code generation time differs from the size of the output at run time, the generated MEX function produces an error. If the output variable has a fixed size, resolve this error by preallocating the output array. If the output variable has a bounded variable size, use coder.varsize to specify the upper bounds of the output array.

For example, consider this MATLAB^® function, which calls an extrinsic function. The size of the extrinsic function output depends on the entry-point input argument n, but it cannot be larger than 1-by-20.

function outNum = entryPointCallExtrinsic(n) %#codegen
coder.extrinsic("extrinsicNumFcn")
outNum = 0;
outNum = extrinsicNumFcn(n);
end

function out = extrinsicNumFcn(n)
if n<20
    out = zeros(1,n);
else
    out = zeros(1,20);
end
end

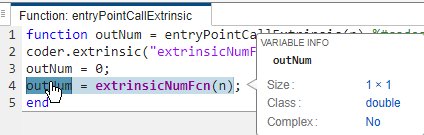

If you generate code for entryPointCallExtrinsic, the code generation report shows that, because the initial size of outNum is 1-by-1, the code generator defines both dimensions of outNum with a fixed size of 1.

When you run the generated MEX function, it produces this error for input values larger than 1 because the output of the extrinsic function is larger than 1-by-1:

entryPointCallExtrinsic_mex(25)

Incorrect size for expression '<output of extrinsicNumFcn>': expected [1x1] but found [1x20].

To resolve the error, if you know that n is always greater than or equal to 20, you can preallocate outNum by using the zeros function.

function outNum = entryPointCallExtrinsic_Preallocate(n) %#codegen
coder.extrinsic("extrinsicNumFcn")
outNum = zeros(1,20);
outNum = extrinsicNumFcn(n);
end

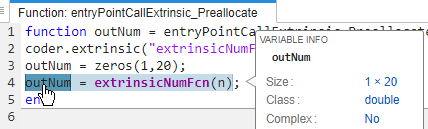

If you generate code for entryPointCallExtrinsic_Preallocate, the code generation report shows that the code generator defines outNum as a fixed-size 1-by-20 array.

The generated MEX function does not produce an error for values of n greater than or equal to 20.

Alternatively, if you do not know the value of n, you can use coder.varsize to specify that outNum is a variable-length row vector with a maximum length of 20.

function outNum = entryPointCallExtrinsic_VarSizeBounded(n) %#codegen
coder.extrinsic("extrinsicNumFcn")
coder.varsize("outNum",[1 20],[false true]);
outNum = 0;
outNum = extrinsicNumFcn(n);
end

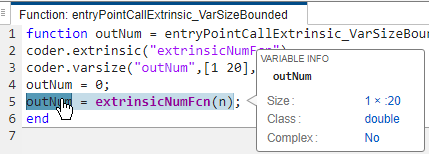

If you generate code for entryPointCallExtrinsic_VarSizeBounded, the code generation report shows that the first dimension of outNum has a fixed size of 1 and the second dimension of outNum is variable size with an upper bound of 20.

The generated MEX function does not produce an error.

Specify Unbounded Size for Output of Extrinsic Function

If the extrinsic function output is unknown or unbounded and the code generator defines the output with a bounded size, the generated MEX function produces an error. If you do not know the maximum size of one or more dimensions of an extrinsic function output, you must force the code generator to recognize each unbounded dimension by initializing the dimension with a size of 0 and using coder.varsize to define the dimension as unbounded. If you do not initially set the size of the output dimension to 0, the code generator uses the initial size of the dimension as an upper bound.

For example, consider this MATLAB function, which calls an extrinsic function and uses coder.varsize without an upper bound to specify that the output of the extrinsic function has a variable size. The function initializes outChr as a scalar character, which is a 1-by-1 array.

function outChr = entryPointCallChrExtrinsic(n) %#codegen
coder.extrinsic("extrinsicChrFcn")
coder.varsize("outChr",[1 Inf]);
outChr = ' ';
outChr = extrinsicChrFcn(n);
end

function out = extrinsicChrFcn(n)
smiles = '';
for i=1:n
    smiles = [smiles ':-) '];
end
out = smiles;
end

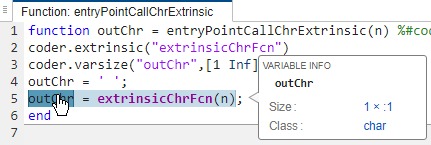

If you generate code for entryPointCallChrExtrinsic, the code generation report shows that, because the initial size of outChr is 1-by-1, the code generator defines the second dimension of outChr as variable size with an upper bound of 1.

When you run the generated MEX function, it produces this error for input values larger than 0 because the output of the extrinsic function is larger than 1-by-1:

entryPointCallChrExtrinsic_mex(1)

Incorrect size for expression '<output of extrinsicChrFcn>': expected [1x:1] but found [1x4].

To resolve the error, initialize outChr as a 1-by-0 character vector. Because the second dimension of outChr is initialized with a size of 0, the code generator defines this dimension as unbounded.

function outChr = entryPointCallExtrinsic_empty %#codegen
coder.extrinsic("extrinsicChrFcn")
coder.varsize("outChr",[1 Inf]);
outChr = char(zeros(1,0));
outChr = extrinsicChrFcn;
end

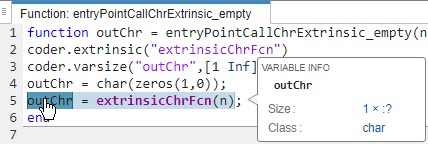

If you generate code for entryPointCallExtrinsic_empty, the code generation report shows that the code generator defines the first dimension of outChr with a fixed size of 1 and the second dimension of outChr as unbounded.

The generated MEX function does not produce an error.

Resolve Conflict Between Size of Array at Run Time and Code Generation Time

If the size of a variable that you supply at run time is inconsistent with the size that the code generator determined during code generation, the MEX function produces an error. This error occurs because the code generator must determine the sizes of the input arguments to an entry-point function at code generation time. To resolve this error, modify either the size specification at code generation time or the size of the input at run time. For example, consider this function, which returns the input value:

function out = returnVal(x)
out = x;
end

Generate code for returnVal at the command line by using the codegen command and the -args option with coder.typeof to specify that the first dimension of x has a fixed size of 1 and the second dimension of x is variable size with an upper bound of 10.

codegen returnVal -args {coder.typeof(0,[1 10],[false true])}

If you call the generated MEX function with an input array that is larger than 1-by-10, the MEX function produces an error.

returnVal_mex(1:20)

Incorrect size for expression 'x': expected [1x:10] but found [1x20].

To resolve this error, change either the size specification at code generation time or the size of the input value at run time. For example, to instruct the code generator to generate a MEX function that accepts row vectors with a maximum length of 20, use this command:

codegen returnVal -args {coder.typeof(0,[1 20],[false true])}

Alternatively, pass the MEX function an input value that is within the specified size:

returnVal_mex(1:10)
