Modulate using continuous phase frequency shift keying method
CPM, in Digital Baseband sublibrary of Modulation
The CPFSK Modulator Baseband block modulates a signal using the continuous phase frequency shift keying method. The output is a baseband representation of the modulated signal. The M-ary number parameter, M, represents the size of the input alphabet. M must have the form 2K for some positive integer K.
This block supports multi-h Modulation index. See CPM Modulator Baseband for details.
When you set the Input type parameter to
Integer
, the block accepts odd integers between
-(M-1) and M-1.
When you set the Input type parameter to
Bit
, the block accepts groupings of
K bits. Each grouping is called a binary
word. The input vector length must be an integer multiple
of K.
In binary input mode, the block maps each binary word to an integer between 0 and
M-1, using a mapping scheme that depends on whether you set the Symbol set
ordering parameter to Binary
or
Gray
. The block then maps the integer
k to the intermediate value 2k-(M-1) and proceeds as if it
operates in the integer input mode. For more information, see Integer-Valued Signals and Binary-Valued Signals.
This block accepts a scalar-valued or column vector input signal. If you set
Input type to Bit
, then the
input signal can also be a vector of length K.
In single-rate processing mode, the input and output signals have the same port sample time. The block implicitly implements the rate change by making a size change at the output when compared to the input. In this mode, the input to the block can be multiple symbols.
When you set Input type to
Integer
, the input can be a column vector,
the length of which is the number of input symbols.
When you set Input type to
Bit
, the input must be a column vector with a
width that is an integer multiple of K, the number of
bits per symbol.
The output width equals the product of the number of input symbols and the Samples per symbol parameter value.
In multirate processing mode, the input and output signals have different port sample times. In this mode, the input to the block must be one symbol.
When you set Input type to
Integer
, the input must be a scalar.
When you set Input type to
Bit
, the input width must equal the number of
bits per symbol.
The output sample time equals the symbol period divided by the Samples per symbol parameter value.
The size of the alphabet.
Indicates whether the input consists of integers or groups of bits.
Determines how the block maps each group of input bits to a corresponding
integer. This field is active only when Input type is
set to Bit
.
Specify the modulation index {hi}. The default is
0.5
. The value of this property must be a real,
nonnegative scalar or column vector.
This block supports multi-h Modulation index. See CPM Modulator Baseband for details.
The initial phase of the output waveform, measured in radians.
The number of output samples that the block produces for each integer or binary word in the input, which must be a positive integer. For all non-binary schemes, as defined by the pulse shapes, this value must be greater than 1.
For more information, see Upsample Signals and Rate Changes.
Select the rate processing option for the block.
Enforce single-rate processing
—
When you select this option, the input and output signals have the
same port sample time. The block implements the rate change by making
a size change at the output when compared to the input. The output
width equals the product of the number of symbols and the Samples
per symbol parameter value.
Allow multirate processing
—
When you select this option, the input and output signals have different
port sample times. The output sample time equals the symbol period
divided by the Samples per symbol parameter value.
Select the data type of the output signal. The output data type can be
single
or double
.
Port | Supported Data Types |
---|---|
Input |
|
Output |
|

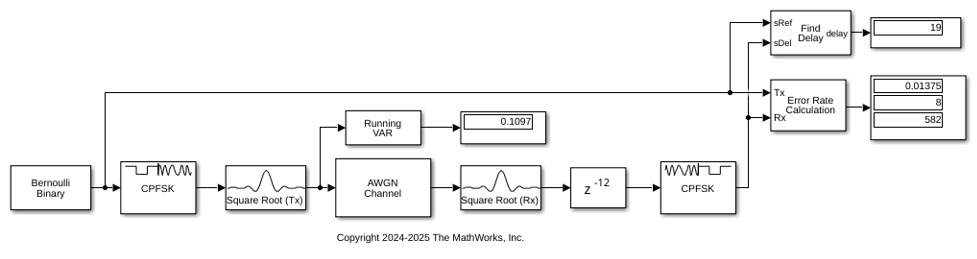

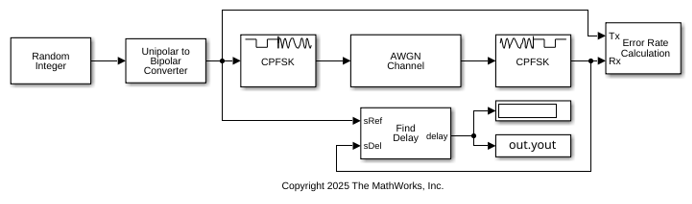

[1] Anderson, John B., Tor Aulin, and Carl-Erik Sundberg. Digital Phase Modulation. New York: Plenum Press, 1986.
