winner2.dipole

Calculate field pattern of half-wavelength dipole

Description

Download Required: To use this function, first download the WINNER II Channel Model for Communications Toolbox™ from the Add-On Explorer. For more information on downloading add-ons, see Get and Manage Add-Ons.

pat = winner2.dipole(az) returns the azimuth field pattern of a 0-degree slanted dipole at the azimuth angles specified in az.

example

pat = winner2.dipole(az,slant) returns the azimuth field pattern of a slanted dipole at the azimuth angles specified in az.

Examples

collapse all

Create 45 and 90 degree slanted dipoles by using the winner2.dipole function.

az = -180:179; % 1 degree spacing
pattern45 = squeeze(winner2.dipole(az,45));
pattern90 = squeeze(winner2.dipole(az,90));

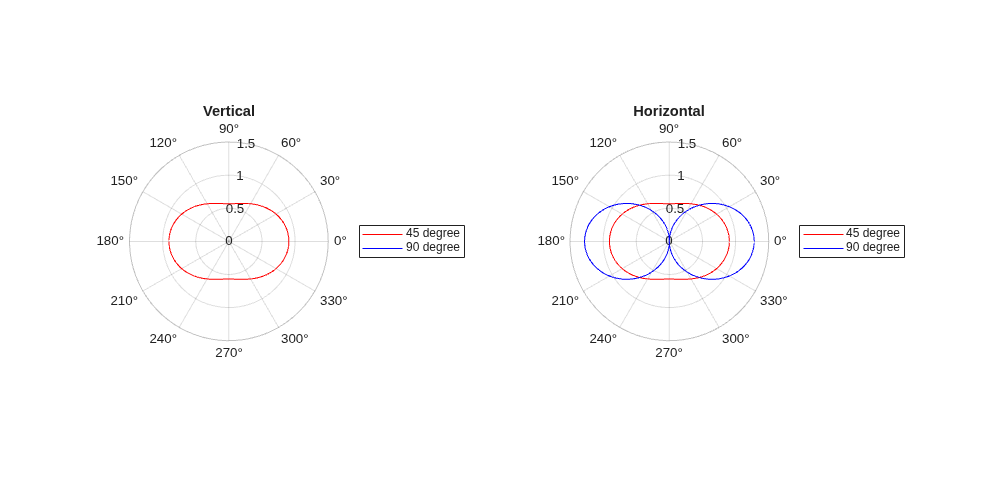

Display the antenna pattern by using the polarplot function.

fh = figure;
set(fh, 'Position', [100 100 1000 500]);
fh.Name = 'Dipole Pattern Plots';
subplot(1,2,1);
polarplot(az/180*pi,pattern45(1,:),'r');
hold on;
polarplot(az/180*pi,pattern90(1,:),'b');
rlim([0 1.5]);
legend('45 degree','90 degree');
title('Vertical');

subplot(1,2,2);
polarplot(az/180*pi,pattern45(2,:),'r');
hold on;
polarplot(az/180*pi,pattern90(2,:),'b');
rlim([0 1.5]);
legend('45 degree','90 degree');
title('Horizontal');

Input Arguments

collapse all

Azimuth angles, specified as a vector indicating the azimuth angles to compute the field pattern gain. Units are in degrees.

Data Types: double

Slant angle, specified as a scalar representing the counterclockwise angle seen from the front of the dipole. Units are in degrees.

Data Types: double

Output Arguments

collapse all

Field pattern, returned as a 2-by-1-by-NAZ array representing the vertical and horizontal field pattern, where NAZ is the number of elements in the az input vector.

References

[1] Kyosti, Pekka, Juha Meinila, et al. WINNER II Channel Models. D1.1.2 V1.2. IST-4-027756 WINNER II, September 2007.

Introduced in R2017a
