gatherLabelData
Syntax
Description
returns synchronized label data gathered from multisignal ground truth data,
labelData
= gatherLabelData(gTruth
,signalNames
,labelTypes
)gTruth
. The function returns label data for the signals specified by
signalNames
and the label types specified by
labelTypes
.
[
additionally returns the signal timestamps associated with the gathered label data, using
the arguments from the previous syntax.labelData
,timestamps
] = gatherLabelData(___)
Use timestamps
with the writeFrames
function to write the associated signal frames from the
groundTruthMultisignal
objects to disk. Use these frames and the
associated labels as training data for machine learning or deep learning models.
[___] = gatherLabelData(___,
specifies options using one or more name-value arguments in addition to any combination of
arguments from previous syntaxes. For example, Name=Value
)Verbose=True
enables
display to the workspace environment.
Examples
Gather Label Data and Write Associated Signal Frames
Gather label data for a video signal and a lidar point cloud sequence signal from a groundTruthMultisignal
object. Write the signal frames associated with that label data to disk and visualize the frames.
Add the point cloud sequence folder path to the MATLAB® search path. The video is already on the MATLAB search path.
pcSeqDir = fullfile(toolboxdir('driving'),'drivingdata', ... 'lidarSequence'); addpath(pcSeqDir);
Load a groundTruthMultisignal
object that contains label data for the video and the lidar point cloud sequence.
data = load('MultisignalGTruth.mat');
gTruth = data.gTruth;
Specify the signals from which to gather label data.
signalNames = ["video_01_city_c2s_fcw_10s" "lidarSequence"];
The video contains rectangle labels, whereas the lidar point cloud sequence contains cuboid labels. Gather the rectangle labels from the video and the cuboid labels from the lidar point cloud sequence.
labelTypes = [labelType.Rectangle labelType.Cuboid]; [labelData,timestamps] = gatherLabelData(gTruth,signalNames,labelTypes);
Display the first eight rows of label data from the two signals. Both signals contain data for the Car
label. In the video, the Car
label is drawn as a rectangle bounding box. In the lidar point cloud sequence, the Car
label is drawn as a cuboid bounding box.
videoLabelSample = head(labelData{1}) lidarLabelSample = head(labelData{2})
videoLabelSample = table Car _________________ {[299 213 42 33]} lidarLabelSample = table Car ____________________________________________________ {[17.7444 6.7386 3.3291 3.6109 3.2214 3.5583 0 0 0]}
Write signal frames associated with the gathered label data to temporary folder locations, with one folder per signal. Use the timestamps returned by the gatherLabelData
function to indicate which signal frames to write.
outputFolder = fullfile(tempdir,["videoFrames" "lidarFrames"]); fileNames = writeFrames(gTruth,signalNames,outputFolder,timestamps);
Writing 2 frames from the following signals: * video_01_city_c2s_fcw_10s * lidarSequence
Load the written video signal frames by using an imageDatastore
object. Load the associated rectangle label data by using a boxLabelDatastore
object.
imds = imageDatastore(fileNames{1}); blds = boxLabelDatastore(labelData{1});
Load the written lidar signal frames by using a fileDatastore
object. Load the associated cuboid label data by using a boxLabelDatastore
object.
fds = fileDatastore(fileNames{2},'ReadFcn',@pcread);
clds = boxLabelDatastore(labelData{2});

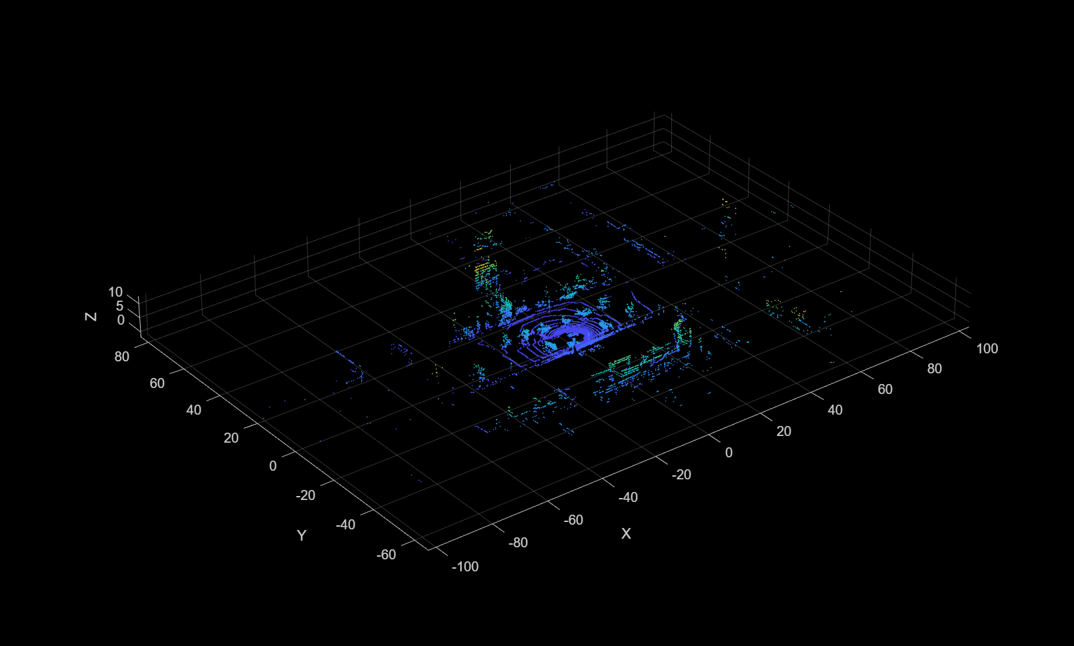

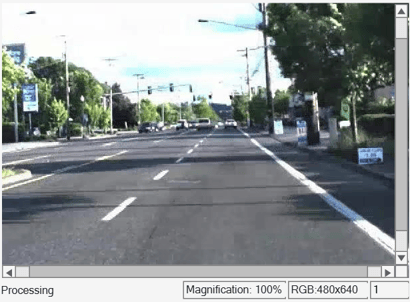

Visualize the written video frames by using a vision.VideoPlayer
object. Visualize the written lidar frames by using a pcplayer
object.
videoPlayer = vision.VideoPlayer; ptCloud = preview(fds); ptCloudPlayer = pcplayer(ptCloud.XLimits,ptCloud.YLimits,ptCloud.ZLimits); while hasdata(imds) % Read video and lidar frames. I = read(imds); ptCloud = read(fds); % Visualize video and lidar frames. videoPlayer(I); view(ptCloudPlayer,ptCloud); end
Remove the path to the point cloud sequence folder.
rmpath(pcSeqDir);
Input Arguments
gTruth
— Multisignal ground truth data
groundTruthMultisignal
object | vector of groundTruthMultisignal
objects
Multisignal ground truth data, specified as a groundTruthMultisignal
object or vector of
groundTruthMultisignal
objects.
Each groundTruthMultisignal
object in gTruth
must include all the signals specified in the signalNames
input.
In addition, each object must include at least one marked label per gathered label
definition. Suppose gTruth
is a
groundTruthMultisignal
object containing label data for a single
video signal named video_front_camera
. The object contains marked
rectangle region of interest (ROI) labels for the car
label
definition but not for the truck
label definition. If you use this
syntax to gather labels of type Rectangle
from this object, then the
gatherLabelData
function returns an
error.
labelData = gatherLabelData(gTruth,"video_front_camera",labelType.Rectangle);
signalNames
— Names of signals
character vector | string scalar | cell array of character vectors | string array
Names of the signals from which to gather label data, specified as a character
vector, string scalar, cell array of character vectors, or string vector. The signal
names must be valid signal names stored in the input multisignal ground truth data,
gTruth
.
To obtain the signal names from a groundTruthMultisignal
object,
use this syntax, where gTruth
is the variable name of the
object:
gTruth.DataSource.SignalName
Example: 'video_01_city_c2s_fcw_10s'
Example: "video_01_city_c2s_fcw_10s"
Example: {'video_01_city_c2s_fcw_10s','lidarSequence'}
Example: ["video_01_city_c2s_fcw_10s"
"lidarSequence"]
labelTypes
— Label types
labelType
enumeration scalar | labelType
enumeration vector | cell array of labelType
enumeration scalars and vectors
Label types from which to gather label data, specified as a labelType
enumeration scalar, labelType
enumeration vector,
or a cell array of labelType
enumeration scalars and vectors. The
gatherLabelData
function gathers label data for each signal
specified by input signalNames
and each
groundTruthMultisignal
object specified by input
gTruth
. The number of elements in labelTypes
must match the number of signals in signalNames
.
Gather Label Data for Single Label Type per Signal
To gather label data for a single label type per signal, specify
labelTypes
as a labelType
enumeration scalar
or vector. Across all groundTruthMultisignal
objects in
gTruth
, the gatherLabelData
function
gathers labelTypes(n)
label data from
signalName(n)
, where n
is the index of the
label type and the corresponding signal name whose label data is to be gathered. Each
returned table in the output labelData
cell array contains data
for only one label type per signal.
In this code sample, the gatherLabelData
function gathers
labels of type Rectangle
from a video signal named
video_front_camera
. The function also gathers labels of type
Cuboid
from a lidar point cloud sequence signal stored in a
folder named lidarData
. The gTruth
input
contains the groundTruthMultisignal
objects from which this data is
to be
gathered.
labelData = gatherLabelData(gTruth, ... ["video_front_camera","lidarData"], ... [labelType.Rectangle,labelType.Cuboid];
To gather label data for a single label type from separate signals, you must
repeat the label type for each signal. In this code sample, the
gatherLabelData
function gathers labels of type
Rectangle
from the video_left_camera
and
video_right_camera
video
signals.
labelData = gatherLabelData(gTruth, ... ["video_left_camera","video_right_camera"], ... [labelType.Rectangle,labelType.Rectangle];
Gather Label Data for Multiple Label Types per Signal
To gather label data for multiple label types per signal, specify
labelTypes
as a cell array of labelType
enumeration scalars and vectors. Across all groundTruthMultisignal
objects in gTruth
, the gatherLabelData
function gathers labelTypes{n}
label data from
signalName(n)
, where n
is the index of the
label types and the corresponding signal name whose label data is to be gathered. The
function groups the data for these label types into one table per signal per
groundTruthMultisignal
object.
In this code sample, the gatherLabelData
function gathers
labels of type Rectangle
and Line
from the
video_front_camera
video signal. The function also gathers labels
of type Cuboid
from a lidar point cloud sequence signal stored in a
folder named lidarData
. The gTruth
input
contains the groundTruthMultisignal
objects from which this data is
to be
gathered.
labelData = gatherLabelData(gTruth, ... ["video_front_camera", ... "lidarData"], ... {[labelType.Rectangle labelType.Line], ... labelType.Cuboid};
Valid Enumeration Types
You can specify one or more of these enumeration types.
labelType.Rectangle
— Rectangle ROI labelslabelType.RotatedRectangle
— Rotated Rectangle ROI labelslabelType.Cuboid
— Cuboid ROI labels (point clouds)labelType.ProjectedCuboid
— Projected cuboid ROI labels (images and video data)labelType.Line
— Line ROI labelslabelType.PixelLabel
— Pixel ROI labelslabelType.Polygon
— Pixel ROI labelslabelType.Scene
— Scene labels
To gather label data for scenes, you must specify labelTypes
as the labelType.Scene
enumeration scalar. You cannot specify any
other label types with labelType.Scene
.
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Example: (SamplingFactor
=5
) sets the subsampling
factor to 5
to drop every fifth frame.
SamplingFactor
— Factor for subsampling images
1
(default) | integer | vector of integers
Sample factor used to subsample label data, specified as a positive integer. A
sample factor of K
includes every K
th signal
frame. Increase the sample factor to drop redundant frames from signals with high
sample rates, such as videos. To set the SamplingFactor
with
projected cuboid data, you must specify the LabelData
name-value
argument to labelType.ProjectedCuboid
.
Use sampled data to reduce repeated data, such as a sequence of images with the same scene and labels. It can also help in reducing training time.
GroupLabelData
— Group columns from label data
"LabelName"
(default) | "LabelType"
Group columns from label data, specified as "LabelName"
or
"LabelType"
.
"LabelName"
— Groups the label data into columns by label definitions."LabelType"
— Groups the label data into columns by label type. You can use this option to gather label data while retaining the region-of-interest (ROI) stacking order determined by the label type.
IncludeAttributeAndSublabel
— Logical to indicate if attribute and sublabel data is returned in label data output
false
(0
) (default) | true
(1
)
Logical to indicate if attribute and sublabel data is returned in label data
output, specified as a logical false
(0
) or
true
(1
). A value of false
indicates that only the position values that correspond to ROIs are collected. A value
of true
indicates that each table in LabelData
contain structs that contain the position, attributes, and sublabels associated with
each label.
Output Arguments
labelData
— Label data
cell array of tables
Label data, returned as an M
-by-N
cell array
of tables, where:
M
is the number ofgroundTruthMultisignal
objects ingTruth
.When
labelTypes
contains ROIlabelType
enumerations,N
is the number of signals insignalNames
and the number of elements inlabelTypes
. In this case,labelData{m,n}
contains a table of label data for then
th signal ofsignalNames
that is in them
thgroundTruthMultisignal
object ofgTruth
. The table contains label data for only the label types in then
th position oflabelTypes
.When
labelTypes
contains only thelabelType.Scene
enumeration,N
is equal to1
. In this case,labelData{m}
contains a table of scene label data across all signals in them
thgroundTruthMultisignal
object ofgTruth
.
For a given label data table, tbl
, the table is of size
T
-by-L
, where:
T
is the number of timestamps in the signal for which label data exists.L
is the number of label definitions that are of the label types gathered for that signal.tbl(t,l)
contains the label data gathered for thel
th label at thet
th timestamp.
If one of the signals has no label data at a timestamp, then the corresponding label data table does not include a row for that timestamp.
For each cell in the table, the format of the returned label data depends on the type of label.
Label Type | Storage Format for Labels at Each Timestamp |
---|---|
labelType.Rectangle |
|
labelType.RotatedRectangle |
For one or more rotated rectangles, specify in spatial coordinates as an M-by-5 numeric matrix, where each row specifies a rotated rectangle of the form [xctr yctr w h yaw].
|
|
The figure shows how these values determine the position of a cuboid. |
|
The figure shows how these values determine the position of a cuboid. |
labelType.Line |
|
labelType.PixelLabel | Label data for all pixel label definitions is stored in a
single M-by-1 |
labelType.Polygon |
|
labelType.Scene | Logical 1 (true ) if the scene label
is applied. Otherwise logical 0
(false ) |
Label Data Format
Consider a cell array of label data gathered by using the
gatherLabelData
function. The function gathers labels from
three groundTruthMultisignal
objects with variable names
gTruth1
, gTruth2
, and
gTruth3
.
For a video signal named
video_front_camera
, the function gathers labels of typeRectangle
andLine
.For a lidar point cloud sequence signal stored in a folder named
lidarData
, the function gathers labels of typeCuboid
.
This code shows the call to the gatherLabelData
function.
labelData = gatherLabelData([gTruth1 gTruth2 gTruth3], ... ["video_front_camera", ... "lidarData"], ... {[labelType.Rectangle labelType.Line], ... labelType.Cuboid};
labelData
output is a 3-by-2 cell array of tables. Each row of
the cell array contains label data for one of the
groundTruthMultisignal
objects. The first column contains the label
data for the video signal, video_front_camera
. The second column
contains the label data for the point cloud sequence signal,
lidarData
. This figure shows the labelData
cell array.
This figure shows the label data table for the video signal in the third
groundTruthMultisignal
object. The
gatherLabelData
function gathered data for a
Rectangle
label named car
and a
Line
label named lane
. The table contains
label data at four timestamps in the signal.
This figure shows the label data table for the lidar signal in the third
groundTruthMultisignal
object. The
gatherLabelData
function gathered data for a
Cuboid
label, also named car
. The
car
label appears in both signal types because it is marked as a
Rectangle
label for video signals and a Cuboid
label for lidar signals. The table contains label data at four timestamps in the
signal.
timestamps
— Signal timestamps
cell array of duration
vectors
Signal timestamps, returned as an M
-by-N
cell
array of duration
vectors, where:
M
is the number ofgroundTruthMultisignal
objects ingTruth
.N
is the number of signals insignalNames
.labelData{m,n}
contains the timestamps for then
th signal ofsignalNames
that is in them
thgroundTruthMultisignal
object ofgTruth
.
If you gather label data from multiple signals, the signal timestamps are
synchronized to the timestamps of the first signal specified by
signalNames
.
Version History
Introduced in R2020a
See Also
Comando de MATLAB
Ha hecho clic en un enlace que corresponde a este comando de MATLAB:
Ejecute el comando introduciéndolo en la ventana de comandos de MATLAB. Los navegadores web no admiten comandos de MATLAB.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
