Create and Add Custom Data Elements

Generate an ASAP2 file by adding custom characteristics, measurements, axis-points, functions, groups, record layouts, and CompuMethods. By default, an ASAP2 file contains the data elements present in model that were configured to export.

Using the Simulink® Coder™ you can:

  • Create and add custom data elements such as characteristics, measurements, axis-points, functions, groups, record layouts, and CompuMethods.

  • Remove data elements from the ASAP2 file.

  • Filter and filter data elements based on their properties.

  • Get or update the properties of data elements.

Video - Customization of ASAP2 File

This video walks you through how to build a model and add, update, find, delete custom data elements in an ASAP2 file.

This video will walk you through how the A2L file can be customized. An q file is a special description file that defines the implementation of an ECU. The information in an A2L file allows XCP client to communicate with a server module via an XCP connection. The formatted text file contains event and measurement definitions and other configuration information used for acquiring and stimulating data, and to perform other functions. This video will focus on how to customize the sections of the A2L file such as characteristics, measurements, copy methods, et cetera.

Open a Simulink model and use the Simulink Coder app to go to Code Perspective. Build a model to generate the code. Once the build is done, we can now customize the different fields for the A2L file. To do this, first create an object from coder.asap2.getEcuDescriptions. The object created has the methods add, delete, find, get, and set. So now let me walk you through each of these methods.

The find method can be used to find the elements of a given category. For example, if you want to find all the characteristics that are to be populated, use find (descObj, "Characteristic"). The find method will also enable you to filter the set by an attribute. For example, to find all characteristics of type CURVE, you would use find (descObj,) and type as CURVE.

So now let's see how you could view all the properties of a specific element. This could be done using the get method. For example, let's take the example of the characteristic external temperature. To view the properties, use get (descObj, "Characteristic" , 'ExternalTemp'). This will give you all the exact properties for the element. As you can see here, the element is defined in degrees Celsius. The ASAP2 file when loaded into a calibration tool would give the element, the temperature, in degrees Celsius.

Wondering if it's possible to change the view on the calibration tool to have it in Kelvin instead of in Celsius? Yes, it is. On the A2L file, the interpretation is controlled by the Compu method. So now let's define a new Compu method to convert Celsius to Kelvin. To do this, create an object out of coder.asap2.CompuMethod, provide the name, conversion type, coefficients, and the unit.

Now the add method can be used to add this newly created Compu method to the ASAP2 file. This Compu method created now has to be associated with the element. Use set (descObj) category element name and the property to be set and its value. Now let's generate the A2L file. Use CustomEcuDescription and pass in the description object.

In the A2L file, we can now see that the element is associated with the newly created Compu method, and you also have the new Compu method definition. The ASAP2 file, when loaded into a calibration tool, would give the temperature in Kelvin.

Now, if you would like to delete an element from the A2L file you could use the Delete method. For example, let's say we would like to remove the characteristic external temperature. We would use delete (descObj, "Characteristic" , 'ExternalTemp'). Now regenerate the A2L file, and the A2L file would not have the element. You could also customize the other sections of the A2L file, and for more information you could refer to the documentation.

Video Player is loading.
Current Time 0:00
Duration 0:00
Loaded: 0%
Stream Type LIVE
Remaining Time 0:00

1x
  • Chapters
  • descriptions off, selected
  • captions off, selected

      Customize an ASAP2 File

      Add, update, filter, find, and remove ECU descriptions in an ASAP2 file.

      Open and Build Example Model

      Open the example model ASAP2Demo

      open_system("ASAP2Demo");

      Build the model.

      slbuild("ASAP2Demo");
      ### Searching for referenced models in model 'ASAP2Demo'.
      ### Total of 2 models to build.
      ### Starting serial code generation build.
      ### Successfully updated the model reference code generation target for: ASAP2DemoModelRef
      ### Starting build procedure for: ASAP2Demo
      ### Successful completion of build procedure for: ASAP2Demo

      Build Summary

      Model reference code generation targets:

      Model              Build Reason                                 Status                        Build Duration
      ============================================================================================================
      ASAP2DemoModelRef  Target (ASAP2DemoModelRef.c) did not exist.  Code generated and compiled.  0h 0m 5.8839s

      Top model targets:

      Model      Build Reason                                         Status                        Build Duration
      ============================================================================================================
      ASAP2Demo  Information cache folder or artifacts were missing.  Code generated and compiled.  0h 0m 12.037s

      2 of 2 models built (0 models already up to date)
      Build duration: 0h 0m 18.852s


      Create the ECU description object for the model.

      descObj = coder.asap2.getEcuDescriptions("ASAP2Demo");

      Get the list of available computation methods in the description object.

      find(descObj,"CompuMethod")
      ans = 1×10 string
          "ASAP2DemoModelRef_CM_double"    "ASAP2DemoModelRef_CM_int16_rpm"    "ASAP2Demo_CM_double"    "ASAP2Demo_CM_double_m_per__s_2_"    "ASAP2Demo_CM_double_rpm"    "ASAP2Demo_CM_int32"    "ASAP2Demo_CM_single"    "ASAP2Demo_CM_single_m_per__s_2_"    "ASAP2Demo_CM_single_rpm"    "ASAP2Demo_CM_uint8"



      Filter the computation methods and get a list of computation methods that use rpm as the unit.

      find(descObj,"CompuMethod",Units='rpm')
      ans = 1×3 string
          "ASAP2DemoModelRef_CM_int16_rpm"    "ASAP2Demo_CM_double_rpm"    "ASAP2Demo_CM_single_rpm"



      Create and Add Custom Computation Method

      To add a new computation method to the ASAP2 file, create a custom computation method.

      CompuMethod_1 = coder.asap2.CompuMethod;
      CompuMethod_1.Name = 'CompuMethod_1';
      CompuMethod_1.ConversionType = 'LINEAR';
      CompuMethod_1.Coefficients = [2 3];
      CompuMethod_1.LongIdentifier = 'longIdentifierTest';
      CompuMethod_1.Format = '%2.3';
      CompuMethod_1.Units = 's';

      Add the custom computation method to the ECU description object.

      add(descObj,CompuMethod_1);

      Get the properties of the newly added computation method.

      get(descObj,"CompuMethod","CompuMethod_1")
      ans =
        CompuMethod with properties:

                     Name: 'CompuMethod_1'
           LongIdentifier: 'longIdentifierTest'
                   Format: '%2.3'
                    Units: 's'
             Coefficients: [2 3]
           ConversionType: 'LINEAR'
          CompuVTabValues: [1×1 struct]
               CustomData: ""



      To modify a property of the computation method, use set function. Update the ConversionType field of the computation method to TAB_VERB and define the CompuVTabValues.

      set(descObj,"CompuMethod","CompuMethod_1",ConversionType="TAB_VERB");
      set(descObj,"CompuMethod","CompuMethod_1",CompuVTabValues = struct('Literals',["false" "true"],'Values',[0 1]));

      Get the properties to see the modified fields.

      modifiedprop = get(descObj,"CompuMethod","CompuMethod_1")
      modifiedprop =
        CompuMethod with properties:

                     Name: 'CompuMethod_1'
           LongIdentifier: 'longIdentifierTest'
                   Format: '%2.3'
                    Units: 's'
             Coefficients: [2 3]
           ConversionType: "TAB_VERB"
          CompuVTabValues: [1×1 struct]
               CustomData: ""


      modifiedprop.CompuVTabValues
      ans = struct with fields:
          Literals: ["false"    "true"]
            Values: [0 1]



      Generate the ASAP2 file using the updated ECU description object and verify that the ASAP2 file contains the computation method CompuMethod_1.

      coder.asap2.export("ASAP2Demo",CustomEcuDescriptions=descObj);
      Following Characteristics or Measurements with unsupported data types are not exported in ASAP2 file. "ASAP2Demo_DW.ASAP2DemoModelRef_InstanceData"


      Delete Computation Method

      Remove the newly added computation method from the description object.

      delete(descObj,"CompuMethod","CompuMethod_1");

      Create and Add Custom Characteristic

      To add a new characteristic to the ASAP2 file, create a custom characteristic.

      Parameter_1 = coder.asap2.Characteristic;
      Parameter_1.Name = 'Custom_parameter1';
      Parameter_1.LongIdentifier = 'longIdentifierParam';
      Parameter_1.UpperLimit = 255;
      Parameter_1.LowerLimit = 0;

      Add the custom characteristic to the ECU description object.

      add(descObj,Parameter_1);

      Get the properties of the newly added characteristic.

      get(descObj,"Characteristic","Custom_parameter1")
      ans =
        Characteristic with properties:

                         Name: 'Custom_parameter1'
               LongIdentifier: 'longIdentifierParam'
                         Type: 'VALUE'
                   EcuAddress: '0x0000'
              CompuMethodName: 'NO_COMPU_METHOD'
                   LowerLimit: 0
                   UpperLimit: 255
            EcuAddressComment: ""
          EcuAddressExtension: []
            CalibrationAccess: 'Calibration'
            DisplayIdentifier: ""
                       Format: ""
                      BitMask: []
                     AxisInfo: []
                 RecordLayout: ""
                   Dimensions: []
                       Export: 1
                   MaxRefresh: [1×1 struct]
                   SymbolLink: [1×1 struct]
                   CustomData: ""



      To modify a property of the characteristic, use set function. Update the UpperLimit field of the characteristic.

      set(descObj,"Characteristic","Custom_parameter1",UpperLimit=128)

      Generate the ASAP2 file using the updated ECU description object and verify that the ASAP2 file contains the characteristic Custom_parameter1.

      coder.asap2.export("ASAP2Demo",CustomEcuDescriptions=descObj);
      Following Characteristics or Measurements with unsupported data types are not exported in ASAP2 file. "ASAP2Demo_DW.ASAP2DemoModelRef_InstanceData"


      Remove the newly added characteristic from the description object.

      delete(descObj,"Characteristic","Custom_parameter1");

      Create and Add Custom Measurement

      To add a new measurement to the ASAP2 file, create a custom measurement.

      Signal_1 = coder.asap2.Measurement;
      Signal_1.Name = 'Custom_signal1';
      Signal_1.LongIdentifier = 'longIdentifierSignal';
      Signal_1.UpperLimit = 255;
      Signal_1.LowerLimit = 0;

      Add the custom measurement to the ECU description object.

      add(descObj,Signal_1);

      Get the properties of the newly added measurement.

      get(descObj,"Measurement","Custom_signal1")
      ans =
        Measurement with properties:

                         Name: 'Custom_signal1'
               LongIdentifier: 'longIdentifierSignal'
                     DataType: 'UBYTE'
                   EcuAddress: '0x0000'
              CompuMethodName: ""
                   LowerLimit: 0
                   UpperLimit: 255
                       Raster: [1×1 struct]
            EcuAddressComment: ""
          EcuAddressExtension: []
            CalibrationAccess: 'NoCalibration'
            DisplayIdentifier: ""
                       Format: ""
                      BitMask: []
                   Dimensions: []
                       Export: 1
                     MaskData: [1×1 struct]
                   MaxRefresh: [1×1 struct]
                   SymbolLink: [1×1 struct]
                   CustomData: ""



      To modify a property of the measurement, use set function. Update the CalibrationAccess field of the measurement.

      set(descObj,"Measurement","Custom_signal1",CalibrationAccess='Calibration')

      Generate the ASAP2 file using the updated ECU description object and verify that the ASAP2 file contains the measurement with name Custom_signal1.

      coder.asap2.export("ASAP2Demo",CustomEcuDescriptions=descObj);
      Following Characteristics or Measurements with unsupported data types are not exported in ASAP2 file. "ASAP2Demo_DW.ASAP2DemoModelRef_InstanceData"


      Remove the newly added measurement from the description object.

      delete(descObj,"Measurement","Custom_signal1");

      Create and Add Lookup Table Parameter

      Add a lookup table parameter.

      LUT_Parameter = coder.asap2.Characteristic;
      LUT_Parameter.Name = "custom_lookup_table";
      LUT_Parameter.Type = "MAP";

      Create and add axis information to the parameter.

      axis_data = coder.asap2.AxisInfo;
      axis_data(1).Name = 'BP3';
      axis_data(2).Name = 'Bp4';
      axis_data(1).CompuMethodName = 'ASAP2Demo_CM_double';
      axis_data(2).CompuMethodName = 'ASAP2Demo_CM_double';
      axis_data(1).MaxAxisPoints = '3';
      axis_data(2).MaxAxisPoints = '3';
      axis_data(1).AxisType = 'STD_AXIS';
      axis_data(2).AxisType = 'STD_AXIS';
      LUT_Parameter.AxisInfo = axis_data;

      Add the lookup table parameter to the description object.

      add(descObj,LUT_Parameter)

      Generate the ASAP2 file using the updated ECU description object and verify that the ASAP2 file contains the lookup table parameter custom_lookup_table.

      coder.asap2.export("ASAP2Demo",CustomEcuDescriptions=descObj);
      Following Characteristics or Measurements with unsupported data types are not exported in ASAP2 file. "ASAP2Demo_DW.ASAP2DemoModelRef_InstanceData"


      Create and Add Custom Group

      Add, update, filter, find, and remove ECU descriptions for groups in an ASAP2 file.

      Open and Build Example Model

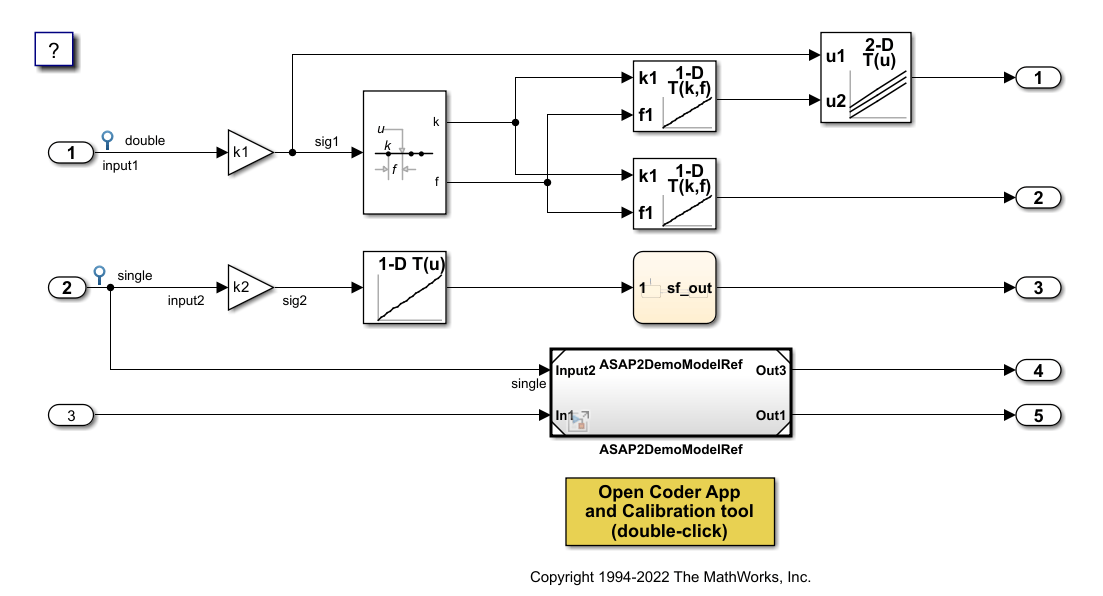

      Open the example model ASAP2Demo

      open_system("ASAP2Demo");

      Build the model.

      slbuild("ASAP2Demo");
      ### Searching for referenced models in model 'ASAP2Demo'.
      ### Total of 2 models to build.
      ### Starting serial code generation build.
      ### Successfully updated the model reference code generation target for: ASAP2DemoModelRef
      ### Starting build procedure for: ASAP2Demo
      ### Successful completion of build procedure for: ASAP2Demo

      Build Summary

      Model reference code generation targets:

      Model              Build Reason                                 Status                        Build Duration
      ============================================================================================================
      ASAP2DemoModelRef  Target (ASAP2DemoModelRef.c) did not exist.  Code generated and compiled.  0h 0m 7.3874s

      Top model targets:

      Model      Build Reason                                         Status                        Build Duration
      ============================================================================================================
      ASAP2Demo  Information cache folder or artifacts were missing.  Code generated and compiled.  0h 0m 13.761s

      2 of 2 models built (0 models already up to date)
      Build duration: 0h 0m 22.418s


      Create the ECU description object for the model.

      descObj = coder.asap2.getEcuDescriptions("ASAP2Demo");

      Get the list of available groups in the description object.

      find(descObj,"Group")
      ans = 1×2 string
          "ASAP2Demo"    "ASAP2Demo.ASAP2DemoModelRef.ASAP2DemoModelRef"



      Filter the groups and get a list of groups that has Root set to true.

      find(descObj,"Group",Root=true)
      ans =
      "ASAP2Demo"


      Create and Add Custom Group

      To add a new group to the ASAP2 file, create a custom group.

      GroupObj_GR1 = coder.asap2.Group;
      GroupObj_GR1.Name = 'CustomGroup_1';
      GroupObj_GR1.LongIdentifier = 'New test group';
      GroupObj_GR1.RefCharacteristic = ["ydata3", "ydata4"];
      GroupObj_GR1.RefMeasurement = ["ASAP2Demo_Y.Out3", "ASAP2Demo_Y.Out3"];
      GroupObj_GR1.Root = true;

      Add the custom group to the ECU description object.

      add(descObj,GroupObj_GR1);

      Get Group Properties

      Get the properties of newly added group by using this command.

      get(descObj,"Group","CustomGroup_1")
      ans =
        Group with properties:

                       Name: 'CustomGroup_1'
             LongIdentifier: 'New test group'
          RefCharacteristic: ["ydata3"    "ydata4"]
             RefMeasurement: ["ASAP2Demo_Y.Out3"    "ASAP2Demo_Y.Out3"]
                       Root: 1
                   SubGroup: [1×0 string]
                 CustomData: [1×0 string]



      Update Group Properties

      To modify a property of the group, use set function. Update the LongIdentifier field of the group.

      set(descObj,"Group","CustomGroup_1",LongIdentifier="Group 1 new long identifier")

      Generate the ASAP2 file using the updated ECU description object and verify that the ASAP2 file contains the group CustomGroup_1.

      coder.asap2.export("ASAP2Demo",CustomEcuDescriptions=descObj);
      Following Characteristics or Measurements with unsupported data types are not exported in ASAP2 file. "ASAP2Demo_DW.ASAP2DemoModelRef_InstanceData"


      Delete Group

      Remove the newly added group from the description object.

      delete(descObj,"Group","CustomGroup_1");
