If-Else

This example shows how to implement an if-else construct by using Simulink® blocks, Stateflow® Charts, and MATLAB® Function block.

C Construct

```if (u1 > u2) { y1 = u1; } else { y1 = u2; } ```

Modeling Pattern for If-Else: Switch block

One method to create an `if-else` statement is to use a Switch block from the Simulink > Signal Routing library.

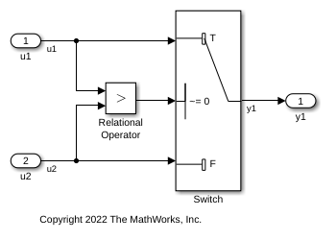

1. Open example model `ex_if_else_SL`.

The model contains the Switch block with the block parameter Criteria for passing first input of `u2~=0`. The software selects `u1` if `u2` is `TRUE`, otherwise `u2` passes.

2. To build the model and generate code, press Ctrl+B.

The code implementing the `if-else` construct is in the `ex_if_else_SL_step` function in `ex_if_else_SL.c`:

```/* External inputs (root inport signals with default storage) */ ExternalInputs U; /* External outputs (root outports fed by signals with default storage) */ ExternalOutputs Y; /* Model step function */ void ex_if_else_SL_step(void) { /* Switch: '<Root>/Switch' incorporates: * Inport: '<Root>/u1' * Inport: '<Root>/u2' * RelationalOperator: '<Root>/Relational Operator' */ if (U.u1 > U.u2) { /* Outport: '<Root>/y1' */ Y.y1 = U.u1; } else { /* Outport: '<Root>/y1' */ Y.y1 = U.u2; } /* End of Switch: '<Root>/Switch' */ } ```

Modeling Pattern for If-Else: Stateflow Chart

1. Open example model `ex_if_else_SF`.

The model contains an `If-Else` decision pattern that you add by right clicking inside the chart > Add Pattern in Chart > Decision > If-Else.

2. To build the model and generate code, press Ctrl+B.

The code implementing the `if-else` construct is in the `ex_if_else_SF_step` function in `ex_if_else_SF.c`:

```/* External inputs (root inport signals with default storage) */ ExternalInputs U; /* External outputs (root outports fed by signals with default storage) */ ExternalOutputs Y; /* Model step function */ void ex_if_else_SF_step(void) { /* Chart: '<Root>/Chart' incorporates: * Inport: '<Root>/u1' * Inport: '<Root>/u2' */ /* If-Else */ if (U.u1 >= U.u2) { /* Outport: '<Root>/y1' */ Y.y1 = U.u1; } else { /* Outport: '<Root>/y1' */ Y.y1 = U.u2; } /* End of Chart: '<Root>/Chart' */ } ```

Modeling Pattern for If-Else: MATLAB Function Block

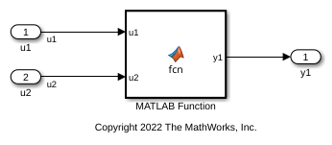

1. Open example model `ex_if_else_ML`.

2. The MATLAB Function Block contains this function:

```function y1 = fcn(u1, u2) if u1 > u2; y1 = u1; else y1 = u2; end ```

2. To build the model and generate code, press Ctrl+B.

The code implementing the `if-else` construct is in the `ex_if_else_ML_step` function in `ex_if_else_ML.c`:

```/* External inputs (root inport signals with default storage) */ ExternalInputs U; /* External outputs (root outports fed by signals with default storage) */ ExternalOutputs Y; /* Model step function */ void ex_if_else_ML_step(void) { /* MATLAB Function: '<Root>/MATLAB Function' incorporates: * Inport: '<Root>/u1' * Inport: '<Root>/u2' */ if (U.u1 >= U.u2) { /* Outport: '<Root>/y1' */ Y.y1 = U.u1; } else { /* Outport: '<Root>/y1' */ Y.y1 = U.u2; } /* End of MATLAB Function: '<Root>/MATLAB Function' */ } ```
