Fixed-Point Function Approximation

When a fixed-point library function is not available, fixed-point applications require an approximation of the function. Often, an interpolated look up table is used to store an approximation of the function over a specified range.

This example shows how to approximate the function y = sin(2*pi*x) over a specified input range using a lookup table.

In this example, the input uses an unsigned 16-bit data type, `fixdt(0,16,16)`, and the output uses a signed 16-bit data type, `fixdt(1,16,14)`.

The goal of this example is to create an approximation that is accurate to 8 bits to the right of the binary point. This means that the worst case error should be less than 2^(-8).

There are many sets of lookup table data points that would meet this goal. Different implementations can be chosen depending on goals such as memory usage and speed of computation. This example finds a solution that meets this accuracy goal with the minimal number of data points.

Approximate Function

Use the `FunctionApproximation.Options` object to specify accuracy and word length constraints.

```options = FunctionApproximation.Options(); options.AbsTol = 2^-8; options.RelTol = 0; options.WordLengths = [8 16 32]; options.MemoryUnits = 'bytes'; options.OnCurveTableValues = true; ```

Specify the function to approximate and the input ranges and data types in the `FunctionApproximation.Problem` object.

```functionToApproximate = @(x) sin(2*pi*x); problem = FunctionApproximation.Problem(functionToApproximate, 'Options', options); problem.InputTypes = numerictype(0,16,16); problem.InputLowerBounds = 0; problem.InputUpperBounds = 0.25; problem.OutputType = numerictype(1,16,14); % Create a LUT solution solution = solve(problem); % Change breakpoint specification to EvenPow2Spacing and create a LUT % solution again problem.Options.BreakpointSpecification = 'EvenPow2Spacing'; bestEvenPow2SpacingSolution = solve(problem); ```
```Searching for fixed-point solutions. | ID | Memory (bytes) | Feasible | Table Size | Breakpoints WLs | TableData WL | BreakpointSpecification | Error(Max,Current) | | 0 | 4.0000e+00 | 0 | 2 | 8 | 8 | EvenSpacing | 3.906250e-03, 2.105137e-01 | | 1 | 1.9000e+01 | 0 | 17 | 8 | 8 | EvenSpacing | 3.906250e-03, 4.257483e-03 | | 2 | 3.5000e+01 | 1 | 33 | 8 | 8 | EvenSpacing | 3.906250e-03, 3.848536e-03 | | 3 | 2.8000e+01 | 1 | 26 | 8 | 8 | EvenSpacing | 3.906250e-03, 3.768435e-03 | | 4 | 2.4000e+01 | 1 | 22 | 8 | 8 | EvenSpacing | 3.906250e-03, 3.596819e-03 | | 5 | 2.1000e+01 | 1 | 19 | 8 | 8 | EvenSpacing | 3.906250e-03, 3.589720e-03 | | 6 | 1.5000e+01 | 0 | 13 | 8 | 8 | EvenSpacing | 3.906250e-03, 7.812500e-03 | | 7 | 1.7000e+01 | 1 | 15 | 8 | 8 | EvenSpacing | 3.906250e-03, 3.824648e-03 | | 8 | 1.2000e+01 | 0 | 10 | 8 | 8 | EvenSpacing | 3.906250e-03, 4.677033e-03 | | 9 | 1.1000e+01 | 0 | 9 | 8 | 8 | EvenSpacing | 3.906250e-03, 6.957420e-03 | | 10 | 1.4000e+01 | 1 | 12 | 8 | 8 | EvenSpacing | 3.906250e-03, 3.687388e-03 | | 11 | 1.3000e+01 | 0 | 11 | 8 | 8 | EvenSpacing | 3.906250e-03, 7.812500e-03 | | 12 | 9.0000e+00 | 0 | 7 | 8 | 8 | EvenSpacing | 3.906250e-03, 7.818172e-03 | | 13 | 6.0000e+00 | 0 | 2 | 16 | 8 | EvenSpacing | 3.906250e-03, 2.105137e-01 | | 14 | 1.3000e+01 | 0 | 9 | 16 | 8 | EvenSpacing | 3.906250e-03, 6.957420e-03 | | 15 | 6.0000e+00 | 0 | 2 | 8 | 16 | EvenSpacing | 3.906250e-03, 2.105137e-01 | | 16 | 4.0000e+00 | 0 | 2 | 8 | 8 | EvenPow2Spacing | 3.906250e-03, 2.105137e-01 | | 17 | 1.1000e+01 | 0 | 9 | 8 | 8 | EvenPow2Spacing | 3.906250e-03, 6.957420e-03 | | 18 | 6.0000e+00 | 0 | 2 | 16 | 8 | EvenPow2Spacing | 3.906250e-03, 2.105137e-01 | | 19 | 1.3000e+01 | 0 | 9 | 16 | 8 | EvenPow2Spacing | 3.906250e-03, 6.957420e-03 | | 20 | 6.0000e+00 | 0 | 2 | 8 | 16 | EvenPow2Spacing | 3.906250e-03, 2.105137e-01 | | 21 | 8.0000e+00 | 0 | 2 | 16 | 16 | EvenPow2Spacing | 3.906250e-03, 2.105137e-01 | | 22 | 1.4000e+01 | 1 | 7 | 8 | 8 | ExplicitValues | 3.906250e-03, 3.830054e-03 | | 23 | 3.5000e+01 | 1 | 33 | 8 | 8 | EvenPow2Spacing | 3.906250e-03, 3.848536e-03 | Best Solution | ID | Memory (bytes) | Feasible | Table Size | Breakpoints WLs | TableData WL | BreakpointSpecification | Error(Max,Current) | | 10 | 1.4000e+01 | 1 | 12 | 8 | 8 | EvenSpacing | 3.906250e-03, 3.687388e-03 | Searching for fixed-point solutions. | ID | Memory (bytes) | Feasible | Table Size | Breakpoints WLs | TableData WL | BreakpointSpecification | Error(Max,Current) | | 0 | 4.0000e+00 | 0 | 2 | 8 | 8 | EvenPow2Spacing | 3.906250e-03, 2.105137e-01 | | 1 | 1.9000e+01 | 0 | 17 | 8 | 8 | EvenPow2Spacing | 3.906250e-03, 4.257483e-03 | | 2 | 3.5000e+01 | 1 | 33 | 8 | 8 | EvenPow2Spacing | 3.906250e-03, 3.848536e-03 | | 3 | 1.1000e+01 | 0 | 9 | 8 | 8 | EvenPow2Spacing | 3.906250e-03, 6.957420e-03 | | 4 | 6.0000e+00 | 0 | 2 | 16 | 8 | EvenPow2Spacing | 3.906250e-03, 2.105137e-01 | | 5 | 2.1000e+01 | 0 | 17 | 16 | 8 | EvenPow2Spacing | 3.906250e-03, 4.257483e-03 | | 6 | 1.3000e+01 | 0 | 9 | 16 | 8 | EvenPow2Spacing | 3.906250e-03, 6.957420e-03 | | 7 | 6.0000e+00 | 0 | 2 | 8 | 16 | EvenPow2Spacing | 3.906250e-03, 2.105137e-01 | | 8 | 2.0000e+01 | 0 | 9 | 8 | 16 | EvenPow2Spacing | 3.906250e-03, 4.856432e-03 | Best Solution | ID | Memory (bytes) | Feasible | Table Size | Breakpoints WLs | TableData WL | BreakpointSpecification | Error(Max,Current) | | 2 | 3.5000e+01 | 1 | 33 | 8 | 8 | EvenPow2Spacing | 3.906250e-03, 3.848536e-03 | ```

Explore Solutions

```%The software returns several implementations that meet the requirements %specified in the |FunctionApproximation.Problem| and %|FunctionApproximation.Options| objects. You can explore these different %implementations. feasibleSolutions = solution.FeasibleSolutions; tableDataVec = [feasibleSolutions.TableData]; evenSpacingSolutions = find([tableDataVec.IsEvenSpacing]); unevenSpacingSolutions = find(~[tableDataVec.IsEvenSpacing]); evenSolutionsMemoryUsage = arrayfun(@(x) x.totalMemoryUsage(), feasibleSolutions(evenSpacingSolutions)); unevenSolutionsMemoryUsage = arrayfun(@(x) x.totalMemoryUsage(), feasibleSolutions(unevenSpacingSolutions)); bestEvenSpacingSolution = feasibleSolutions(evenSpacingSolutions(evenSolutionsMemoryUsage == min(evenSolutionsMemoryUsage))); bestUnevenSpacingSolution = feasibleSolutions(unevenSpacingSolutions(unevenSolutionsMemoryUsage == min(unevenSolutionsMemoryUsage))); xeven = bestEvenSpacingSolution.TableData.BreakpointValues{1}; yeven = bestEvenSpacingSolution.TableData.TableValues; xuneven = bestUnevenSpacingSolution.TableData.BreakpointValues{1}; yuneven = bestUnevenSpacingSolution.TableData.TableValues; xpow2 = bestEvenPow2SpacingSolution.TableData.BreakpointValues{1}; ypow2 = bestEvenPow2SpacingSolution.TableData.TableValues; ```

Compare Memory Usage

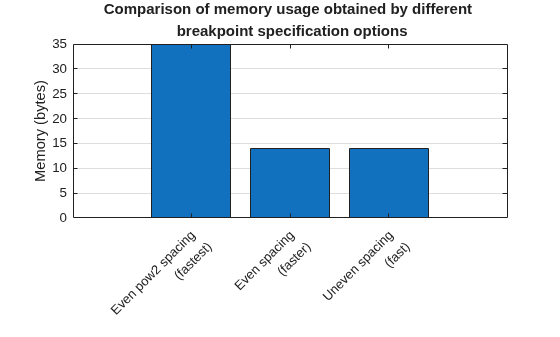

Compare the memory used by the lookup tables.

```memoryValues = [... totalMemoryUsage(bestEvenPow2SpacingSolution), ... totalMemoryUsage(bestEvenSpacingSolution), ... totalMemoryUsage(bestUnevenSpacingSolution)]; figure(); xTickLabels = {'Even pow2 spacing \newline(fastest)','Even spacing \newline(faster)','Uneven spacing \newline(fast)'}; hMemory = bar(memoryValues); title('Comparison of memory usage obtained by different \newline breakpoint specification options'); hMemory.Parent.XTickLabel = xTickLabels; hMemory.Parent.XTickLabelRotation = 45; hMemory.Parent.YLabel.String = 'Memory (bytes)'; hMemory.Parent.Box = 'on'; hMemory.Parent.YGrid = 'on'; ```

The amount of memory used by the tables using even spacing and uneven spacing are the same, but the number of points are different. This is because when storing the breakpoints for tables using even spacing, only the first point and spacing are stored. In contrast, all breakpoints are stored for tables using uneven spacing.

Even pow2 spacing stores more than double the points stored for even spacing. From a memory usage perspective, even pow2 spacing is the least optimal for this function. However, computations for even pow2 spacing are performed using arithmetic shifts instead of multiplication, which can lead to faster execution times.

Compare Solutions to Original Function

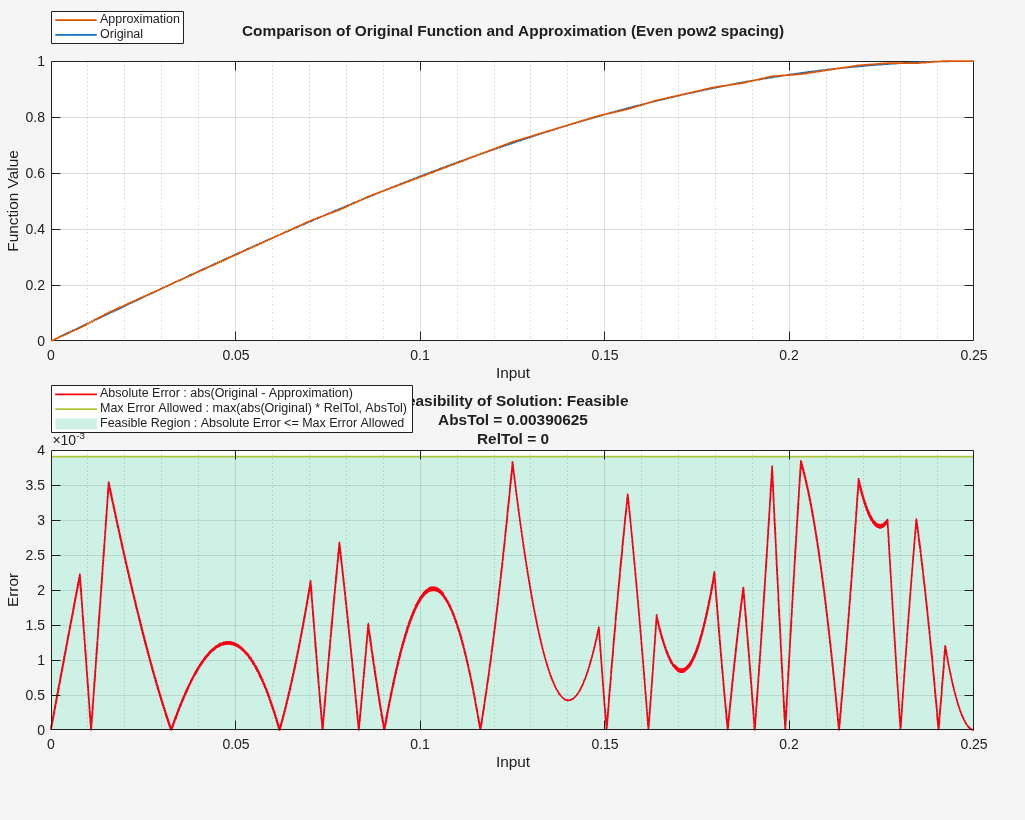

Compare the solution using even pow2 spacing to the original function.

```[~, hEvenPow2Spacing] = compare(bestEvenPow2SpacingSolution); hEvenPow2Spacing.Children(4).Title.String = [hEvenPow2Spacing.Children(4).Title.String ' (Even pow2 spacing)']; ```

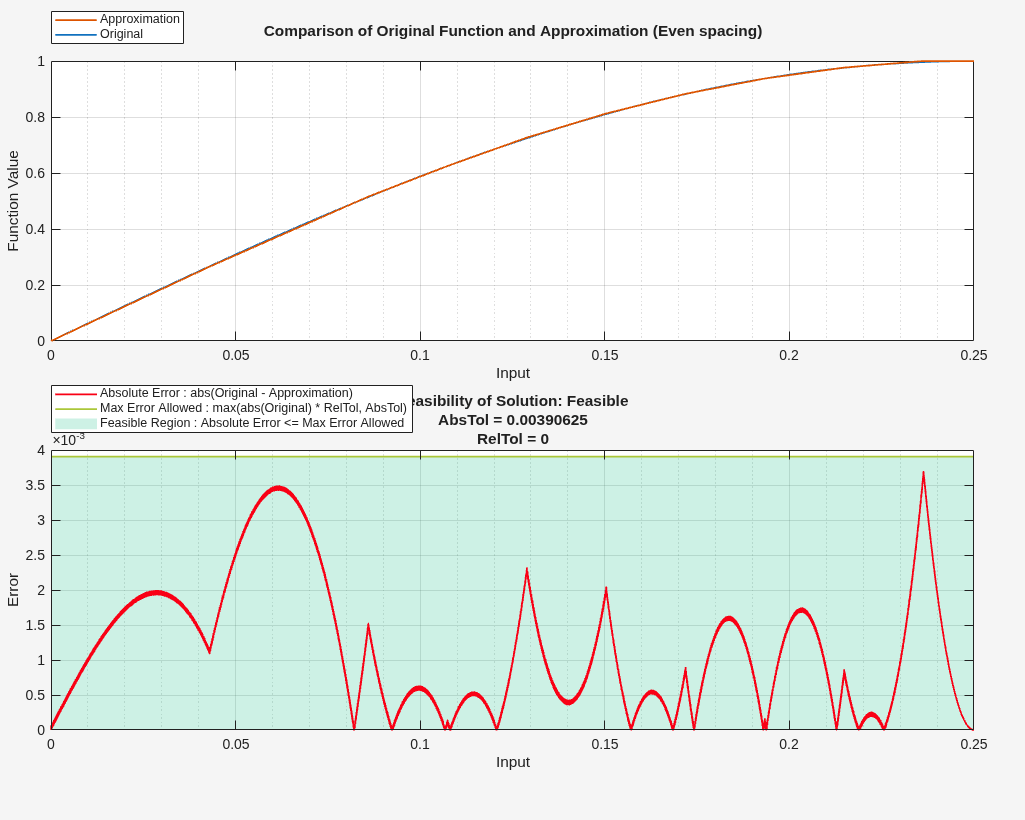

Compare the solution using even spacing to the original function.

```[~, hEvenSpacing] = compare(bestEvenSpacingSolution); hEvenSpacing.Children(4).Title.String = [hEvenSpacing.Children(4).Title.String ' (Even spacing)']; ```

Compare the solution using uneven spacing to the original function.

```[~, hUnevenSpacing] = compare(bestUnevenSpacingSolution); hUnevenSpacing.Children(4).Title.String = [hUnevenSpacing.Children(4).Title.String ' (Uneven spacing)']; ```

Use the Approximation in a Simulink® Model

You can use this approximation directly in a Simulink® Lookup Table (n-D) block.

```modelName = 'fxpdemo_approx'; open_system(modelName) modelWorkspace = get_param(modelName, 'ModelWorkspace'); modelWorkspace.assignin('xevenFirstPoint' , xeven(1) ); modelWorkspace.assignin('xevenSpacing' , diff(xeven(1:2)) ); modelWorkspace.assignin('yeven' , yeven ); modelWorkspace.assignin('TableDTeven' , bestEvenSpacingSolution.TableData.TableDataType ); modelWorkspace.assignin('BreakpointDTeven' , bestEvenSpacingSolution.TableData.BreakpointDataTypes); modelWorkspace.assignin('xuneven' , xuneven); modelWorkspace.assignin('yuneven' , yuneven); modelWorkspace.assignin('TableDTuneven' , bestUnevenSpacingSolution.TableData.TableDataType ); modelWorkspace.assignin('BreakpointDTuneven' , bestUnevenSpacingSolution.TableData.BreakpointDataTypes); modelWorkspace.assignin('xpow2FirstPoint' , xpow2(1) ); modelWorkspace.assignin('xpow2Spacing' , diff(xpow2(1:2)) ); modelWorkspace.assignin('ypow2' , ypow2 ); modelWorkspace.assignin('TableDTpow2' , bestEvenPow2SpacingSolution.TableData.TableDataType ); modelWorkspace.assignin('BreakpointDTpow2' , bestEvenPow2SpacingSolution.TableData.BreakpointDataTypes); set_param(modelName, 'Dirty', 'off'); ```

Summary

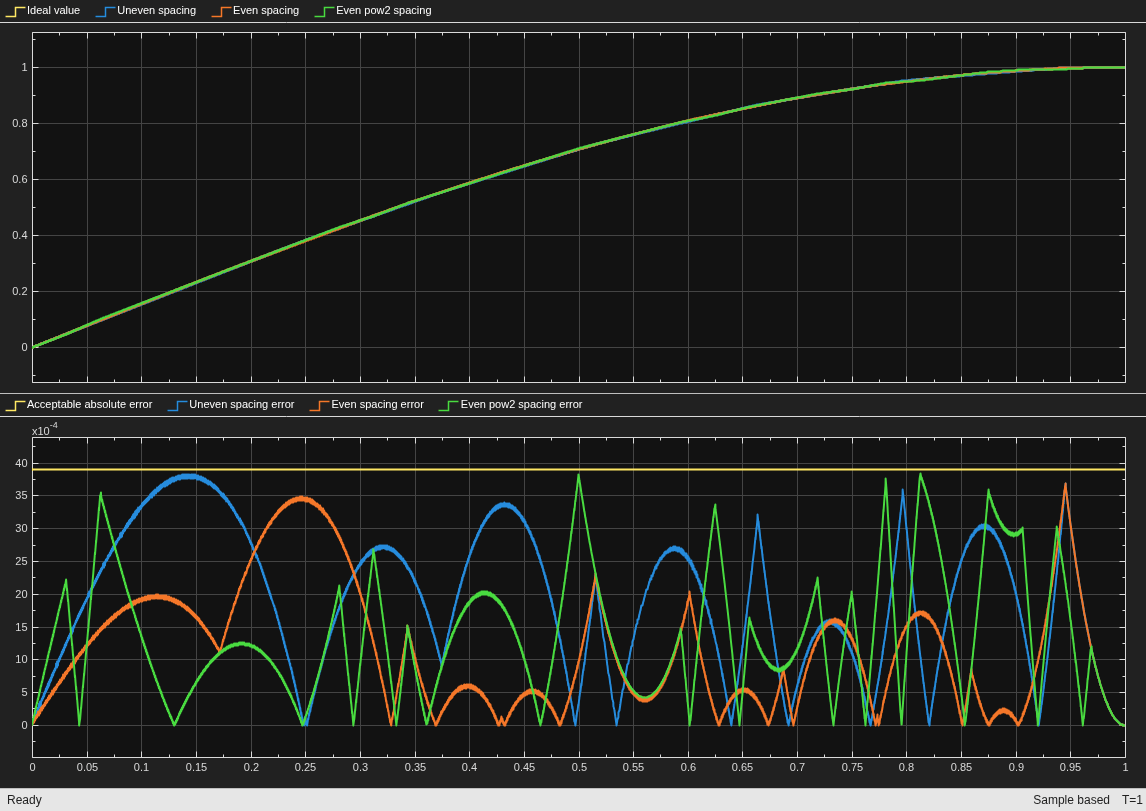

The ideal function and the three approximations are used in the model `fxpdemo_approx`. If you have Simulink® Coder™ installed, you can generate code for the model. If inline parameters is ON, the generated code will show the large efficiency differences in the implementation of unevenly spaced, evenly spaced, and power of 2 spacing.

```sim(modelName) ```

Clean up

```close_system(modelName, 0); ```
