sschdladvisor
Open Simscape HDL Workflow Advisor
Description
Examples
Open Simscape HDL Workflow Advisor
This example shows how to open advisor for the model and a subsystem inside a model.
Open Simscape HDL Advisor for a Model

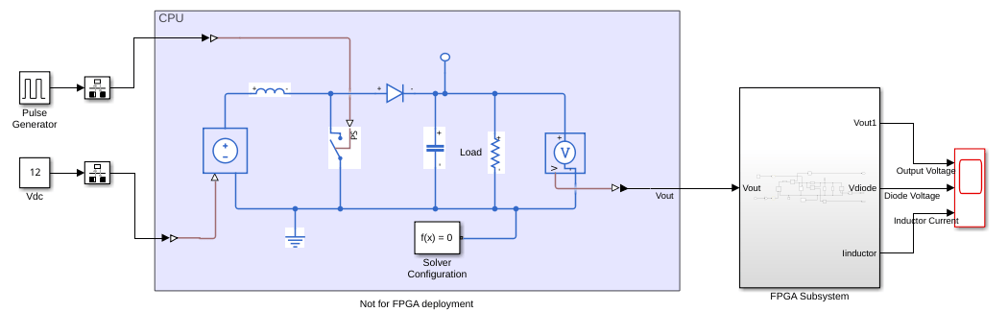

For example: To open the advisor for the Boost Converter model, enter:
Modelname = 'sschdlexBoostConverterExample';
open_system(Modelname)
sschdladvisor(Modelname)
### Running Simscape HDL Workflow Advisor for <a href="matlab:(sschdlexBoostConverterExample)">sschdlexBoostConverterExample</a> Updating Model Advisor cache... Model Advisor cache updated. For new customizations, to update the cache, use the Advisor.Manager.refresh_customizations method.
Open Simscape HDL Advisor for a Subsystem

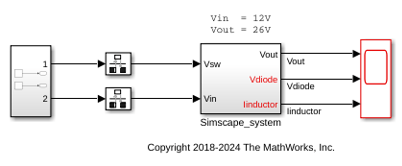

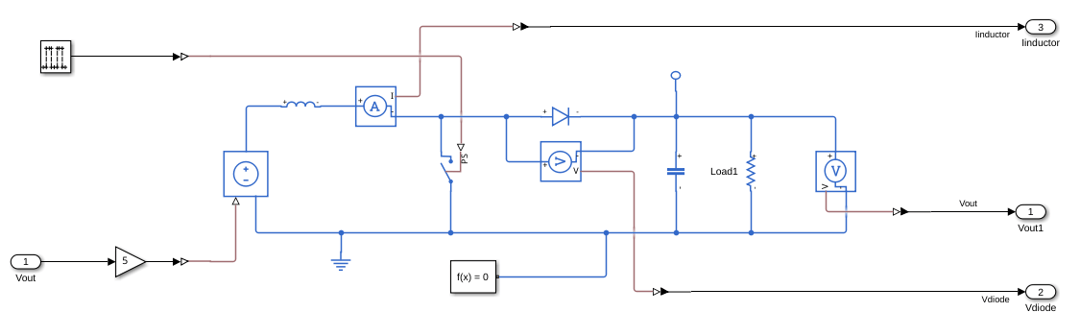

For example: To open the advisor for the Simscape_system
block inside the Buck Converter model, enter:
Modelname = 'sschdlexBuckConverterExample'; Subsysname = 'sschdlexBuckConverterExample/Simscape_system'; load_system(Modelname) open_system(Subsysname) sschdladvisor(Subsysname)
### Running Simscape HDL Workflow Advisor for <a href="matlab:(sschdlexBuckConverterExample)">sschdlexBuckConverterExample</a>
Input Arguments
subsystem
— Subsystem name
character vector
Subsystem name or handle, specified as a character vector.
Data Types: char
model
— Model name
character vector
Model name or handle, specified as a character vector.
Data Types: char
Version History
Introduced in R2018b
