Translate an Image Using imtranslate Function
This example shows how to perform a translation operation on an image using the
imtranslate function. A translation operation shifts an image by a specified number of pixels in either the x- or y-direction, or both.
Read an image into the workspace.
I = imread("cameraman.tif");

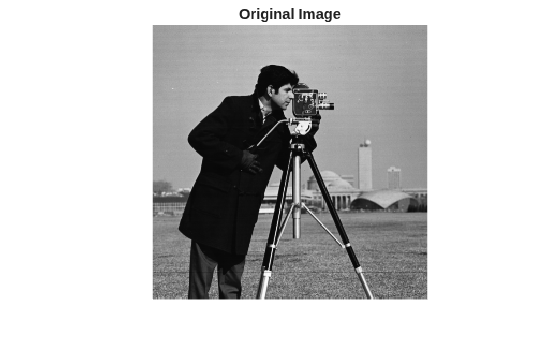

Display the image. The size of the image is 256-by-256 pixels. By default,
imshow displays the image with the upper right corner at (0,0).
figure imshow(I) title("Original Image")
Translate the image, shifting the image by 15 pixels in the x-direction and 25 pixels in the y-direction. Note that, by default,
imtranslate displays the translated image within the boundaries (or limits) of the original 256-by-256 image. This results in some of the translated image being clipped.
J = imtranslate(I,[15, 25]);

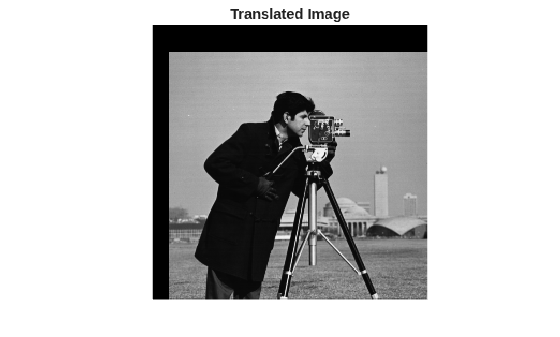

Display the translated image. The size of the image is 256-by-256 pixels.
figure imshow(J) title("Translated Image")
OutputVie name-value argument set to "
full" to prevent clipping the translated image. The size of the new image is 281-by-271 pixels.
K = imtranslate(I,[15, 25],"OutputView","full");

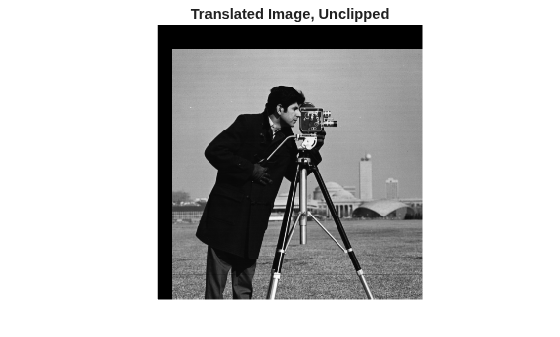

Display the translated image.
figure imshow(K) title("Translated Image, Unclipped")
