lteULFrameOffset
PUSCH DM-RS uplink subframe timing estimate
Description
performs
synchronization using PUSCH DM-RS signals for the time-domain waveform, offset
= lteULFrameOffset(ue
,chs
,waveform
)waveform
,
given UE-specific settings, ue
, and PUSCH configuration, chs
.
The returned value offset
indicates the
number of samples from the start of the waveform, waveform
,
to the position in that waveform where the first subframe containing
the DM-RS begins.
offset
provides subframe timing; frame
timing can be achieved by using offset
with the
subframe number, ue
.
NSubframe
.
This information is consistent with real-world operation, since the
base station knows when, or in which subframe, to expect uplink transmissions.
Examples
Synchronize and SCFDMA Demodulate Delayed Transmission
Synchronization and demodulation of transmission which has been delayed by 5 samples.
Initialize waveform and insert a 5 sample delay.
ue = lteRMCUL('A3-2');
waveform = lteRMCULTool(ue,[1;0;0;1]);
tx = [zeros(5,1); waveform];
Determine offset
and demodulate the waveform.
offset = lteULFrameOffset(ue,ue.PUSCH,tx)
offset = 5
rxGrid = lteSCFDMADemodulate(ue,tx(1+offset:end));
View PUSCH Transmission Correlation Peaks
View the correlation peak for a delayed transmit waveform. The transmission contains PUSCH demodulation reference signal (DM-RS) symbols available for estimating the waveform timing.
UE Configuration
Configure UE-specific settings and generate the transmit waveform.
ue = lteRMCUL('A3-2');
tx = lteRMCULTool(ue,[1;0;0;1]);
Determine Offset
Calculate timing offset and return the correlations for the transmit waveform and for a delayed version of the transmit waveform.
[~,corr] = lteULFrameOffset(ue,ue.PUSCH,tx); txDelayed = [zeros(6,1); tx]; [offset,corrDelayed] = lteULFrameOffset(ue,ue.PUSCH,txDelayed);

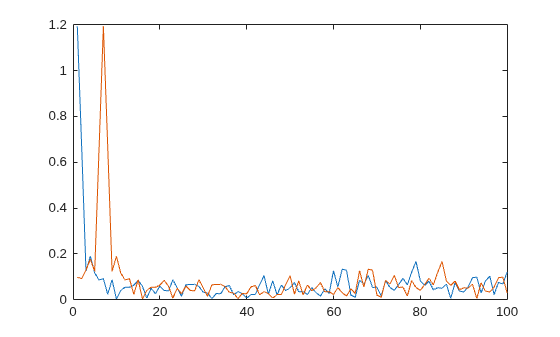

Plot the correlation data before and after delay is added. Zoom in on the x-axis to view correlation peaks.
plot(corr) hold on plot(corrDelayed) hold off xlim([0 100])
Correct the timing offset and demodulate the received waveform.
rxGrid = lteSCFDMADemodulate(ue,txDelayed(1+offset:end));
Input Arguments
ue
— UE-specific settings
scalar structure
UE-specific settings, specified as a scalar structure with the following fields.
Parameter Field | Required or Optional | Values | Description |
---|---|---|---|
NULRB | Required | Scalar integer from 6 to 110 | Number of uplink resource blocks. () |
NCellID | Required | Integer from 0 to 503 | Physical layer cell identity |
NSubframe | Required | 0 (default), nonnegative scalar integer | Subframe number |
CyclicPrefixUL | Optional |
| Cyclic prefix length |
NTxAnts | Optional | 1 (default), 2, 4 | Number of transmission antennas. |
Hopping | Optional |
| Frequency hopping method. |
SeqGroup | Optional | 0 (default), integer from 0 to 29 |
PUSCH sequence group assignment (ΔSS). Only used if |
CyclicShift | Optional | 0 (default), integer from 0 to 7 | Number of cyclic shifts used for PUSCH DM-RS (yields ). |
NPUSCHID | Optional | 0 (default), nonnegative scalar integer from 0 to 509 | PUSCH virtual cell identity. If this field is not present, See footnote. |
NDMRSID | Optional | 0 (default), nonnegative scalar integer from 0 to 509 | DM-RS identity for cyclic shift hopping ().
If this field is not present, See footnote. |
|
Data Types: struct
chs
— PUSCH configuration
scalar structure
PUSCH configuration, specified as a scalar structure with the following fields.
Parameter Field | Required or Optional | Values | Description |
---|---|---|---|
PRBSet | Required | Integer column vector or two-column matrix | 0-based physical resource block indices (PRBs) for the slots of the current PUSCH resource allocation. As a column vector, the resource allocation is the same in both slots of the subframe. As a two-column matrix, it specifies different PRBs for each slot in a subframe. |
NLayers | Optional | 1 (default), 2, 3, 4 | Number of transmission layers. |
DynCyclicShift | Optional | 0 (default), integer from 0 to 7 | Cyclic shift for DM-RS (yields ). |
OrthCover | Optional |
| Applies ( |
The following field is required
only when ue . NTxAnts is
set to 2 or 4. | |||
PMI | Optional | 0 (default), nonnegative scalar integer from 0 to 23. | Scalar precoder matrix indication (PMI) to be used during precoding See |
Data Types: struct
waveform
— Time-domain waveform
numeric matrix
Time-domain waveform, specified as a numeric matrix. waveform
must be a
NS-by-NR
matrix, where NS is the number of
time-domain samples and NR is the
number of receive antennas. waveform
should be at least
one subframe long and contain the DM-RS signals.
Generate waveform
by SC-FDMA modulation
of a resource matrix using the lteSCFDMAModulate
function,
or by using one of the channel model functions, lteFadingChannel
, lteHSTChannel
, or lteMovingChannel
.
Data Types: double
Complex Number Support: Yes
Output Arguments
offset
— Offset number of samples
scalar integer
Offset number of samples, returned as a scalar integer. This
output is the number of samples from the start of the waveform to
the position in that waveform where the first subframe containing
the DM-RS begins. offset
is computed by extracting
the timing of the peak of the correlation between waveform
and
internally generated reference waveforms containing DM-RS signals.
The correlation is performed separately for each antenna and the antenna
with the strongest correlation is used to compute offset
.
Note
offset
is the position of mod(max(abs(corr),LSF))
,
where LSF is the subframe
length.
corr
— Signal used to extract the timing offset
complex-valued numeric matrix
Signal used to extract the timing offset, returned as a complex-valued
numeric matrix. corr
has the same dimensions
as waveform
.
Version History
Introduced in R2014a
