ismap

Determine if axes is axesm-based map

collapse all in page

    Syntax

    tf = ismap
    tf = ismap(A)
    [tf,msg] = ismap(A)

    Description

    tf = ismap determines if the current axes is an axesm-based map. An axesm-based map is a map created using the axesm, worldmap, or usamap function. The function returns 1 if the current axes is an axesm-based map and 0 otherwise.

    example

    tf = ismap(A) determines if the input A is an axesm-based map.

    [tf,msg] = ismap(A) additionally returns the reason why the input is not an axesm-based map.

    Examples

    collapse all

    Open Live Script

    Load a MAT file containing the coordinates of global coastlines into the workspace. Create a world map and then plot the coastline data.

    load coastlines
figure
worldmap("world")
geoshow(coastlat,coastlon)

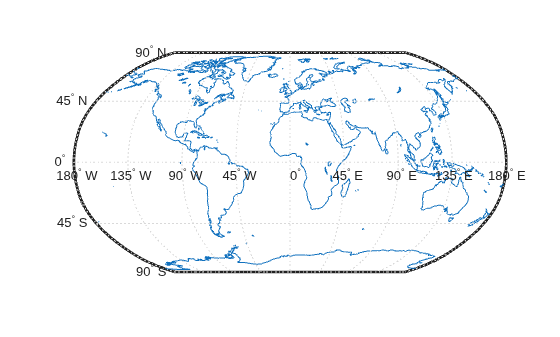

    Figure contains an axes object. The hidden axes object contains 18 objects of type patch, line, text.

    Determine whether the current axes is an axesm-based map.

    tf1 = ismap
    tf1 =
1

    Plot the same data without first creating an axesm-based map.

    figure
geoshow(coastlat,coastlon)

    Figure contains an axes object. The axes object contains an object of type line.

    Determine whether the current axes is an axesm-based map.

    tf2 = ismap
    tf2 =
0

    Input Arguments

    collapse all

    Input array. The array can have any type.

    Output Arguments

    collapse all

    Indicator for an axesm-based map, returned as one of these values:

    • 1 indicates that the current axes or A is an axesm-based map.

    • 0 indicates that the current axes or A is not an axesm-based map.

    Data Types: double

    Reason why the input is not an axesm-based map, returned as a character vector. For example, if you specify A as a Line object, msg is 'Input is not an axes handle.'.

    Version History

    Introduced before R2006a
