findobj

Find graphics objects with specific properties

Syntax

h = findobj

h = findobj(prop,value)

h = findobj('-not',prop,value)

h = findobj(prop1,value1,oper,prop2,value2)

h = findobj('-regexp',prop,expr)

h = findobj('-property',prop)

h = findobj(prop1,value1,...,propN,valueN)

h = findobj(objhandles,___)

h = findobj(objhandles,'-depth',d,___)

h = findobj(objhandles,'flat',___)

Description

h = findobj returns the graphics root object and all of its descendants.

h = findobj(prop,value) returns all objects in the hierarchy that have their property prop set to value.

h = findobj('-not',prop,value) returns all objects whose specified property is not set to the specified value.

h = findobj(prop1,value1,oper,prop2,value2) applies the logical operator oper to the prop,value pairs. For example, h = findobj('LineStyle','--','-and','Marker','o') returns all objects that have a dashed line style and circular markers.

h = findobj('-regexp',prop,expr) uses a regular expression to find objects with specific property values. Objects with property values satisfying the regular expression are returned.

h = findobj('-property',prop) returns all objects that have the specified property.

h = findobj(prop1,value1,...,propN,valueN) returns all objects in the hierarchy that have the specified properties set to the specified values. You can replace prop,value pairs with other input argument combinations from the previous syntaxes. For example, h = findobj(prop1,value1,'-not',prop2,value2,'-property',prop3) returns all objects that satisfy these three conditions:

• The object has a property prop1 set to value1.

• The object has a property prop2 whose value is not set to value2.

• The object has a property prop3.

h = findobj(objhandles,___) restricts the search to the objects listed in objhandles and all of their descendants. You can restrict the search for any of the previous syntaxes.

h = findobj(objhandles,'-depth',d,___) restricts the search to the objects listed in objhandles and their descendants that are up to d levels lower in the graphics object hierarchy.

h = findobj(objhandles,'flat',___) restricts the search to the objects listed only in objhandles. The descendant objects are not searched. Using the 'flat' option is the same as using the '-depth' option with d = 0.

Examples

Find All Graphics Objects

Delete all existing figures, and then create a plot of random values.

close all
plot(rand(5))

Return the graphics root object and all of its descendants.

h = findobj

h =
  8×1 graphics array:

  Root
  Figure    (1)
  Axes
  Line
  Line
  Line
  Line
  Line

Find All Line Objects

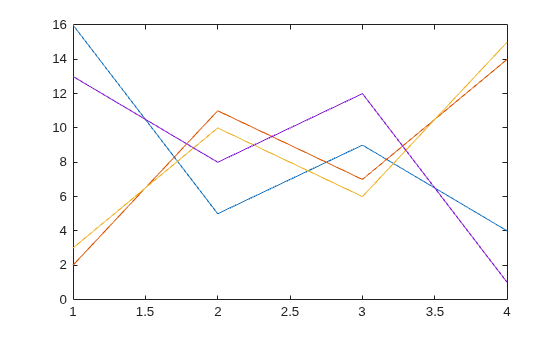

Delete all existing figures, and then create a multiline plot.

close all
plot(magic(4))

Return all line objects.

h = findobj('Type','line')

h =
  4×1 Line array:

  Line
  Line
  Line
  Line

Find Objects with Specified Property Values

Plot nine sine waves with custom colors and line styles.

x = linspace(0,7);
y = ones(length(x),9);
for i = 1:9
    y(:,i) = sin(x-i/5)';
end
plot(x,y)

colororder({'red','green','blue'})
ax = gca;
ax.LineStyleOrder = {'-','--',':'};

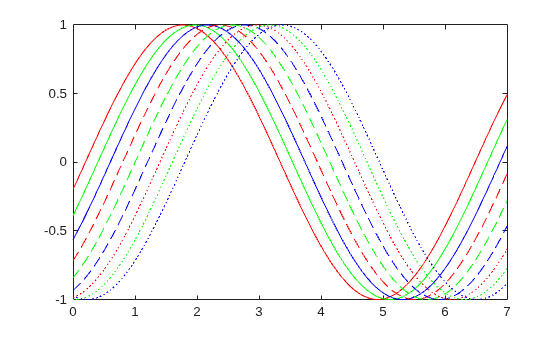

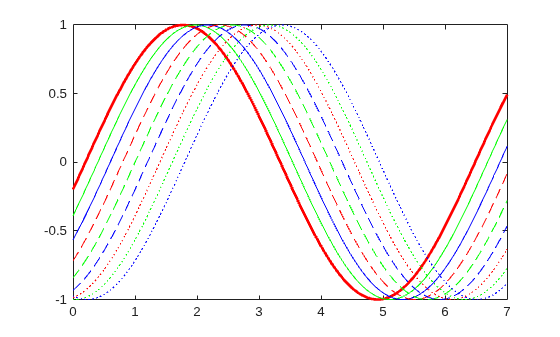

Return the solid red line. Then, change the thickness of the line.

h = findobj('Color','red','LineStyle','-')

h =
  Line with properties:

              Color: [1 0 0]
          LineStyle: '-'
          LineWidth: 0.5000
             Marker: 'none'
         MarkerSize: 6
    MarkerFaceColor: 'none'
              XData: [0 0.0707 0.1414 0.2121 0.2828 0.3535 0.4242 0.4949 0.5657 0.6364 0.7071 0.7778 0.8485 0.9192 0.9899 1.0606 1.1313 1.2020 1.2727 1.3434 1.4141 1.4848 1.5556 1.6263 1.6970 1.7677 1.8384 1.9091 1.9798 2.0505 2.1212 … ] (1×100 double)
              YData: [-0.1987 -0.1289 -0.0586 0.0121 0.0827 0.1529 0.2224 0.2907 0.3576 0.4226 0.4856 0.5462 0.6040 0.6588 0.7103 0.7582 0.8024 0.8426 0.8785 0.9101 0.9371 0.9594 0.9769 0.9896 0.9973 1.0000 0.9977 0.9905 0.9782 0.9611 … ] (1×100 double)

  Show all properties

h.LineWidth = 2;

Find Objects Using Logical Expressions

Create a multiline plot. Specify an identifier for each plot.

x = linspace(-1,1);
y1 = x;
plot(x,y1,'Tag','linear')
hold on
y2 = x.^2;
plot(x,y2,'Tag','quadratic')
y3 = exp(x);
plot(x,y3,'Tag','exponential')
y4 = sin(x);
plot(x,y4,'Tag','sinusoidal')
hold off

Find all objects whose Tag property is not set to 'linear'.

h1 = findobj('-not','Tag','linear')

h1 =
  6×1 graphics array:

  Root
  Figure    (1)
  Axes
  Line      (sinusoidal)
  Line      (exponential)
  Line      (quadratic)

Find all objects whose Tag property is not set to 'linear' or 'quadratic'.

h2 = findobj('-not',{'Tag','linear','-or','Tag','quadratic'})

h2 =
  5×1 graphics array:

  Root
  Figure    (1)
  Axes
  Line      (sinusoidal)
  Line      (exponential)

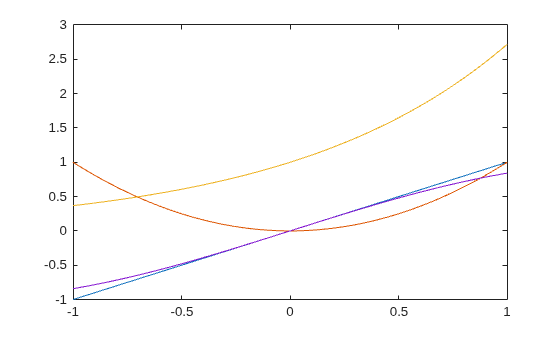

Find all line objects whose Tag property is not set to 'linear' or 'quadratic'.

h3 = findobj('Type','line','-not',{'Tag','linear','-or','Tag','quadratic'})

h3 =
  2×1 Line array:

  Line    (sinusoidal)
  Line    (exponential)

Improve the readability of the previous statement by using '-and' and curly brackets.

h4 = findobj({'Type','line'},'-and',{'-not',{'Tag','linear','-or','Tag','quadratic'}})

h4 =
  2×1 Line array:

  Line    (sinusoidal)
  Line    (exponential)

Find Objects Using Regular Expression

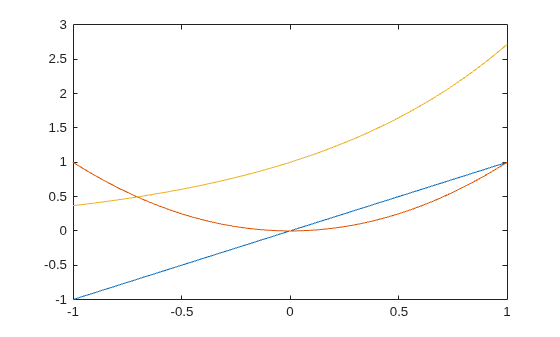

Create three line plots and assign an identifier to two of the plots.

x = linspace(-1,1);
y1 = x;
plot(x,y1)
hold on
y2 = x.^2;
plot(x,y2,'Tag','Quadratic')
y3 = exp(x);
plot(x,y3,'Tag','Exponential')
hold off

Find all objects that have a nonempty Tag property.

h = findobj('-regexp','Tag','[^'']')

h =
  2×1 Line array:

  Line    (Exponential)
  Line    (Quadratic)

Find All Objects with Specified Property

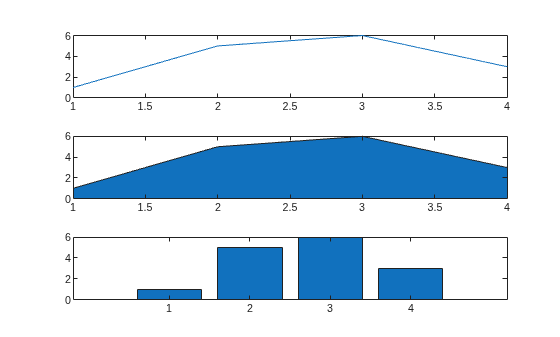

Create a vector of four values. Display the values using a line plot, an area plot, and a bar graph.

y = [1 5 6 3];
subplot(3,1,1)
plot(y)
subplot(3,1,2)
area(y)
subplot(3,1,3)
bar(y)

Return all objects that have a BaseValue property.

h = findobj('-property','BaseValue')

h =
  2×1 graphics array:

  Bar
  Area

Find All Line Objects in Current Axes

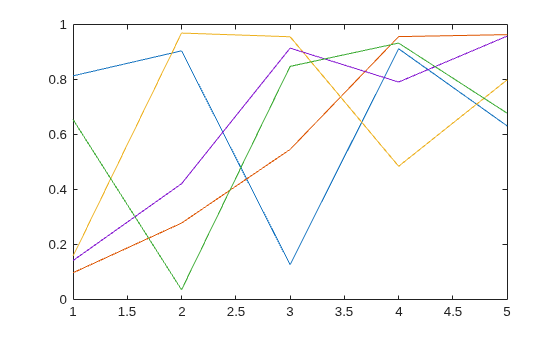

Create a plot of random values, and then return all line objects in the current axes.

plot(rand(5))

h = findobj(gca,'Type','line')

h =
  5×1 Line array:

  Line
  Line
  Line
  Line
  Line

Use h to query the y values of the first Line object.

values = h(1).YData

values = 1×5

    0.6557    0.0357    0.8491    0.9340    0.6787

Find All Objects in Current Figure

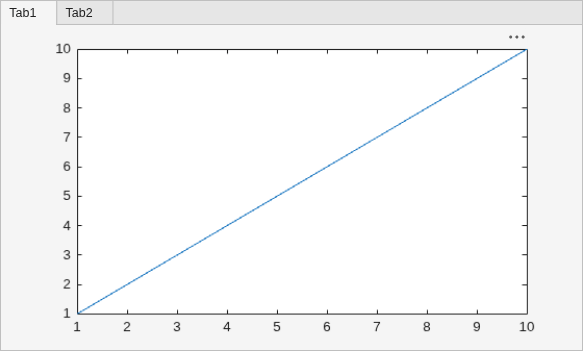

Create a figure with two tabs. Add axes to each tab by specifying the parent container for each one. Plot a line in the first tab and a surface in the second tab.

figure
tab1 = uitab('Title','Tab1');
ax1 = axes(tab1);
plot(ax1,1:10)

tab2 = uitab('Title','Tab2');
ax2 = axes(tab2);
surf(ax2,peaks)

Return all objects in the current figure and its descendants.

h = findobj(gcf)

h =
  8×1 graphics array:

  Figure      (1)
  TabGroup
  Tab         (Tab1)
  Tab         (Tab2)
  Axes
  Axes
  Line
  Surface

Restrict Search Depth

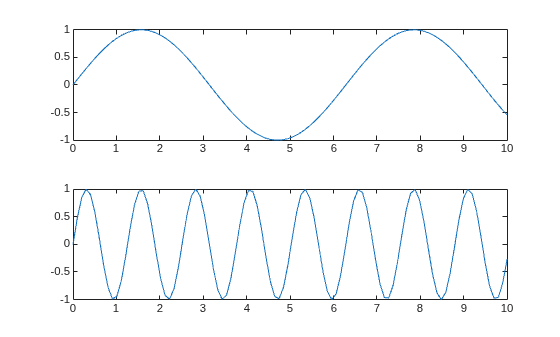

Create a figure with two stacked subplots.

subplot(2,1,1)
x = linspace(0,10);
y1 = sin(x);
plot(x,y1)

subplot(2,1,2)
y2 = sin(5*x);
plot(x,y2)

Find all objects in the current figure and its children.

h1 = findobj(gcf,'-depth',1)

h1 =
  3×1 graphics array:

  Figure    (1)
  Axes
  Axes

Find all objects in the current figure and any descendants that are up to two levels lower in the graphics object hierarchy.

h2 = findobj(gcf,'-depth',2)

h2 =
  5×1 graphics array:

  Figure    (1)
  Axes
  Axes
  Line
  Line

Restrict the search to the current figure and the current axes using the 'flat' option.

h3 = findobj([gcf,gca],'flat')

h3 =
  2×1 graphics array:

  Figure    (1)
  Axes

Input Arguments

prop — Property name

character vector | string scalar

Property name, specified as a character vector or string scalar. For more information, see Graphics Object Properties.

Example: 'Tag'

Example: 'Type'

value — Property value

scalar | array

Property value, specified as a scalar or array.

oper — Logical operator

'-and' (default) | '-or' | '-xor'

Logical operator, specified as '-and', '-or', or '-xor'. Logical operator precedence follows MATLAB^® precedence rules. For more information, see Operator Precedence.

To control operator precedence, group prop,value pairs within cell arrays. For example, find all objects that have a Tag property set to 'button one' and a Color property set to a value other than 'red' or 'blue':

h = findobj('Tag','button one','-and', ...
    '-not',{'Color','red','-or','Color','blue'})

expr — Regular expression

string array | character vector | cell array of character vectors

Regular expression, specified as a string array, character vector, or cell array of character vectors. expr can contain characters, metacharacters, operators, tokens, and flags that specify patterns to match in the property value. You can use expr only when the property value is a string or character vector. For more information about regular expressions, see regexp.

objhandles — Objects to search from

array of graphics objects

Objects to search from, specified as an array of graphics objects. Unless you specify the '-depth' or 'flat' options, findobj searches the objects in the input array objhandles and all of their descendants in the graphics object hierarchy.

d — Depth of search

nonnegative integer

Depth of search, specified as a nonnegative integer indicating the number of levels below any given object in the input array objhandles.

• d = n — Search n levels of the hierarchy below each object in objhandles.

• d = 0 — Search only the same level as the objects in objhandles. This is equivalent to specifying the 'flat' option.

• d = inf — Search all levels below the objects in objhandles. This is equivalent to a default search without specifying the '-depth' or 'flat' options.

Tips

• If the HandleVisibility property of an object is set to 'off', findobj does not return that graphics object or any of its descendants. To return all objects in the hierarchy, including hidden objects, use the findall function.

• findobj correctly matches any legal property value. For example, this code finds all objects having a Color property set to red, r, or [1 0 0]:

  findobj('Color','r')

• When a graphics object is a descendant of more than one object identified in objhandles, MATLAB searches the object each time findobj encounters its handle. Therefore, implicit references to a graphics object can result in multiple returns of the object.
