ztickformat
Specify z-axis tick label format
Syntax
Description
ztickformat(
sets
the format for numeric z-axis tick labels. For
example, specify fmt
)fmt
as 'usd'
to
display the labels in U.S. dollars.
ztickformat(
sets
the format for labels that show dates or times. For example, specify datefmt
)datefmt
as 'MM-dd-yy'
to
display dates such as 04-19-16
. This option applies
only to a z-axis with datetime values.
ztickformat(
sets
the format for labels that show durations. For example, specify durationfmt
)durationfmt
as 'm'
to
display the durations in minutes. This option applies only to a z-axis
with duration values.
returns
the format style used for z-axis tick labels
of the current axes. Depending on the type of labels along the z-axis, zfmt
= ztickformatzfmt
is
a character vector of a numeric format, date format, or duration format.
returns
the format style used for the axes specified by zfmt
= ztickformat(ax
)ax
instead
of the current axes.
Examples
Display Tick Labels in Dollars

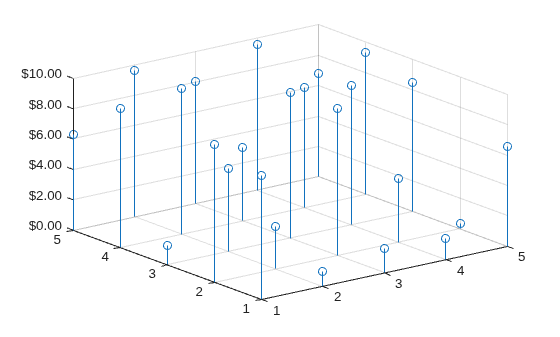

Create a 3-D stem chart of random data. Display the tick labels along the z-axis in US dollars.
z = 10*rand(5);
stem3(z)
ztickformat('usd')
Query the tick label format. MATLAB® returns the format as a character vector containing the formatting operators.
fmt = ztickformat
fmt = '$%,.2f'

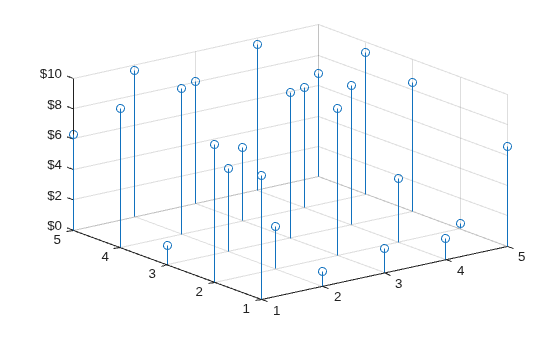

Display the tick labels with no decimal values by tweaking the numeric format to use a precision value of 0 instead of 2.
ztickformat('$%,.0f')
Display Text After Each Tick Label

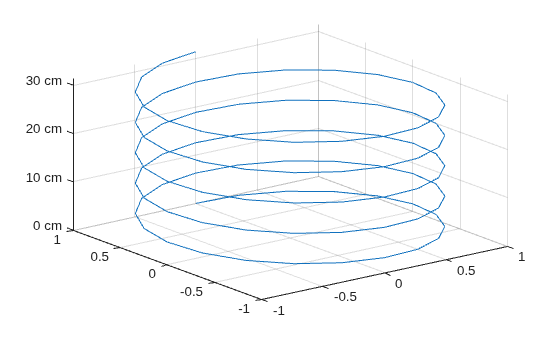

Create a 3-D line chart. Display the tick labels along the z-axis with the text "cm" after each value.
t = 0:pi/10:10*pi; st = sin(t); ct = cos(t); plot3(st,ct,t) grid on ztickformat('%g cm')
Control Number of Decimals Displayed

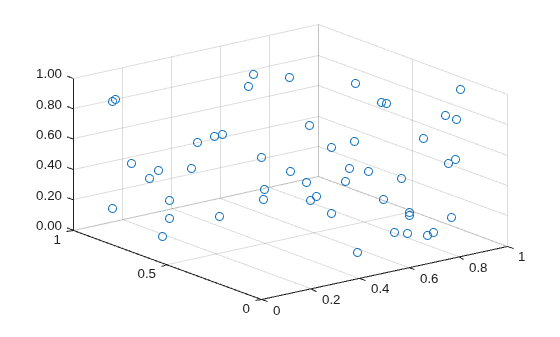

Create a 3-D scatter plot of random data. Display the z-axis tick labels with two decimal places. Control the decimal places by passing ztickformat
a character vector of a numeric format that uses fixed-point notation for the conversion character and a precision value of 2.
x = rand(50,1);
y = rand(50,1);
z = rand(50,1);
scatter3(x,y,z)
ztickformat('%.2f')

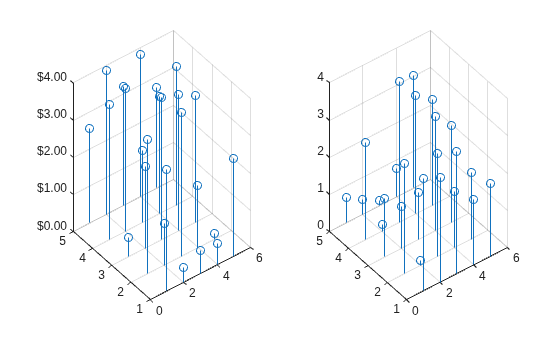

Tick Label Format for Specific Axes
Starting in R2019b, you can display a tiling of plots using the tiledlayout
and nexttile
functions. Call the tiledlayout
function to create a 1-by-2 tiled chart layout. Call the nexttile
function to create the axes objects ax1
and ax2
. Create two 3-D stem plots, and specify the tick label format for the z-axis of the left plot by specifying ax1
as the first input argument to ztickformat
. Display the tick labels in U.S. dollars.
tiledlayout(1,2)
ax1 = nexttile;
stem3(ax1,4*rand(5))
ztickformat(ax1,'usd')
ax2 = nexttile;
stem3(ax2,4*rand(5))
Input Arguments
fmt
— Format for numeric tick labels
'%g'
(default) | character vector | string
Format for numeric tick labels, specified as a character vector or string. You can specify one of the formats listed in this table. Alternatively, you can specify a custom format.
Predefined Format | Description |
---|---|
'usd' |
U.S. dollars. This option is equivalent using
|
'eur' |
Euro. This option is equivalent to using
|
'gbp' |
British pound. This option is equivalent to using
|
'jpy' |
Japanese yen. This option is equivalent to using
|
'degrees' |
Display degree symbol after values. This option is
equivalent to using |
'percentage' |
Display percent sign after values. This option is
equivalent to using |
'auto' |
Default format of |
Example: ztickformat('usd')
Custom Numeric Format
You can specify a custom numeric format by creating a character vector or string containing identifiers.
Identifiers are optional, except the percent sign and conversion character. Construct the format in this order:
One or more flags — Options such as adding a plus sign before positive values. For a full list of options, see the table of Optional Flags.
Field width — Minimum number of characters to print in the tick label. Specify the field width as an integer value. If the number of significant digits in the tick value is smaller than the field width, then the label is padded with spaces.
Precision — Number of digits to the right of the decimal point or the number of significant digits, depending on the conversion character. Specify the precision as an integer value.
Conversion character — Value type. For a full list of options, see the table of Conversion Characters. If you specify a conversion that does not fit the data, then MATLAB® overrides the specified conversion, and uses
%e
.
Also, you can specify literal text at the beginning
or end of the format. To print a single quotation mark, use ''
.
To print a percent character, use %%
.
Example: ztickformat('%.2f')
displays
the values using fixed-point notation with two decimal places.
Example: ztickformat('$%.2f')
displays
a dollar sign before each value.
Example: ztickformat('%.2f
million')
displays million
after each
value.
Optional Flags
Identifier | Description | Example of Numeric Format |
---|---|---|
, | Display commas every three digits, such as '1,000' . | '%,4.4g' |
+ | Print the sign character (+) for positive values, such as '+100' . | '%+4.4g' |
0 | Pad the field width with leading zeros instead of spaces, such
as '0100' . | '%04.4g' |
– | Left-justify, which pads the end of the value with spaces instead
of the beginning. For example, if the field width is 4 ,
then this flag formats the label as '100 ' instead
of ' 100' . | '%-4.4g' |
# | For the | '%#4.4g' |
Conversion Characters
Identifier | Description | Example |
---|---|---|
d or i | Signed integer with base 10. The precision value indicates the number of significant digits. | '%.4d' displays π as 0003 . |
f | Fixed-point notation. The precision value indicates the number of decimal places. | '%.4f' displays π as 3.1416 . |
e | Exponential notation. The precision value indicates the number of decimal places. | '%.4e' displays π as 3.1416x100 . |
g | The more compact version of e or f ,
with no trailing zeros. The precision value indicates the maximum
number of decimal places. | '%.4g' displays π as 3.1416 . |
datefmt
— Format for dates and times
'auto'
| character vector | string
Format for dates and times, specified as 'auto'
, a character vector, or a
string. The default format is based on the data.
Example: ztickformat('yyyy-MM-dd')
displays
a date and time such as 2016-04-19
.
Example: ztickformat('eeee, MMMM d, yyyy HH:mm:ss')
displays
a date and time such as Saturday, April 19, 2016 21:41:06
.
Example: ztickformat('MMMM d, yyyy HH:mm:ss Z')
displays
a date and time such as April 19, 2016 21:41:06 -0400
.
The display format tables show the letter identifiers that you can use to construct the format. To separate the fields, you can include nonletter characters such as a hyphen, space, colon, or any non-ASCII characters. The identifiers correspond to the Unicode® Locale Data Markup Language (LDML) standard for dates.
Date and Time Formats
Use these identifiers to specify the display formats of the date and time fields.
Letter Identifier | Description | Display |
---|---|---|
G | Era | CE |
y | Year, with no leading zeros. See the Note that follows this table. | 2014 |
yy | Year, using last two digits. See the Note that follows this table. | 14 |
yyy , yyyy ... | Year, using at least the number of digits specified by the
number of instances of 'y' | For the year 2014, 'yyy' displays 2014 ,
while 'yyyyy' displays 02014 . |
u , uu , ... | ISO year. A single number designating the year. An ISO year value assigns positive values to CE years and negative values to BCE years, with 1 BCE being year 0. | 2014 |
Q | Quarter, using one digit | 2 |
QQ | Quarter, using two digits | 02 |
QQQ | Quarter, abbreviated | Q2 |
QQQQ | Quarter, full name | 2nd quarter |
M | Month, numerical using one or two digits | 4 |
MM | Month, numerical using two digits | 04 |
MMM | Month, abbreviated name | Apr |
MMMM | Month, full name | April |
MMMMM | Month, capitalized first letter | A |
W | Week of the month | 1 |
d | Day of the month, using one or two digits | 5 |
dd | Day of the month using two digits | 05 |
D | Day of the year, using one, two or three digits | 95 |
DD | Day of the year using two digits | 95 |
DDD | Day of the year using three digits | 095 |
e | Day of the week, numerical using one or two digits. | 7 , where Sunday is the first day of the
week. |
ee | Day of the week, numerical using two digits | 07 |
eee | Day, abbreviated name | Sat |
eeee | Day, full name | Saturday |
eeeee | Day, capitalized first letter | S |
a | Day period (AM or PM) | PM |
h | Hour, 12-hour clock notation using one or two digits | 9 |
hh | Hour, 12-hour clock notation using two digits | 09 |
H | Hour, 24-hour clock notation using one or two digits | 21 |
HH | Hour, 24-hour clock notation using two digits | 21 |
m | Minute, using one or two digits | 41 |
mm | Minute, using two digits | 41 |
s | Second, using one or two digits | 6 |
ss | Second, using two digits | 06 |
S , SS , ..., SSSSSSSSS | Fractional second, using the number of digits specified by
the number of instances of 'S' (up to 9 digits). | 'SSS' truncates 6.12345 seconds to 123 . |
Some tips and considerations:
Use one or more
u
characters instead ofy
characters to represent the year when working with year numbers near zero.Datetime values later than 144683 years CE or before 140743 BCE display only the year numbers, regardless of the specified format value.
Time Zone Offset Formats
Use these identifiers to specify the display format of the time zone offset. A time zone offset is the amount of time that a specific date and time is offset from UTC. A time zone offset is different from a time zone in that it comprises rules that determine the offsets for specific times of the year. Include a time zone offset identifier when you want to ensure that the time components are displayed unambiguously.
Letter Identifier | Description | Display |
---|---|---|
z | Abbreviated name of the time zone offset. If this value is
not available, then the time zone offset uses the short UTC format,
such as UTC-4 . | EDT |
Z | ISO 8601 basic format with hours, minutes, and optional seconds fields. | -0400 |
ZZZZ | Long UTC format. | UTC-04:00 |
ZZZZZ | ISO 8601 extended format with hours, minutes, and optional seconds fields. A time offset of zero is displayed as the ISO 8601 UTC indicator “Z”. | -04:00 |
x or X | ISO 8601 basic format with hours field and optional minutes
field. If you specify X , a time offset of zero
is displayed as the ISO 8601 UTC indicator “Z”. | -04 |
xx or XX | ISO 8601 basic format with hours and minutes fields. If you
specify XX , a time offset of zero is displayed
as the ISO 8601 UTC indicator “Z”. | -0400 |
xxx or XXX | ISO 8601 extended format with hours and minutes fields. If
you specify XXX , a time offset of zero is displayed
as the ISO 8601 UTC indicator “Z”. | -04:00 |
xxxx or XXXX | ISO 8601 basic format with hours, minutes, and optional seconds
fields. If you specify XXXX , a time offset of zero
is displayed as the ISO 8601 UTC indicator “Z”. | -0400 |
xxxxx or XXXXX | ISO 8601 extended format with hours, minutes, and optional
seconds fields. If you specify XXXXX , a time offset
of zero is displayed as the ISO 8601 UTC indicator “Z”. | -04:00 |
durationfmt
— Format for duration values
character vector | string
Format for duration values, specified as a character vector or string.
To display a duration as a single number that includes a fractional part (for example, 1.234 hours), specify one of the following formats.
Format | Description |
---|---|
'y' | Number of exact, fixed-length years. A fixed-length year is equal to 365.2425 days. |
'd' | Number of exact, fixed-length days. A fixed-length day is equal to 24 hours. |
'h' | Number of hours |
'm' | Number of minutes |
's' | Number of seconds |
To display a duration in the form of a digital timer, specify one of these formats:
'dd:hh:mm:ss'
'hh:mm:ss'
'mm:ss'
'hh:mm'
In addition, you can display up to nine fractional
second digits by appending up to nine S
characters.
For example, 'hh:mm:ss.SSS'
displays the milliseconds
of a duration value to three digits.
ax
— Target axes
Axes
object | array of Axes
objects
Target axes, specified as an Axes
object or an array of
Axes
objects.
If you do not specify this argument, then ztickformat
modifies the current axes.
Algorithms
The ztickformat
function sets and queries
the TickLabelFormat
property of the ruler object
associated with the z-axis.
Version History
Introduced in R2016b
