findCoefficients
Locate active PDE coefficients
Description
returns the active coefficient assignment CA
= findCoefficients(coeffs
,RegionType
,RegionID
)CA
for the coefficients
in the specified region.
Examples
Find the Active Coefficients for a Region

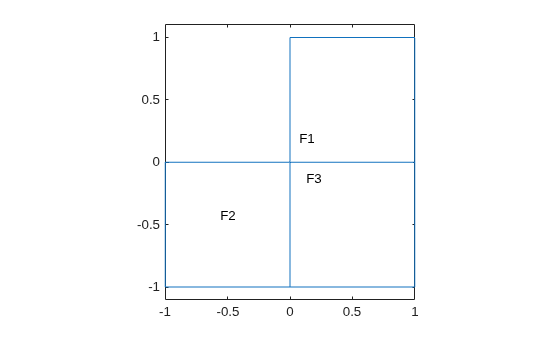

Create a PDE model that has a few subdomains.
model = createpde(); geometryFromEdges(model,@lshapeg); pdegplot(model,"FaceLabels","on") ylim([-1.1,1.1]) axis equal
Set coefficients on each pair of regions.
specifyCoefficients(model,"m",0,"d",0,"c",12,"a",0,"f",1,"Face",[1,2]); specifyCoefficients(model,"m",0,"d",0,"c",13,"a",0,"f",2,"Face",[1,3]); specifyCoefficients(model,"m",0,"d",0,"c",23,"a",0,"f",3,"Face",[2,3]);
Check the coefficient specification for region 1.
coeffs = model.EquationCoefficients;
ca = findCoefficients(coeffs,"Face",1)
ca = CoefficientAssignment with properties: RegionType: 'face' RegionID: [1 3] m: 0 d: 0 c: 13 a: 0 f: 2
Input Arguments
coeffs
— Model coefficients
EquationCoefficients
property of a PDE model
Model coefficients, specified as the
EquationCoefficients
property of a PDE model.
Coefficients can be complex numbers.
Example: model.EquationCoefficients
RegionType
— Geometric region type
"Face"
for a 2-D model | "Cell"
for a 3-D model
Geometric region type, specified as "Face"
for a 2-D
model, or "Cell"
for a 3-D model.
Example: ca =
findCoefficients(coeffs,"Face",[1,3])
Data Types: char
| string
RegionID
— Region ID
vector of positive integers
Region ID, specified as a vector of positive integers. View the subdomain
labels for a 2-D model using
pdegplot(model,"FaceLabels","on")
. Currently, there
are no subdomains for 3-D models, so the only acceptable value for a 3-D
model is 1
.
Example: ca =
findCoefficients(coeffs,"Face",[1,3])
Data Types: double
Output Arguments
CA
— Coefficient assignment
CoefficientAssignment
object
Coefficient assignment, returned as a CoefficientAssignment Properties object.
Version History
Introduced in R2016a
