This example shows how to simulate and generate code for the ControlModule stateflow chart from the
To start the simulation, click Run.
To generate code for the ControlModule chart, use plcgeneratecode. For more information, see
generatedfiles = plcgeneratecode('plcdemo_stateflow_controller/ControlModule');

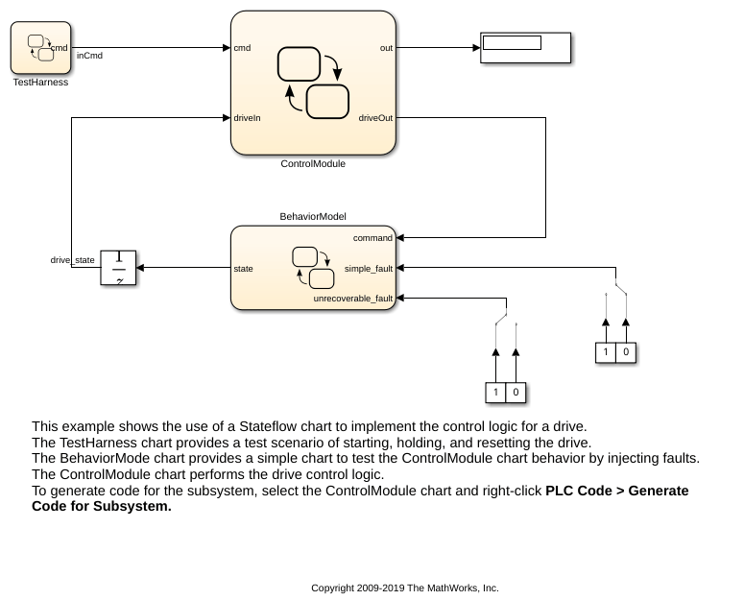

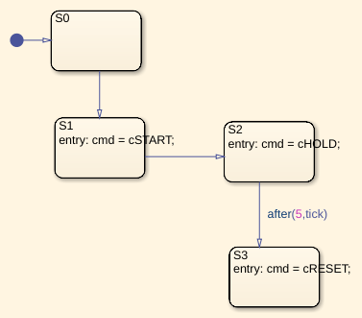

The plcdemo_stateflow_controller consists of stateflow charts to simulate a drive module. The TestHarness chart provides a test scenatio of starting, holding, and resetting the drive.
The BehaviorModel chart provides a simple chart to test the ControlModule chart behavior by injecting faults.

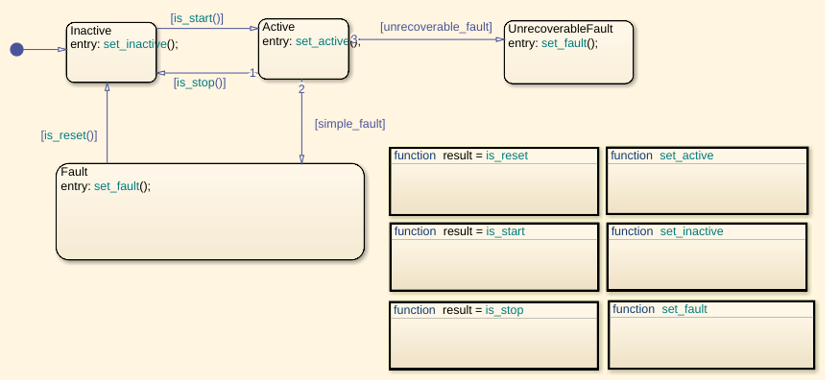

The ControlModule chart performs the drive control logic.
