rlPredefinedEnv

Create a predefined reinforcement learning environment

Syntax

env = rlPredefinedEnv(keyword)

Description

example

env = rlPredefinedEnv(keyword) takes a predefined keyword keyword representing the environment name to create a MATLAB® or Simulink® reinforcement learning environment env. The environment env models the dynamics with which the agent interacts, generating rewards and observations in response to agent actions.

Examples

collapse all

Use the predefined 'BasicGridWorld' keyword to create a basic grid world reinforcement learning environment.

env = rlPredefinedEnv('BasicGridWorld')
env =
  rlMDPEnv with properties:

       Model: [1x1 rl.env.GridWorld]
    ResetFcn: []

Use the predefined 'DoubleIntegrator-Continuous' keyword to create a continuous double integrator reinforcement learning environment.

env = rlPredefinedEnv('DoubleIntegrator-Continuous')
env =
  DoubleIntegratorContinuousAction with properties:

             Gain: 1
               Ts: 0.1000
      MaxDistance: 5
    GoalThreshold: 0.0100
                Q: [2×2 double]
                R: 0.0100
         MaxForce: Inf
            State: [2×1 double]

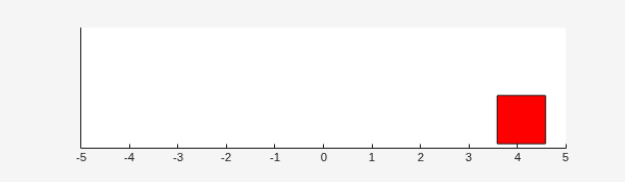

You can visualize the environment using the plot function and interact with it using the reset and step functions.

plot(env)
observation = reset(env)
observation = 2×1

     4
     0

[observation, reward, isDone] = step(env,16)

observation = 2×1

    4.0800
    1.6000

reward = -16.5559
isDone = logical
   0

Use the predefined 'SimplePendulumModel-Continuous' keyword to create a continuous simple pendulum model reinforcement learning environment.

env = rlPredefinedEnv('SimplePendulumModel-Continuous')
env =
  SimulinkWithAgentBlock with properties:

             Model: "SimplePendulumModel"
        AgentBlock: "SimplePendulumModel/RL Agent"
          ResetFcn: []
    UseFastRestart: 'on'

Input Arguments

collapse all

Predefined keyword representing the environment name, specified as one of the following:

MATLAB Environment

  • 'BasicGridWorld'

  • 'CartPole-Discrete'

  • 'CartPole-Continuous'

  • 'DoubleIntegrator-Discrete'

  • 'DoubleIntegrator-Continuous'

  • 'SimplePendulumWithImage-Discrete'

  • 'SimplePendulumWithImage-Continuous'

  • 'WaterFallGridWorld-Stochastic'

  • 'WaterFallGridWorld-Deterministic'

Simulink Environment

  • 'SimplePendulumModel-Discrete'

  • 'SimplePendulumModel-Continuous'

  • 'CartPoleSimscapeModel-Discrete'

  • 'CartPoleSimscapeModel-Continuous'

Output Arguments

collapse all

MATLAB or Simulink environment object, returned as one of the following:

  • rlMDPEnv object, when you use one of the following keywords:

    • 'BasicGridWorld'

    • 'WaterFallGridWorld-Stochastic'

    • 'WaterFallGridWorld-Deterministic'

  • CartPoleDiscreteAction object, when you use the 'CartPole-Discrete' keyword.

  • CartPoleContinuousAction object, when you use the 'CartPole-Continuous' keyword.

  • DoubleIntegratorDiscreteAction object, when you use the 'DoubleIntegrator-Discrete' keyword.

  • DoubleIntegratorContinuousAction object, when you use the 'DoubleIntegrator-Continuous' keyword.

  • SimplePendlumWithImageDiscreteAction object, when you use the 'SimplePendulumWithImage-Discrete' keyword.

  • SimplePendlumWithImageContinuousAction object, when you use the 'SimplePendulumWithImage-Continuous' keyword.

  • SimulinkEnvWithAgent object, when you use one of the following keywords:

    • 'SimplePendulumModel-Discrete'

    • 'SimplePendulumModel-Continuous'

    • 'CartPoleSimscapeModel-Discrete'

    • 'CartPoleSimscapeModel-Continuous'

Introduced in R2019a
