Train AC Agent to Balance Cart-Pole System Using Parallel Computing
This example shows how to train an actor-critic (AC) agent to balance a cart-pole system modeled in MATLAB® by using asynchronous parallel training. For an example that shows how to train the agent without using parallel training, see Train AC Agent to Balance Cart-Pole System.
Actor Parallel Training
When you use parallel computing with AC agents, each worker generates experiences from its copy of the agent and the environment. After every
N steps, the worker computes gradients from the experiences and sends the computed gradients back to the client agent (the agent associated with the MATLAB® process which starts the training). The client averages the gradients, updates the network parameters and sends the updated parameters back to the workers to they can continue simulating the agent with the new parameters.
This type of parallel training is also known as gradient-based parallelization, and allows you to achieve, in principle, a speed improvement which is nearly linear in the number of workers. However, this option requires synchronous training (that is the
Mode property of the
rlTrainingOptions object that you pass to the train function must be set to
sync). This means that workers must pause execution until all workers are finished, and as a result the training only advances as fast as the slowest worker allows.
For more information about synchronous versus asynchronous parallelization, see Train Agents Using Parallel Computing and GPUs.
Create Cart-Pole MATLAB Environment Interface
Create a predefined environment interface for the cart-pole system. For more information on this environment, see Load Predefined Control System Environments.
env = rlPredefinedEnv("CartPole-Discrete"); env.PenaltyForFalling = -10;
Obtain the observation and action information from the environment interface.
obsInfo = getObservationInfo(env); numObservations = obsInfo.Dimension(1); actInfo = getActionInfo(env);
Fix the random generator seed for reproducibility.
Create AC Agent
Actor-critic agents use a parametrized value function approximator to estimate the value of the policy. A value-function critic takes the current observation as input and returns a single scalar as output (the estimated discounted cumulative long-term reward for following the policy from the state corresponding to the current observation).
To model the parametrized value function within the critic, use a neural network with one input layer (which receives the content of the observation channel, as specified by obs
Info) and one output layer (which returns the scalar value). Note that
prod(obsInfo.Dimension) returns the total number of dimensions of the observation space regardless of whether the observation space is a column vector, row vector, or matrix.
Define the network as an array of layer objects.
criticNetwork = [ featureInputLayer(prod(obsInfo.Dimension)) fullyConnectedLayer(32) reluLayer fullyConnectedLayer(1) ];
Create the value function approximator object using
criticNetwork and the environment action and observation specifications.
critic = rlValueFunction(criticNetwork,obsInfo);
Actor-critic agents use a parametrized stochastic policy, which for discrete action spaces is implemented by a discrete categorical actor. This actor takes an observation as input and returns as output a random action sampled (among the finite number of possible actions) from a categorical probability distribution.
To model the parametrized policy within the actor, use a neural network with one input layer (which receives the content of the environment observation channel, as specified by
obsInfo) and one output layer. The output layer must return a vector of probabilities for each possible action, as specified by
actInfo. Note that
numel(actInfo.Dimension) returns the number of elements of the discrete action space.
Define the network as an array of layer objects.
actorNetwork = [ featureInputLayer(prod(obsInfo.Dimension)) fullyConnectedLayer(32) reluLayer fullyConnectedLayer(numel(actInfo.Dimension))];
Create the actor approximator object using
actorNetwork and the environment action and observation specifications.
actor = rlDiscreteCategoricalActor(actorNetwork,obsInfo,actInfo);
For more information on creating approximator objects such as actors and critics, see Create Policies and Value Functions.
Specify options for the critic and actor using
criticOpts = rlOptimizerOptions(LearnRate=1e-2,GradientThreshold=1); actorOpts = rlOptimizerOptions(LearnRate=1e-2,GradientThreshold=1);
Specify the AC agent options using
rlACAgentOptions, include the training options for the actor and critic.
agentOpts = rlACAgentOptions(... ActorOptimizerOptions=actorOpts,... CriticOptimizerOptions=criticOpts,... EntropyLossWeight=0.01);
Create the agent using the specified actor representation and agent options. For more information, see
agent = rlACAgent(actor,critic,agentOpts);
Parallel Training Options
To train the agent, first specify the training options. For this example, use the following options.
Run each training for at most
1000episodes, with each episode lasting at most
Display the training progress in the Episode Manager dialog box (set the
Plotsoption) and disable the command line display (set the
Stop training when the agent receives an average cumulative reward greater than
10consecutive episodes. At this point, the agent can balance the pendulum in the upright position.
trainOpts = rlTrainingOptions(... MaxEpisodes=1000,... MaxStepsPerEpisode=500,... Verbose=false,... Plots="training-progress",... StopTrainingCriteria="AverageReward",... StopTrainingValue=500,... ScoreAveragingWindowLength=10);
You can visualize the cart-pole system can during training or simulation using the
To train the agent using parallel computing, specify the following training options.
Train the agent in parallel asynchronously by setting the
trainOpts.UseParallel = true; trainOpts.ParallelizationOptions.Mode = "async";
For more information, see
Train the agent using the
train function. Training the agent is a computationally intensive process that takes several minutes to complete. To save time while running this example, load a pretrained agent by setting
false. To train the agent yourself, set

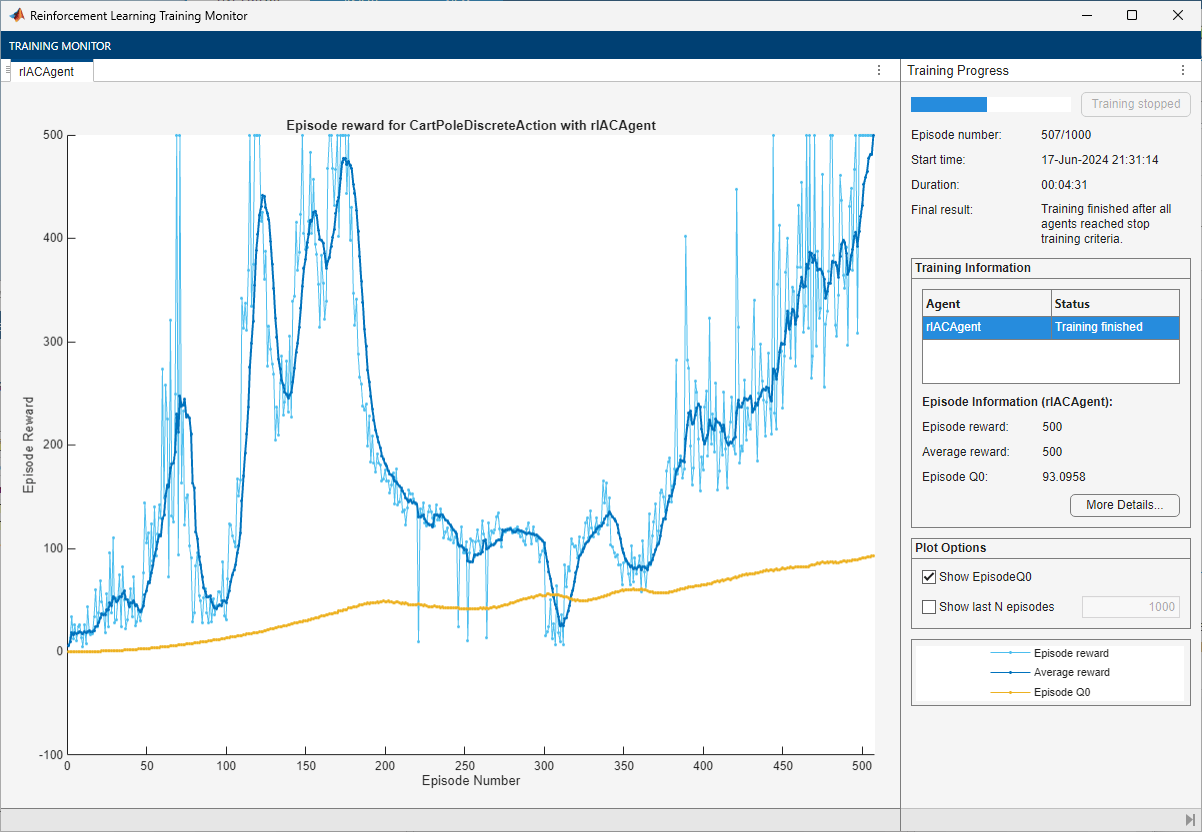

true. Due to randomness in the asynchronous parallel training, you can expect different training results from the following training plot. The plot shows the result of training with six workers.
doTraining = false; if doTraining % Train the agent. trainingStats = train(agent,env,trainOpts); else % Load the pretrained agent for the example. load("MATLABCartpoleParAC.mat","agent"); end
Simulate AC Agent
You can visualize the cart-pole system with the plot function during simulation.
To validate the performance of the trained agent, simulate it within the cart-pole environment. For more information on agent simulation, see
simOptions = rlSimulationOptions(MaxSteps=500); experience = sim(env,agent,simOptions);
totalReward = sum(experience.Reward)
totalReward = 500
 Mnih, Volodymyr, Adrià Puigdomènech Badia, Mehdi Mirza, Alex Graves, Timothy P. Lillicrap, Tim Harley, David Silver, and Koray Kavukcuoglu. ‘Asynchronous Methods for Deep Reinforcement Learning’. ArXiv:1602.01783 [Cs], 16 June 2016. https://arxiv.org/abs/1602.01783.
