coder.asap2.getEcuDescriptions

ECU description object for model

    Description

    An ECU description object and its functions allows you to add, delete, find, filter, update, and fetch ECU descriptions in an ASAP2 file. You can use the function to create the information object for a model.

    Creation

    descObj = coder.asap2.getEcuDescriptions(modelName) creates an ECU description object with name descObj for the model modelName.

    Properties

    expand all

    Full path to a folder in which to place an exported A2L file.

    Example: Folder='/home/temp/prjct/'

    Name for the exported A2L file.

    Example: FileName='test_car'

    Name of the model symbol file that contains symbols of generated code. For example, the addresses of variables used in generated code.

    Example: MapFile='model.elf'

    A2L file format based on the ASAM MCD-2 MC standard defined by ASAM. There are multiple versions of the ASAM MCD-2 MC standard. Specify the version of A2L that you want.

    Example: Version='1.61' or Version='1.31'

    Generate the A2L file by including or excluding comments.

    Example: Comments=true

    Generate the A2L file by including or excluding A2ML and IF_DATA sections.

    Example: GenerateXCPInfo=true

    Custom model instance name in an A2L file. This argument is applicable only for Adaptive AUTOSAR models.

    Example: ModelClassInstanceName='customObj' or ModelClassInstanceName='customNameSpace::customObj'

    Generate an A2L file by following indentation.

    Example: IndentFile=true

    Create a user base and customize the ASAP2 fields such as:

    • ASAP2FileName

    • ByteOrder

    • HeaderComment

    • ModParComment

    • ModCommonComment

    Example: CustomizationObject=obj

    Group the parameters and signals based on their properties.

    Example: CustomizeGroupsBy={'ARRAY','MAP'}

    Export record layouts of all the base data types to a file named RecordLayouts.a2l according to the version of the A2L file.

    Example: IncludeAllRecordLayouts=true

    Specify false to exclude elements that are part of the structure in the generated ASAP2 file.

    Example: SupportStructureElements=false

    Specify false to exclude 64-bit integers in the generated ASAP2 file.

    Example: Support64bitIntegers=false

    Specify a 32-bit integer value to specify additional address information in the ASAP2 file. By default, no additional address information is required.

    Example: EcuAddressExtension=4

    Generate the A2L file by including or excluding the AUTOSAR RTE elements.

    Note

    This option is applicable only for Classic AUTOSAR models.

    Example: IncludeAutosarRteElements=true

    Save the preferences made and generate the ASAP2 file with the preferences updated such as including the comments, version of the ASAP2 file.

    Example: UseSavedSettings=false

    Specify true to include a default event list in the A2L file.

    Example: IncludeDefaultEventList=true

    Update the array layout to ROW_DIR or COL_DIR to view the array data in row wise or column wise.

    Example: ToggleArrayLayout=true

    Object Functions

    addAdd element to ASAP2 file
    deleteRemove element from ASAP2 file
    findFilter and get ECU description names
    getReturn ASAP2 properties of data element
    setSet property for data element

    Examples

    collapse all

    This example shows how to add, update, filter, find, and remove ECU descriptions in an ASAP2 file.

    Open and build the example model

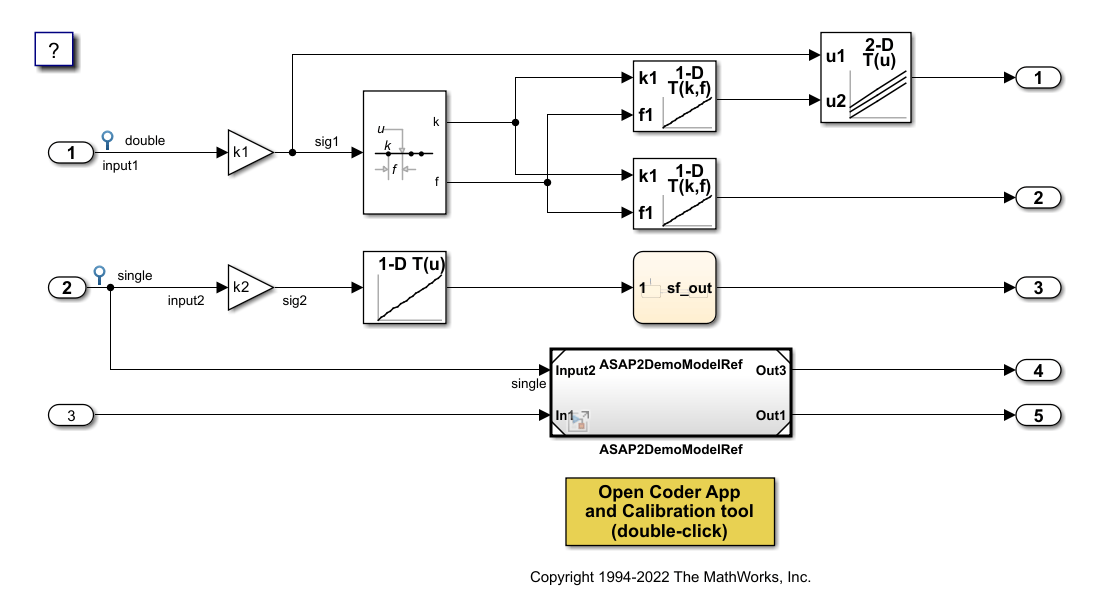

    Open the example model rtwdemo_asap2

    open_system("rtwdemo_asap2");


    Build the model.

    rtwbuild("rtwdemo_asap2");
    ### Starting serial model reference code generation build.
    ### Successfully updated the model reference code generation target for: rtwdemo_asap2_mdlref
    ### Starting build procedure for: rtwdemo_asap2
    ### Successful completion of build procedure for: rtwdemo_asap2

    Build Summary

    Code generation targets built:

    Model                 Action                        Rebuild Reason
    ============================================================================================
    rtwdemo_asap2_mdlref  Code generated and compiled.  rtwdemo_asap2_mdlref.c does not exist.

    Top model targets built:

    Model          Action                        Rebuild Reason
    ===============================================================================================
    rtwdemo_asap2  Code generated and compiled.  Code generation information file does not exist.

    2 of 2 models built (0 models already up to date)
    Build duration: 0h 0m 26.866s


    Create the ECU description object for the model.

    descObj=coder.asap2.getEcuDescriptions("rtwdemo_asap2");

    Get the list of available compu methods in the description object using the command:

    find(descObj,"CompuMethod")
    ans = 1x10 string
      Columns 1 through 3

        "rtwdemo_asap2_CM..."    "rtwdemo_asap2_CM..."    "rtwdemo_asap2_CM..."

      Columns 4 through 6

        "rtwdemo_asap2_CM..."    "rtwdemo_asap2_CM..."    "rtwdemo_asap2_CM..."

      Columns 7 through 9

        "rtwdemo_asap2_CM..."    "rtwdemo_asap2_CM..."    "rtwdemo_asap2_md..."

      Column 10

        "rtwdemo_asap2_md..."



    Filter the compu methods and get the list of compu methods with units as "rpm".

    find(descObj,"CompuMethod",Units='rpm')
    ans = 1x3 string
        "rtwdemo_asap2_CM_..."    "rtwdemo_asap2_CM_..."    "rtwdemo_asap2_mdl..."



    Create and Add a Custom Compu Method

    To add a new compu method to the ASAP2 file, create a custom compu method using the commands:

    CompuMethod_CM1 = coder.asap2.CompuMethod;
    CompuMethod_CM1.Name = 'CompuMethod_1';
    CompuMethod_CM1.ConversionType = 'LINEAR';
    CompuMethod_CM1.Coefficients = [2 3];
    CompuMethod_CM1.LongIdentifier = 'longIdentifierTest';
    CompuMethod_CM1.Format = '%2.3';
    CompuMethod_CM1.Units = 's';

    Add the custom compu method to the ECU description object using the command:

    add(descObj,CompuMethod_CM1);

    Get the properties of the newly added compu method using the command:

    get(descObj,"CompuMethod","CompuMethod_1")
    ans =
      CompuMethod with properties:

                   Name: 'CompuMethod_1'
         LongIdentifier: 'longIdentifierTest'
                 Format: '%2.3'
                  Units: 's'
           Coefficients: [2 3]
         ConversionType: 'LINEAR'
        CompuVTabValues: [1x1 struct]



    To modify any property of the compu method, use set function. Update the "LongIdentifier" field of the compu method using the command:

    set(descObj,"CompuMethod","CompuMethod_1",LongIdentifier="longIdentifierCM1")

    Generate the ASAP2 file using the updated ECU description object and verify that the ASAP2 file contains the compu method with name "CompuMethod_1".

    coder.asap2.export("rtwdemo_asap2",CustomEcuDescriptions=descObj);
    Following Characteristics or Measurements with unsupported data types are not exported in ASAP2 file. "rtwdemo_asap2_DW.rtwdemo_asap2_mdlref_InstanceDa"


    Delete a Compu Method

    Remove the newly added compu method from the description object using the command:

    delete(descObj,"CompuMethod","CompuMethod_1");

    Create and Add Custom Characteristic

    To add a new characteristic to the ASAP2 file, create a custom characteristic using the commands:

    Parameter_1 = coder.asap2.Characteristic;
    Parameter_1.Name = 'Custom_parameter1';
    Parameter_1.LongIdentifier = 'longIdentifierParam';
    Parameter_1.UpperLimit = 255;
    Parameter_1.LowerLimit = 0;

    Add the custom characteristic to the ECU description object using the command:

    add(descObj,Parameter_1);

    Get the properties of the newly added characteristic using the command:

    get(descObj,"Characteristic","Custom_parameter1")
    ans =
      Characteristic with properties:

                       Name: 'Custom_parameter1'
             LongIdentifier: 'longIdentifierParam'
                       Type: 'VALUE'
                 EcuAddress: '0x0000'
            CompuMethodName: 'NO_COMPU_METHOD'
                 LowerLimit: 0
                 UpperLimit: 255
          EcuAddressComment: ""
        EcuAddressExtension: []
          CalibrationAccess: 'Calibration'
          DisplayIdentifier: ""
                     Format: ""
                    BitMask: []
                   AxisInfo: []
               RecordLayout: ""
                 Dimensions: []
                     Export: 1
                 SymbolLink: [1x1 struct]



    To modify any property of the characteristic, use set function. Update the "UpperLimit" field of the characteristic using the command:

    set(descObj,"Characteristic","Custom_parameter1",UpperLimit=128)

    Generate the ASAP2 file using the updated ECU description object and verify that the ASAP2 file contains the characteristic with name "Custom_parameter1".

    coder.asap2.export("rtwdemo_asap2",CustomEcuDescriptions=descObj);
    Following Characteristics or Measurements with unsupported data types are not exported in ASAP2 file. "rtwdemo_asap2_DW.rtwdemo_asap2_mdlref_InstanceDa"


    Remove the newly added characteristic from the description object using the command:

    delete(descObj,"Characteristic","Custom_parameter1");

    Create and Add Custom Measurement

    To add a new measurement to the ASAP2 file, create a custom measurement using the commands:

    Signal_1 = coder.asap2.Measurement;
    Signal_1.Name = 'Custom_signal1';
    Signal_1.LongIdentifier = 'longIdentifierSignal';
    Signal_1.UpperLimit = 255;
    Signal_1.LowerLimit = 0;

    Add the custom measurement to the ECU description object using the command:

    add(descObj,Signal_1);

    Get the properties of the newly added measurement using the command:

    get(descObj,"Measurement","Custom_signal1")
    ans =
      Measurement with properties:

                       Name: 'Custom_signal1'
             LongIdentifier: 'longIdentifierSignal'
                   DataType: 'UBYTE'
                 EcuAddress: '0x0000'
            CompuMethodName: ""
                 LowerLimit: 0
                 UpperLimit: 255
                     Raster: [1x1 struct]
          EcuAddressComment: ""
        EcuAddressExtension: []
          CalibrationAccess: 'NoCalibration'
          DisplayIdentifier: ""
                     Format: ""
                    BitMask: []
                 Dimensions: []
                     Export: 1
                 SymbolLink: [1x1 struct]



    To modify any property of the measurement, use set function. Update the "CalibrationAccess" field of the measurement using the command:

    set(descObj,"Measurement","Custom_signal1",CalibrationAccess='Calibration')

    Generate the ASAP2 file using the updated ECU description object and verify that the ASAP2 file contains the measurement with name "Custom_signal1".

    coder.asap2.export("rtwdemo_asap2",CustomEcuDescriptions=descObj);
    Following Characteristics or Measurements with unsupported data types are not exported in ASAP2 file. "rtwdemo_asap2_DW.rtwdemo_asap2_mdlref_InstanceDa"


    Remove the newly added measurement from the description object using the command:

    delete(descObj,"Measurement","Custom_signal1");

    Create and Add a Lookup Table Parameter

    To add a lookup table parameter, create a parameter using the commands:

    LUT_Parameter = coder.asap2.Characteristic;
    LUT_Parameter.Name = "custom_lookup_table";
    LUT_Parameter.Type = "MAP";

    Create and add axis information to the parameter.

    axis_data = coder.asap2.AxisInfo;
    axis_data(1).Name = 'BP3';
    axis_data(2).Name = 'Bp4';
    axis_data(1).CompuMethodName = 'rtwdemo_asap2_CM_double';
    axis_data(2).CompuMethodName = 'rtwdemo_asap2_CM_double';
    axis_data(1).MaxAxisPoints = '3';
    axis_data(2).MaxAxisPoints = '3';
    axis_data(1).AxisType = 'STD_AXIS';
    axis_data(2).AxisType = 'STD_AXIS';
    LUT_Parameter.AxisInfo = axis_data;

    Add the lookup table parameter to the description object.

    add(descObj,LUT_Parameter)

    Generate the ASAP2 file using the updated ECU description object and verify that the ASAP2 file contains the lookup table parameter with name "custom_lookup_table".

    coder.asap2.export("rtwdemo_asap2",CustomEcuDescriptions=descObj);
    Following Characteristics or Measurements with unsupported data types are not exported in ASAP2 file. "rtwdemo_asap2_DW.rtwdemo_asap2_mdlref_InstanceDa"


    Version History

    Introduced in R2022b
