gpsL5Codes

Generate ranging codes for GPS L5

Since R2024b

Syntax

[i5code,q5code] = gpsL5Codes(prnid)

Description

[i5code,q5code] = gpsL5Codes(prnid) generates an in-phase L5 code, i5code, and quadrature-phase L5 code, q5code, for the satellite pseudo-random noise (PRN) indices specified in PRNID prnid. The function generates the ranging codes as specified in the modernized Global Positioning System (GPS) L5 standard IS-GPS-705.

For details on how to generate a GPS L5 waveform, see Generate GPS L5 Waveform.

Examples

Generate GPS L5 Codes

Generate in-phase (I5) and quadrature-phase (Q5) codes for GPS L5 signal.

Specify the PRN IDs for the GPS satellites.

prnid = [1; 5];

Generate the I5 and Q5 codes.

[i5,q5] = gpsL5Codes(prnid);

Input Arguments

prnid — GPS satellite PRN index

integer in range [1, 210] | vector of integers in range [1, 210]

GPS satellite PRN index, specified as one of these options.

• Integer in the range [1, 210] — Use this option to input a PRN index for a single satellite.

• Vector of integers in the range [1, 210] — Use this option to input PRN indices for multiple satellites.

For details on how to generate these ranging I5 and Q5 codes for a specific PRNID, refer to these tables in the GPS L5 standard IS-GPS-705 [1].

• PRN ID in the range [1, 63] — Tables 3-Ⅰa and 3-Ⅱa

• PRN ID in the range [64, 210] — Table 6-Ⅱ

Data Types: double | uint8

Output Arguments

i5code — I5 ranging codes

matrix

I5 ranging codes, returned as a matrix. The matrix always contains 10,230 rows, and the number of columns is equal to the length of prnid.

Each column of this matrix contains the ranging code used to spread the in-phase component of the L5 signal of the satellite specified by its corresponding prnid.

For details on how to generate a GPS L5 waveform, see Generate GPS L5 Waveform.

Data Types: logical

q5code — Q5 ranging codes

matrix

Q5 ranging codes, returned as a matrix. The matrix always contains 10,230 rows, and the number of columns is equal to the length of prnid.

Each column of this matrix contains the ranging code used to spread the quadrature-phase component of the L5 signal of the satellite specified by its corresponding prnid.

For details on how to generate a GPS L5 waveform, see Generate GPS L5 Waveform.

Data Types: logical

More About

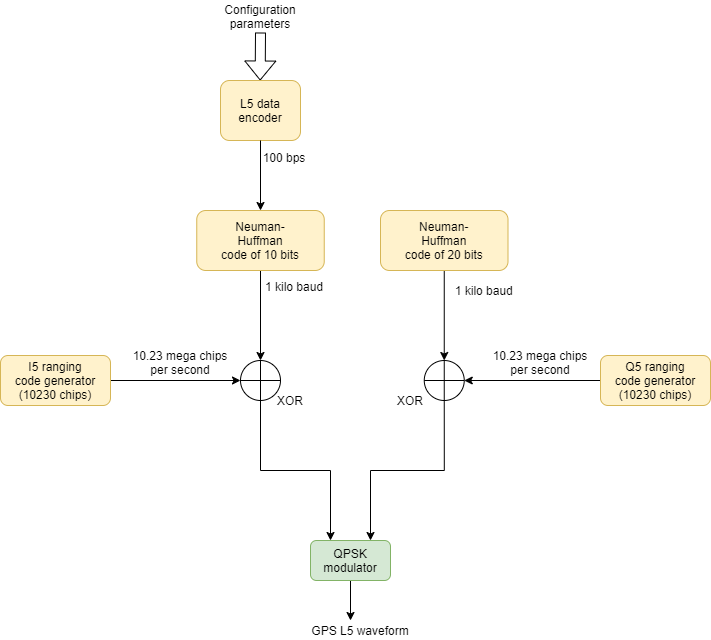

Generate GPS L5 Waveform

GPS L5 is a modernized civil navigation signal transmitted on the L5 band at 1176.45 MHz. You can generate an L5 waveform by following these steps.

You can generate the L5 waveform by following these steps.

1. Generate GPS L5 CNAV data, as defined in IS-GPS-705 standard.

2. Generate the ranging code for in-phase (I5-code) and quadrature-phase (Q5-code) components separately, as described in the standard.

   Both I5 and Q5-code are at 10.23MHz chip rate and repeat after every 10230 chips. Hence, each code block is of 1 millisecond duration.

3. The GPS L5 data is at 100 bits per second. XOR each data bit with 10 Newman Huffman code bits for I-branch. This makes the output after this XOR operation to be at 1 kilo baud, meaning every bit will be of 1 millisecond duration, which is equal to one code block of spreading code.

4. XOR the 1 millisecond bit from the output of step 3 with I5-code block. Map bit 0 to +1/sqrt(2) and bit 1 to -1/sqrt(2) to get the in-phase branch signal component of the final waveform.

5. Generate 20 bits of Newman Huffman code for Q-branch which is at 1 kilo baud.

6. XOR each Q5-code block with the Newman Huffman code. Map bit 0 to +1/sqrt(2) and bit 1 to -1/sqrt(2) to get the quadrature-phase branch signal component of the final waveform.

7. The final IQ waveform formed is the baseband GPS L5 waveform.

Alternatively, use gpsWaveformGenerator object to directly create a GPS L5 waveform.

References

[1] IS-GPS-705, Rev:J. "NAVSTAR GPS Space Segment/User segment L5 Interfaces." Aug 22, 2022.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Version History

Introduced in R2024b
