This example shows how to view and merge the changes between two Simulink® models from the comparison report. You can view and merge the Simulink and Stateflow® differences in the resulting report. A Stateflow® license is required to run this example.
This example shows you how to use the comparison report in MATLAB to understand what has changed between two different designs. Some development work has added a new "kickdown" mode to the shift logic. You can use the Simulink Model Comparison to compare the two models and produce a report for exploring and merging the differences.
Setup the example files by running the following command.
slxmlcomp.internal.examples.setupStateflowExample(); % Then use visdiff to compare the models. visdiff('slxml_sfcar_1', 'slxml_sfcar_2');

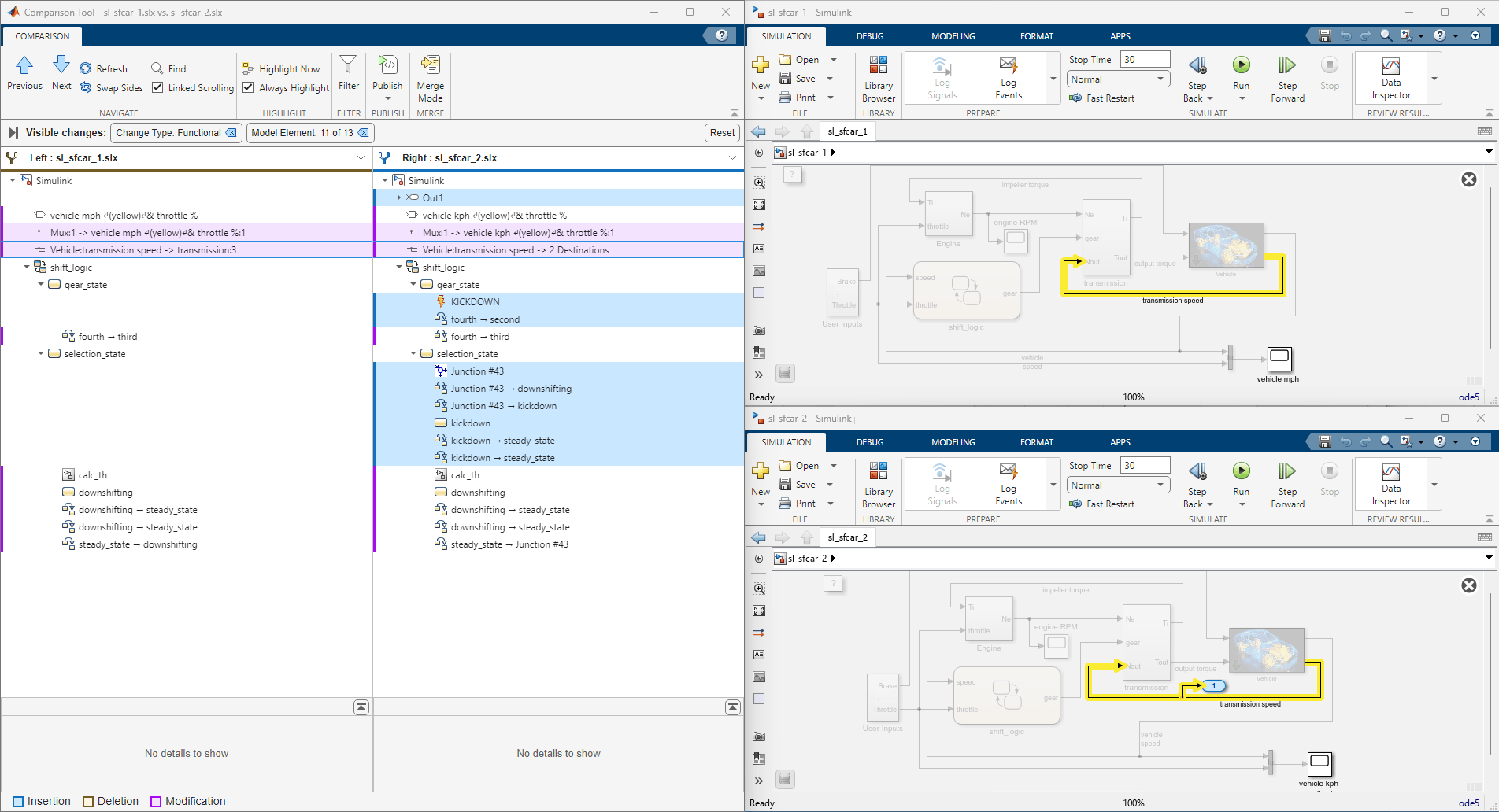

The Comparison Tool shows a report that only includes the differences between the two models, not the complete model hierarchies.
Colors indicate if items have been modified (purple items), inserted (blue items), or deleted (yellow items).
Use the "Next" and "Previous" navigation buttons on the Comparison tab to step through groups of changes in the report. When you do this to select an item:
The report highlights the corresponding item in the other tree (if it exists)
Both models display next to the report. The report highlights the corresponding item in the Simulink model, if possible.
You can control highlighting in the highlight toolstrip section.
Click to select the tree node "Out1" in the right hand side tree. Observe the report highlights "Out1" in the report, and the corresponding block in the model "slxml_sfcar_2".
Now browse down the tree to locate the Stateflow charts in the report. Observe the Stateflow chart icon next to the "shift_logic" node. Click "kickdown" in the right tree. The report displays both "shift_logic" Stateflow charts. Observe where the new "kickdown" functionality has been added to one of the charts.

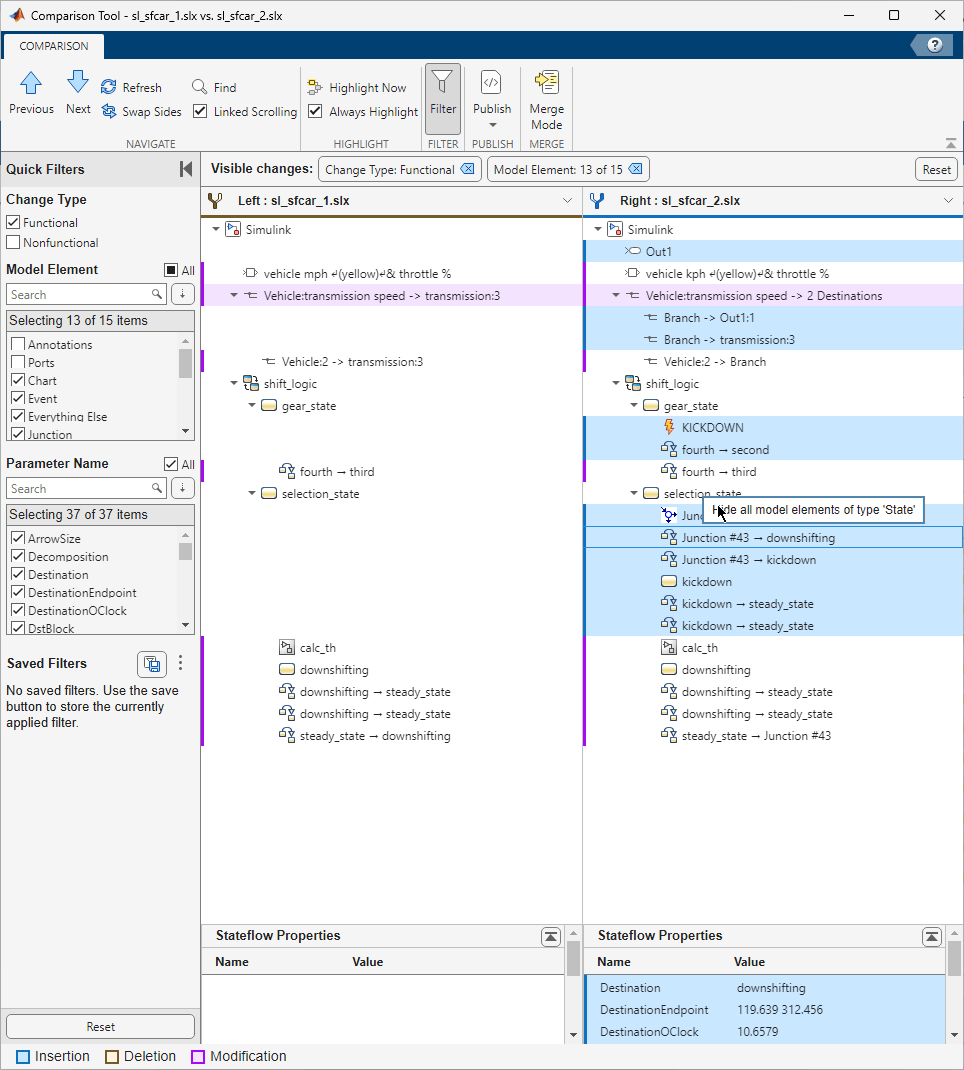

You can control the type of changes displayed in the comparison report by applying filters. To see the available filters, and whether or not they are applied to the current report, on the Comparison tab, in the Filter section, click the down arrow to expand the filter gallery. Click filter names to toggle whether they are applied. In the Filter section, click Show or Hide to control how the filters are applied.
For example, some information in the Simulink model file is defined as being "nonfunctional". These are changes that are unlikely to change the behavior of the design. Nonfunctional items are hidden by default but you can show them by deselecting the 'Nonfunctional Changes' item in the list of 'Built-In Filters' when the 'Hide' filter toolstrip button is selected.
You can merge the changes between the two Simulink & Stateflow models by clicking the 'Merge' button in the toolstrip. This creates a third file, 'targetFile', which can contain the changes from either the left model or right model. To select which changes you would like in the target file use the radio buttons in the right of the report.
Once you have selected the changes you want in the target model you can save these changes over the right model (slxml_sfcar_2) using the 'Save File' toolstrip button.
Note that in order for the tool to automatically connect merged transitions, you must merge states and junctions before transitions.
