Component Breakdown

Since R2025a

Description

You can use this metric to assess the test statuses, model coverage, and requirements traceability for components in the project.

The Project Model Testing dashboard uses the results from this metric in the Component Breakdown section of the dashboard.

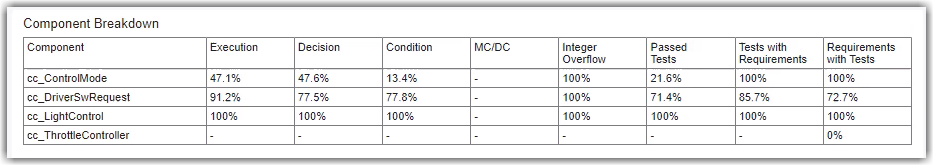

Component Breakdown section showing table of coverages, test statuses, and requirements traceability

Supported Artifacts

You can collect this metric for the Units in your project. To control what the dashboard classifies as a unit, see Categorize Models in Hierarchy as Components or Units.

Computation Details

The metric aggregates the metric results from these metrics:

MetricMetric ID
Model Coverage Breakdownslcomp.mt.CoverageBreakdown
Requirements with Tests DistributionRequirementWithTestCaseDistribution
Test Case with Requirement DistributionTestCaseWithRequirementDistribution
Model Test Status Distributionslcomp.mt.TestStatusDistribution

Collection

Collecting data for this metric loads the model file and test result files and requires licenses for Simulink® Coverage™ and Simulink Test™.

Compliance Thresholds

This metric does not have predefined thresholds.
