Average Model Coverage for Project

Since R2025a

Metric ID

project.mt.ComponentCoverageBreakdownAverage

Description

You can use this metric to assess the average execution, decision, condition, MC/DC, and integer overflow coverage across the components in the project.

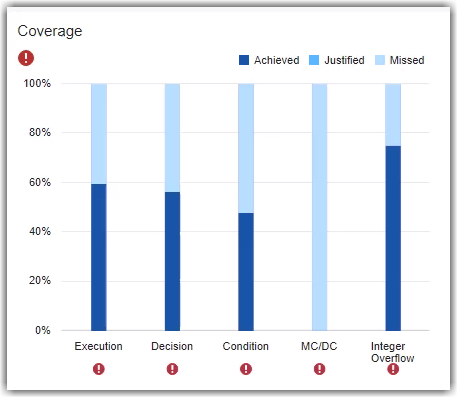

The Project Model Testing dashboard uses the results from this metric in the Coverage section of the dashboard.

Supported Artifacts

You can collect this metric for the Units in your project. To control what the dashboard classifies as a unit, see Categorize Models in Hierarchy as Components or Units.

Computation Details

The metric:

• Calculates the average by using the Model Coverage Breakdown metric results from the components in the project.

• Does not include coverage from tests that run in software-in-the-loop (SIL) or processor-in-the-loop (PIL) mode.

• Returns 100% coverage for models that do not have coverage points.

Collection

To collect data for this metric, execute the metric engine and use getMetrics with the metric ID project.mt.ComponentCoverageBreakdownAverage.

metric_engine = metric.Engine;
execute(metric_engine,"project.mt.ComponentCoverageBreakdownAverage");
results = getMetrics(metric_engine,"project.mt.ComponentCoverageBreakdownAverage")

Collecting data for this metric loads the model file and test result files and requires licenses for Simulink^® Coverage™ and Simulink Test™.

Results

For this metric, instances of metric.Result return the Value as a struct that contains fields for:

Field Name	Description	Data Type	Example Value
Average	Average aggregated coverage metrics across components in the project	struct	[1×1 struct]
EmptyResults	Number of components without metric results	double	0
TotalResults	Number of components with metric results	double	5

The Average field contains these fields:

Field Name	Description	Data Type	Example Value
Condition	Average aggregated execution coverage across the components in the project	[1×1 struct]	struct with fields: Achieved: 60.0000 AchievedOrJustified: 70.0000 Justified: 10.0000 Missed: 30.0000
Decision	Average aggregated decision coverage across the components in the project
Execution	Average aggregated condition coverage across the components in the project
MCDC	Average aggregated modified condition and decision coverage (MC/DC) across the components in the project
OverflowSaturation	Aggregated saturate on integer overflow coverage for the component

Each of those fields contains a struct with fields:

Field Name	Description	Data Type	Example Value
Achieved	Average percentage of coverage achieved by component tests	double	60.0000
AchievedOrJustified	Average percentage of coverage achieved by component tests or justified by coverage filters		70.0000
Justified	Average percentage of model coverage justified by coverage filters		10.0000
Missed	Average percentage of coverage missed by component tests		30.0000

Compliance Thresholds

The default compliance thresholds for this metric are:

• Compliant — Test results have 0% missed coverage

• Non-Compliant — Test results are missing coverage

• Warning — None
