# Analyzing MCDC for Cascaded Logic Blocks

This example illustrates how Simulink® Coverage™ records the MCDC metric for a cascade of Logical Operator blocks.

### Example Model

In Simulink, there are various ways to implement Boolean logic, such as through the use of an `if`

statement in a MATLAB Function block, a conditional transition in a Stateflow Chart, or a combination of multiple Logical Operator blocks connected together in a cascade.

The example model `slvnvdemo_cv_logic_cascade`

implements the same Boolean expression through the use of MATLAB code in a MATLAB Function block as well as with a cascade of Logical Operator blocks.

Use the following command to open the model `slvnvdemo_cv_logic_cascade`

:

```
open_system('slvnvdemo_cv_logic_cascade');
```

Open the MATLAB Function block to see the associated function.

```
open_system('slvnvdemo_cv_logic_cascade/MATLAB Function')
```

In the MATLAB Function block, if *(a && (b | | c))* is true, then the signal **Data1** will be output; otherwise, the signal **Data2** is output.

Open the subsystem 'Logic Cascade' using the following command and note that this subsystem implements the exact same logic using Logical Operator blocks and a Switch.

```
open_system('slvnvdemo_cv_logic_cascade/Logic Cascade');
```

Finally, open the Signal Editor and note that there are three combinations given for the Boolean inputs **a**, **b**, and **c**. These combinations are *FFF*, *TFT*, and *TTT*.

```
open_system('slvnvdemo_cv_logic_cascade/Signal Editor');
```

Close the Signal Editor.

```
close_system('slvnvdemo_cv_logic_cascade/Signal Editor', 0);
```

### Comparing MCDC Results in the Coverage Report

Simulate the model and generate a Coverage Report.

testObj = cvtest('slvnvdemo_cv_logic_cascade'); testObj.settings.decision = 1; testObj.settings.condition = 1; testObj.settings.mcdc = 1; covdata = cvsim(testObj); % Simulate for coverage cvhtml('exampleReport.html',covdata); % Generate Coverage Report

**MCDC Results for MATLAB Function block**

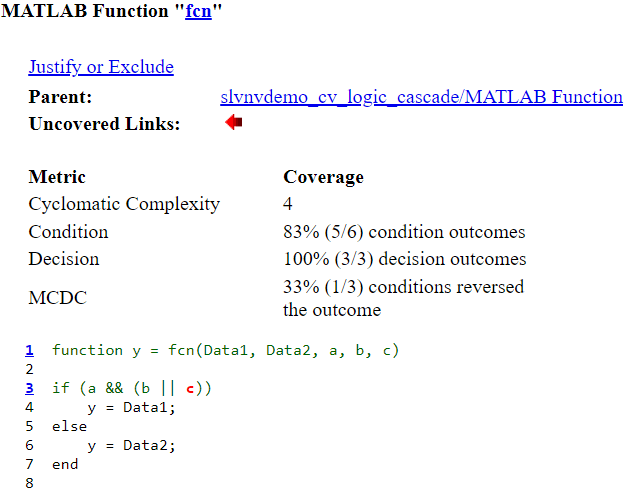

In the generated report, navigate to the details for the MATLAB Function block.

The MCDC results for the `if`

statement in the MATLAB Function block are as would be expected, given the specified inputs.

**MCDC Results for Logic Cascade**

Next examine the results for the logic cascade. Recall that this combination of blocks implements the same logic as the MATLAB code in the MATLAB Function block; therefore, we would expect that the MCDC results would be the same, as well.

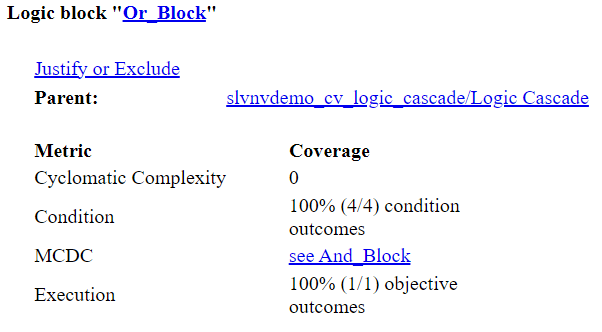

Let's first take a look at the upstream `Or_Block`

.

Notice that the MCDC summary for this block has a link with the text `"see And_Block"`

, referring to the Logical Operator at the root of the cascade. Click on this link to be taken to the section of the report showing results for this block.

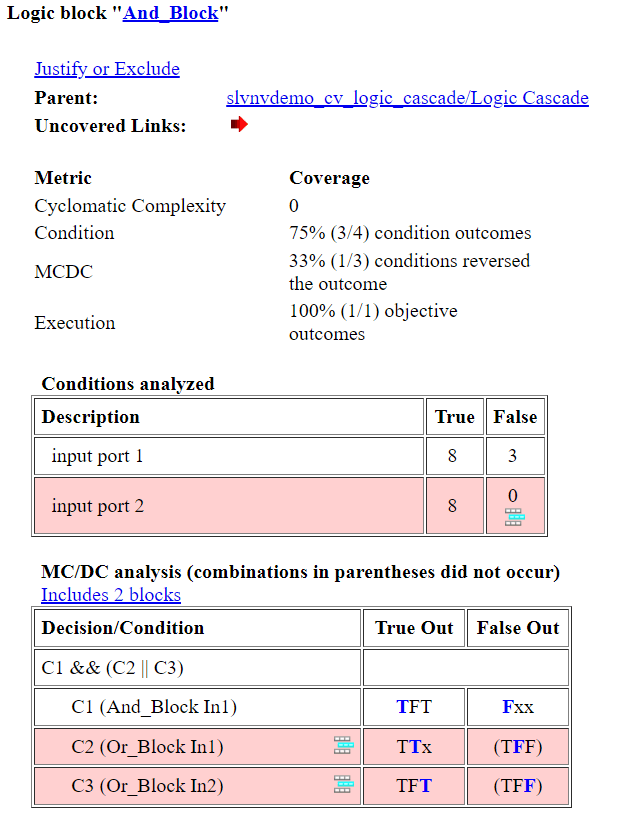

The Logical Operator block at the root of the cascade (in this case `And_Block`

) reports the MCDC results for the entire cascade.

The details for the MCDC analysis of the cascade first show a link illustrating how many blocks are included in the cascade. Clicking on the link `"Includes 2 blocks"`

will bring up the model and highlight the two blocks included in the cascade (`Or_Block`

and `And_Block`

).

This section of the report then shows the Boolean expression represented by the cascade, in this case *C1 && (C2 | | C3)*, where `C1`

, `C2`

, and `C3`

are the conditions which correspond to the three inputs to the cascade. For each condition, the table illustrates the associated block and its input (shown in parenthesis) as well as the MCDC result. These results indicate that the input combinations `TTx`

, `Fxx`

, and `TFT`

have all been exercised, but `TFF`

has not. This matches the expectation given the inputs generated by the Signal Editor (`TTT`

, `FFF`

, and `TFT`

).

Furthermore, as expected, both the Boolean expression and MCDC results shown for this cascade match what was shown for the `if`

statement implementing the equivalent logic in the MATLAB Function block.

### Coverage Informer and Model Coloring

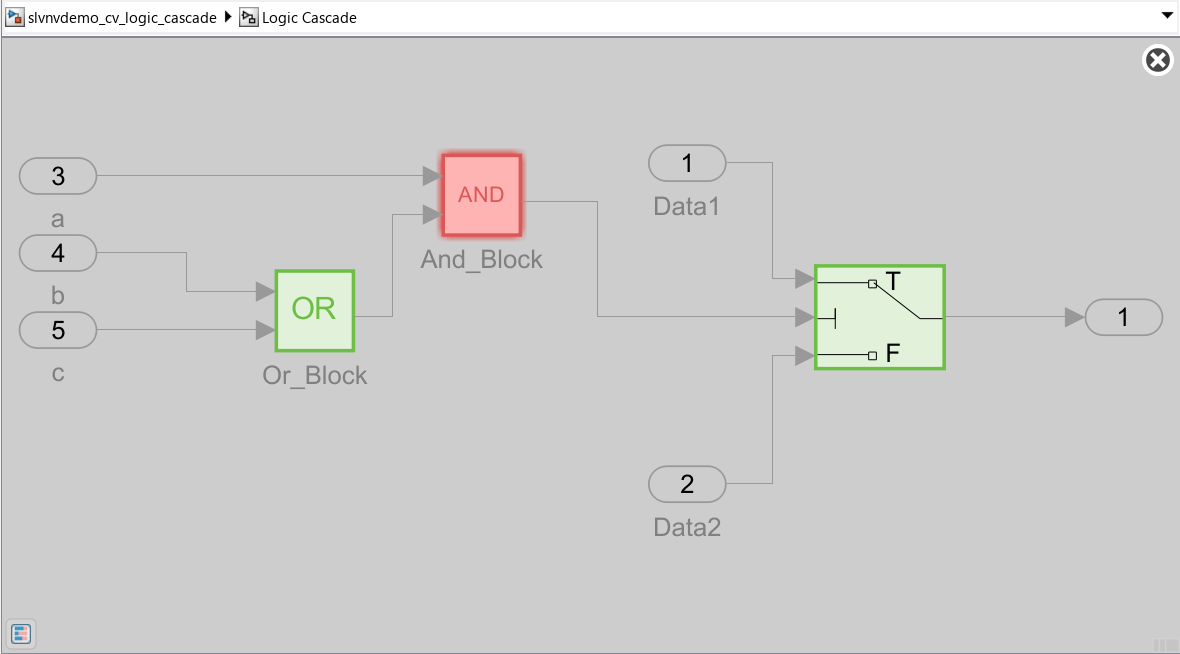

Display coverage results on the model using the following command:

cvmodelview(covdata);

As was shown in the Coverage Report, MCDC objectives are not recorded for the individual Logical Operator blocks in a cascade; rather, MCDC objectives are recorded for the Boolean expression represented by the combination of blocks in the cascade, and results are reported on the final block in the cascade. The highlighting of the model reflects this, as well. Given the input combinations `FFF`

, `TFT`

, and `TTT`

for the three inputs **a**, **b**, and **c**, `Or_Block`

receives full coverage, because all of the block's Condition coverage objectives have been satisfied. However, because there are MCDC objectives associated with this cascade which have not been satisfied, `And_block`

(the final block in the cascade) is highlighted in red.

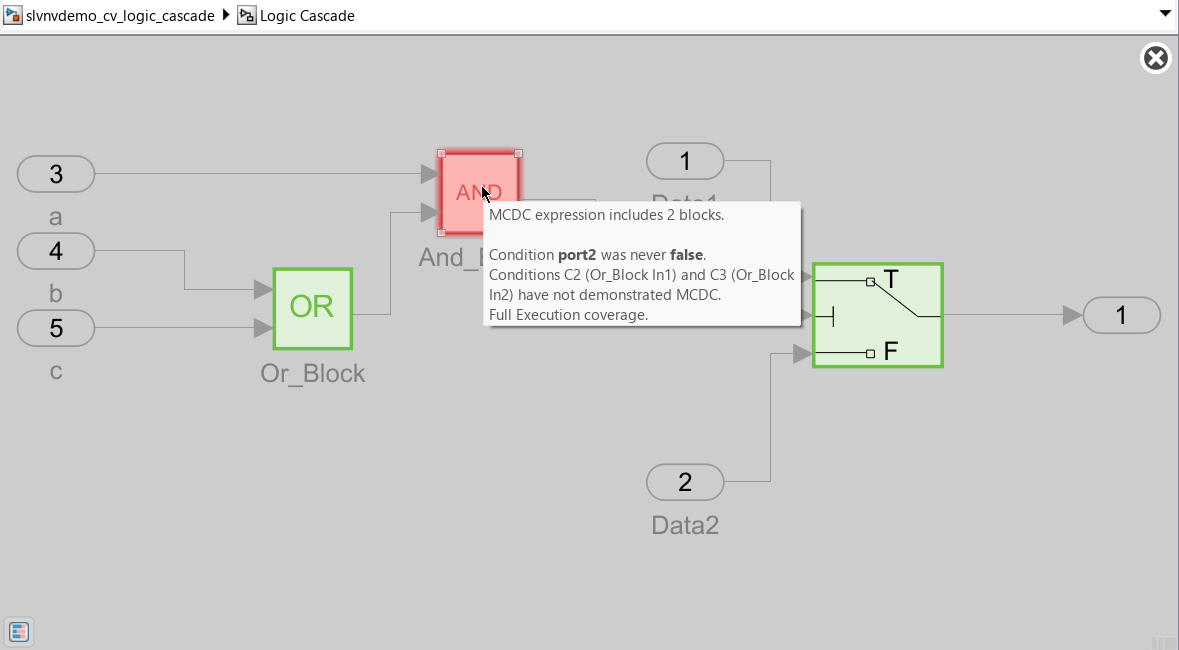

Hover over `And_block`

for more information.

The tooltip correctly reports that this block does not receive full coverage, because some MCDC objectives for the cascade are not satisfied.

### Command Line

You can also retrieve the MCDC results for the logic block cascade from the MATLAB command line using `mcdcinfo`

. Again, MCDC objectives for the cascade will be found on the final block in the cascade.

[coverage_casc, description_casc] = mcdcinfo(covdata, ... 'slvnvdemo_cv_logic_cascade/Logic Cascade/And_Block') description_casc.condition(1) description_casc.condition(2) description_casc.condition(3)

coverage_casc = 1 3 description_casc = struct with fields: text: 'C1 && (C2 || C3)' condition: [1x3 struct] isFiltered: 0 filterRationale: '' justifiedCoverage: 0 ans = struct with fields: text: 'C1 (And_Block In1)' achieved: 1 trueRslt: 'TFT' falseRslt: 'Fxx' isFiltered: 0 isJustified: 0 filterRationale: '' trueExecutedIn: [] falseExecutedIn: [] ans = struct with fields: text: 'C2 (Or_Block In1)' achieved: 0 trueRslt: 'TTx' falseRslt: '(TFF)' isFiltered: 0 isJustified: 0 filterRationale: '' trueExecutedIn: [] falseExecutedIn: [] ans = struct with fields: text: 'C3 (Or_Block In2)' achieved: 0 trueRslt: 'TFT' falseRslt: '(TFF)' isFiltered: 0 isJustified: 0 filterRationale: '' trueExecutedIn: [] falseExecutedIn: []

Other blocks that are members of the cascade will not exhibit MCDC objectives.

[coverage_or, description_or] = mcdcinfo(covdata, ... 'slvnvdemo_cv_logic_cascade/Logic Cascade/Or_Block')

coverage_or = [] description_or = []

### Short-Circuiting of Boolean Expressions for MCDC

In example model `slvnvdemo_cv_logic_cascade`

, coverage settings are set such that Logical Operator blocks are treated as short-circuiting.

Due to this setting, when analyzing a cascade of Logical Operator blocks, the operators in the corresponding Boolean expression are treated as short-circuiting for the purposes of MCDC. As illustrated by the results shown above, this means that MCDC recognizes short-circuiting that occurs both within and across Logical Operator blocks. As such, the MCDC results for the cascade of Logical Operator blocks matches those of the `if`

statement in the MATLAB Function block, as the latter is always treated as short-circuiting.

**Short-circuiting within a block**

Notice that in the example above, the True Out MCDC objective outcome for `C2`

is `TTx`

, indicating that when `C1`

and `C2`

are both true, `C3`

is inconsequential due to short-circuiting within the `Or_Block`

.

**Short-circuiting across multiple blocks**

Furthermore, consider the False Out MCDC objective outcome for `C1`

, `Fxx`

. This outcome illustrates how MCDC analysis recognizes short-circuiting across blocks. Because the first input to `And_Block`

is false, the second input is short-circuited. Subsequently, for the purposes of MCDC, this short-circuits `Or_Block`

(and both of its inputs) entirely. The short-circuiting behavior of MCDC for logic block cascades occurs based on the precedence of operations in the corresponding Boolean expression (regardless of the execution order of the Logical Operator blocks during simulation).

**Non-short-circuiting Boolean expressions**

You can also treat the Boolean expression represented by a cascade of Logical Operator blocks as non-short-circuiting during MCDC analysis, provided that the masking definition of MCDC is being used. To do so, set the parameter **CovLogicBlockShortCircuit** to `"off"`

and ensure that **CovMcdcMode** is set to `"Masking"`

. These are, in fact, the default settings for these parameters when creating a new model.

Note, if **CovLogicBlockShortCircuit** is `"off"`

and **CovMcdcMode** is set to `"UniqueCause"`

then the Logical Operator blocks in a cascade will be analyzed individually for the purposes of MCDC, and MCDC for the Boolean expression represented by the cascade as a whole will not be calculated.

Notice that when the cascade in this example is not treated as short-circuiting, some MCDC objectives are no longer satisfied by the given inputs.

set_param('slvnvdemo_cv_logic_cascade', 'CovLogicBlockShortCircuit', 'off'); set_param('slvnvdemo_cv_logic_cascade', 'CovMcdcMode', 'Masking');

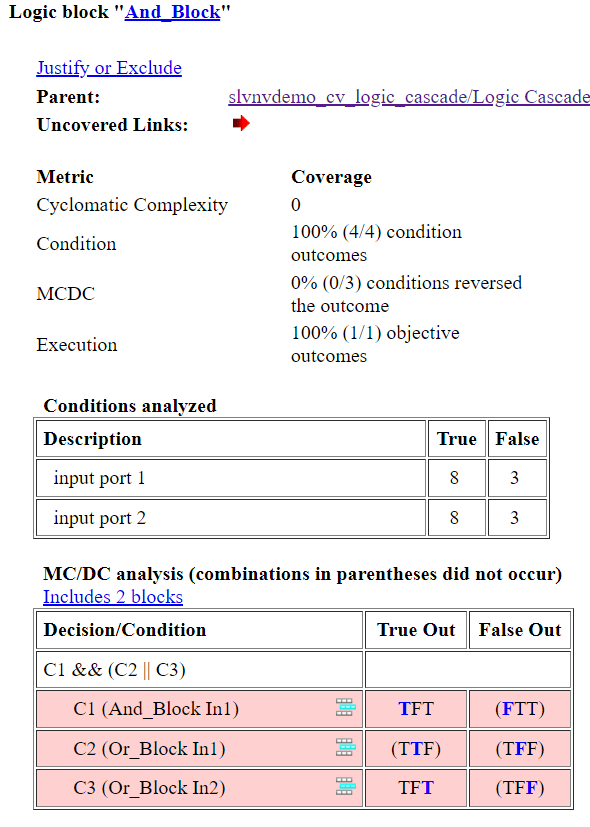

Simulate for coverage with logic block short-circuiting off, then generate a coverage report.

covdata_non_sc = cvsim('slvnvdemo_cv_logic_cascade'); cvhtml('exampleReport_non_sc.html',covdata_non_sc);
