Save Current Set of Real-Time Application Parameters to Target Computer

To save a set of parameters from a real-time application to a parameter set file, use the saveParamSet function. The real-time application can be loaded or running.

Connect Default Target Computer

tg = slrealtime;
connect(tg);

Open Example Model and configure STF Selection

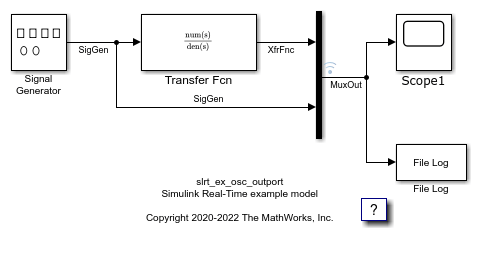

This example uses the model slrt_ex_osc_outport. To open this model, in the MATLAB Command Window, type:

model = 'slrt_ex_osc_outport';
open_system(model);
modelSTF = getSTFName(tg);
set_param(model,"SystemTargetFile",modelSTF);

Build Real-Time App

Use evalc to suppress build messages.

evalc('slbuild(model)');

Load Real-Time App

load(tg,model);

Save the Parameter Set

Select a descriptive file name for the parameters. For example, use the model name in the file name. To save the parameter set to a file on the target computer, in the MATLAB Command Window, type:

paramSetName = 'outportTypes';
saveParamSet(tg,paramSetName);

The Simulink® Real-Time™ software creates a parameter set file named outportTypes on the target computer.

Close the Model

bdclose(model);
