# Perform Time Series Direct Forecasting with `directforecaster`

Perform time series direct forecasting with the `directforecaster`

function. The function creates a forecasting model that uses a direct strategy in which a separate regression model is trained for each step of the forecasting horizon. For more information, see Direct Forecasting.

Use different validation schemes, such as holdout, expanding window, and sliding window, to assess the performance of the forecasting model. Then use the model to forecast at time steps beyond the available data.

### Load and Visualize Data

Load the data in `electricityclient.mat`

, which is a subset of the ElectricityLoadDiagrams20112014 data set available in the UCI Machine Learning Repository [1]. The original data set contains the electricity consumption (in kWh) of 321 clients, logged every 15 minutes from 2012 to 2014, as described in [2]. The smaller `usagedata`

timetable contains the hourly electricity consumption of the sixth client only.

`load electricityclient.mat`

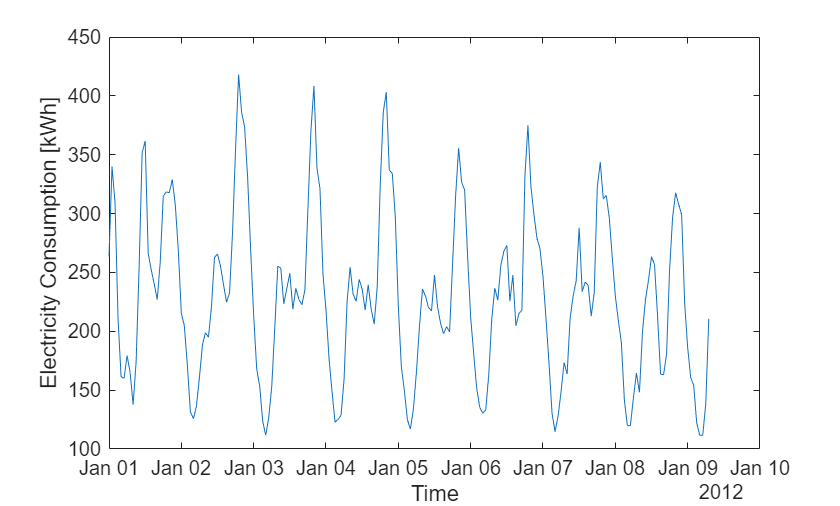

Plot the electricity consumption of the sixth client during the first 200 hours. Overall, the electricity consumption of this client shows a periodicity of 24 hours.

hrs = 1:200; plot(usagedata.Time(hrs),usagedata.Electricity(hrs)) xlabel("Time") ylabel("Electricity Consumption [kWh]")

Confirm that the values in `usagedata`

are regular with respect to time by using the `isregular`

function. `directforecaster`

requires data to be regularly sampled.

isregular(usagedata)

`ans = `*logical*
1

Confirm that no values are missing in the time series by using the `ismissing`

function.

sum(ismissing(usagedata))

ans = 0

If your data is not regularly sampled or contains missing values, you can use the `retime`

function or fill the missing values. For more information, see Clean Timetable with Missing, Duplicate, or Nonuniform Times.

### Prepare Data for Forecasting

Before forecasting, reorganize the data. Use the date and time information in the `usagedata`

timetable to create separate variables. Specifically, create `Month`

, `Day`

, `Hour`

, `WeekDay`

, `DayOfYear`

, and `WeekOfYear`

variables, and add them to the `usagedata`

timetable.

usagedata.Month = month(usagedata.Time); usagedata.Day = day(usagedata.Time); usagedata.Hour = hour(usagedata.Time); usagedata.WeekDay = weekday(usagedata.Time); usagedata.DayOfYear = day(usagedata.Time,"dayofyear"); usagedata.WeekOfYear = week(usagedata.Time,"weekofyear");

Normalize the time variables that contain more than 30 categories, so that their values are in the range –0.5 to 0.5. Specify the remaining time variables as categorical predictors.

[normData,C,S] = normalize( ... usagedata(:,["Day","DayOfYear","WeekOfYear"]),range=[-0.5 0.5]); usagedata(:,["Day","DayOfYear","WeekOfYear"]) = normData; catPredictors = ["Month","Hour","WeekDay"];

### Assess Performance at Specified Horizon Step

Use holdout validation and expanding window cross-validation to assess the performance of a direct forecasting model that forecasts a fixed number of steps into the horizon. In this case, create and assess a model that forecasts 24 hours ahead.

#### Holdout Validation

Create a time series partition object using the `tspartition`

function. Reserve 20% of the observations for testing and use the remaining observations for training. When you use holdout validation for time series data, the latest observations are in the test set and the oldest observations are in the training set.

`holdoutPartition = tspartition(size(usagedata,1),"Holdout",0.2)`

holdoutPartition = tspartition Type: 'holdout' NumObservations: 26304 NumTestSets: 1 TrainSize: 21044 TestSize: 5260 Properties, Methods

trainIdx = holdoutPartition.training; testIdx = holdoutPartition.test;

`trainIdx`

and `testIdx`

contain the indices for the observations in the training and test sets, respectively.

Create a direct forecasting model by using the `directforecaster`

function. Train the model using a boosted ensemble of regression trees. For the regression trees, specify the maximal number of decision splits (or branch nodes) per tree and the minimum number of observations per leaf by using the `templateTree`

function. For the ensemble, specify to perform least-squares boosting with 150 trees and a learning rate of 0.2 for shrinkage by using the `templateEnsemble`

function.

Use the training set indices `trainIdx`

to specify the training observations in `usagedata`

. Specify the horizon step as 24 hours ahead. Specify the categorical and leading exogenous predictors. Note that all the exogenous predictors are leading because their future values are known. By default, `directforecaster`

uses the unshifted leading exogenous predictors to train the direct forecasting model. Create 23 new predictors from the lagged values of the response variable `Electricity`

.

rng("default") % For reproducibility tree = templateTree(MaxNumSplits=255,MinLeafSize=1); ensemble = templateEnsemble("LSBoost",150,tree,LearnRate=0.2); singleHoldoutModel = directforecaster(usagedata(trainIdx,:), ... "Electricity",Horizon=24,Learner=ensemble, ... CategoricalPredictors=catPredictors,LeadingPredictors="all", ... ResponseLags=1:23)

singleHoldoutModel = DirectForecaster Horizon: 24 ResponseLags: [1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23] LeadingPredictors: [1 2 3 4 5 6] LeadingPredictorLags: 0 ResponseName: 'Electricity' PredictorNames: {'Month' 'Day' 'Hour' 'WeekDay' 'DayOfYear' 'WeekOfYear'} CategoricalPredictors: [1 3 4] Learners: {[1×1 classreg.learning.regr.CompactRegressionEnsemble]} MaxLag: 23 NumObservations: 21044 Properties, Methods

`singleHoldoutModel`

is a `DirectForecaster`

model object. The object consists of one ensemble model `singleHoldoutModel.Learners{1}`

that predicts 24 steps ahead.

Use the trained model `singleHoldoutModel`

to predict response values for the observations in the test data set.

```
predHoldoutTest = predict(singleHoldoutModel,usagedata(testIdx,:));
trueHoldoutTest = usagedata(testIdx,"Electricity");
```

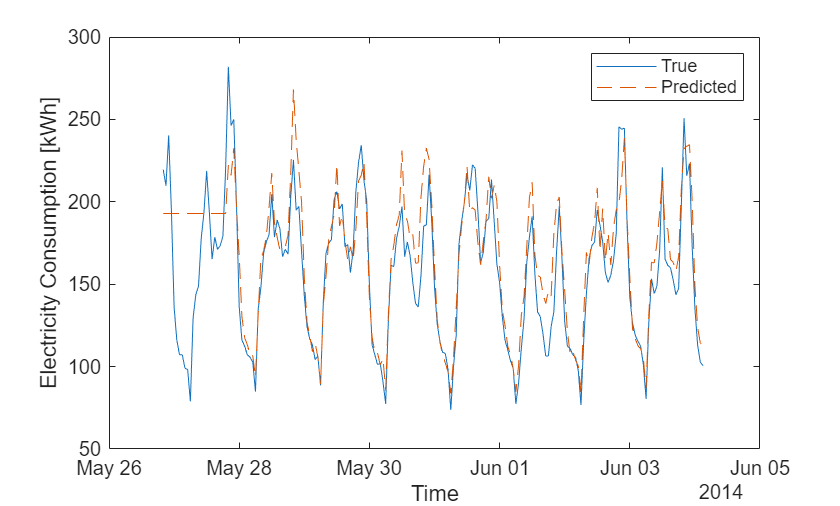

Compare the true electricity consumption to the predicted electricity consumption for the first 200 observations in the test set. Plot the values using the time information in `trueHoldoutTest`

and `predHoldoutTest`

.

hrs = 1:200; plot(trueHoldoutTest(hrs,:),"Electricity") hold on plot(predHoldoutTest(hrs,:), ... "Electricity_Step24",LineStyle="--") hold off legend("True","Predicted") xlabel("Time") ylabel("Electricity Consumption [kWh]")

Because the software creates lagged predictors, `singleHoldoutModel`

makes the first few predictions using data with many missing values. To see the prepared test data used by `singleHoldoutModel`

to make predictions, you can use the `preparedPredictors`

object function.

preparedPredictors(singleHoldoutModel,usagedata(testIdx,:));

Use the helper function `computeRRSE`

(shown at the end of this example) to compute the root relative squared error (RRSE) on the test data. The RRSE indicates how well a model performs relative to the simple model, which always predicts the average of the true values. In particular, when the RRSE is less than 1, the model performs better than the simple model. For more information, see Compute Root Relative Squared Error (RRSE).

```
singleHoldoutRRSE = loss(singleHoldoutModel,usagedata(testIdx,:), ...
LossFun=@computeRRSE)
```

singleHoldoutRRSE = 0.3330

The `singleHoldoutRRSE`

value indicates that the `singleHoldoutModel`

performs well on the test data.

#### Expanding Window Cross-Validation

Create an object that partitions the time series observations using expanding windows. Split the data set into 5 windows with expanding training sets and fixed-size test sets by using `tspartition`

. For each window, use at least one year of observations for training. By default, `tspartition`

ensures that the latest observations are included in the last (fifth) window.

expandingWindowCV = tspartition(size(usagedata,1),"ExpandingWindow",5, ... MinTrainSize=366*24)

expandingWindowCV = tspartition Type: 'expanding-window' NumObservations: 26304 NumTestSets: 5 TrainSize: [8784 12288 15792 19296 22800] TestSize: [3504 3504 3504 3504 3504] StepSize: 3504 Properties, Methods

The training observations in the first window are included in the second window, the training observations in the second window are included in the third window, and so on. For each window, the test observations follow the training observations in time.

Create a cross-validated direct forecasting model by using the `directforecaster`

function and the `expandingWindowCV`

partition object. For each window, use the training observations to fit a boosted ensemble of regression trees. Specify the same model parameters used to create the model `singleHoldoutModel`

.

rng("default") % For reproducibility tree = templateTree(MaxNumSplits=255,MinLeafSize=1); ensemble = templateEnsemble("LSBoost",150,tree,LearnRate=0.2); singleExpandingCVModel = directforecaster(usagedata, ... "Electricity",Horizon=24,Learner=ensemble, ... CategoricalPredictors=catPredictors,LeadingPredictors="all", ... ResponseLags=1:23,Partition=expandingWindowCV);

Compute the test RRSE value for each window. Then, compute the average RRSE across all windows.

expandingWindowRRSE = cvloss(singleExpandingCVModel, ... LossFun=@computeRRSE,Mode="individual")

`expandingWindowRRSE = `*5×1*
0.3479
0.3844
0.3519
0.3942
0.3178

singleCVRRSE = cvloss(singleExpandingCVModel, ... LossFun=@computeRRSE,Mode="average")

singleCVRRSE = 0.3336

The average RRSE value returned by expanding window cross-validation (`singleCVRRSE`

) is relatively low and is similar to the RRSE value returned by holdout validation (`singleHoldoutRRSE`

). These results indicate that the forecasting model generally performs well.

### Assess Performance at Multiple Horizon Steps

Use holdout validation and sliding window cross-validation to assess the performance of a direct forecasting model that forecasts at multiple horizon steps. In this case, create and assess a model that forecasts 1 to 24 hours ahead.

#### Holdout Validation

Reuse the time series partition object `holdoutPartition`

for holdout validation. Recall that the object reserves 20% of the observations for testing and uses the remaining observations for training.

holdoutPartition

holdoutPartition = tspartition Type: 'holdout' NumObservations: 26304 NumTestSets: 1 TrainSize: 21044 TestSize: 5260 Properties, Methods

trainIdx = holdoutPartition.training; testIdx = holdoutPartition.test;

Create a direct forecasting model by using the `directforecaster`

function. For each horizon step, the function uses the training observations to fit a boosted ensemble of regression trees. Specify the same model parameters used to create the model `singleHoldoutModel`

. However, to speed up training, use fewer trees (50) in each ensemble, and bin the numeric predictors into at most 256 equiprobable bins.

rng("default") % For reproducibility tree = templateTree(MaxNumSplits=255,MinLeafSize=1); ensemble = templateEnsemble("LSBoost",50,tree,LearnRate=0.2); multiHoldoutModel = directforecaster(usagedata(trainIdx,:), ... "Electricity",Horizon=1:24,Learner=ensemble,NumBins=256, ... CategoricalPredictors=catPredictors,LeadingPredictors="all", ... ResponseLags=1:23);

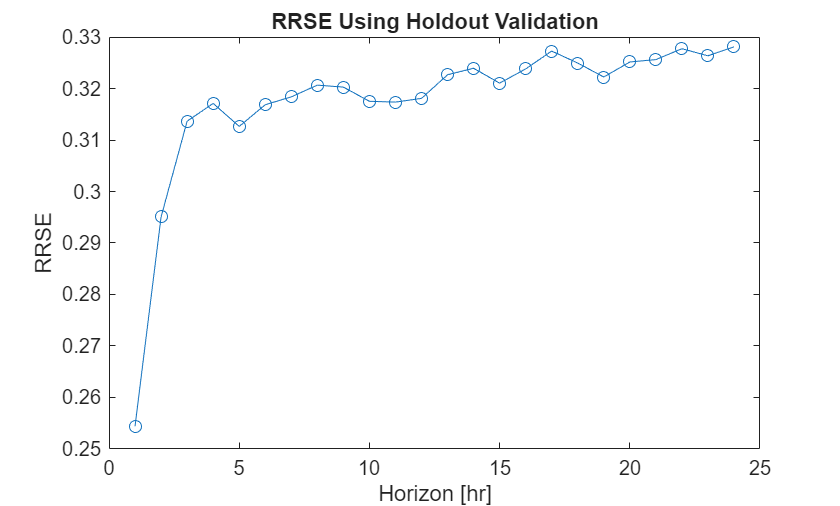

Plot the test RRSE values with respect to the horizon.

multiHoldoutRRSE = loss(multiHoldoutModel,usagedata(testIdx,:), ... LossFun=@computeRRSE); plot(multiHoldoutModel.Horizon,multiHoldoutRRSE,"o-") xlabel("Horizon [hr]") ylabel("RRSE") title("RRSE Using Holdout Validation")

As the horizon increases, the RRSE values stabilize to a relatively low value. This result indicates that the direct forecasting model predicts well for any time horizon between 1 and 24 hours.

#### Sliding Window Cross-Validation

Create an object that partitions the time series observations using sliding windows. Split the data set into 5 windows with fixed-size training and test sets by using `tspartition`

. For each window, use at least one year of observations for training. By default, `tspartition`

ensures that the latest observations are included in the last (fifth) window. Therefore, some older observations might be omitted from the cross-validation.

slidingWindowCV = tspartition(size(usagedata,1),"SlidingWindow",5, ... TrainSize=366*24)

slidingWindowCV = tspartition Type: 'sliding-window' NumObservations: 26304 NumTestSets: 5 TrainSize: [8784 8784 8784 8784 8784] TestSize: [3504 3504 3504 3504 3504] StepSize: 3504 Properties, Methods

For each window, the test observations follow the training observations in time.

Create a cross-validated direct forecasting model by using the `directforecaster`

function and the `slidingWindowCV`

partition object. For each window and horizon step, the function uses the training observations to fit a boosted ensemble of regression trees. Specify the same model parameters used to create the model `singleHoldoutModel`

. However, to speed up training, use fewer trees (50) in each ensemble, and bin the numeric predictors. To further speed up the training process, set `UseParallel`

to `true`

and run computations in parallel. Parallel computation requires Parallel Computing Toolbox™. If you do not have Parallel Computing Toolbox, the computations do not run in parallel.

rng("default") % For reproducibility tree = templateTree(MaxNumSplits=255,MinLeafSize=1); ensemble = templateEnsemble("LSBoost",50,tree,LearnRate=0.2); multiCVModel = directforecaster(usagedata,"Electricity", ... Horizon=1:24,Learner=ensemble,NumBins=256, ... CategoricalPredictors=catPredictors,LeadingPredictors="all", ... ResponseLags=1:23,Partition=slidingWindowCV,UseParallel=true);

Starting parallel pool (parpool) using the 'Processes' profile ... Connected to parallel pool with 6 workers.

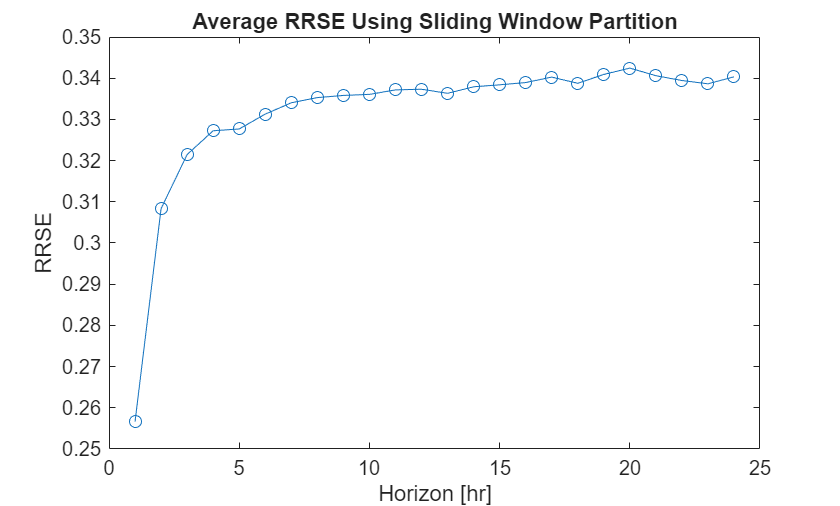

Plot the average test RRSE values with respect to the horizon.

multiCVRRSE = cvloss(multiCVModel, ... LossFun=@computeRRSE); plot(multiCVModel.Horizon,multiCVRRSE,"o-") xlabel("Horizon [hr]") ylabel("RRSE") title("Average RRSE Using Sliding Window Partition")

As the horizon increases, the RRSE values stabilize to a relatively low value. The `multiCVRRSE`

values are slightly higher than the `multiHoldoutRRSE`

values. This discrepancy might be due to the difference in the number of training observations used in the sliding window and holdout validation schemes.

slidingWindowCV.TrainSize

`ans = `*1×5*
8784 8784 8784 8784 8784

holdoutPartition.TrainSize

ans = 21044

For each horizon, the regression models in the sliding window cross-validation scheme use significantly fewer training observations than the corresponding regression model in the holdout validation scheme.

### Forecast Beyond Available Data

Create a direct forecasting model to predict electricity consumption for the next 24 hours beyond the available data. Use the entire `usagedata`

data set. For each horizon step, the function fits a boosted ensemble of regression trees. Specify the same model parameters used to create the model `singleHoldoutModel`

. However, to speed up training, use fewer trees (50) in each ensemble, and bin the numeric predictors. To further speed up the training process, set `UseParallel`

to `true`

and run computations in parallel.

rng("default") % For reproducibility tree = templateTree(MaxNumSplits=255,MinLeafSize=1); ensemble = templateEnsemble("LSBoost",50,tree,LearnRate=0.2); finalMdl = directforecaster(usagedata,"Electricity", ... Horizon=1:24,Learner=ensemble,NumBins=256, ... CategoricalPredictors=catPredictors,LeadingPredictors="all", ... ResponseLags=1:23,UseParallel=true);

Because `finalMdl`

uses the unshifted values of the leading predictors `Month`

, `Day`

, `Hour`

, `WeekDay`

, `DayOfYear`

, and `WeekOfYear`

as predictor values, you must specify these values for the horizon steps in the call to `forecast`

. Create a timetable `forecastData`

with the leading predictor values for the 24 hours after the last available observation in `usagedata`

.

forecastTime = usagedata.Time(end,:) + hours(1:24); forecastData = timetable(forecastTime'); forecastData.Month = month(forecastTime'); forecastData.Day = day(forecastTime'); forecastData.Hour = hour(forecastTime'); forecastData.WeekDay = weekday(forecastTime'); forecastData.DayOfYear = day(forecastTime',"dayofyear"); forecastData.WeekOfYear = week(forecastTime',"weekofyear");

Normalize the `Day`

, `DayOfYear`

, and `WeekOfYear`

variables using the same center and scale values derived earlier. Specify the remaining time variables as categorical predictors.

forecastData(:,["Day","DayOfYear","WeekOfYear"]) = normalize( ... forecastData(:,["Day","DayOfYear","WeekOfYear"]),center=C,scale=S); catPredictors = ["Month","Hour","WeekDay"];

Predict the electricity consumption for the 24 hours beyond the last observed time in `usagedata`

.

```
forecastY = forecast(finalMdl,usagedata, ...
LeadingData=forecastData)
```

`forecastY=`*24×1 timetable*
Time Electricity
____________________ ___________
01-Jan-2015 00:00:00 996.65
01-Jan-2015 01:00:00 915.22
01-Jan-2015 02:00:00 749.05
01-Jan-2015 03:00:00 715.92
01-Jan-2015 04:00:00 599.9
01-Jan-2015 05:00:00 586.79
01-Jan-2015 06:00:00 653.64
01-Jan-2015 07:00:00 709.67
01-Jan-2015 08:00:00 734.76
01-Jan-2015 09:00:00 924.33
01-Jan-2015 10:00:00 869.65
01-Jan-2015 11:00:00 1029.8
01-Jan-2015 12:00:00 1034.3
01-Jan-2015 13:00:00 975.39
01-Jan-2015 14:00:00 1007.4
01-Jan-2015 15:00:00 981.17
⋮

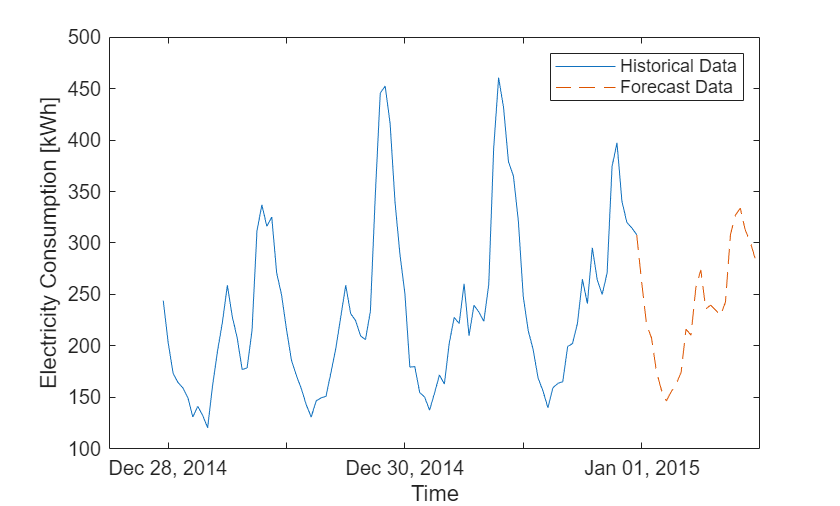

Plot the observed electricity consumption for the last four days in `usagedata`

and the predicted electricity consumption for the following day.

numPastDays = 4; plot(usagedata(end-(numPastDays*24):end,:), ... "Electricity"); hold on plot([usagedata(end,"Electricity");forecastY], ... "Electricity",LineStyle="--") hold off legend("Historical Data","Forecast Data") xlabel("Time") ylabel("Electricity Consumption [kWh]")

The forecast values seem to follow the trend of the observed values.

### Compute Root Relative Squared Error (RRSE)

The root relative squared error (RRSE) is defined as the ratio

$$RRSE=\frac{\sqrt{\sum _{i=1}^{m}{({y}_{i}-\underset{}{\overset{\u02c6}{{y}_{i}}})}^{2}}}{\sqrt{\sum _{i=1}^{m}{({y}_{i}-\underset{}{\overset{\u203e}{y}})}^{2}}}$$,

where $${y}_{i}$$ is the true response for observation *i*, $$\underset{}{\overset{\u02c6}{{y}_{i}}}$$ is the predicted value for observation *i*, $$\underset{}{\overset{\u203e}{y}}$$ is the mean of the true responses, and *m* is the number of observations.

#### Helper Function

The helper function `computeRRSE`

computes the RRSE given the true response variable `trueY`

and the predicted values `predY`

. This code creates the `computeRRSE`

helper function.

function rrse = computeRRSE(trueY,predY) error = trueY(:) - predY(:); meanY = mean(trueY(:),"omitnan"); rrse = sqrt(sum(error.^2,"omitnan")/sum((trueY(:) - meanY).^2,"omitnan")); end

### References

[1] Dua, D. and Graff, C. (2019). UCI Machine Learning Repository [http://archive.ics.uci.edu/ml]. Irvine, CA: University of California, School of Information and Computer Science.

[2] Lai, G., W. C. Chang, Y. Yang, and H. Liu. "Modeling long- and short-term temporal patterns with deep neural networks." *In 41st International ACM SIGIR Conference on Research & Development in Information Retrieval*, 2018, pp. 95-104.
