Crear vistas personalizadas

Cree puntos de vista personalizados de un modelo de arquitectura

Los modelos de sistemas suelen ser grandes y complejos. Puede crear un subconjunto personalizado de componentes de modelos de arquitectura filtrando los elementos del modelo en función de estereotipos, propiedades y enlaces de requisitos en Architecture Views Gallery. El subconjunto personalizado se denomina vista de arquitectura y es una manera simplificada de trabajar con sistemas complejos. Puede utilizar vistas para centrarse en determinadas partes del diseño de la arquitectura y crear vistas operativas, funcionales o físicas para el análisis.

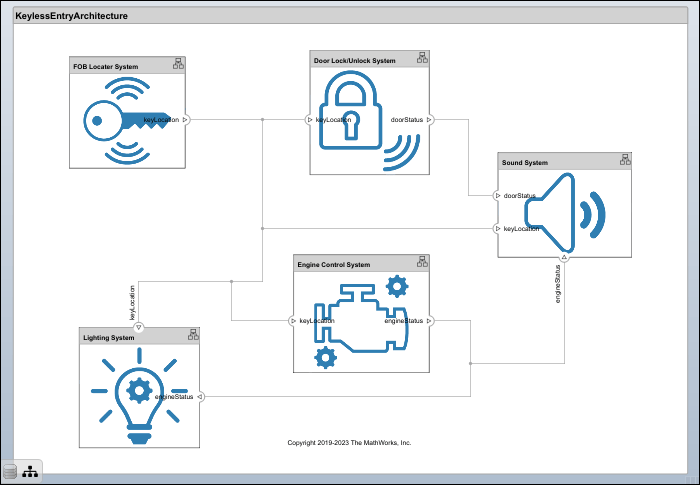

Edite el modelo de System Composer™ desde el área de diseño del diagrama de componentes.

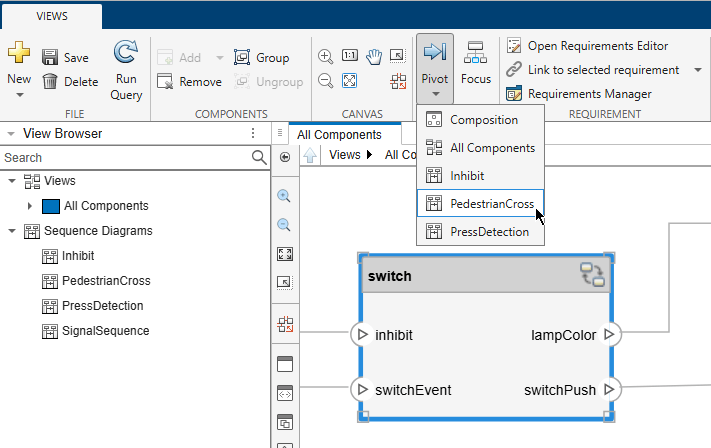

Analice las dependencias y la jerarquía de los componentes utilizando vistas enfocadas.
Utilice consultas para definir puntos de vista personalizados en el modelo de arquitectura.

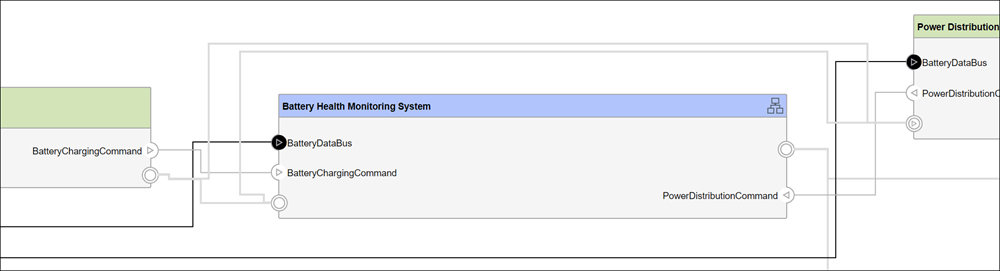

Agrupe puertos en vistas de diagrama de componentes para simplificar las redes complejas de puertos y conexiones.
Defina vistas de arquitectura y vistas jerárquicas.

Clases

expandir todo

Vistas

`systemcomposer.view.View`	Architecture view
`systemcomposer.view.ElementGroup`	Architecture view element group

Consultas

systemcomposer.query.Constraint Query constraint

Funciones

expandir todo

Vistas

`openViews`	Open Architecture Views Gallery
`createView`	Create architecture view
`getView`	Find architecture view
`deleteView`	Delete architecture view
`modifyQuery`	Modify architecture view query and property groupings
`runQuery`	Re-run architecture view query on model
`removeQuery`	Remove architecture view query
`addElement`	Add component to element group of view
`removeElement`	Remove component from element group of view
`getQualifiedName`	Get model element qualified name
`createSubGroup`	Create subgroup in element group of view
`getSubGroup`	Get subgroup in element group of view
`deleteSubGroup`	Delete subgroup in element group of view

Consultas

`find`	Find architecture model elements using query
`findElementsOfType`	Find all elements of specific type (Desde R2023a)
`findElementsWithStereotype`	Find all elements with stereotype (Desde R2023a)
`findElementsWithProperty`	Find all elements with property value (Desde R2023a)
`findElementsWithInterface`	Find all elements with type set by interface (Desde R2023a)
`AnyComponent`	Create query to select all components in model
`Property`	Create query to select non-evaluated values for object properties or stereotype properties for elements
`PropertyValue`	Create query to select property from object or stereotype property and then evaluate property value
`HasStereotype`	Create query to select architectural elements with stereotype based on specified subconstraint
`IsStereotypeDerivedFrom`	Create query to select stereotype derived from qualified name
`HasPort`	Create query to select architectural elements with port based on specified subconstraint
`HasConnector`	Create query to select architectural elements with connector based on specified subconstraint
`HasInterface`	Create query to select architectural elements with interface on port based on specified subconstraint
`HasInterfaceElement`	Create query to select architectural elements with interface element on interface based on specified subconstraint
`IsInRange`	Create query to select range of property values

Herramientas

Architecture Views Gallery	Create and manage views and sequence diagrams
Interface Editor	Create and author interfaces in local and shared data dictionaries

Temas

Create Custom Views Using Architecture Views Gallery
Create and modify views using the Architecture Views Gallery tool.
Author Architecture Models Through Component Diagram Views
Use component diagram views to author architecture models. (Desde R2024b)
Create Architecture Views Interactively
View structural and functional model hierarchies interactively.
Create Architecture Views Programmatically
View structural and functional model hierarchies programmatically.
Display Component Hierarchy and Architecture Hierarchy Using Views
Use hierarchy diagrams to view different aspects of architecture models.
Create Spotlight Views
View components in the context of the entire architecture.
