systemcomposer.view.View
Description
A View
object is used to manage architecture views for a
System Composer™ model.
Properties
Name
— Name of view
string
Name of view, specified as a string.
Example: "NewView"
Data Types: string
Root
— Root element group
element group object
Root element group that defines view, specified as a systemcomposer.view.ElementGroup
object.
Model
— Architecture model
model object
Architecture model where view belongs, specified as a systemcomposer.arch.Model
object.
UUID
— Universal unique identifier
character vector
Universal unique identifier for view, specified as a character vector.
Example: '91d5de2c-b14c-4c76-a5d6-5dd0037c52df'
Data Types: char
Select
— Selection query
constraint object
Selection query associated with view, specified as a systemcomposer.query.Constraint
object.
GroupBy
— Grouping criteria
string array of properties
Grouping criteria, specified as a string array of properties in the form
"<profile>.<stereotype>.<property>"
.
Example: ["AutoProfile.MechanicalComponent.mass","AutoProfile.MechanicalComponent.cost"]
Color
— Color of view
string
Color of view, specified as a string. The color can be the name
"blue"
, "black"
, or
"green"
, or it can be an RGB value encoded in a hexadecimal string:
"#FF00FF"
or "#DDDDDD"
. An invalid color
results in an error.
Description
— Description of view
string
Description of view, specified as a string.
Data Types: string
IncludeReferenceModels
— Whether to include referenced models
true
or 1 | false
or 0
Whether to include referenced models, specified as a logical.
Example: included =
get(objView,'IncludeReferenceModels')
Data Types: logical
Object Functions
modifyQuery | Modify architecture view query and property groupings |
runQuery | Re-run architecture view query on model |
removeQuery | Remove architecture view query |
destroy | Remove model element |
Examples
Create Architecture Views in System Composer with Keyless Entry System
Use a keyless entry system architecture model to programmatically create views.
Import the package with queries.
import systemcomposer.query.*
Open the Simulink® project file for the keyless entry system.
openProject("scKeylessEntrySystem");
Load the example model into System Composer™.
model = systemcomposer.loadModel("KeylessEntryArchitecture");

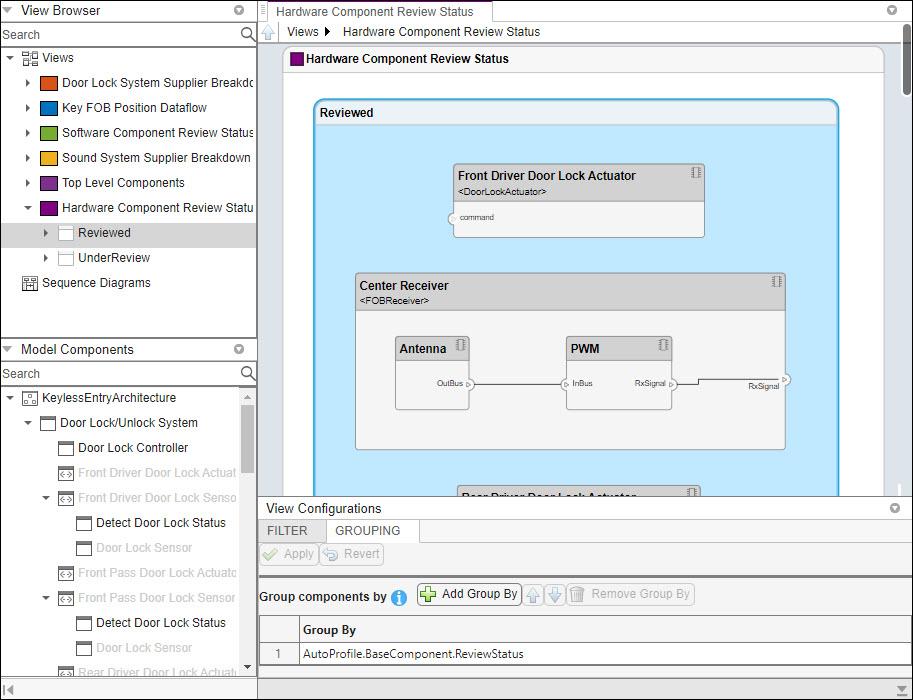

Hardware Component Review Status View
Create a view that selects all hardware components in the architecture model and groups them using the ReviewStatus
property.
1. Construct a query to select all hardware components.
hwCompQuery = HasStereotype(IsStereotypeDerivedFrom("AutoProfile.HardwareComponent"));
2. Use the query to create a view.
model.createView("Hardware Component Review Status",... Select=hwCompQuery,... GroupBy={'AutoProfile.BaseComponent.ReviewStatus'},... IncludeReferenceModels=true,... Color="purple");
3. To open the Architecture Views Gallery the Modeling section, click Architecture Views.
model.openViews

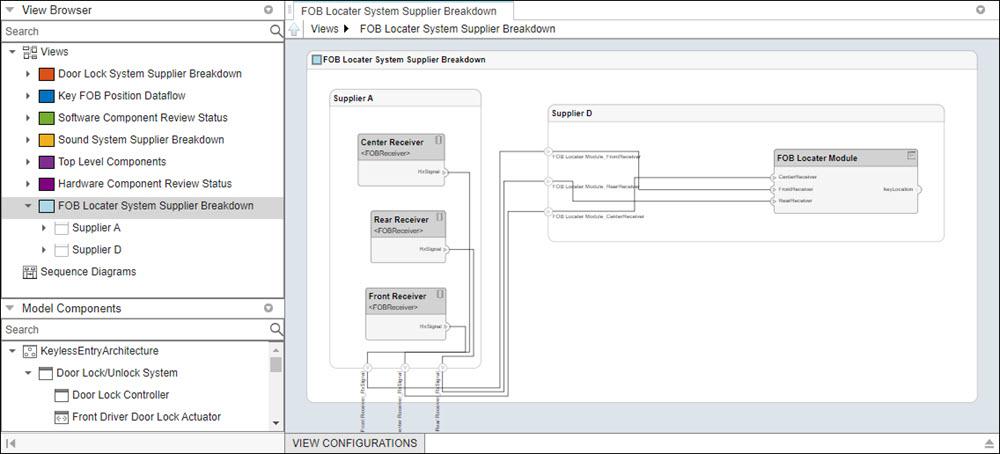

FOB Locater System Supplier View
Create a view with components from the FOB Locater System
and group them using existing and new view components for the suppliers. In this example, you will use element groups, groupings of components in a view, to programmatically populate a view.
1. Create a view architecture.
fobSupplierView = model.createView("FOB Locater System Supplier Breakdown",... Color="lightblue");
2. Add a subgroup called Supplier D
. Add the FOB Locater Module
to the view element subgroup.
supplierD = fobSupplierView.Root.createSubGroup("Supplier D"); supplierD.addElement("KeylessEntryArchitecture/FOB Locater System/FOB Locater Module");
3. Create a new subgroup for Supplier A
.
supplierA = fobSupplierView.Root.createSubGroup("Supplier A");
4. Add each of the FOB Receivers to the view element subgroup.
FOBLocaterSystem = model.lookup("Path","KeylessEntryArchitecture/FOB Locater System");
Find all the components which contain the name Receiver
.
receiverCompPaths = model.find(... contains(Property("Name"),"Receiver"),... FOBLocaterSystem.Architecture); supplierA.addElement(receiverCompPaths)
More About
Definitions
Term | Definition | Application | More Information |
---|---|---|---|
view | A view shows a customizable subset of elements in a model. Views can be filtered based on stereotypes or names of components, ports, and interfaces, along with the name, type, or units of an interface element. Create views by adding elements manually. Views create a simplified way to work with complex architectures by focusing on certain parts of the architectural design. |
You can use different types of views to represent the system. Switch between a component diagram, component hierarchy, or architecture hierarchy. For software architectures, you can switch to a class diagram view. A viewpoint represents a stakeholder perspective that specifies the contents of the view. | |
element group | An element group is a grouping of components in a view. | Use element groups to programmatically populate a view. | |
query | A query is a specification that describes certain constraints or criteria to be satisfied by model elements. | Use queries to search elements with constraint criteria and to filter views. | Find Elements in Model Using Queries |
component diagram | A component diagram represents a view with components, ports, and connectors based on how the model is structured. | Component diagrams allow you to programmatically or manually add and remove components from the view. | Inspect Components in Custom Architecture Views |
hierarchy diagram | You can visualize a hierarchy diagram as a view with components, ports, reference types, component stereotypes, and stereotype properties. |
There are two types of hierarchy diagrams:
| Display Component Hierarchy and Architecture Hierarchy Using Views |
Version History
Introduced in R2021a
See Also
Tools
Functions
openViews
|createView
|getView
|deleteView
|modifyQuery
|runQuery
|removeQuery
|addElement
|removeElement
|getQualifiedName
|createSubGroup
|getSubGroup
|deleteSubGroup
|getQualifiedName
|lookup
Objects
