Simple Engine
![](simple_engine.png)
Libraries:
Powertrain Blockset /
Propulsion /
Combustion Engines
Vehicle Dynamics Blockset /
Powertrain /
Propulsion
Description
The Simple Engine block implements a simplified engine model using a maximum torque vs engine speed table, two scalar fuel mass properties, and one scalar engine efficiency parameter to estimate engine torque and fuel flow. You can use the block for:
Hardware-in-the-loop (HIL) engine control design
Vehicle-level fuel economy and performance simulations
Ports
Input
TrqCmd — Commanded torque
scalar
Torque, in N·m.
EngSpd — Engine speed
scalar
Engine speed, in rpm.
Output
Info — Bus signal
bus
Bus signal containing these block calculations.
Signal | Description | Units | ||
---|---|---|---|---|
| Engine air mass flow output | kg/s | ||
| Normalized engine cylinder air mass | N/A | ||
| Air-fuel ratio (AFR) | N/A | ||
| Engine fuel flow output | kg/s | ||
| Volumetric fuel flow | m3/s | ||
| Engine exhaust gas temperature | K | ||
| Engine torque output | N·m | ||
| Engine speed | rpm | ||
| Engine crankshaft absolute angle where is crankshaft revolutions per power stroke. | deg | ||
| Engine brake-specific fuel consumption (BSFC) | g/kWh | ||
| Engine out hydrocarbon emission mass flow | kg/s | ||
| Engine out carbon monoxide emission mass flow rate | kg/s | ||
| Engine out nitric oxide and nitrogen dioxide emissions mass flow | kg/s | ||
| Engine out carbon dioxide emission mass flow | kg/s | ||
| Engine out particulate matter emission mass flow | kg/s | ||
PwrInfo | PwrTrnsfrd | PwrCrkshft | Crankshaft power | W |
PwrNotTrnsfrd | PwrFuel | Fuel input power | W | |
PwrLoss | Power loss | W | ||
PwrStored | Not used |
EngTrq — Engine brake torque
scalar
Engine brake torque, in N·m.
Parameters

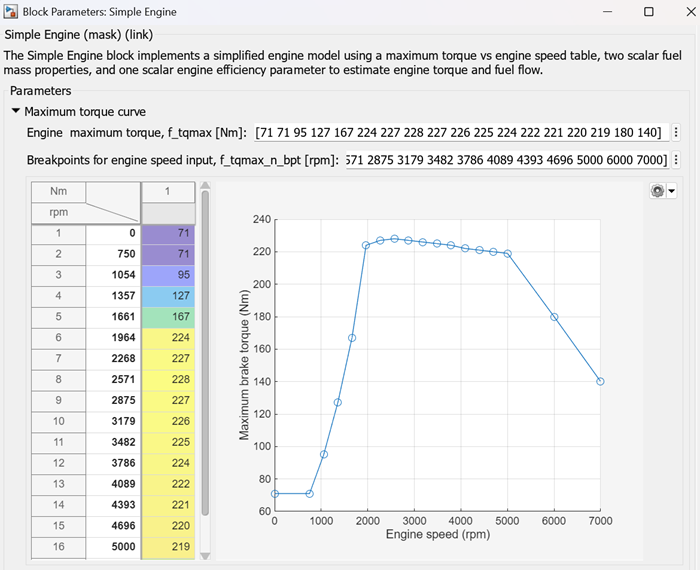

Engine maximum torque, f_tqmax — Breakpoints
[75.679776480773256 75.679776480773256 97.173658538143172
116.84042599160529 152.21029882684542 175 174.99889520597083 174.99996520122858 175
175 175 175 175 175 175 175]
(default)
Breakpoints, in N·m.
Breakpoints for engine speed input, f_tqmax_n_bpt — Breakpoints
[0 750 1053.57142857143 1357.14285714286 1660.71428571429
1964.28571428571 2267.85714285714 2571.42857142857 2875 3178.57142857143
3482.14285714286 3785.71428571429 4089.28571428571 4392.85714285714 4696.42857142857
5000]
(default)
Breakpoints, in rpm.
Fuel lower heating value, Lhv — Heating value
4.6E+7
(default)
Fuel lower heating value, in J/kg.
Fuel specific gravity, Sg — Specific gravity
0.745
(default)
Specific gravity of fuel, dimensionless.
Average brake specific fuel consumption, BsfcAvg — Average brake specific fuel consumption
350
(default)
Average brake specific fuel consumption, in g/kwh.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
Version History
Introduced in R2021b
