From Multimedia File

Read video frames and audio samples from multimedia file

•

Libraries:
Computer Vision Toolbox / Sources

Description

The From Multimedia File block reads video frames, audio samples, or both from a multimedia file. The block imports data from a file, of a supported file format, into a Simulink^® model. For more information about supported file formats, see Supported Platforms and File Formats.

This block enables you to read WMA or WMV streams from your system or over a network connection. Similarly, the To Multimedia File block enables you to write WMA or WMV streams to your system or over a network connection. If your system does not have the codec necessary to support a file format, you must re-encode files of that format into a file format supported by the Computer Vision Toolbox™.

If you have a Simulink Coder™ license, you can generate code from a model containing this block. To run a generated executable file, you may need to add precompiled shared library files to your system path. For more information, see Simulink Shared Library Dependencies and Accelerating Simulink Models.

Note

This block supports code generation for a host computer that has file I/O available. You cannot use this block with Simulink Desktop Real-Time™ software because that product does not support file I/O.

Examples

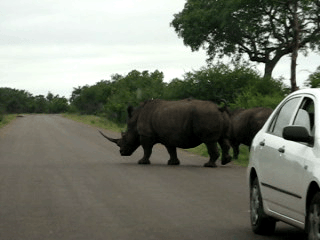

Read, Process, and Write Video Frames to File

Read video frames from a multimedia file, process them, and write them back to a new multimedia file.

• Open Model

Ports

Output

Image — Color image or video frame

array

Color image or video frame, returned as an M-by-N-by-P array. M and N are the number of rows and columns in each image. P is the number of color channels in each image.

Dependencies

To enable this port:

• Set the File name parameter to the name of a multimedia file that contains video or image data. If the specified file contains both audio and video data, set the Multimedia outputs parameter to Video only or Video and audio.

• Set the Output color format parameter to RGB and Image signal parameter to One multidimensional signal.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32 | Simulink.ImageType

I — Grayscale image or video frame

matrix

Grayscale image or video frame, returned as an M-by-N matrix. M and N are the number of rows and columns in the grayscale image.

Dependencies

To enable this port:

• Set the File name parameter to the name of a multimedia file that contains video or image data. If the specified file contains both audio and video data, set the Multimedia outputs parameter to Video only or Video and audio.

• Set the Output color format parameter to Intensity.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32

R — Red color component of image or video frame

matrix

Red color component of the image or video frame, returned as an M-by-N matrix. M and N are the number of rows and columns in the image.

Dependencies

To enable this port:

• Set the File name parameter to the name of a multimedia file that contains video or image data. If the specified file contains both audio and video data, set the Multimedia outputs parameter to Video only or Video and audio.

• Set the Output color format parameter to RGB and Image signal parameter to Separate color signals.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32

G — Green color component of image or video frame

matrix

Green color component of the image or video frame, returned as an M-by-N matrix. M and N are the number of rows and columns in the image.

Dependencies

To enable this port:

• Set the File name parameter to the name of a multimedia file that contains video or image data. If the specified file contains both audio and video data, set the Multimedia outputs parameter to Video only or Video and audio.

• Set the Output color format parameter to RGB and Image signal parameter to Separate color signals.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32

B — Blue color component of image or video frame

matrix

Blue color component of the image or video frame, returned as an M-by-N matrix. M and N are the number of rows and columns in the image.

Dependencies

To enable this port:

• Set the File name parameter to the name of a multimedia file that contains video or image data. If the specified file contains both audio and video data, set the Multimedia outputs parameter to Video only or Video and audio.

• Set the Output color format parameter to RGB and Image signal parameter to Separate color signals.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32

Y — Luma component of image or video frame

matrix

Luma component of the image or video frame, returned as an M-by-N matrix. M and N are the number of rows and columns in the image.

Dependencies

To enable this port:

• Set the File name parameter to the name of a multimedia file that contains video or image data. If the specified file contains both audio and video data, set the Multimedia outputs parameter to Video only or Video and audio.

• Set the Output color format parameter to YCbCr 4:2:2.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32

Cb — Blue-difference chrominance component of image or video frame

matrix

Blue-difference chrominance component of the image or video frame, returned as an M-by-N/2 matrix. M and N are the number of rows and columns in the input image.

Dependencies

To enable this port:

• Set the File name parameter to the name of a multimedia file that contains video or image data. If the specified file contains both audio and video data, set the Multimedia outputs parameter to Video only or Video and audio.

• Set the Output color format parameter to YCbCr 4:2:2.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32

Cr — Red-difference chrominance component of image or video frame

matrix

Red-difference chrominance component of the image or video frame, returned as an M-by-N/2 matrix. M and N are the number of rows and columns in each input image.

Dependencies

To enable this port:

• Set the File name parameter to the name of a multimedia file that contains video or image data. If the specified file contains both audio and video data, set the Multimedia outputs parameter to Video only or Video and audio.

• Set the Output color format parameter to YCbCr 4:2:2.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32

Audio — Audio signal

vector | matrix

Audio signal, returned as an M-element vector or an M-by-N matrix. M is the number of samples in each channel and N is the number of channels.

Dependencies

To enable this port, set the File name parameter to the name of a multimedia file that contains audio data. If the specified file contains both audio and video data, set the Multimedia outputs parameter to Audio only or Video and audio.

Data Types: single | double | int16 | uint8

EOF — End-of-file indicator

scalar

End-of-file indicator, returned as a logical scalar for each video frame or audio sample. The end-of-file indicator is 1 when the block outputs the final video frame or audio sample from the file, and is 0 otherwise.

Dependencies

To enable this port, select the Output end-of-file indicator parameter.

Data Types: Boolean

Parameters

Main

File name — Name of multimedia file

vipmen.avi (default) | character vector

Specify the name of the multimedia file for the block to read. If the file is not located on your MATLAB^® path, select Browse and navigate to the file, or specify the full file path.

On Microsoft^® Windows^® platforms, this parameter supports URLs that point to Microsoft Media Server (MMS) streams.

Inherit sample time from file — Inherit sample time from file

on (default) | off

Specify whether the block inherits the sample time from the multimedia file or uses a specified sample time. When you select this parameter, the block inherits the sample time from the input multimedia file.

Tip

Select this parameter when you do not know the intended sample rate of the multimedia file.

Desired sample time — Block sample time

1/30 (default) | real positive scalar

Specify a sample time for the block.

Dependencies

To enable this parameter, clear the Inherit sample time from file parameter.

Number of times to play file — Number of times to play multimedia file

inf (default) | real positive integer

Specify the number of times to play the input multimedia file. The default value of inf specifies that the block repeats playing the multimedia file until the simulation stop time.

Output end-of-file indicator — End-of-file indicator

off (default) | on

Select this parameter to enable the EOF port, which indicates whether the output frame or sample is the final video frame or audio sample in the multimedia file.

Multimedia outputs — Type of media

Video only (default) | Audio only | Video and audio

Specify the type of media to read from a file containing both video and audio data.

Dependencies

To enable this parameter, set the File name parameter to the name of a multimedia file that contains both audio and video data.

Output color format — Color format of video

RGB (default) | Intensity | YCbCr 4:2:2

Specify the output color format of the input video data. The block supports the RGB, Intensity, and YCbCr 4:2:2 color formats.

Dependencies

To enable this parameter, set the File name parameter to the name of a multimedia file that contains video data. If the specified file contains both audio and video data, set the Multimedia outputs parameter to Video only or Video and audio.

Image signal — Output port configuration for RGB video

One multidimensional signal (default) | Separate color signals | Simulink image signal

Specify how the block outputs an RGB color video. If you select One multidimensional signal, the block outputs the video data using only the Image port. If you select Separate color signals, the block outputs the video data using three separate color channels, divided across the R, G, and B ports. If you select Simulink image signal, the block outputs a video in Simulink.ImageType datatype.

Dependencies

To enable this parameter:

• Set the File name parameter to the name of a multimedia file that contains video data. If the specified file contains both audio and video data, set the Multimedia outputs parameter to Video only or Video and audio.

• Set the Output color format parameter to RGB.

Read range — Range of audio samples

[1 Inf] (default) | two-element row vector

Specify the range of audio samples to read from the input file as a two-element row vector of the form [StartSample EndSample]. StartSample is the first sample the block reads from the audio file, and EndSample is the final sample the block reads from the audio file. StartSample must be greater than or equal to 1. EndSample must be greater than StartSample.

Dependencies

To enable this parameter, set the File name parameter to the name of a multimedia file that contains audio data. If the specified file contains both audio and video data, set the Multimedia outputs parameter to Audio only.

Samples per audio channel — Samples per audio channel

1024 (default) | real positive integer

Specify the number of samples per audio channel.

Dependencies

To enable this parameter, set the File name parameter to the name of a multimedia file that contains audio data. If the specified file contains both audio and video data, set the Multimedia outputs parameter to Audio only.

Data Types

Video output data type — Video output data type

single (default) | double | int8 | uint8 | int16 | uint16 | int32 | uint32 | Inherit from file

Specify the data type for the output video frames.

Dependencies

To enable this parameter, set the File name parameter to the name of a multimedia file that contains video data. If the specified file contains both audio and video data, set the Multimedia outputs parameter to Video only or Video and audio.

Audio output data type — Audio output data type

int16 (default) | double | single | uint8

Specify the data type for the output audio samples.

Dependencies

To enable this parameter, set the File name parameter to the name of a multimedia file that contains audio data. If the specified file contains both audio and video data, set the Multimedia outputs parameter to Audio only or Video and audio.

Block Characteristics

Data Types	double | integera | single
Direct Feedthrough	no
Multidimensional Signals	no
Variable-Size Signals	no
Zero-Crossing Detection	no
a Supports 16- and 32-bit signed and 8-bit unsigned integers.

More About

Supported Platforms and File Formats

Which supported file formats are available to you depends on the codecs installed on your system.

Platform	Supported File Formats
All Platforms	AVI (.avi) Motion JPEG 2000 (.mj2)
Microsoft Windows	Image: JPEG(.jpg) Bitmap (.bmp)
	Video: MPEG (.mpeg) MPEG-2 (.mp2) MPEG-1 (.mpg) MPEG-4, including H.264 encoded video (.mp4, .m4v) Windows Media Video (.wmv, .asf, .asx) Any format supported by Microsoft DirectShow® 9.0 or higher.
	Audio: WAVE (.wav) Windows Media Audio File (.wma) Audio Interchange File Format (.aif, .aiff) Compressed Audio Interchange File Format (.aifc) MP3 (.mp3) Sun Audio (.au) Apple (.snd)
macOS	Video: MPEG-4, including H.264 encoded video (.mp4, .m4v) Apple QuickTime Movie (.mov) Any format supported by QuickTime®.
	Audio: Uncompressed AVI (.avi)
Linux®	Any format supported by your installed plug-ins for GStreamer 0.1 or higher, including Ogg Theora (.ogg).

Sample Time Calculations Used for Video and Audio Files

The sample rate that the block uses depends on the audio and video sample rate. While the block operates at a single rate in Simulink, the underlying audio and video streams can produce different rates. In some cases, the block makes a small adjustment to the video rate when the block outputs both audio and video.

Sample time = $$\frac{ceil(\raisebox{1ex}{$AudioSampleRate$}\!\left/ \!\raisebox{-1ex}{$FPS$}\right.)}{AudioSampleRate}$$. AudioSampleRate is the sample rate for audio data, and FPS is the video frame rate.
When the audio sample time, $$\frac{AudioSampleRate}{FPS}$$, is not an integer,, the equation cannot reduce to $$\frac{1}{FPS}$$.

To prevent synchronization problems, when the audio stream leads the video stream by more than $$\frac{1}{FPS}$$, the block drops the corresponding video frame.
In summary, the block outputs one video frame at each Simulink time step. To calculate the number of audio samples to output at each time step, the block divides the audio sample rate by the video frame rate. If the audio sample rate does not divide evenly by the number of video frames per second (FPS), the block rounds the number of audio samples up to the nearest whole number. If necessary, the block periodically drops a video frame to maintain synchronization for large files.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using Simulink® Coder™.

Usage notes and limitations:

• Host computer only. Excludes Simulink Desktop Real-Time code generation.

• The executable generated from this block relies on prebuilt dynamic library files (.dll files) included with MATLAB. Use the packNGo (Simulink Coder) function to package the code generated from this block and all the relevant files in a compressed ZIP file. Using this ZIP file, you can relocate, unpack, and rebuild your project in another development environment where MATLAB is not installed.

Version History

Introduced before R2006a
