rectToBbox
Compute bounding boxes from outputs returned by MATLAB interface object for OpenCV Rect
class
Since R2021b
Syntax
Description
Examples
Draw Rectangle on Image Using OpenCV in MATLAB
Draw a rectangle on an image by using the prebuilt MATLAB interface for the OpenCV function cv::rectangle
. Compute the corresponding bounding box values in MATLAB to use to crop the image region.
Add the MATLAB interface to OpenCV package names to the import list.
import clib.opencv.*; import vision.opencv.util.*;
Read an image into the MATLAB workspace.
img = imread("highway.png");
Create interface objects for the OpenCV Mat
and InputOutputArray
classes to store the input image.
[inputMat,ocvArray] = createMat(img,"InputOutput");
Define Rectangular Region
Call the OpenCV function cv::Rect2i
using MATLAB, and specify the coordinates and dimensions for the rectangle. Display the values.
rec = cv.Rect2i(140,60,100,100)
rec = Rect2i with properties: x: 140 y: 60 width: 100 height: 100
Draw Rectangle and Display Results
Specify the properties of the line to use for drawing the rectangle. Set these values:
Color of the line to red. To set this value, use the OpenCV function
cv::Scalar
.Thickness of the line to
2
.Line type to
4
.Shift to
0
.
color = cv.Scalar(255,0,0); thickness = 2; lineType = 4; shift = 0;
Draw the defined rectangle on the image by using the OpenCV function cv::rectangle
.
cv.rectangle(ocvArray,rec,color,thickness,lineType,shift);
Read and display the output image.

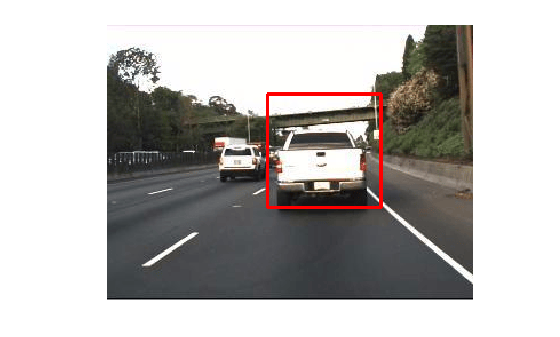

outputImg = getImage(ocvArray); figure imshow(outputImg)
Compute Bounding Box
Use the utility function rectToBbox
to compute the bounding box value from the values returned by OpenCV function cv::Rect2i
.
bbox = rectToBbox(rec);
Display the bounding box values. Notice that the bounding box values in the MATLAB workspace have one-based indexing.
bbox
bbox = 1x4 int32 row vector
141 61 100 100
Crop the region within the bounding box by using the imcrop
function and display the cropped image.

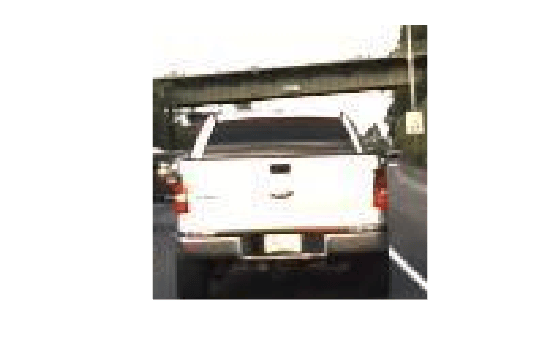

croppedImg = imcrop(img,bbox); figure imshow(croppedImg)
Input Arguments
input
— OpenCV class for rectangles
Rect__unsignedChar_
interface object | Rect2d
interface object | Rect2f
interface object | Rect2i
interface object
OpenCV class for rectangles, specified as one of these values:
Rect__unsignedChar_
interface object — This MATLAB interface object is a representation of the OpenCV classcv::Rect_<unsigned char>
.Rect2d
interface object — This MATLAB interface object is a representation of the OpenCV classcv::Rect_<double>
.Rect2f
interface object — This MATLAB interface object is a representation of the OpenCV classcv::Rect_<float>
.Rect2i
interface object — This MATLAB interface object is a representation of the OpenCV classcv::Rect_<int>
.Rect2i
interface object — This MATLAB interface object is a representation of the OpenCV classcv::Rect_<int>
.
Output Arguments
bbox
— Bounding box values
four-element row vector
Bounding box values, returned as a four-element row vector of the form
[x
y
width
height
].
Version History
Introduced in R2021b
