plot
Plot 3-D map points and estimated camera trajectory in stereo visual SLAM
Since R2024a
Description
plot(
plots the 3-D map points and
estimated camera trajectory from the visual SLAM object vslam
)vslam
.
plot(
specifies options using one or more name-value arguments. For example,
vslam
,Name=Value
)MarkerSize=10
sets the diameter of the marker size to 10 points.
returns the axes
handle for the 3-D mapped points of the plot, using any combination of input arguments from
previous syntaxes.ax
= plot(___)
Examples
Stereo Visual SLAM Using UTIAS Data Set
Perform stereo visual simultaneous localization and mapping (vSLAM) using the data from the UTIAS Long-Term Localization and Mapping Dataset provided by University of Toronto Institute for Aerospace Studies. You can download the data to a directory using a web browser, or by running this code:
ftpObj = ftp("asrl3.utias.utoronto.ca"); tempFolder = fullfile(tempdir); dataFolder = [tempFolder,"2020-vtr-dataset/UTIAS-In-The-Dark/"]; zipFileName = [dataFolder,"run_000005.zip"]; folderExists = exist(dataFolder,"dir");
Create a folder in a temporary directory to save the dowloaded file and extract its contents.
if ~folderExists mkdir(dataFolder) disp("Downloading run_000005.zip (818 MB). This download can take a few minutes.") mget(ftpObj,"/2020-vtr-dataset/UTIAS-In-The-Dark/run_000005.zip",tempFolder); disp("Extracting run_000005.zip (818 MB) ...") unzip(zipFileName,dataFolder); end
Downloading run_000005.zip (818 MB). This download can take a few minutes.
Extracting run_000005.zip (818 MB) ...
Create two imageDatastore
objects to store the stereo images.
imgFolderLeft = [dataFolder,"/images/left/"]; imgFolderRight = [dataFolder,"/images/right/"]; imdsLeft = imageDatastore(imgFolderLeft); imdsRight = imageDatastore(imgFolderRight);
Specify the intrinsic parameters and the baseline of the stereo camera, and use them to create a stereo visual SLAM object. The focal length, principal point, and image size is in pixels, and the baseline is in meters.
focalLength = [387.777, 387.777];
principalPoint = [257.446, 197.718];
imageSize = [384,512];
intrinsics = cameraIntrinsics(focalLength,principalPoint,imageSize);
baseline = 0.239965;
vslam = stereovslam(intrinsics,baseline,MaxNumPoints=600, ...
TrackFeatureRange=[30 120],SkipMaxFrames=5);

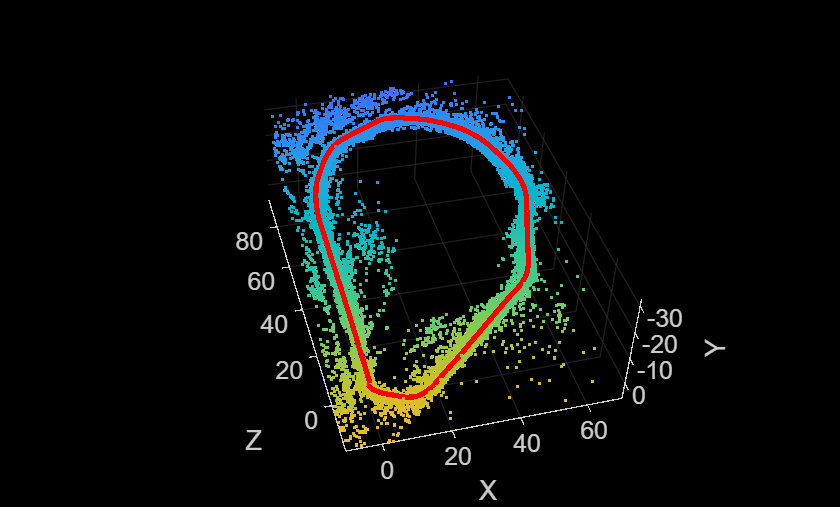

Process each pair of stereo images and visualize the camera poses and 3-D map points.
for i = 1:numel(imdsLeft.Files) leftImage = readimage(imdsLeft,i); rightImage = readimage(imdsRight,i); addFrame(vslam,leftImage,rightImage); if hasNewKeyFrame(vslam) % Query 3-D map points and camera poses xyzPoints = mapPoints(vslam); [camPoses,viewIds] = poses(vslam); % Display 3-D map points and camera trajectory plot(vslam); end % Get current status of system status = checkStatus(vslam); % Stop adding frames when tracking is lost if status == uint8(0) break end end
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8267 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-20.8775 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-21.1333 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-21.3345 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-21.5298 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-21.8572 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-22.1565 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-22.6498 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-22.6603 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-23.1114 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-23.1120 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-23.2838 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-23.5244 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-23.7767 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-23.9621 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-24.1335 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-24.3145 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-24.6474 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-24.6474 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-24.9785 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-24.9790 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-25.1179 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-25.4212 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-25.5552 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-25.5552 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-25.7136 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-25.8713 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-26.0141 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-26.1631 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-26.2789 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-26.3865 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-26.4692 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-26.5459 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-26.6380 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-26.8099 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-26.8099 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-26.9855 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-26.9893 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-27.1673 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-27.1701 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-27.2564 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-27.3898 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-27.4455 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-27.4455 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-27.5997 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-27.5997 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-27.7233 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-27.7236 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-27.8455 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-27.9020 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-27.9036 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-28.0610 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3202] YLim: [-28.0610 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3366] YLim: [-28.2330 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 22.3402] YLim: [-28.2342 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 23.4900] YLim: [-28.4101 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 23.4940] YLim: [-28.4176 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 24.5434] YLim: [-28.5445 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 24.9674] YLim: [-28.5863 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 24.9674] YLim: [-28.5894 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 25.9635] YLim: [-28.6531 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 26.4372] YLim: [-28.6706 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 26.4372] YLim: [-28.6706 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 27.2858] YLim: [-28.6889 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 27.9107] YLim: [-28.6911 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 27.9107] YLim: [-28.6918 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 28.8910] YLim: [-28.7013 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 28.8941] YLim: [-28.7013 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 29.9288] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 29.9288] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 31.2199] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 31.8295] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 31.8424] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 32.6267] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 33.4325] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 34.7253] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 34.7253] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 35.2407] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 36.8732] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 36.9061] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 38.4083] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 38.4083] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 39.7431] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 39.7431] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 40.5302] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 41.2973] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 42.8362] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 42.8362] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 43.3260] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 44.1062] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 45.4447] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 45.4447] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 45.9419] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 47.2583] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 47.2583] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 48.2298] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 48.2298] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 49.4447] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 49.8984] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 49.8984] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 50.8233] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 50.8381] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 52.0399] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 52.4681] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 52.4878] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 53.0809] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 54.0394] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 54.0439] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 54.4085] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 55.3695] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 55.3964] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 55.8743] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 56.6814] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 56.6814] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 57.1985] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 57.7072] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 58.4180] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 58.4351] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 59.0269] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 59.0269] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 59.6340] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 59.6374] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 60.1142] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 60.1142] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 60.5705] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 60.5717] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.0336] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.0469] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.3660] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.4285] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.4884] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.5315] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.5804] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.5804] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.7113] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.7441] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.7527] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
Once all the frames have been processed, reset the system.
while ~isDone(vslam) plot(vslam) end
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-21.0351 61.8050] YLim: [-28.7088 3.4051] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
ans = Axes (PointCloud) with properties: XLim: [-10.6973 71.4674] YLim: [-32.9195 6.1858] XScale: 'linear' YScale: 'linear' GridLineStyle: '-' Position: [0.1300 0.1100 0.7750 0.8150] Units: 'normalized' Show all properties
reset(vslam)
Input Arguments
vslam
— Stereo visual SLAM object
stereovslam
object
Stereo visual SLAM object, specified as an stereovslam
object.
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Example: plot(vslam,MarkerSize=10)
, sets the diameter of the marker to
10 points.
MarkerSize
— Diameter of markers for 3-D map points
6
(default) | positive integer
Diameter of markers for the 3-D map points, specified as a positive integer in points.
MarkerColor
— Color of markers for 3-D map points
[0 1 0]
(default) | RGB triplet | short or long color name
Color of the markers for the 3-D map points, specified as an RGB triplet or a
short or long color name. Each value within an RGB triplet must be in the range
[0
1
].
ColorSource
— Colormap source for the markers
"Y"
(default) | "X"
| "Z"
| "MarkerColor"
Colormap source for markers, specified as "X"
,
"Y"
, "Z"
, or
"MarkerColor"
.
CameraSize
— Width of camera base
0.1
(default) | positive scalar
Width of the camera base, specified as a positive scalar in the data units of the axes.
CameraColor
— Color of camera
[1 0 0]
(default) | RGB triplet | short or long color name
Color of the camera, specified as an RGB triplet or a short or long color name.
Each value within an RGB triplet must be in the range [0
1
].
Parent
— Axes for visualization
Axes
object | UIAxes
object
Axes for visualization, specified as an Axes
graphics object or a
UIAxes
object. Use this name-value argument to visualize the plot
in a UI for which you have specified Figure
and Axes
properties.
Output Arguments
ax
— Axes handle
Axes
graphics object
Axes handle, returned as an axes
graphics object.
Version History
Introduced in R2024a
See Also
Objects
Functions
addFrame
|checkStatus
|hasNewKeyFrame
|isDone
|mapPoints
|poses
|reset
Comando de MATLAB
Ha hecho clic en un enlace que corresponde a este comando de MATLAB:
Ejecute el comando introduciéndolo en la ventana de comandos de MATLAB. Los navegadores web no admiten comandos de MATLAB.
Select a Web Site
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
You can also select a web site from the following list:
How to Get Best Site Performance
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
Americas
- América Latina (Español)
- Canada (English)
- United States (English)
Europe
- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)
- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
