Augment Point Cloud Data For Deep Learning

This example demonstrates how to set up a basic randomized data augmentation pipeline when working with point cloud data in deep learning based workflows. Data augmentation is almost always desirable when working with deep learning because it helps to reduce overfitting during training and can add robustness to types of data transformations which may not be well represented in the original training data.

Import Point Cloud Data

dataPath = downloadSydneyUrbanObjects(tempdir);
Downloading Sydney Urban Objects Dataset...
dsTrain = loadSydneyUrbanObjectsData(dataPath);
dataOut = preview(dsTrain)
dataOut=1×2 cell array
    {1×1 pointCloud}    {[4wd]}

The datastore dsTrain yields a pointCloud object and an associated scalar categorical label for each observation.

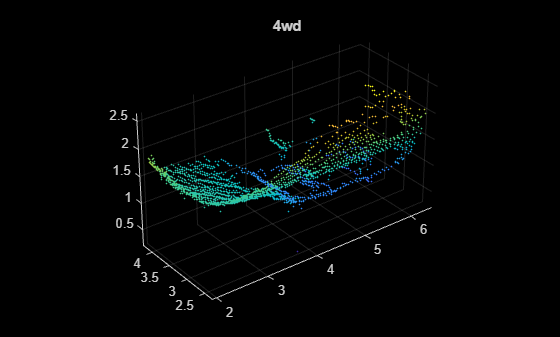

Figure contains an axes object. The axes object with title 4wd contains an object of type scatter.

Define Augmentation Pipeline

The transform function of a datastore is a convenient tool for defining augmentation pipelines.

dsAugmented = transform(dsTrain,@augmentPointCloud);

The augmentPointCloud function, shown below, applies randomized rotation, homogeneous scale, randomized reflection across the x- and y-axes, and randomized per point jitter to each observation using the randomAffine3d function to create randomized affine transformations and the pctransform function to apply these transformations to each input point cloud.

dataOut = preview(dsAugmented)
dataOut=1×2 cell array
    {1×1 pointCloud}    {[4wd]}

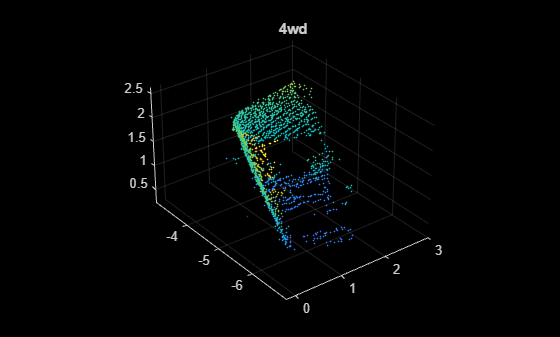

It is always a good idea to visually inspect the data that comes out of any augmentation that is done on training data to make sure that the data looks as expected. The point cloud below is the same as the original shown previously, but with randomized affine warping with per point jitter added.


Figure contains an axes object. The axes object with title 4wd contains an object of type scatter.

The resulting TransformedDatastore and dsAugmented can be passed to deep learning functions including trainnet, predict, and classify for use in training and inference.

Supporting Functions

function datasetPath = downloadSydneyUrbanObjects(dataLoc)

if nargin == 0
    dataLoc = pwd();

dataLoc = string(dataLoc);

url = "";
name = "sydney-urban-objects-dataset.tar.gz";

if ~exist(fullfile(dataLoc,'sydney-urban-objects-dataset'),'dir')
    disp('Downloading Sydney Urban Objects Dataset...');

datasetPath = dataLoc.append('sydney-urban-objects-dataset');


function ds = loadSydneyUrbanObjectsData(datapath,folds)
% loadSydneyUrbanObjectsData Datastore with point clouds and
% associated categorical labels for Sydney Urban Objects Dataset.
% ds = loadSydneyUrbanObjectsData(datapath) creates a datastore that
% represents point clouds and associated categories for the Sydney Urban
% Objects Dataset. The input, datapath, is a string or char array which
% represents the path to the root directory of the Sydney Urban Objects
% Dataset.
% ds = loadSydneyUrbanObjectsData(___,folds) optionally allows
% specification of desired folds that you wish to be included in the
% output ds. For example, [1 2 4] specifies that you want the first,
% second, and fourth folds of the dataset. Default: [1 2 3 4].

if nargin < 2
    folds = 1:4;

datapath = string(datapath);
path = fullfile(datapath,'objects',filesep);

% For now, include all folds in Datastore
foldNames{1} = importdata(fullfile(datapath,'folds','fold0.txt'));
foldNames{2} = importdata(fullfile(datapath,'folds','fold1.txt'));
foldNames{3} = importdata(fullfile(datapath,'folds','fold2.txt'));
foldNames{4} = importdata(fullfile(datapath,'folds','fold3.txt'));
names = foldNames(folds);
names = vertcat(names{:});

fullFilenames = append(path,names);
ds = fileDatastore(fullFilenames,'ReadFcn',@extractTrainingData,'FileExtensions','.bin');


function dataOut = extractTrainingData(fname)

[pointData,intensity] = readbin(fname);

[~,name] = fileparts(fname);
name = string(name);
name = extractBefore(name,'.');

labelNames = ["4wd","bench","bicycle","biker",...

label = categorical(name,labelNames);

dataOut = {pointCloud(pointData,'Intensity',intensity),label};


function [pointData,intensity] = readbin(fname)
% readbin Read point and intensity data from Sydney Urban Object binary
% files.

% names = ['t','intensity','id',...
%          'x','y','z',...
%          'azimuth','range','pid']
% formats = ['int64', 'uint8', 'uint8',...
%            'float32', 'float32', 'float32',...
%            'float32', 'float32', 'int32']

fid = fopen(fname, 'r');
c = onCleanup(@() fclose(fid));
fseek(fid,10,-1); % Move to the first X point location 10 bytes from beginning
X = fread(fid,inf,'single',30);
Y = fread(fid,inf,'single',30);
Z = fread(fid,inf,'single',30);

intensity = fread(fid,inf,'uint8',33);

pointData = [X,Y,Z];


function dataOut = augmentPointCloud(data)

ptCloud = data{1};
label = data{2};

% Apply randomized rotation about Z axis.
tform = randomAffine3d('Rotation',@() deal([0 0 1],360*rand), ...
ptCloud = pctransform(ptCloud,tform);

% Apply jitter to each point in point cloud
amountOfJitter = 0.01;
numPoints = size(ptCloud.Location,1);
D = zeros(size(ptCloud.Location),'like',ptCloud.Location);
D(:,1) = diff(ptCloud.XLimits)*rand(numPoints,1);
D(:,2) = diff(ptCloud.YLimits)*rand(numPoints,1);
D(:,3) = diff(ptCloud.ZLimits)*rand(numPoints,1);
D = amountOfJitter.*D;
ptCloud = pctransform(ptCloud,D);

dataOut = {ptCloud,label};
