nodesplt

Split (decompose) node

Syntax

T = nodesplt(T,N)


Description

nodesplt is a tree-management utility.

T = nodesplt(T,N) returns the modified tree T corresponding to the decomposition of the node N.

The nodes are numbered from left to right and from top to bottom. The root index is 0.

Examples

% Create binary tree (tree of order 2) of depth 3.
t = ntree(2,3);

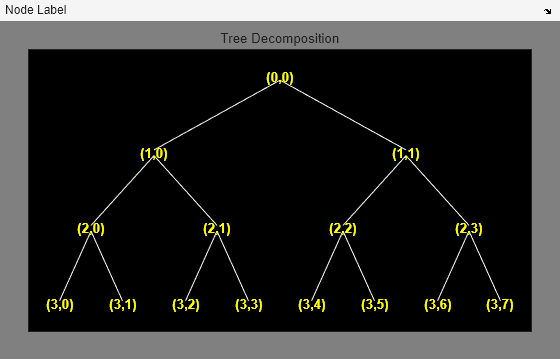

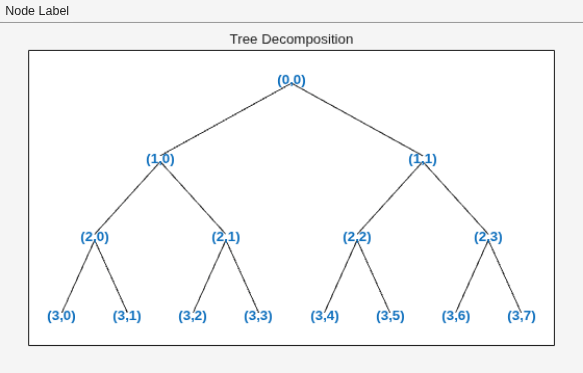

% Plot tree t.
plot(t)

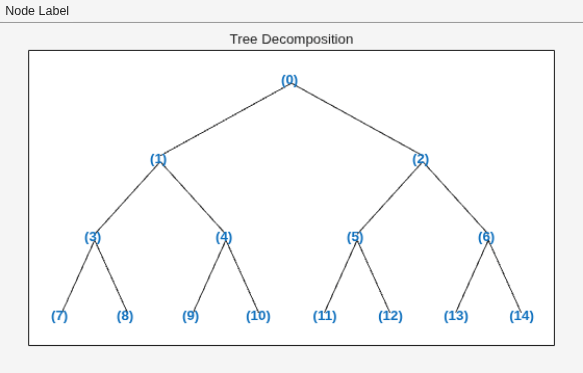

% Change Node Label from Depth_Position to Index
% (see the plot function).

% Split node of index 10.
t = nodesplt(t,10);

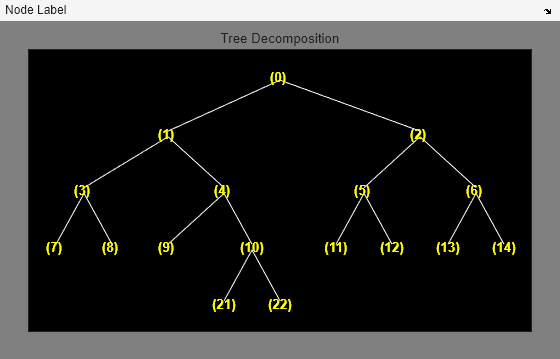

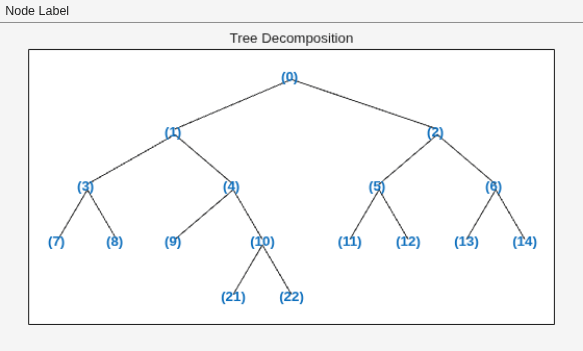

% Plot new tree t.
plot(t)
% Change Node Label from Depth_Position to Index
% (see the plot function).

Version History

Introduced before R2006a
