Quality metrics of signal or image approximation
Approximate an RGB image and compute the quality metrics.
Load an RGB image. Return the image dimensions and minimum and maximum values.
X = imread('africasculpt.jpg'); size(X)
ans = 1×3 512 512 3
ans = 1x2 uint8 row vector 0 236
Define the image approximation by setting equal to 1 all RGB values less than or equal to 100.
Xapp = X; Xapp(X<=100) = 1;

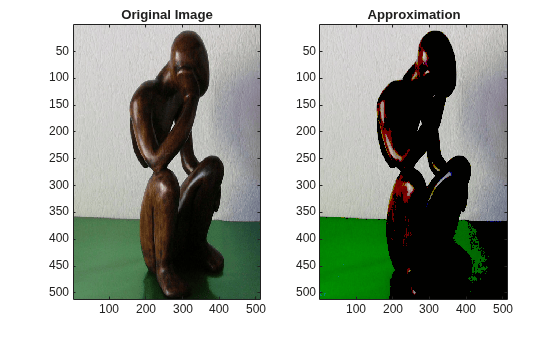

Display the image and its approximation.
subplot(1,2,1) image(X) title('Original Image') subplot(1,2,2) image(Xapp) title('Approximation')
Compute the quality metrics of the image approximation.
[psnr,mse,maxerr,L2rat] = measerr(X,Xapp)
psnr = 17.5287
mse = 1.1487e+03
maxerr = 99
L2rat = 0.9398
Approximate a grayscale image and calculate approximation quality metrics.
Create a 256-by-256 grayscale image with intensities between and .
val = 0:2^16-1; X = reshape(val,256,256);
There are 16 bits per sample. Define the image approximation by setting equal to 1 all grayscale values less than or equal to 1000. Display the image and its approximation.
Xapp = X; Xapp(X<=1000) = 1; colormap(gray(2^16)) subplot(1,2,1) image(X) title('Original Image') subplot(1,2,2) image(Xapp) title('Approximation')
There are 16 bits per sample. Compute the quality metrics of the grayscale approximation.
bps = 16; [psnr,mse,maxerr,L2rat] = measerr(X,Xapp)
psnr = 11.0733
mse = 5.0786e+03
maxerr = 999
L2rat = 1.0000
X— Input signal or image
Input signal or image, specified as a real-valued array.
XAPP— Approximation of signal or image
Approximation of signal or image
X, specified as a real-valued
XAPP is the same size as
BPS— Bits per sample
8(default) | positive integer
Bits per sample of the input data, specified as a positive integer. The default
8, so the maximum possible pixel value of an image (MAXI) is
255. More generally, when samples are represented using linear Pulse Code Modulation
with B bits per sample, MAXI is 2B−1.
PSNR— Peak signal-to-noise ratio
Peak signal-to-noise ratio (PSNR) in decibels, returned as a positive real number. The PSNR is only meaningful for data encoded in terms of bits per sample or bits per pixel. For example, an image with 8 bits per pixel contains integers from 0 to 255.
The peak signal-to-noise ratio (PSNR) in decibels between a signal and its approximation is
where MSE represents the mean square error, and B represents the bits per sample.
The mean square error (MSE) between a signal or image, X, and an approximation, Y, is
where N is the number of elements in the signal.
 Huynh-Thu, Q. and M. Ghanbari. "Scope of Validity of PSNR in Image/Video Quality Assessment." Electronics Letters. Vol. 44, Issue 13, 2008, pp. 800–801.
