wp2wtree

Extract wavelet tree from wavelet packet tree

Syntax

T = wp2wtree(T)

Description

wp2wtree is a one- or two-dimensional wavelet packet analysis function.

T = wp2wtree(T) computes the modified wavelet packet tree T corresponding to the wavelet decomposition tree.

Examples

% The current extension mode is zero-padding (see dwtmode).

% Load signal.
    load noisdopp; x = noisdopp;

% Decompose x at depth 3 with db1 wavelet packets
% using shannon entropy.
wpt = wpdec(x,3,'db1');

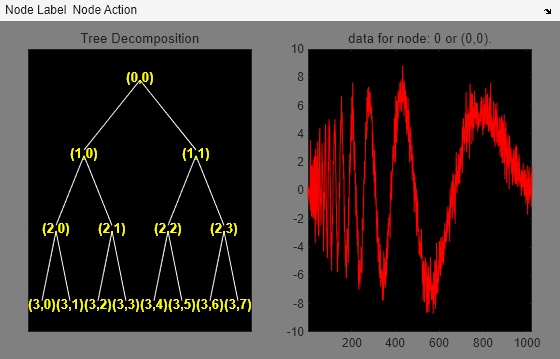

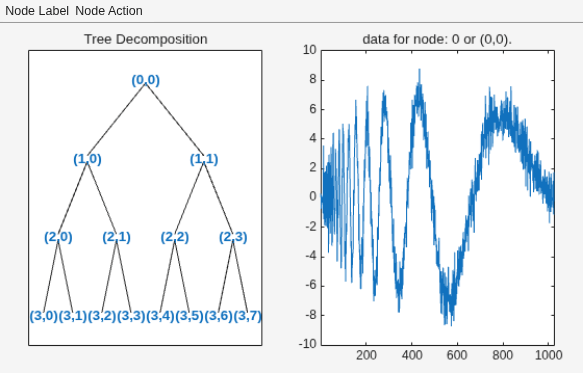

% Plot wavelet packet tree wpt.
plot(wpt)

% Compute wavelet tree.
wt = wp2wtree(wpt);

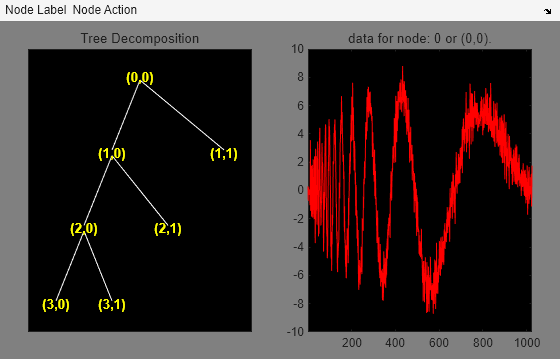

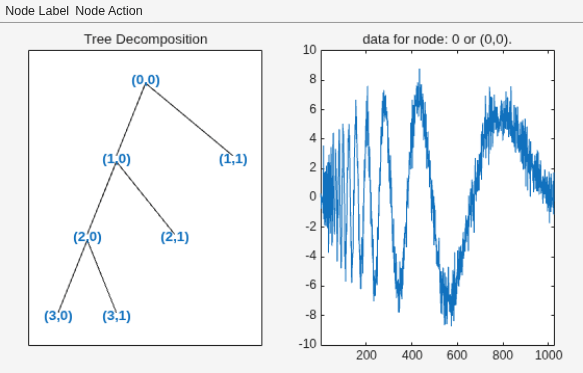

% Plot wavelet tree wt.
plot(wt)

Version History

Introduced before R2006a
