802.11a/b/g/j/p

Receive 802.11a/b/g/j/p waveforms

Model 802.11a/b/g/j/p-related signal reception functionality.

Functions

expand all

wlanPacketDetectEstimate timing offset of OFDM packet using L-STF
wlanFormatDetectDetect packet format
wlanSymbolTimingEstimateFine symbol timing estimate using L-LTF
wlanCoarseCFOEstimatePerform coarse CFO estimation
wlanFineCFOEstimatePerform fine CFO estimation
wlanSampleRateNominal sample rate
wlanLLTFChannelEstimateChannel estimation using L-LTF
wlanLLTFNoiseEstimateNoise estimation using L-LTF or S1G-LTF1 (Since R2023a)
wlanLLTFDemodulateDemodulate L-LTF waveform
wlanNonHTOFDMDemodulateDemodulate fields of non-HT OFDM waveform
wlanNonHTOFDMInfoOFDM information for non-HT transmission
wlanFieldIndicesPPDU field indices
wlanLSIGBitRecoverRecover information bits in L-SIG field
wlanLSIGRecoverRecover L-SIG information bits
wlanInterpretScramblerStateRecover bandwidth signaling from initial scrambler state
wlanNonHTDataBitRecoverRecover PSDU from non-HT Data field
wlanNonHTDataRecoverRecover non-HT Data
wlanScrambleScramble and descramble binary input sequence
wlanConstellationDemapConstellation demapping
wlanStreamDeparseStream-deparse spatial streams
wlanBCCDecodeBCC-decode input data
wlanBCCDeinterleaveDeinterleave BCC-interleaved input
wlanAMPDUDeaggregateDeaggregate A-MPDU and extract MPDUs
wlanMPDUDecodeDecode MPDU
displayIEsDisplay list of IEs in MAC management frame

See Also

802.11a/b/g/j/p

Transmit 802.11a/b/g/j/p signals

Featured Examples

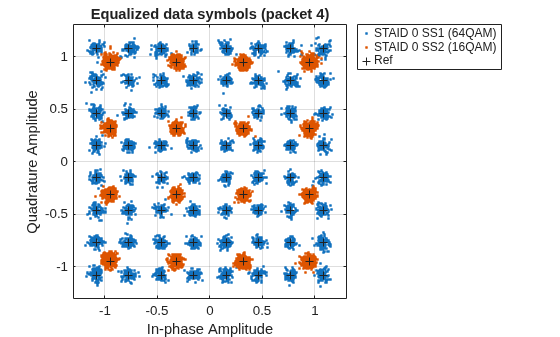

Recover and Analyze Packets in 802.11 Waveform

Recover and Analyze Packets in 802.11 Waveform

Blindly detect, decode, and analyze IEEE® 802.11™ packets in a waveform.

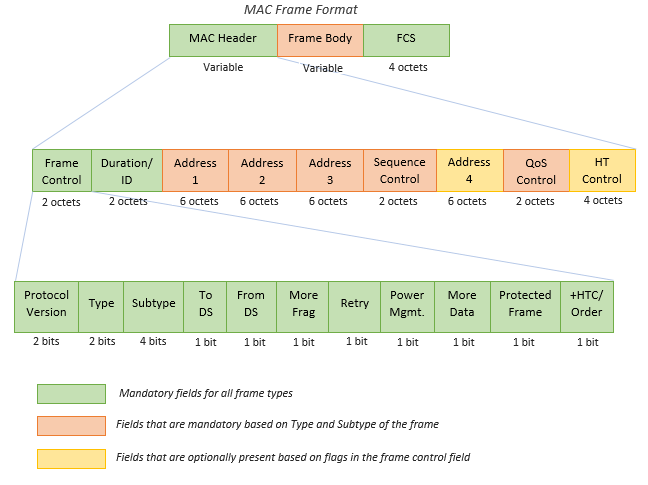

802.11 MAC Frame Decoding

802.11 MAC Frame Decoding

Decode IEEE 802.11 MAC frames.

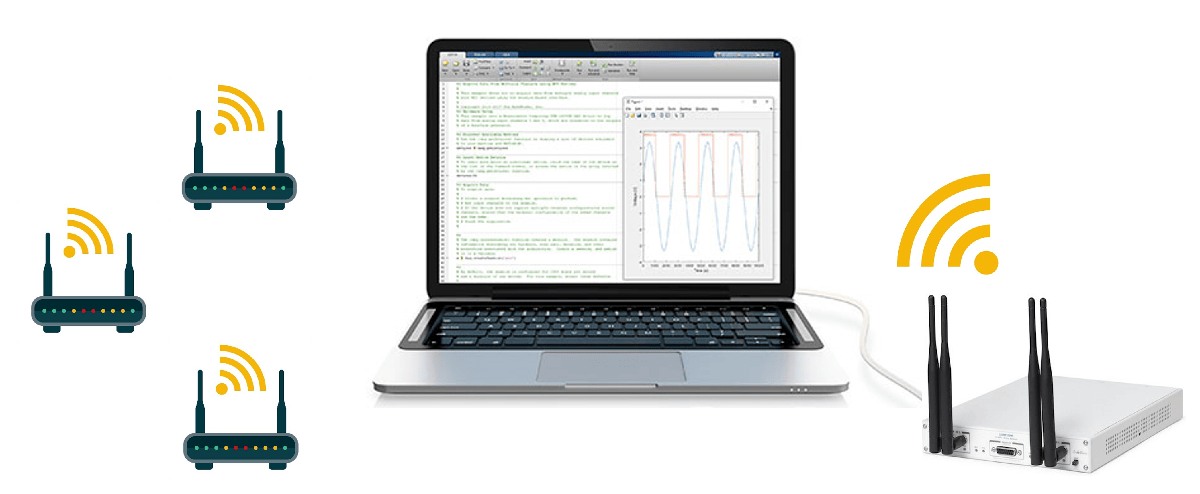

WLAN Beacon Receiver Using Software-Defined Radio

WLAN Beacon Receiver Using Software-Defined Radio

Retrieve information about WiFi networks on the 5 GHz band using a software-defined radio.
