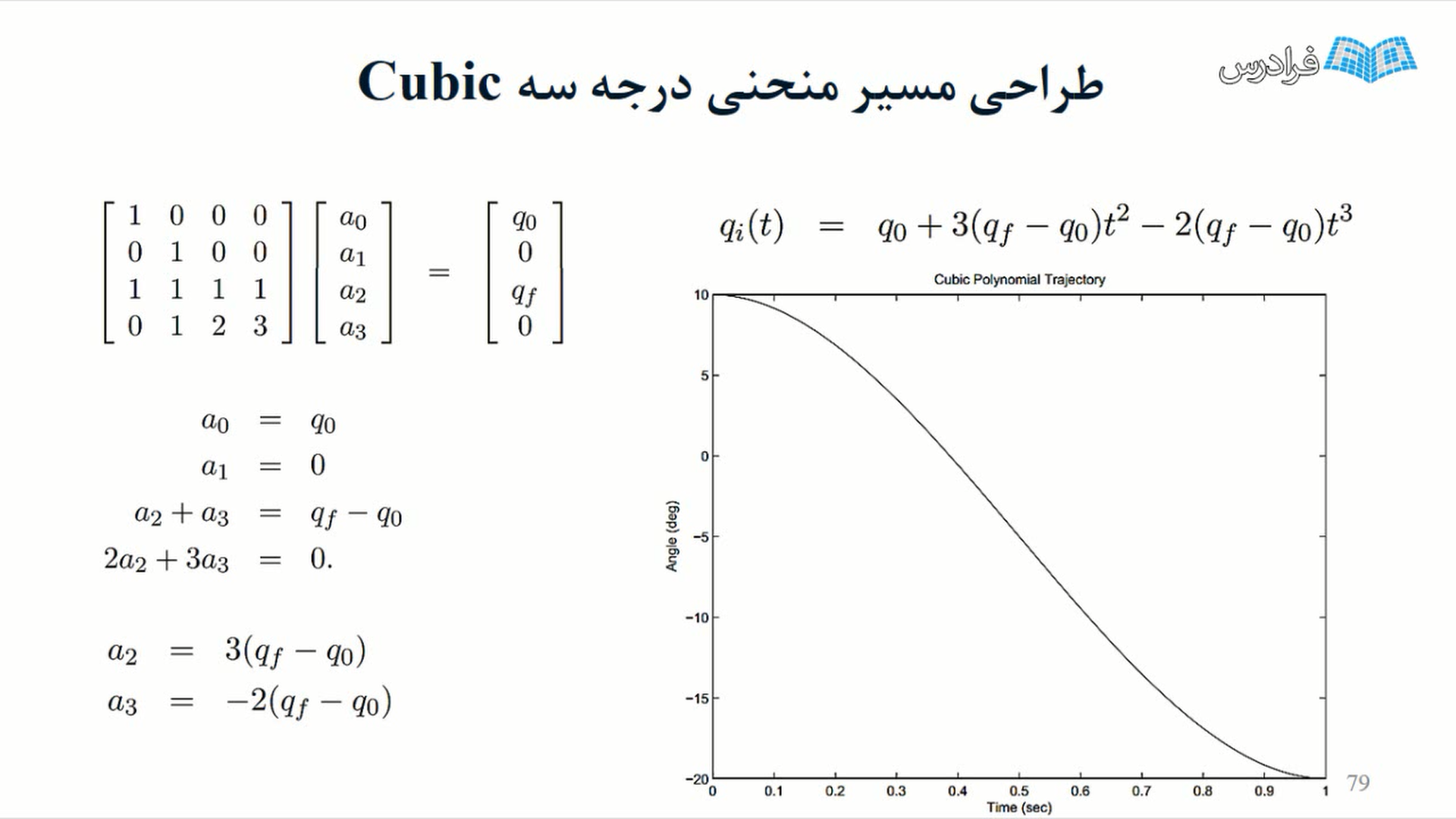

I want to plot qi=q0+3*(qf-q0)*t^2-2*(qf-q0)*t^3 as defined in the picture.i use plot or ez plot but the figure that is drawn is not correct.
q0=10(degree)
qf=-20(degree)
t=0 to 1 second

2 comentarios

KALYAN ACHARJYA
KALYAN ACHARJYA el 5 de Ag. de 2018
Editada: KALYAN ACHARJYA el 5 de Ag. de 2018
Check the answer, I have edited. Pls confirm?
Jan
Jan el 5 de Ag. de 2018
@Najmeh Eskandari: Please post your code and the output. Then explain what "not correct" means, such that we can give you an advice how to improve your code.

Iniciar sesión para comentar.

 Respuesta aceptada

KALYAN ACHARJYA
KALYAN ACHARJYA el 5 de Ag. de 2018
Editada: KALYAN ACHARJYA el 5 de Ag. de 2018

0 votos

q_o=10;
qf=-20;
t=0:.1:1;
qi=q_o+3*(qf-q_o)*t.^2-2*(qf-q_o)*t.^3;
plot(t,qi);
title('Cubic Polynomial Trajectory');
xlabel('Time(sec)'); ylabel('Angle(deg)');
